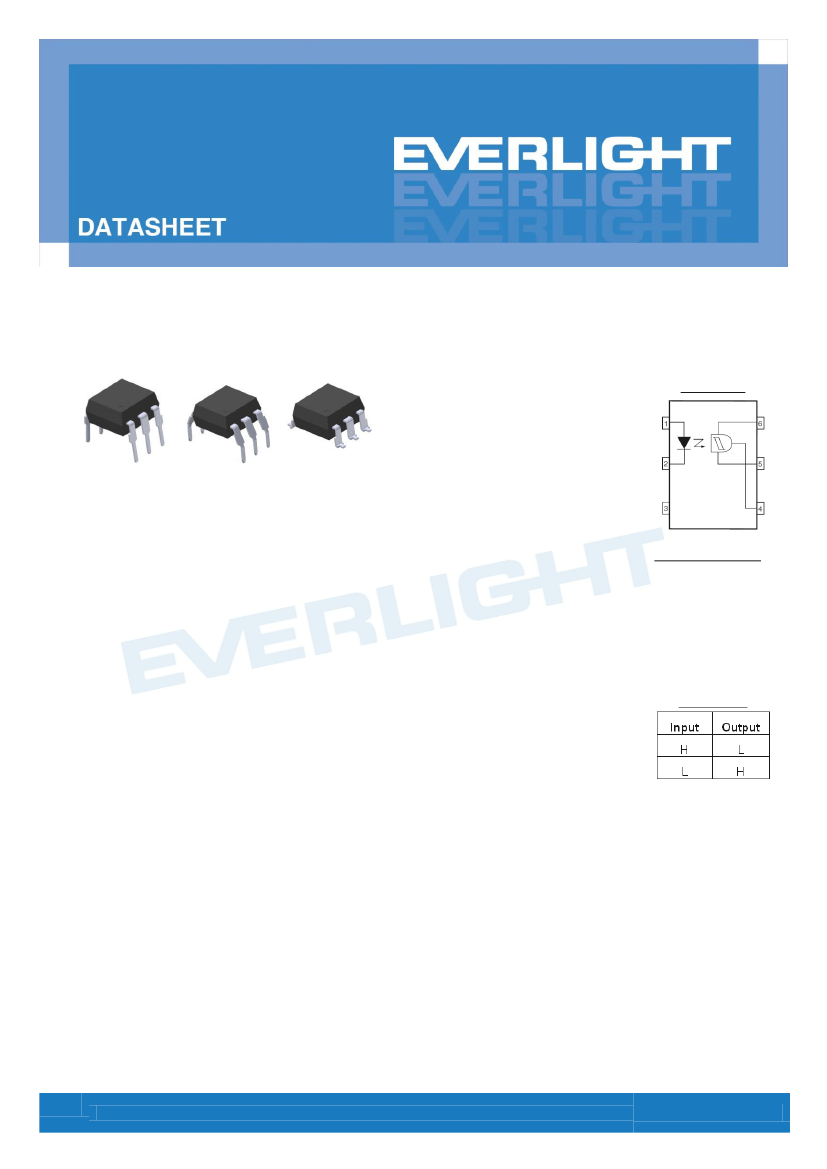

6 PIN DIP SCHMITT TRIGGER PHOTOCOUPLER
H11LX Series
Schematic
Features:
•
High data rate, 1MHz typical (NRZ)
•
Free from latch up and oscillation throughout voltage and temperature ranges.
•
Microprocessor compatible drive
•
Logic compatible output sinks 16mA at 0.4V maximum
•
Guaranteed on/off threshold hysteresis
•
Wide supply voltage capability, compatible with all popular logic systems
•
High isolation voltage between input and output (Viso=5000 V rms )
•
Compact dual-in-line package
•The
product itself will remain within RoHS compliant version
•Compliance
with EU REACH
•
UL and cUL approved(No. E214129)
•
VDE approved (No. 132249)
•
SEMKO approved
•
NEMKO approved
•
DEMKO approved
•
FIMKO approved
Pin Configuration
1. Anode
2. Cathode
3. No Connection
4. V
O
5. GND
6. V
CC
Truth Table
Description
The H11LX series of devices each consist of a GaAs infrared emitting diode optically coupled a high speed
integrated circuit detector. The output detector incorporates a Schmitt trigger, which provides hysteresis for noise
immunity and pulse shaping.
The devices are in a 6-pin DIP package and available in wide-lead spacing and SMD option.
Applications
Logic to logic isolator
Programmable current level sensor
Line receiver
－
eliminate noise and transient problems
AC to TTL conversion
－
square wave shaping
Digital programming of power supplies
Interfaces computers with peripherals
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar 6, 2018. Issue No: DPC-0000022 Rev 5
Ver.:5
Release Date:03/15/2018
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
6 PIN DIP Schmitt Trigger PHOTOCOUPLER
H11LX Series
Absolute Maximum Ratings (Ta=25°C)
Parameter
Forward current
Input
Reverse voltage
Power dissipation
V
45
Allowed Range
V
65
Allowed Range
Output
Output Current
Power dissipation
Total power dissipation
Isolation voltage
Operating temperature
Storage temperature
Soldering temperature
*2
Symbol
I
F
V
R
P
D
V
o
V
CC
I
o
P
D
P
tot
V
iso
T
opr
T
stg
T
sol
Rating
60
6
120
0 to 16
3 to 16
50
150
250
5000
-55~+100
-55~+150
260
Unit
mA
V
mW
V
V
mA
mW
mW
V rms
°C
°C
°C
Notes:
*1
AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6 are shorted together.
*
2 For 10 seconds
Electro-Optical Characteristics (Ta=25°C unless specified otherwise)
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar 6, 2018. Issue No: DPC-0000022 Rev 5
Ver.:5
Release Date:03/15/2018
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
6 PIN DIP Schmitt Trigger PHOTOCOUPLER
H11LX Series
Input
Parameter
Forward Voltage
Reverse Current
Input capacitance
Symbol
V
F
I
R
C
J
Min.
-
-
-
Typ.*
1.15
-
-
Max.
1.5
10
100
Unit
V
µA
pF
Condition
I
F
= 10mA
V
R
= 5V
V=0, f=1MHz
Output
Parameter
Operation Voltage Range
Supply Current
Output Current, High
Isolation Resistance
Symbol
V
CC
I
CC(off)
I
OH
R
ISO
Min.
3
-
-
10
11
Typ.*
-
1.6
-
-
Max.
15
5
100
-
Unit
V
mA
µA
Ω
Condition
I
F
=0mA, Vcc=5V
I
F
=0mA, Vcc=Vo=15V
V
I-O
=500VDC
Transfer Characteristics
Parameter
Supply Current
Output Voltage .low
Turn on
Threshold
1
Current
H11L1
H11L2
H11L3
I
Foff
I
Foff
/I
Fon
t
on
t
r
t
off
t
r
I
Fon
Symbol
I
CC(on)
V
OL
Min
-
-
-
-
-
-
0.5
-
-
-
-
-
Typ.
1.6
-
-
-
-
1
-
-
0.1
-
0.1
1
Max.
5
0.4
1.6
10
5
-
0.9
4
-
4
-
-
μS
μS
μS
μS
MHz
Vcc=5V,
I
F
=I
Fon
,
R
L
=270Ω
mA
Vcc=5V, R
L
=270Ω
Vcc=5V, R
L
=270Ω
mA
Vcc=5V, R
L
=270Ω
Unit
mA
V
Condition
I
F
=10mA, Vcc=5V
Vcc=5V, I
F
=I
Fon
(max.),
R
L
=270Ω
Turn off Threshold Current
Hysteresis Ratio
Turn on Time
Fall Time
Turn off Time
Rise Time
Data Rate
* Typical values at T
a
= 25°C
1
. Max. I
F(ON)
is the maximum current required to trigger the output. For examples, a 1.6mA maximum trigger current
would require the LED to be driven at a current greater than 1.6mA to guarantee the device will turn on. A 10% guard
band is recommended to account for degradation of the LED over its lifetime. The maximum allowable LED drive
current is 60mA.

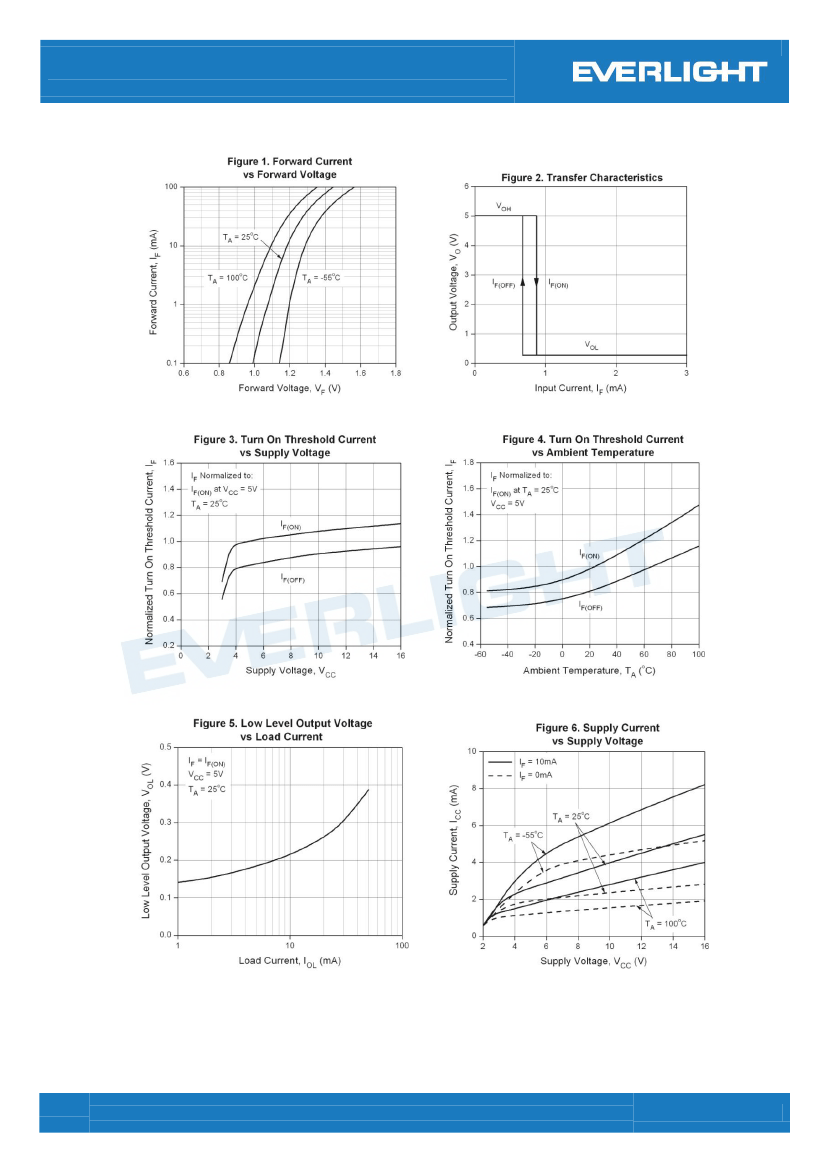

Typical Electro-Optical Characteristics Curves
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar 6, 2018. Issue No: DPC-0000022 Rev 5
Ver.:5
Release Date:03/15/2018
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
6 PIN DIP Schmitt Trigger PHOTOCOUPLER
H11LX Series
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar 6, 2018. Issue No: DPC-0000022 Rev 5
Ver.:5
Release Date:03/15/2018
狀態:Approved(正式發行)
www.everlight.com
DATASHEET
6 PIN DIP Schmitt Trigger PHOTOCOUPLER
H11LX Series

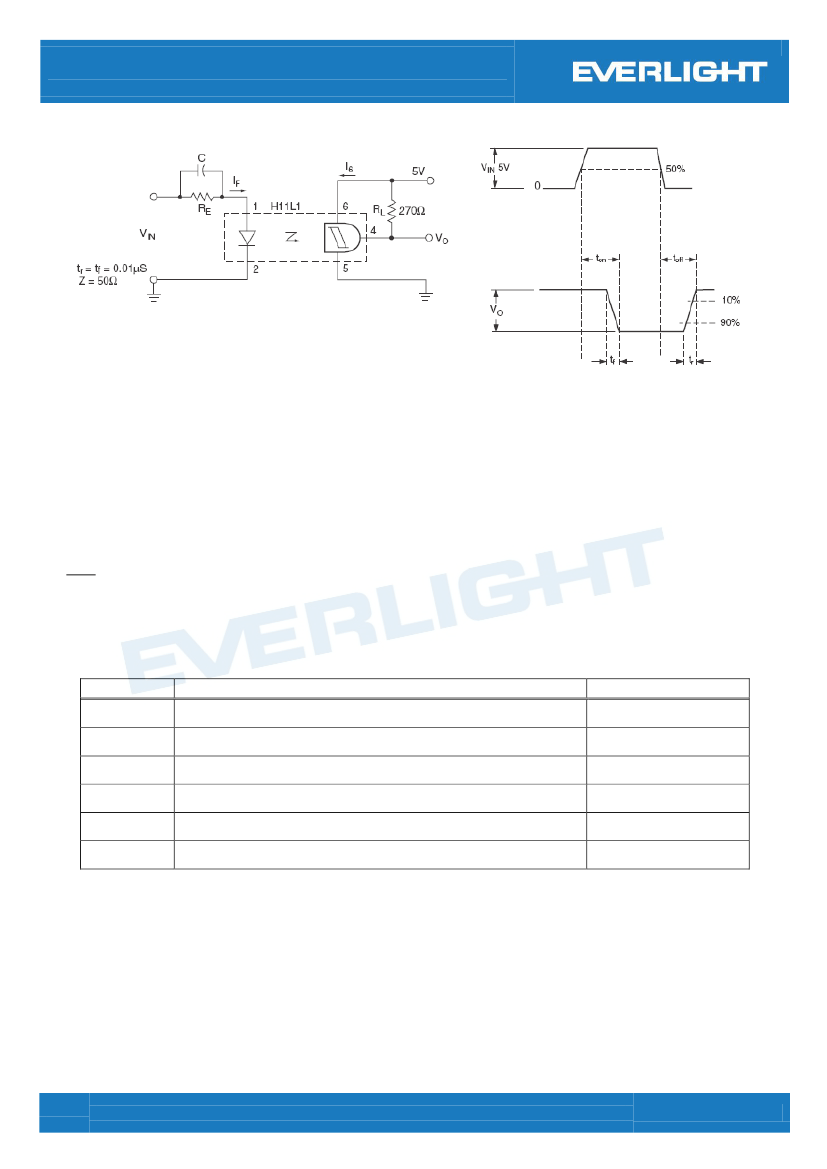

Figure 7. Switching Time Test Circuit & Waveforms
Order Information
Part Number
H11LXY(Z)-V
Note
X
Y
Z
V
= Part No. for 1, 2 or 3
= Lead form option (S, S1, M or none)
= Tape and reel option (TA, TB or none).
= VDE (optional)
Option
None
M
S + TA
S + TB
S1 + TA
S1 + TB
Description
Standard DIP-6
Wide lead bend (0.4 inch spacing)
Surface mount lead form + TA tape & reel option
Surface mount lead form + TB tape & reel option
Surface mount lead form (low profile) + TA tape & reel option
Surface mount lead form (low profile) + TB tape & reel option
Packing quantity
65 units per tube
65 units per tube
1000 units per reel
1000 units per reel
1000 units per reel
1000 units per reel
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : Mar 6, 2018. Issue No: DPC-0000022 Rev 5
Ver.:5
Release Date:03/15/2018
狀態:Approved(正式發行)
www.everlight.com
