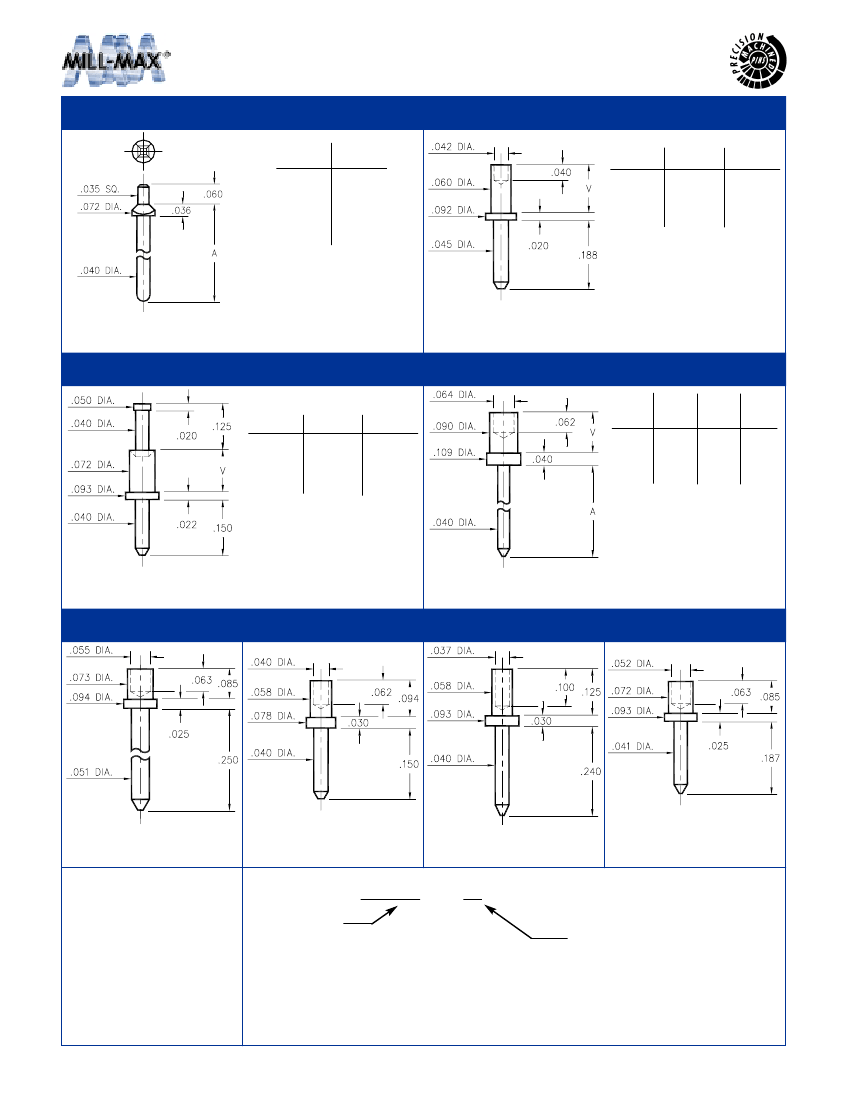

PRINTED CIRCUIT PINS
8600/8954/8955
Basic Part
Number
Pin Length
A
3159
Basic Part
Number
Board
Thickness
Length
V
8600-0
8600-1
8600-2
8954-0
8955-0
.400
.850
1.200
.136
.655
3159-1
3159-2
3159-3
3159-4
.031
.062
.094
.125
.062
.094
.125
.156
8XXX-X-05-XX-00-00-03-0
Square press-fit in .043
plated thru hole
3159-X-00-XX-00-00-08-0
Swage mount in .064 hole
3156
Basic Part
Number
Board
Thickness
Length
V
3230
Basic
Part
Number
3230-1
3230-2
3230-3
3230-4
Board
Thick-
ness
.031
.062
.094
.125
Length
A
.202
.228
.258
.288
Length
V
.065
.095
.125
.155
3156-1
3156-2
3156-3
3156-4
.031
.062
.094
.125
.051
.082
.113
.145
3156-X-00-XX-00-00-08-0
Swage mount in .076 hole
3230-X-00-XX-00-00-08-0
Swage mount in .094 hole
3146
3142
3232
3145
3146-2-00-XX-00-00-08-0
Swage mount in .076 hole.
For .062 thick board
3142-2-00-XX-00-00-08-0
Swage mount in .062 hole.
For .062 thick board
3232-3-00-XX-00-00-08-0
Swage mount in .062 hole.
For .094 thick board
3145-2-00-XX-00-00-08-0
Swage mount in .076 hole.
For .062 thick board
SPECIFICATIONS
PIN MATERIAL:
Brass Alloy 360, 1/2 Hard
( Except Swage pins which
are annealed )
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 0X - XX - 00 - 00 - 0X - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200µ"
TIN/LEAD OVER
NICKEL
15
10µ"
GOLD OVER
NICKEL
21
20µ"
GOLD OVER
NICKEL
34
50µ"
GOLD OVER
NICKEL
