3-534998-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size143KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-534998-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK

3-534998-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
body width	0.24 inch
subject depth	0.265 inch
body length	3.4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
maximum insertion force	1.668 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	534995
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68
Evacuation force-minimum value	.278 N
Base Number Matches	1

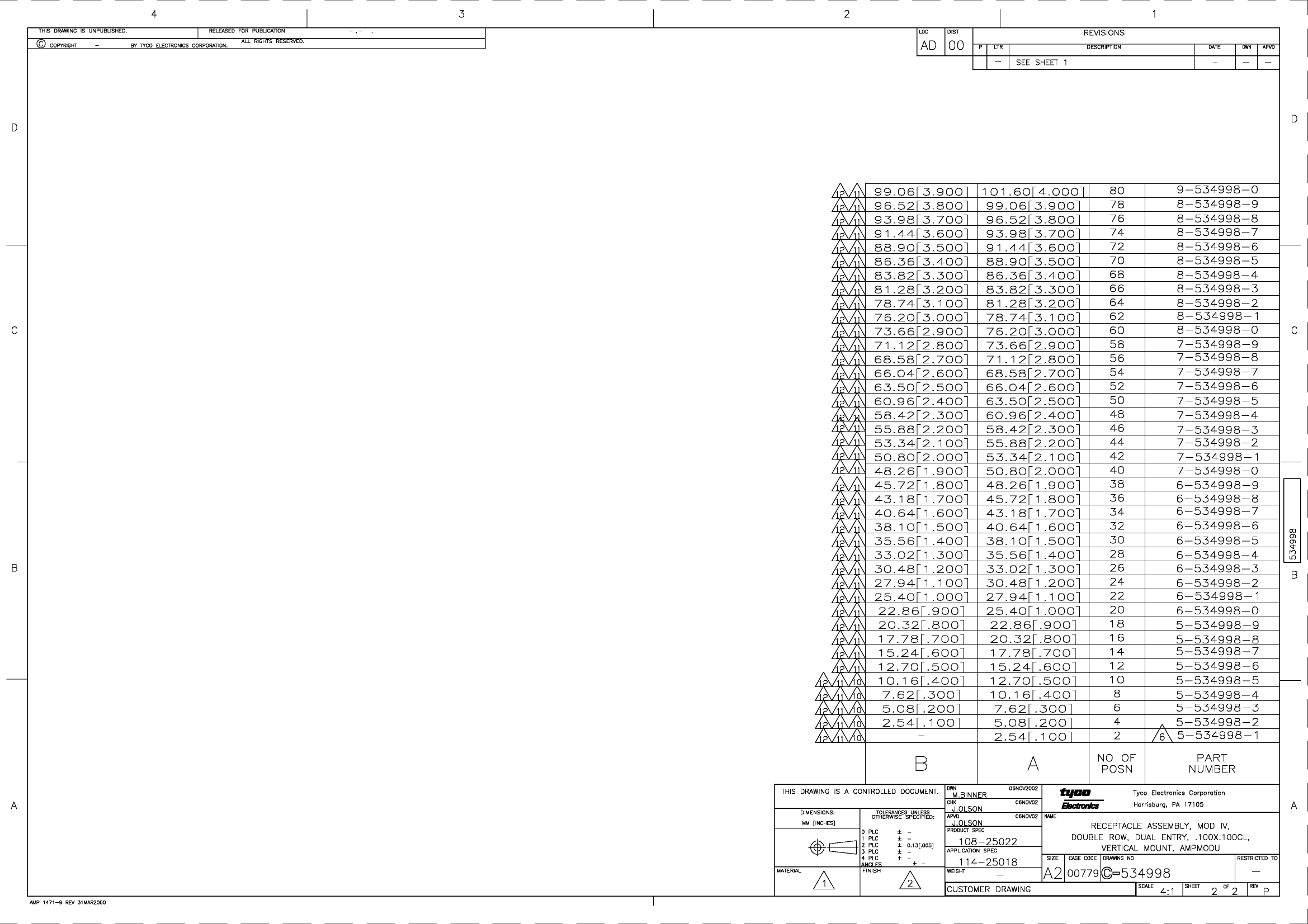

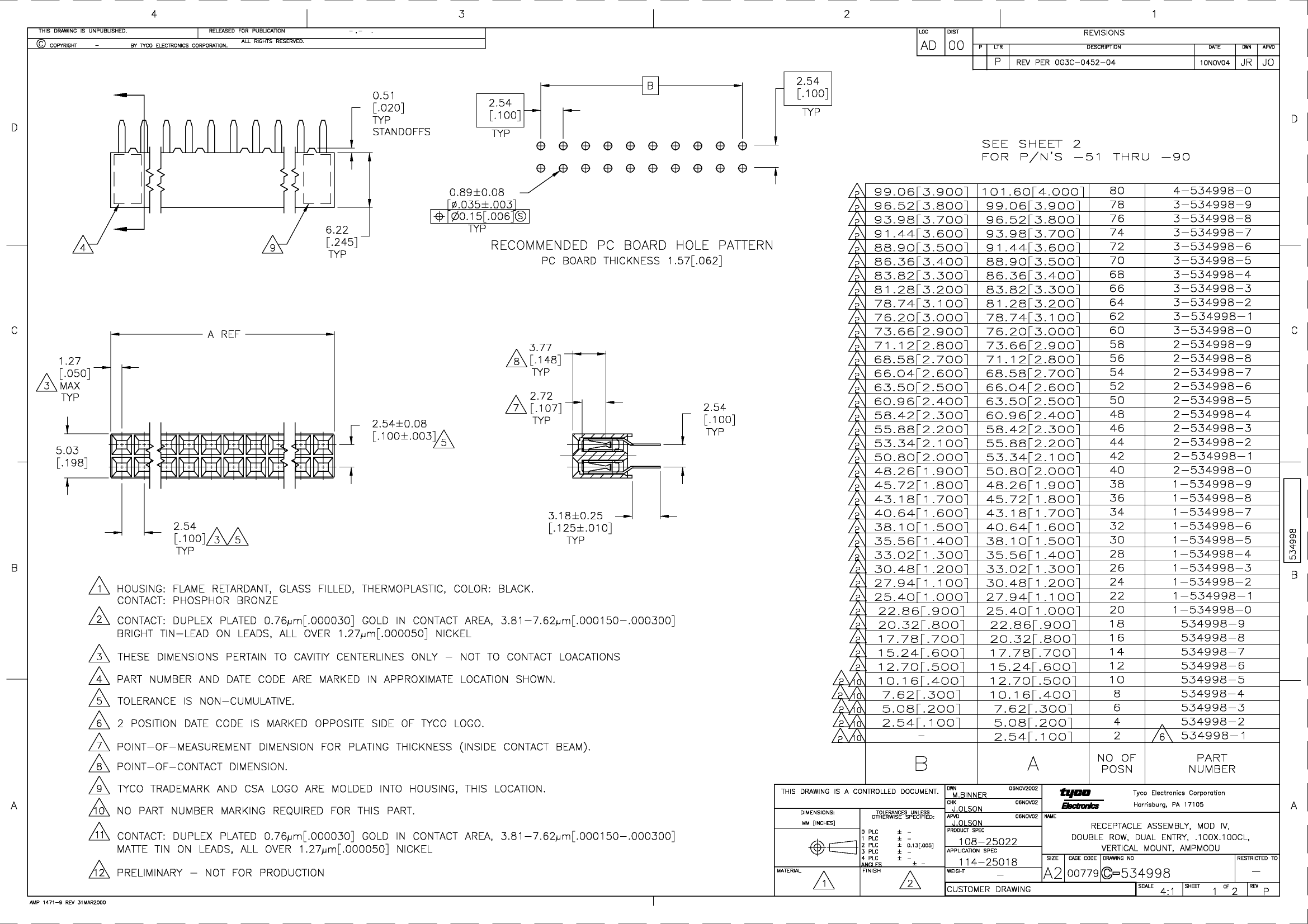

Preview

Download Datasheet

View All

3-534998-4 Related Products

	3-534998-4	2-534998-6	5-534998-1
Description	HEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,52 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK	2 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Is it Rohs certified?	incompatible	incompatible	conform to
Reach Compliance Code	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	68	52	2
Base Number Matches	1	1	1
Maker	TE Connectivity	-	TE Connectivity
body width	0.24 inch	0.24 inch	-
subject depth	0.265 inch	0.265 inch	-
body length	3.4 inch	2.6 inch	-
contact mode	RECTANGULAR	RECTANGULAR	-
Contact resistance	12 mΩ	12 mΩ	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	750VAC V	750VAC V	-
Durability	200 Cycles	200 Cycles	-
maximum insertion force	1.668 N	1.668 N	-
Insulation resistance	5000000000 Ω	5000000000 Ω	-
Insulator color	BLACK	BLACK	-
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-
Manufacturer's serial number	534995	534995	-
Plug contact pitch	0.1 inch	0.1 inch	-
Match contact row spacing	0.1 inch	0.1 inch	-
Number of connectors	ONE	ONE	-
PCB row number	2	2	-
Maximum operating temperature	105 °C	105 °C	-
Minimum operating temperature	-65 °C	-65 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	2.54 mm	2.54 mm	-
Plating thickness	30u inch	30u inch	-
Rated current (signal)	2 A	2 A	-
Guideline	UL, CSA	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	-
Terminal length	0.125 inch	0.125 inch	-
Evacuation force-minimum value	.278 N	.278 N	-
