JS-A-9359-20-CP datasheet, PDF

Datasheet> All Categories > The connector> The connector> JS-A-9359-20-CP

JS-A-9359-20-CP: DescriptionBoard Connector; CategoryThe connector The connector; File Size232KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

JS-A-9359-20-CP Overview

Board Connector

JS-A-9359-20-CP Parametric

Parameter Name	Attribute value
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

SPECIFICATIONS

Terminal Material:

Housing Material:

Withstanding:

Temp Range:

•

Brass, Tin-Plated

Nylon 66 UL 94V-2

1500V AC/min.

-40ºC - 105ºC

With Centering Pegs

Available in 2 to 24 circuits

Positive housing locks

With or without mounting pegs

With or without drain holes

Without Centering Pegs P.C.B. Dimensions

With Centering Pegs and Drain Holes

Circuits

With Centering Pegs P.C.B. Dimensions

RoHS compliant

Rev.

Description

Date

Approved

Series

Type

JS-A

9359

Pluggable Connector Vertical Header

Dual Row

(Single Row available)

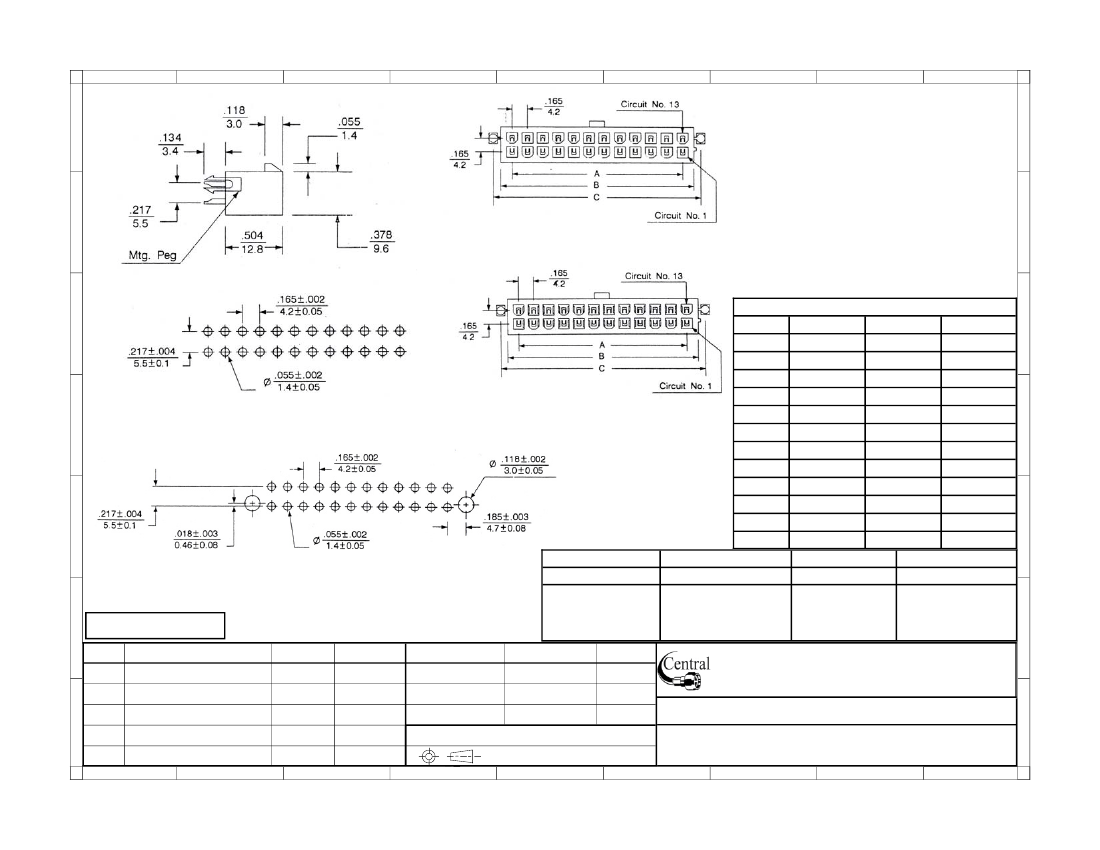

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

02/29/08

02/29/08 Part No.:

Dimensions (mm)

.213 (5.4)

.370 (9.4)

.165 (4.2)

.378 (9.6)

.535 (13.6)

.331 (8.4)

.543 (13.8) .701 (17.8)

.496 (12.6)

.709 (18.0) .866 (22.0)

.681 (16.8)

.874 (22.2) 1.031 (26.2)

.827 (21.0) 1.039 (26.4) 1.197 (30.4)

.992 (25.2) 1.205 (30.6) 1.362 (34.6)

1.157 (29.4) 1.370 (34.8) 1.528 (38.8)

1.323 (33.6) 1.535 (39.0) 1.693 (43.0)

1.488 (37.8) 1.701 (43.2) 1.858 (47.2)

1.654 (42.0) 1.866 (47.4) 2.024 (51.4)

1.819 (46.2) 2.031 (51.6) 2.189 (55.6)

Positions

Options

XX-XX

02-24

Blank=None

CP=Centering Pegs

DH=Drain Holes

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

JS-A-9359-XX-CP-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: .165” (4.2mm) Power Connector System
