54LS158LMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS158LMQB

54LS158LMQB: DescriptionMultiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size189KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS158LMQB Overview

Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20

54LS158LMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	8 mA
Prop。Delay @ Nom-Sup	21 ns
propagation delay (tpd)	21 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

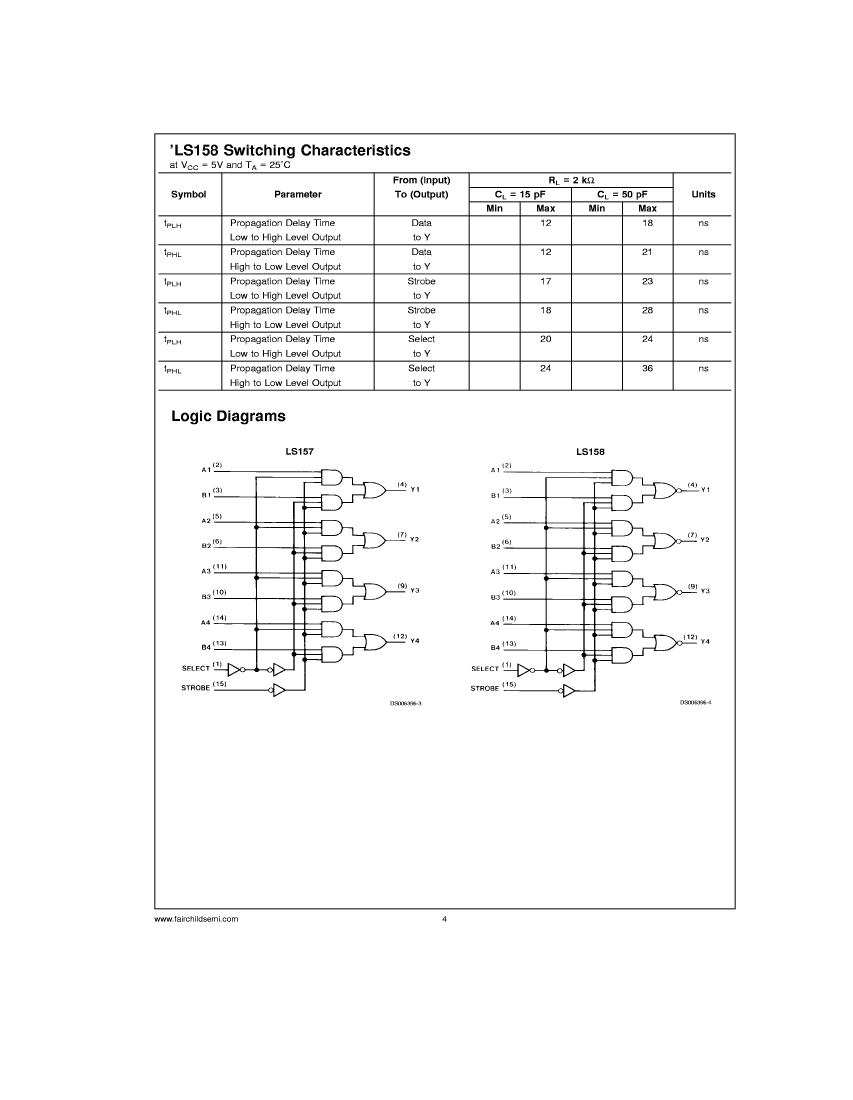

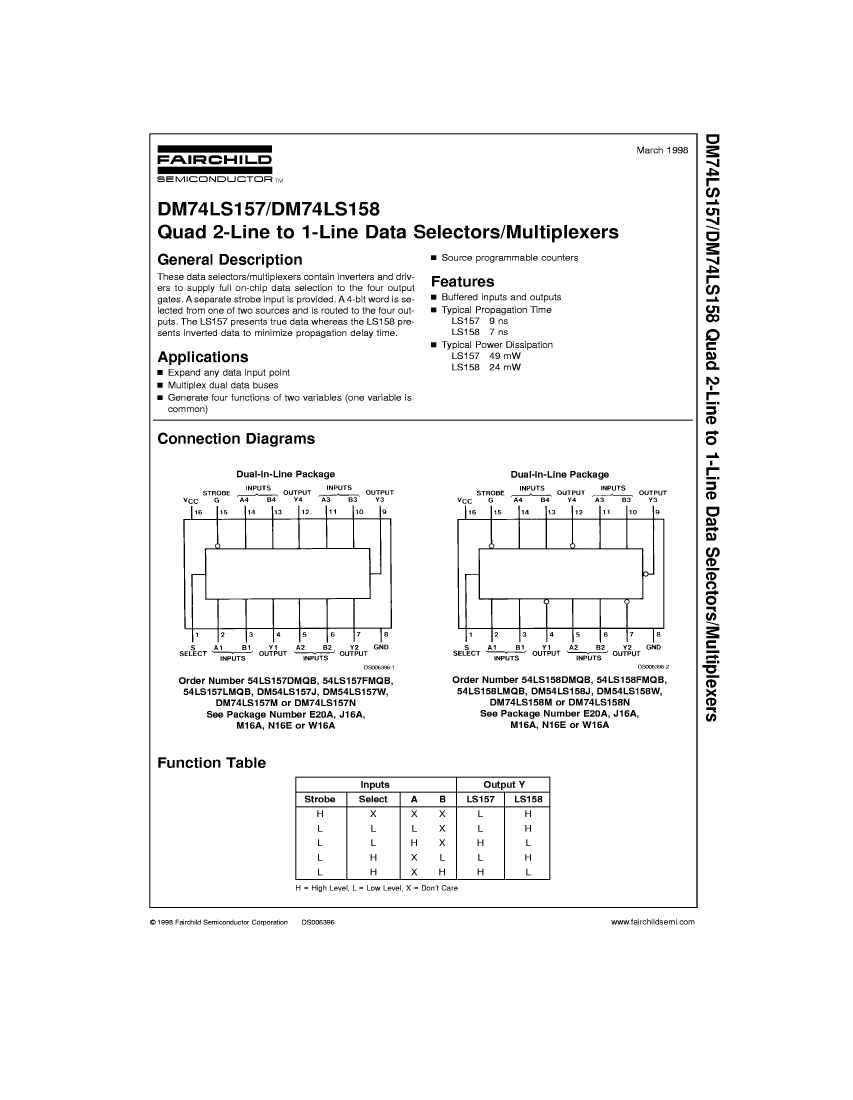

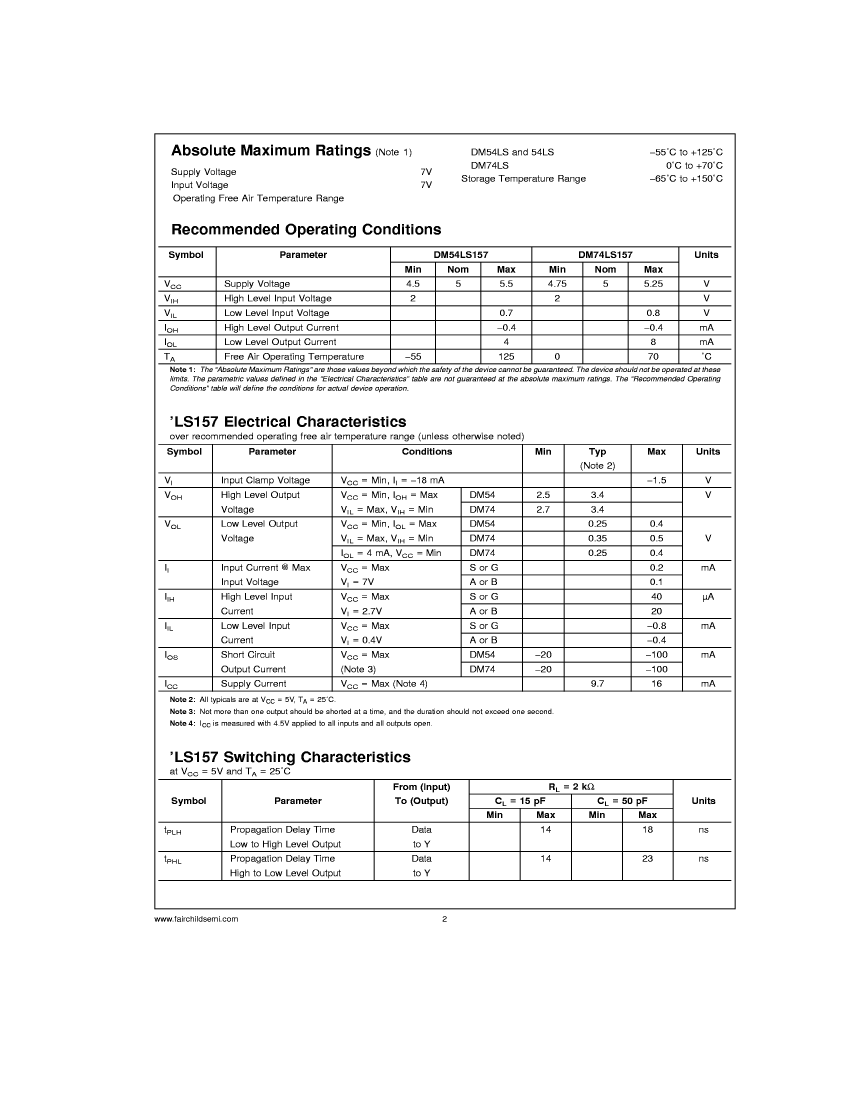

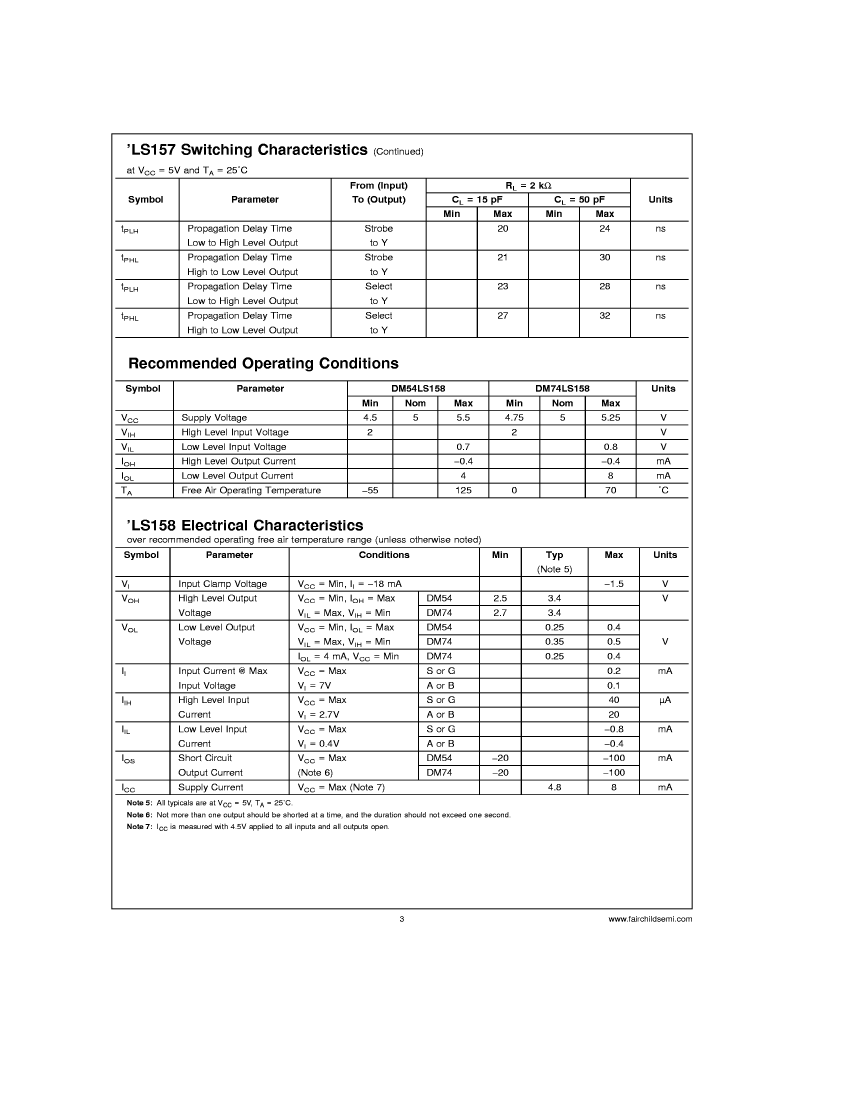

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS158LMQB Related Products

	54LS158LMQB	54LS157FMQB	54LS158FMQB	54LS157DMQB	54LS158DMQB	54LS157LMQB	DM54LS157W	DM54LS157J	DM54LS158J	DM54LS158W
Description	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDFP16, CERAMIC, FP-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDFP16, CERAMIC, FP-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16, CERAMIC, DIP-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CQCC20, CERAMIC, LCC-20	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDFP16, CERAMIC, FP-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16, CERAMIC, DIP-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, CDFP16, CERAMIC, FP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DFP	DFP	DIP	DIP	QLCC	DFP	DIP	DIP	DFP
package instruction	QCCN, LCC20,.35SQ	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	QCCN, LCC20,.35SQ	CERAMIC, FP-16	CERAMIC, DIP-16	CERAMIC, DIP-16	CERAMIC, FP-16
Contacts	20	16	16	16	16	20	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	S-CQCC-N20	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	8.89 mm	9.6645 mm	9.6645 mm	19.43 mm	19.43 mm	8.89 mm	9.6645 mm	19.43 mm	19.43 mm	9.6645 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	4	4	4	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2	2	2	2
Output times	1	1	1	1	1	1	1	1	1	1
Number of terminals	20	16	16	16	16	20	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	TRUE	INVERTED	TRUE	INVERTED	TRUE	TRUE	TRUE	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	DFP	DIP	DIP	QCCN	DFP	DIP	DIP	DFP
Encapsulate equivalent code	LCC20,.35SQ	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3	LCC20,.35SQ	FL16,.3	DIP16,.3	DIP16,.3	FL16,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	8 mA	16 mA	8 mA	16 mA	8 mA	16 mA	16 mA	16 mA	8 mA	8 mA
Prop。Delay @ Nom-Sup	21 ns	23 ns	21 ns	23 ns	21 ns	23 ns	23 ns	23 ns	21 ns	21 ns
propagation delay (tpd)	21 ns	21 ns	21 ns	21 ns	21 ns	21 ns	21 ns	21 ns	21 ns	21 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	2.032 mm	2.032 mm	5.08 mm	5.08 mm	1.905 mm	2.032 mm	5.08 mm	5.08 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.89 mm	6.604 mm	6.604 mm	7.62 mm	7.62 mm	8.89 mm	6.604 mm	7.62 mm	7.62 mm	6.604 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-	-	-	-
