Automotive Fuses 40A PAL

0293840.H Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Automotive Fuses
RoHS	Details
Product	Cartridge Box Fuse
Current Rating	40 A
Voltage Rating DC	32 VDC
Mounting Style	Holder
Termination Style	Cartridge Box Socket
Fuse Type	Time Delay / Slow Blow
Color	Green
Indicator Style	Element Window
Fuse Size / Group	PAL 2938
Packaging	Bulk
Diameter	-
Height	30.6 mm
Length	23 mm
Type	Auto Link PAL Fuse
Width	16.4 mm
Factory Pack Quantity	100

Preview

Download Datasheet

View All

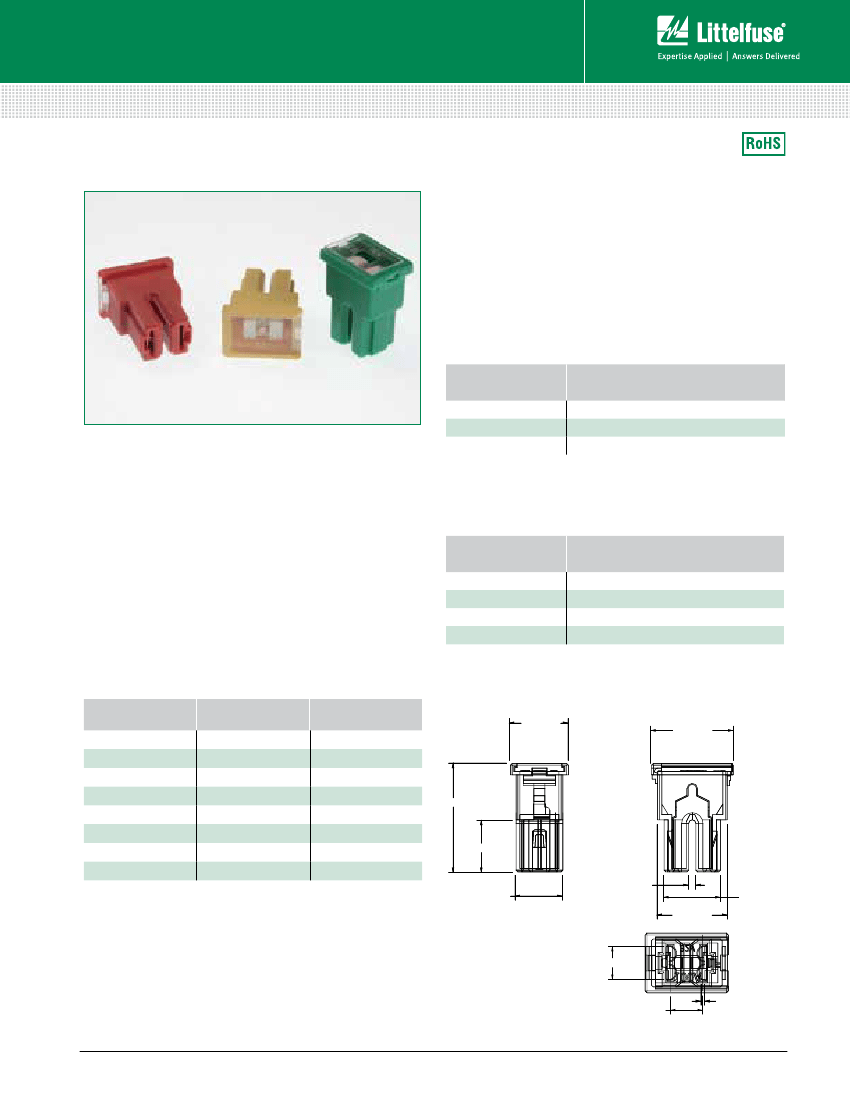

PAL Fuses

Auto Link PAL Fuses - 293

Specifications

Voltage Rating:

32 VDC

Current Cycling:

24˚C

The fuses satisfy the performance requirements after 50% of the rated current

is applied for 10,000 cycles. Each cycle consists of an interrupted current with

the pattern of 5 minutes ON and 10 minutes OFF.

Operating Temperature Range:

-40˚C to +125˚C

Complies with JASO 0612

Ordering Information

Part Number

0293xxx.H

0293xxx.U

0293xxx.MXJ

Package Size

100

500

1000

Description

PAL fuses are commonly found on many Japanese and domestic

built vehicles.

Time-Current Characteristics

% of Rating

110

200

350

600

Opening Time Min / Max (s)

14,400 s

5 s / 100 s

0.2s / 7 s

0.040 s / 1 s

Ratings

Part Number

0293020._

0293030._

0293040._

0293050._

0293060._

0293070._

0293080._

0293100._

Dimensions

Current

Rating (A)

20

30

40

50

60

70

80

100

Body

Color

LIGHT BLUE

PINK

GREEN

RED

YELLOW

BROWN

BLACK

BLUE

Dimensions in mm

16.4 ±0.5

23.0 ±0.5

30.6

±0.5

14.7

±0.2

2.0

13.2

±0.5

±0.2

15.9

19.6 ±0.5

±0.5

9.2 ±0.2

1.0 ±0.2

9.0 ±0.2

83
