MODEL : ATPG-L52C
1. Features
1-1. InGaN Pure Green Chip
1-2. 5mm all epoxy resin mold type
1-3. Colorless Cylinder type LED lamp
1-4. Ultra luminous intensity
2. Application
2-1. LED Display / Traffic Guiding signal
2-2. Illumination device
2-3. Back Light for Signboard

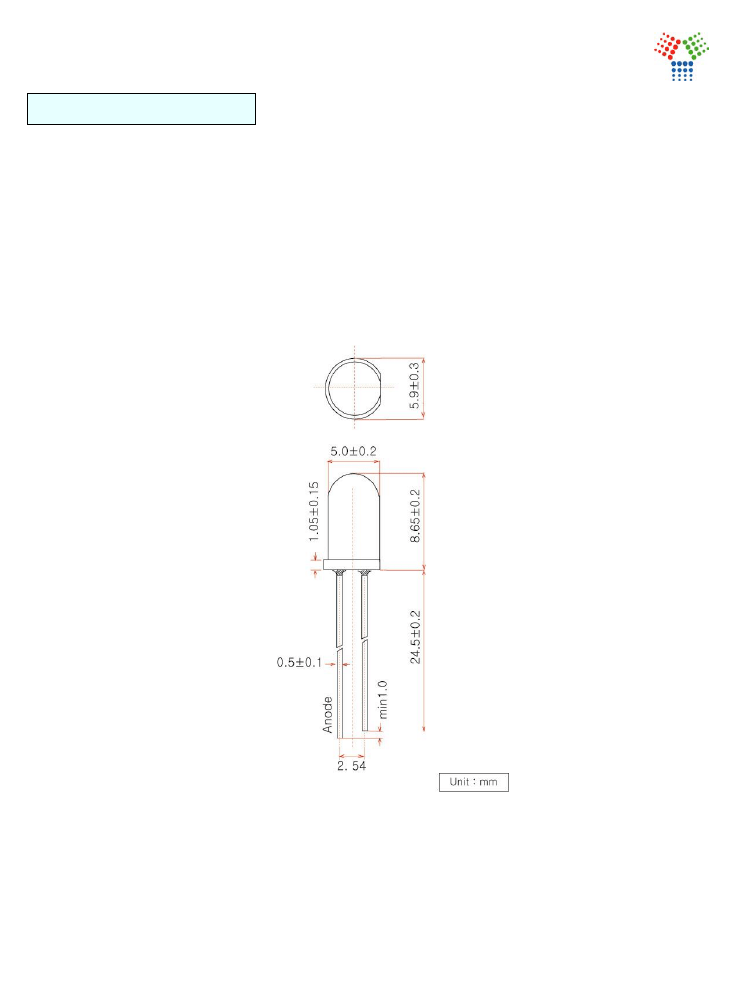

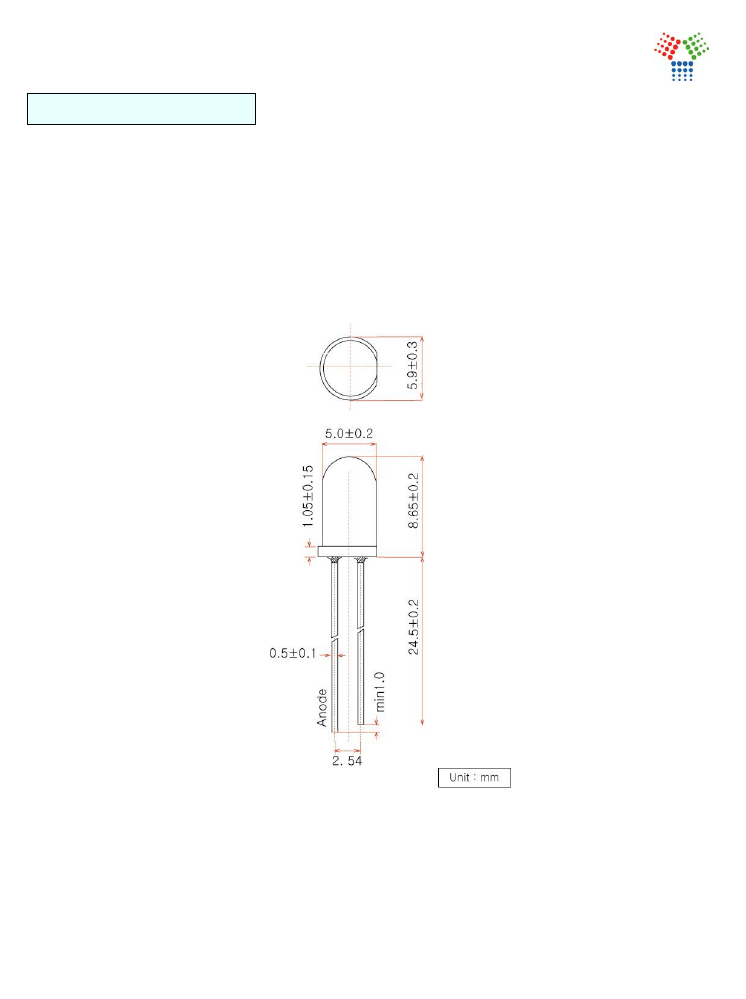

3. Dimension
▶Description
:
•. 5mm, 20
o
Water clear type
• Designed for Ultra high brightness
Data subject to change.
MODEL : ATPG-L52C
4. Absolute maximum ratings and Characteristics
4 - 1 Absolute maximum ratings
Items
Forward Current
Pulse Forward Current
*1
Power Dissipation
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
*2
Symbols
I
F
I
FP
P
D
V
R
Topr
Tstg
T
SOL
Ratings
30
50
120
5
-20 ~ +80
-30 ~ +100
260±5℃
Ta=25℃
Units
mA
mA
mW
Vr
℃
℃
℃
*1) Pulse Width = 100
μsec,
Duty
≤
10%
*2 ) 5sec at location 3.0mm away from the base of the epoxy bulb
4 - 2 Optical and Electrical Characteristics
Item
Forward Voltage
Reverse Current
Luminous Intensity
Dominant Wavelength
Spectral Linewidth
Viewing Angle
Symbol
V
F
I
R
I
V
λd
Δλ
2Θ
1/2
Condition
I
F
=20[mA]
V
R
=5[V]
I
F
=20[mA]
I
F
=20[mA]
I
F
=20[mA]
I
F
=20[mA]
Min
-
-
7000
520
-
Typ
3.4
-
8400
525
26
20
Max
3.8
10
-
530
-
Ta=25℃
Unit
V
㎂
mcd
nm
deg
Data subject to change.
MODEL : ATPG-L52C

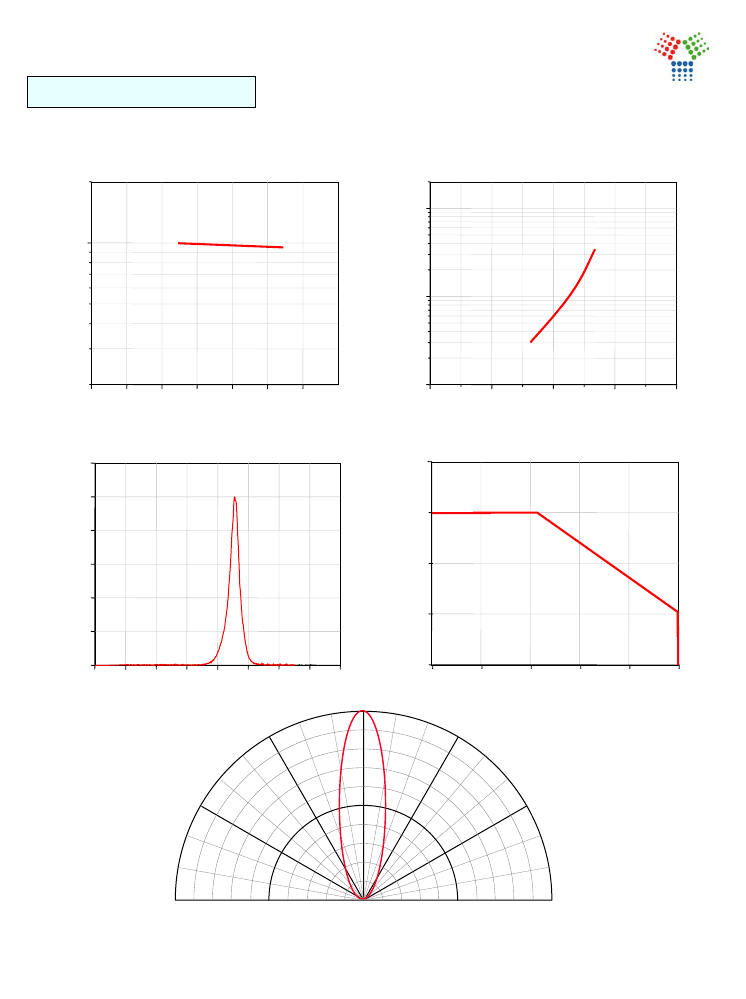

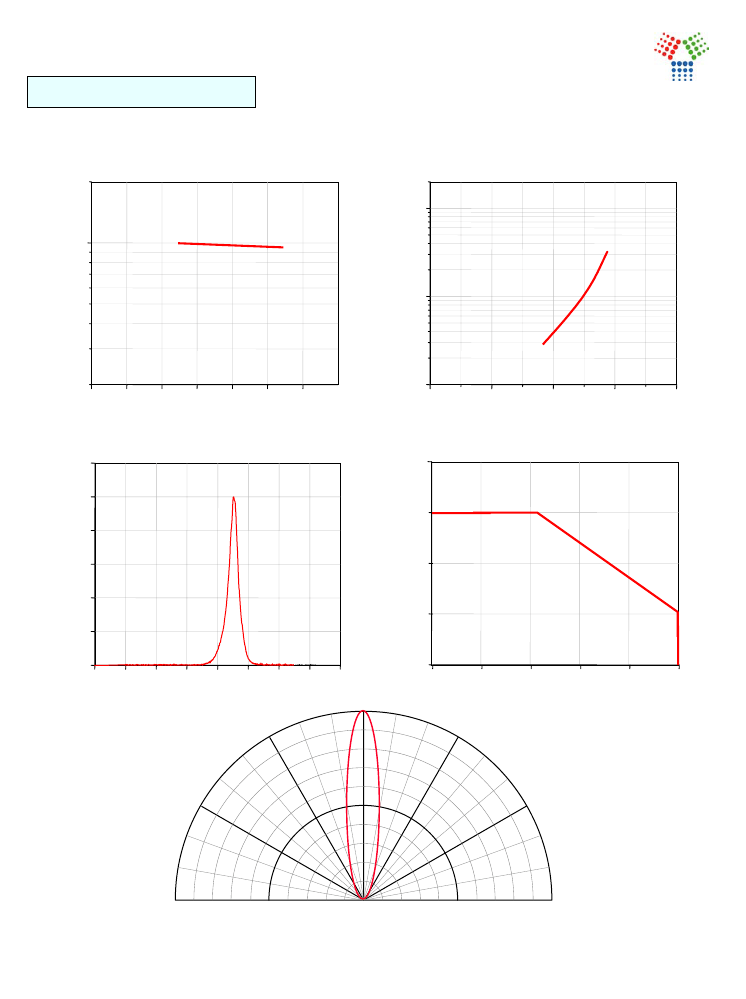

6. Typical Electro-optical characteristics curve
■
Lead Temperature vs. Relative Luminosity
Relative Luminous Intensity[a.u.]
■Forward
Voltage vs. Forward Current
100
1
Forward Current[mA]
0
20
40
60
80
100
10
0.1
-20
1
1.0
2.0
3.0
4.0
5.0
Lead Temperature[℃]
Forward Voltage[V]
■
Luminous Spectrum
1.2
1.0
■Ambient
Temperature vs. Forward Current
40
Relative Intensity[a.u.]
30
Forward Current[mA]
0.8
0.6
0.4
0.2
0.0
20
10
400
450
500
550
600
650
700
0
0
-20
0
20
40
60
80
Ambient Temperature[℃]
30
■
Spatial Distribution
- 30
- 60
60
- 90
1
0.5
0
0.5
1
90
Data subject to change.
MODEL : ATPG-L52C
7. Inspection Standards
7 - 1 In production line, 100% inspection for electro-optical characteristics should
be done on following 3 items.
- VF , IR , Iv
7 - 2 Outgoing inspection be done to the standards as below.
- MIL-STD-104D, S-3, AQL 1.0%
- Items: VF, IR, Iv,
λp
8. Packing Standards
8 – 1.Taping :
Standard taping provided. Or user’s request.
8 – 2 Bulk Packing :
In one vinyl pack, 500 or 1,000 LEDs are inserted. Or user’s request.
9. Caution on usage
9 - 1 Be careful never to exceed , even momentarily, the absolute maximum ratings
specified in the data sheet.
9 - 2 ACROSENTEC will not be held responsible for any damage to the user that
may result from accidents or any other reasons during operation of the user such
as use in excess of the absolute maximum ratings, or not keeping the matters that
demand special attention.
9 - 3 Store and use where there is no corrosive gas.
9 - 4 The bending or cutting of the lead should be done in room temperature and no
force applied on the package.
Data subject to change.
Copyright
ⓒ
2003 AcrosenTec Co.,Ltd, (www.AcrosenTec.com)
