HI4-507A-8: DescriptionIC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,LLCC,28PIN,CERAMIC; CategoryAnalog mixed-signal IC The signal circuit; File Size807KB，14 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HI4-507A-8 Overview

IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,LLCC,28PIN,CERAMIC

HI4-507A-8 Parametric

Parameter Name	Attribute value
package instruction	QCCN, LCC28,.45SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N28
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	28
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum connection time	500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

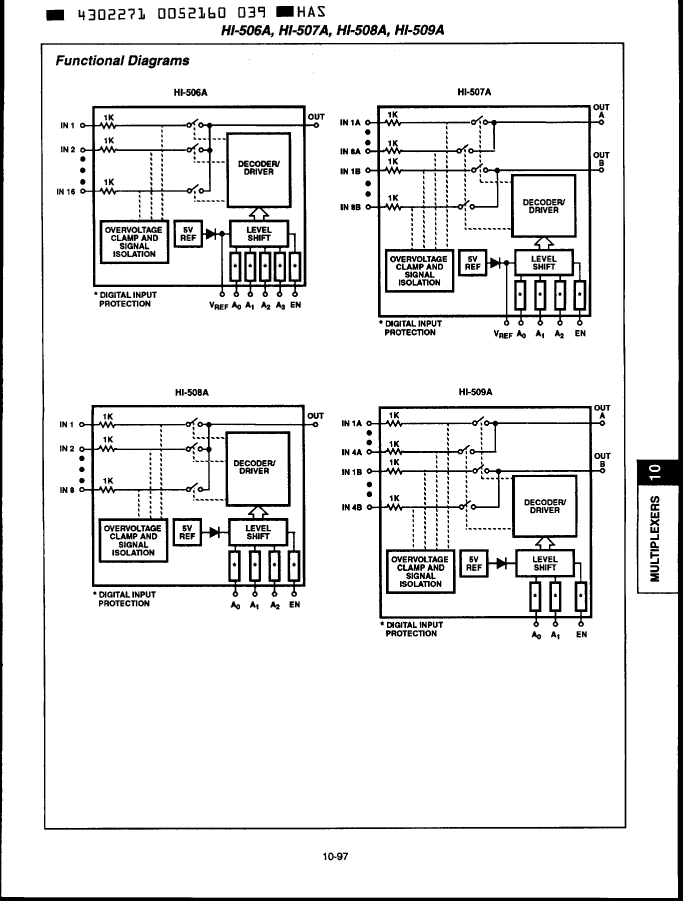

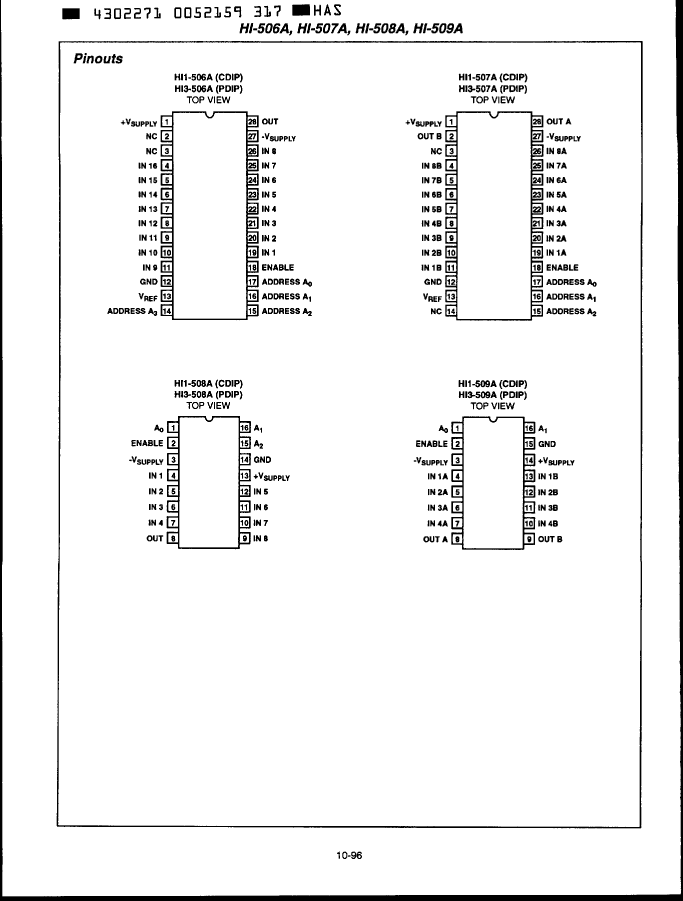

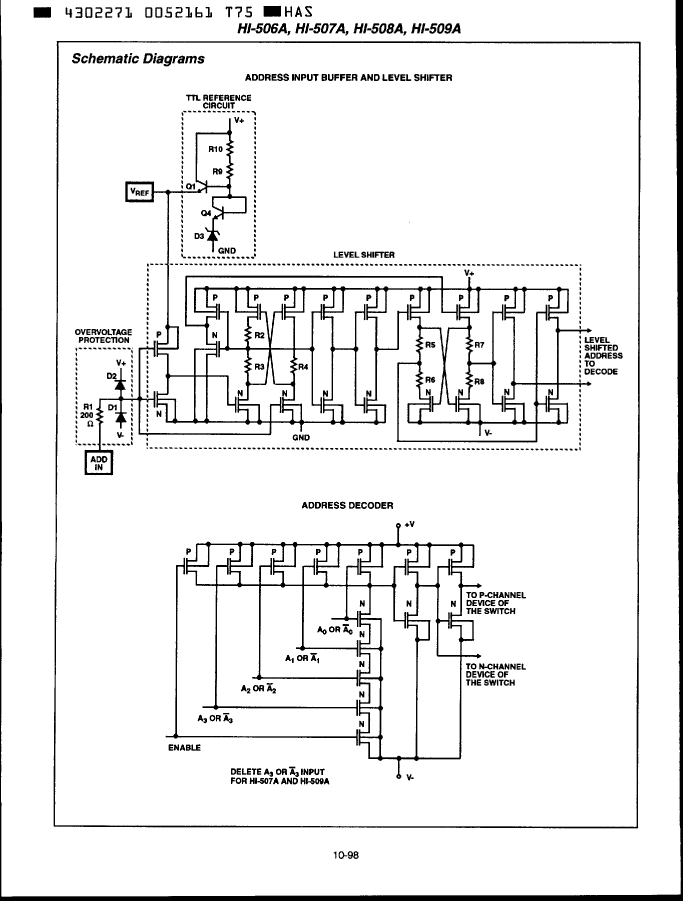

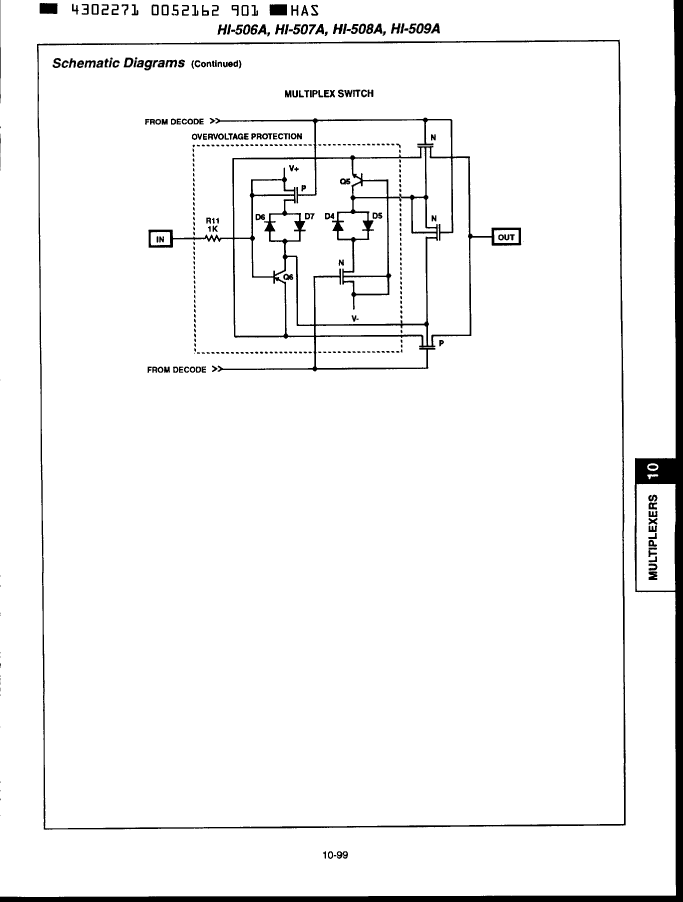

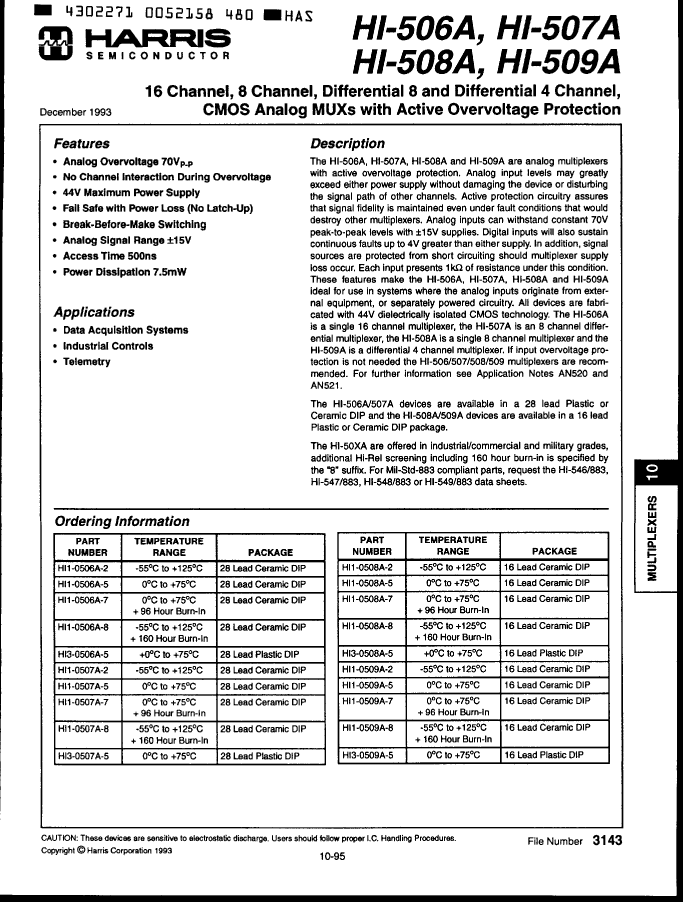

Preview

Download Datasheet

View All

HI4-507A-8 Related Products

	HI4-507A-8	HI4-508A-8	HI4-506A-8	HI4-509A-8	HI1-507A-2	HI1-507A-5
Description	IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,LLCC,28PIN,CERAMIC	IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,LLCC,20PIN,CERAMIC	IC,ANALOG MUX,SINGLE,16-CHANNEL,CMOS,LLCC,28PIN,CERAMIC	IC,ANALOG MUX,SINGLE,4-CHANNEL,CMOS,LLCC,20PIN,CERAMIC	IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,28PIN,CERAMIC	8-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP28, CERAMIC, DIP-16
Reach Compliance Code	unknown	unknown	unknown	unknown	not_compliant	not_compliant
JESD-30 code	S-XQCC-N28	S-XQCC-N20	S-XQCC-N28	S-XQCC-N20	R-XDIP-T28	R-CDIP-T28
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	8	8	16	4	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	28	20	28	20	28	28
Maximum on-state resistance (Ron)	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	75 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN	DIP	DIP
Encapsulate equivalent code	LCC28,.45SQ	LCC20,.35SQ	LCC28,.45SQ	LCC20,.35SQ	DIP28,.6	DIP28,.6
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum signal current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum supply current (Isup)	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	NO	NO
Maximum connection time	500 ns	500 ns	500 ns	500 ns	500 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL EXTENDED
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	DUAL	DUAL
package instruction	QCCN, LCC28,.45SQ	QCCN, LCC20,.35SQ	QCCN, LCC28,.45SQ	QCCN, LCC20,.35SQ	-	CERAMIC, DIP-16
Base Number Matches	1	1	1	1	-	-
