CY74FCT162652ETPACT datasheet, PDF

CY74FCT162652ETPACT: DescriptionRegistered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56; Categorylogic logic; File Size194KB，9 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

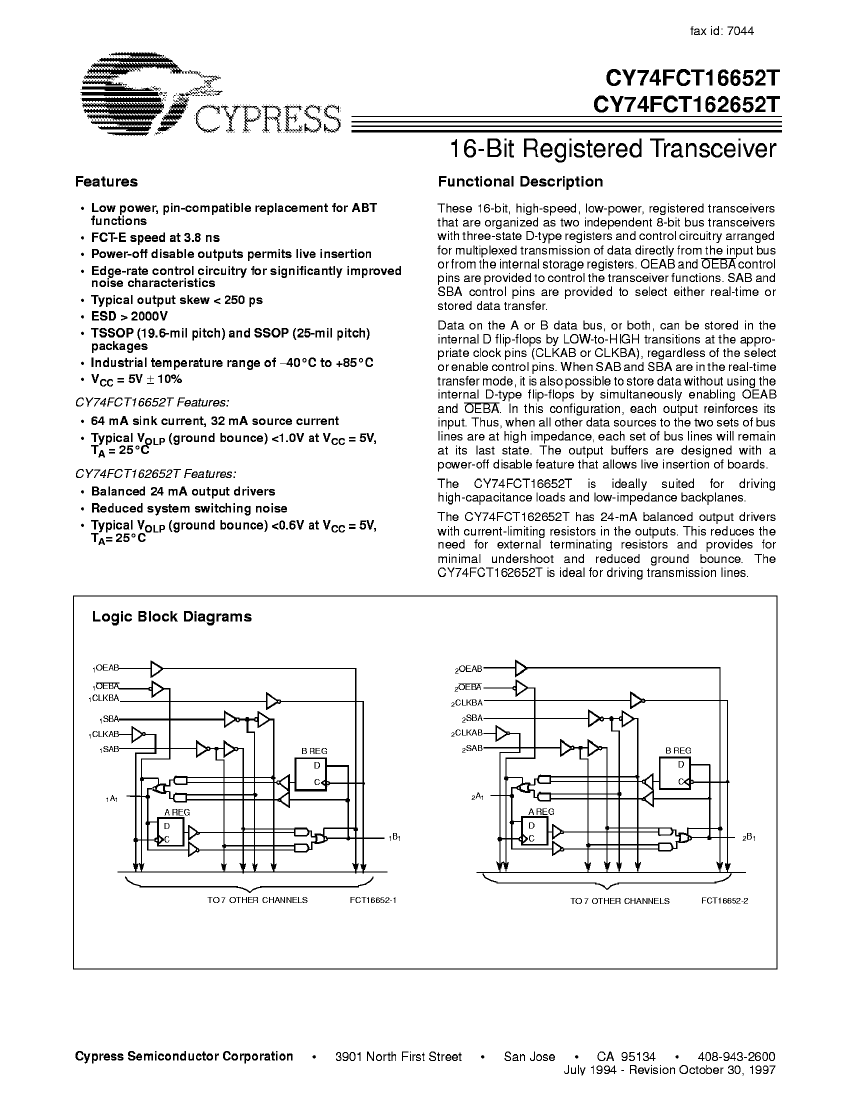

CY74FCT162652ETPACT Overview

Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP,

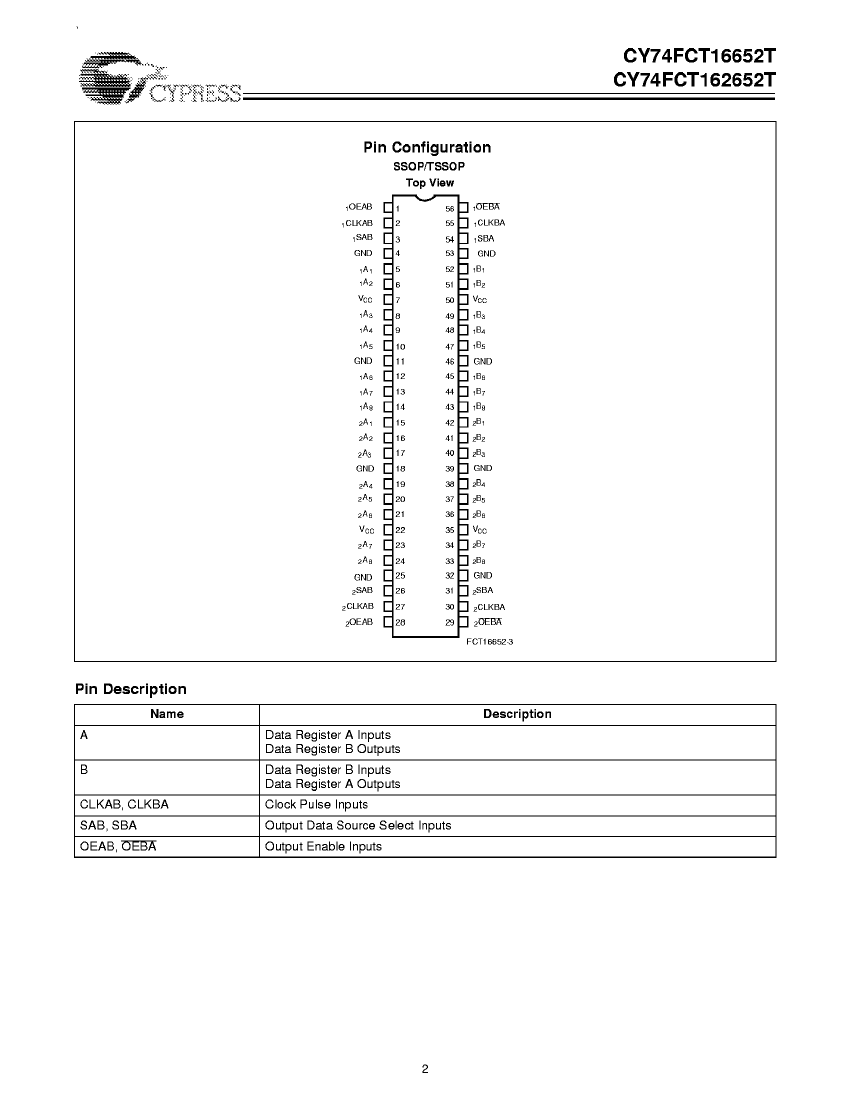

Contacts	56
Reach Compliance Code	unknown

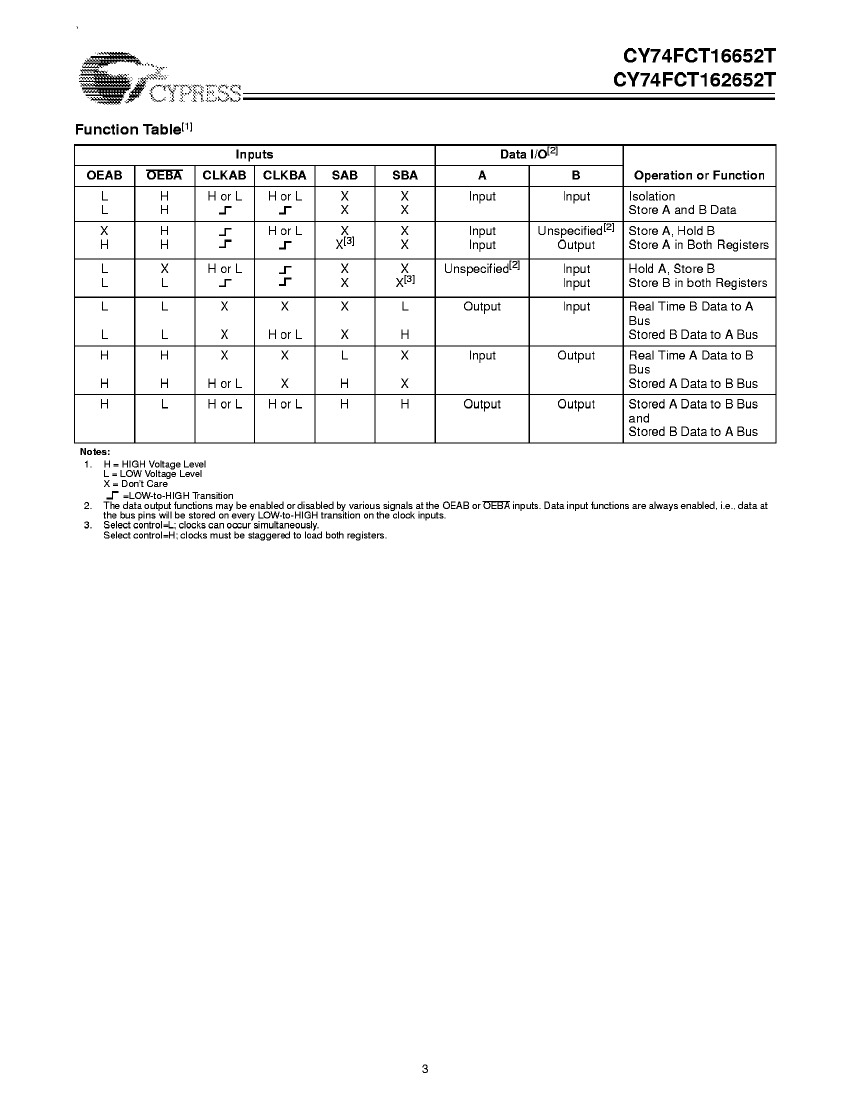

Other features	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
series	FCT
JESD-30 code	R-PDSO-G56
length	14 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	56

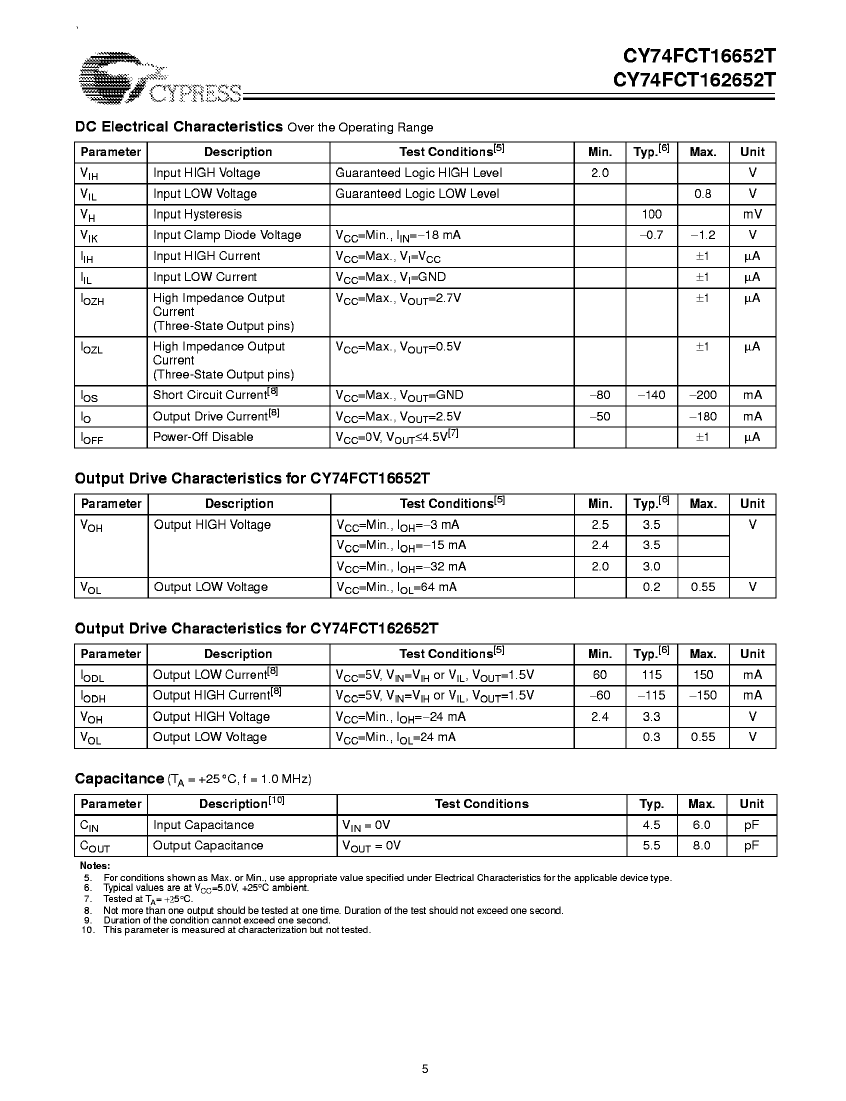

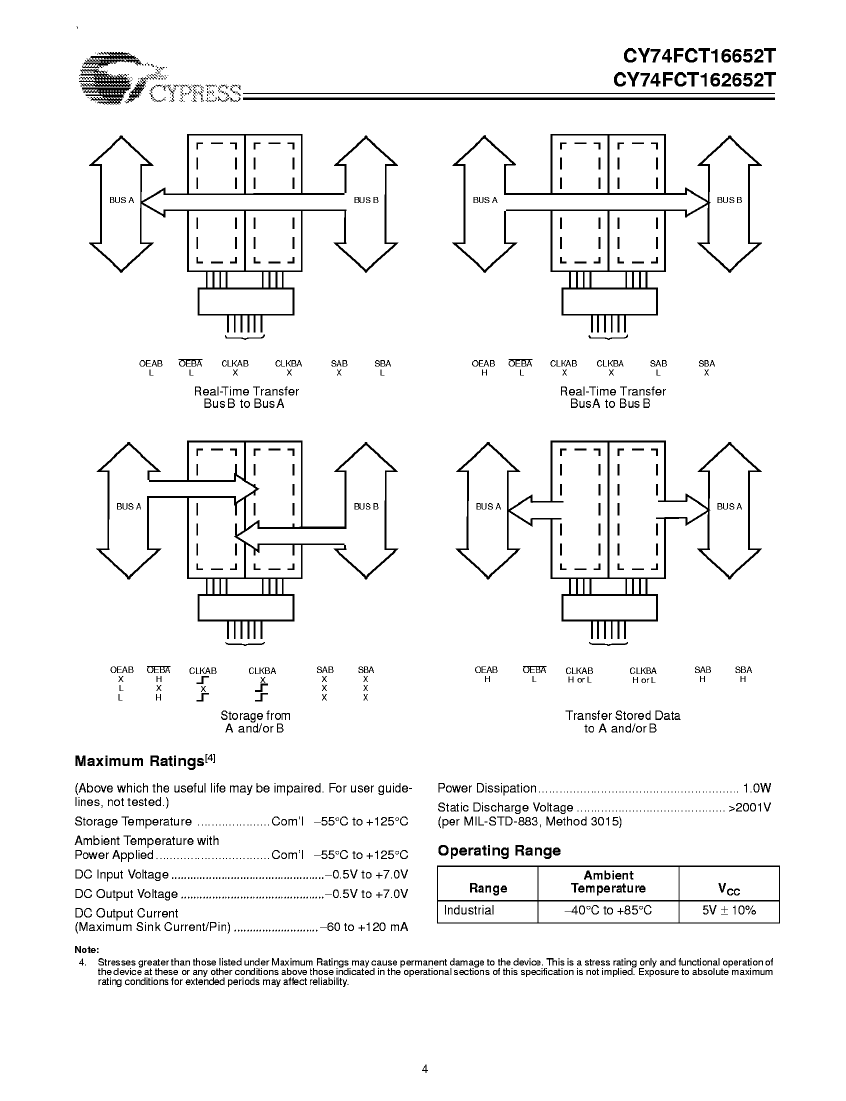

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	3.8 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm
Base Number Matches	1

	CY74FCT162652ETPACT	CY74FCT16652ETPVCT	U538D-H20003-10KPG	PH4M17-224SCBOTB4/7.2/2.2-U
Description	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Peizoresistive Sensor, 0Psi Min, 10000Psi Max, 0.1%, 1-6V, Cylindrical	Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	Port Height = 15.6 MM	ROHS COMPLIANT
Maximum operating temperature	85 °C	85 °C	125 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Terminal pitch	0.5 mm	0.635 mm	-	1.27 mm
