30CPQ100 datasheet, PDF - EEWORLD Datasheet

30CPQ100: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 100V V(RRM), Silicon, SIMILAR TO TO-247AD, 3 PIN; CategoryDiscrete semiconductor diode; File Size136KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

30CPQ100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30CPQ100	-	-	View	Buy Now

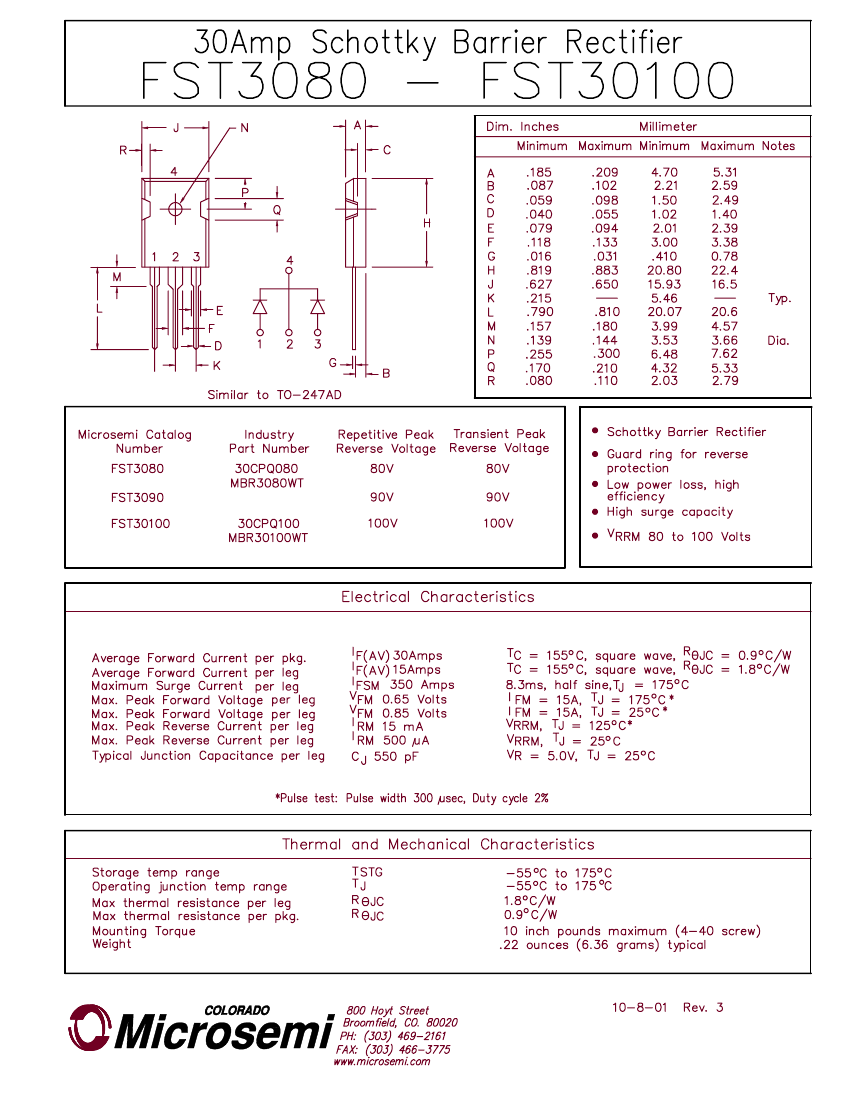

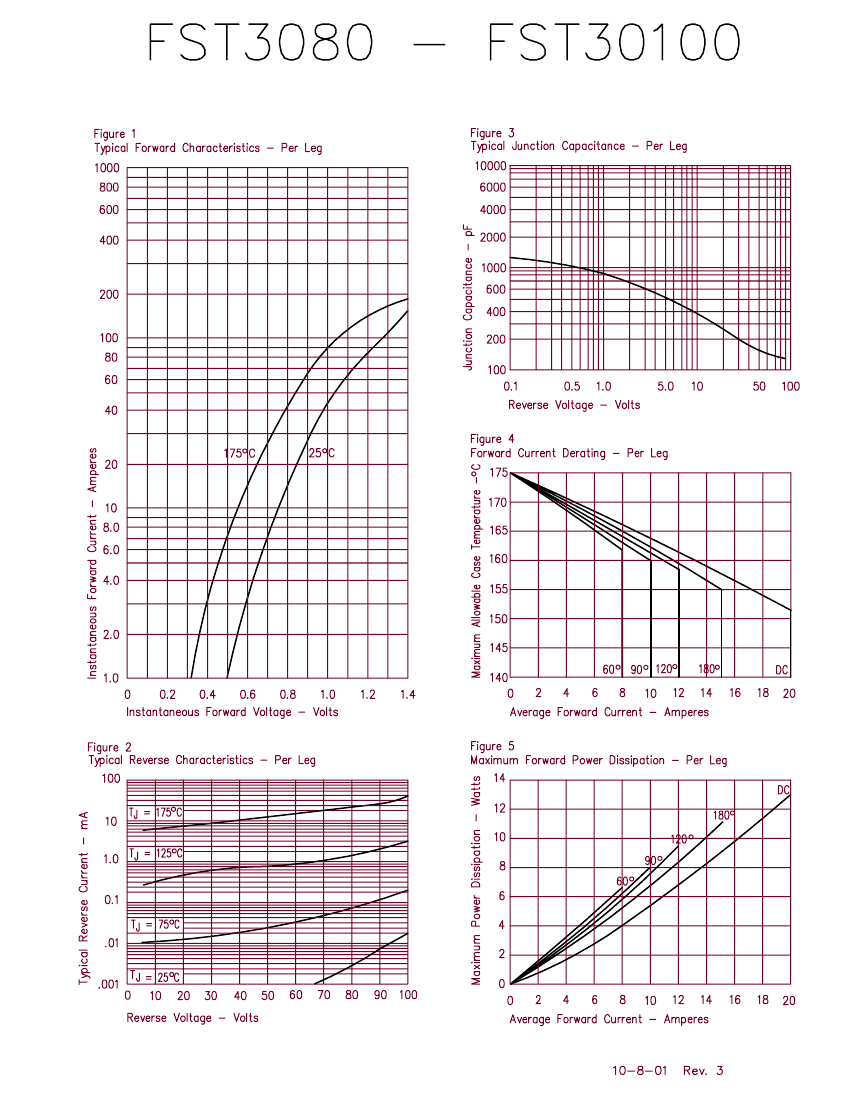

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 100V V(RRM), Silicon, SIMILAR TO TO-247AD, 3 PIN

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-247AD
package instruction	SIMILAR TO TO-247AD, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	350 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	30CPQ100	30CPQ080
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 100V V(RRM), Silicon, SIMILAR TO TO-247AD, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 80V V(RRM), Silicon, SIMILAR TO TO-247AD, 3 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Parts packaging code	TO-247AD	TO-247AD
package instruction	SIMILAR TO TO-247AD, 3 PIN	R-PSFM-T3
Contacts	3	3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	350 A	350 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	80 V
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
