HFE4300-423: DescriptionLED Emitter, 820nm Min, 880nm Max, SC Connector, DIP, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size360KB，3 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

HFE4300-423 Overview

LED Emitter, 820nm Min, 880nm Max, SC Connector, DIP, Through Hole Mount

HFE4300-423 Parametric

Parameter Name	Attribute value
Maker	Honeywell
package instruction	DIP
Reach Compliance Code	unknown
body width	12.7 mm
body height	9.98 mm
Body length or diameter	28.5 mm
Connection Type	SC CONNECTOR
maximum descent time	4 ns
Fiber optic equipment types	LED EMITTER
Fiber type	50/125, 62.5/125, 200/240
Installation features	THROUGH HOLE MOUNT
Number of channels	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	880 nm
Minimum operating wavelength	820 nm
Nominal operating wavelength	850 nm
Package form	DIP
Rise Time	4 ns
Spectral width	55 nm
Supply current	50 mA
Maximum supply voltage	2.09 V
Minimum supply voltage	1.48 V
Nominal supply voltage	1.84 V
surface mount	NO
Transmission type	ANALOG
Base Number Matches	1

Preview

Download Datasheet

View All

HFE4300

High Power LED

FEATURES

•

Non-conductive plastic

•

Industry standard, SC fiber connector

•

850 nm GaAIAs LED

Fiber Dip package style

High reliability construction

Plastic barrel and housing

Wave solderable

Transmitter (HFE4300) and receiver (HFD3300)

can be mounted side-by-side with center-to-center

spacing that allows easy connection to Duplex SC

terminated cable

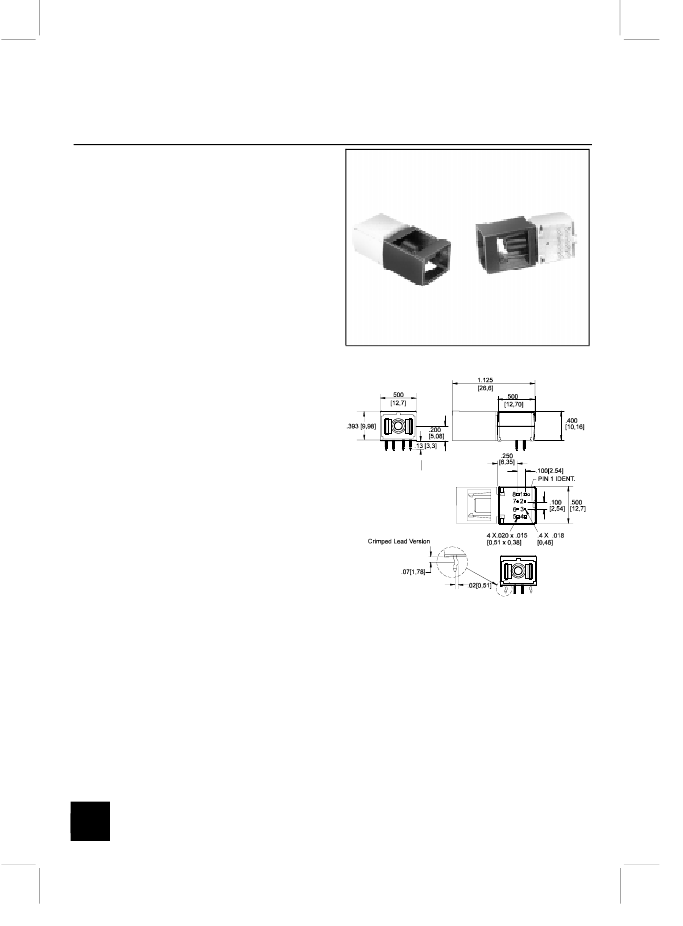

OPHO_22.TIF

DESCRIPTION

The SC Fiber DIP LED is designed for use in IEEE 802.3

Ethernet and IEEE 802.5J Token Ring LAN applications

such as repeaters, bridges, hubs, routers, switches and

gateways. The devices are GaAIAs 850 nm LEDs which

are designed to efficiently couple optical power into

different fiber sizes ranging from 50/125 micron to

200/240 micron. They typically couple -12.0 dBm into

62.5/125 micron cable at 50 mA peak. The LED

component is electrically isolated from the connector

barrel. The mechanical construction uses an SC Fiber

DIP fiber optic connector/housing designed to be easily

mounted on printed circuit boards without the need for

additional hardware. This component is specifically

designed to provide performance and flexibility to the

designer and should be driven with an electrical input

signal using a 50% duty cycle at 60 mA to 100mA peak

forward current for the electrical input signal.

The SC Fiber Dip LEDs provide an improved lens design

which makes the fiber optic coupling more repeatable.

The SC Fiber Dip LEDs are pin for pin compatible with

existing ST Fiber Dip LEDs.

OUTLINE DIMENSIONS in inches (mm)

ODIM_266.DIM

Pinout

1. NC*

2. Anode

3. Cathode

4. NC*

* Pins 1,4, 5 & 8 are common.

5. NC*

6. Anode

7. Anode

8. NC*

116

h

Honeywell reserves the right to make

changes in order to improve design and

supply the best products possible.

HFE4300-423 Related Products

	HFE4300-423	HFE4300-422	HFE4300-023	HFE4300-022
Description	LED Emitter, 820nm Min, 880nm Max, SC Connector, DIP, Through Hole Mount	LED Emitter, 820nm Min, 880nm Max, SC Connector, DIP, Through Hole Mount	LED Emitter, 820nm Min, 880nm Max, SC Connector, DIP, Through Hole Mount	LED Emitter, 820nm Min, 880nm Max, SC Connector, DIP, Through Hole Mount
Maker	Honeywell	Honeywell	Honeywell	Honeywell
package instruction	DIP	DIP	DIP	DIP
Reach Compliance Code	unknown	unknown	unknown	unknown
body width	12.7 mm	12.7 mm	12.7 mm	12.7 mm
body height	9.98 mm	9.98 mm	9.98 mm	9.98 mm
Body length or diameter	28.5 mm	28.5 mm	28.5 mm	28.5 mm
Connection Type	SC CONNECTOR	SC CONNECTOR	SC CONNECTOR	SC CONNECTOR
maximum descent time	4 ns	4 ns	4 ns	4 ns
Fiber optic equipment types	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER
Fiber type	50/125, 62.5/125, 200/240	50/125, 62.5/125, 200/240	50/125, 62.5/125, 200/240	50/125, 62.5/125, 200/240
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of channels	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum operating wavelength	880 nm	880 nm	880 nm	880 nm
Minimum operating wavelength	820 nm	820 nm	820 nm	820 nm
Nominal operating wavelength	850 nm	850 nm	850 nm	850 nm
Package form	DIP	DIP	DIP	DIP
Rise Time	4 ns	4 ns	4 ns	4 ns
Spectral width	55 nm	55 nm	55 nm	55 nm
Supply current	50 mA	50 mA	50 mA	50 mA
Maximum supply voltage	2.09 V	2.09 V	2.09 V	2.09 V
Minimum supply voltage	1.48 V	1.48 V	1.48 V	1.48 V
Nominal supply voltage	1.84 V	1.84 V	1.84 V	1.84 V
surface mount	NO	NO	NO	NO
Transmission type	ANALOG	ANALOG	ANALOG	ANALOG
