278LF-16.000MHZ-BBF20011000

Description
Parallel - Fundamental Quartz Crystal, 16MHz Nom, HC49SD, SMD, 2 PIN
CategoryPassive components    Crystal/resonator
File Size262KB，4 Pages
ManufacturerFOX [Fox Electronics]
Environmental Compliance
Download Datasheet Parametric View All

278LF-16.000MHZ-BBF20011000 Overview

Parallel - Fundamental Quartz Crystal, 16MHz Nom, HC49SD, SMD, 2 PIN

278LF-16.000MHZ-BBF20011000 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFOX [Fox Electronics]
package instructionHC49SD, SMD, 2 PIN
Reach Compliance Codecompliant
Other featuresTR, 13 INCH; PACKAGE LENGTH OF 11.2MM ALSO AVAILABLE
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level500 µW
frequency stability0.005%
frequency tolerance50 ppm
JESD-609 codee1
load capacitance20 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency16 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
physical sizeL11.7XB5.0XH4.5 (mm)/L0.461XB0.197XH0.177 (inch)
Series resistance40 Ω
surface mountYES
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
Base Number Matches1

Preview

Download Datasheet

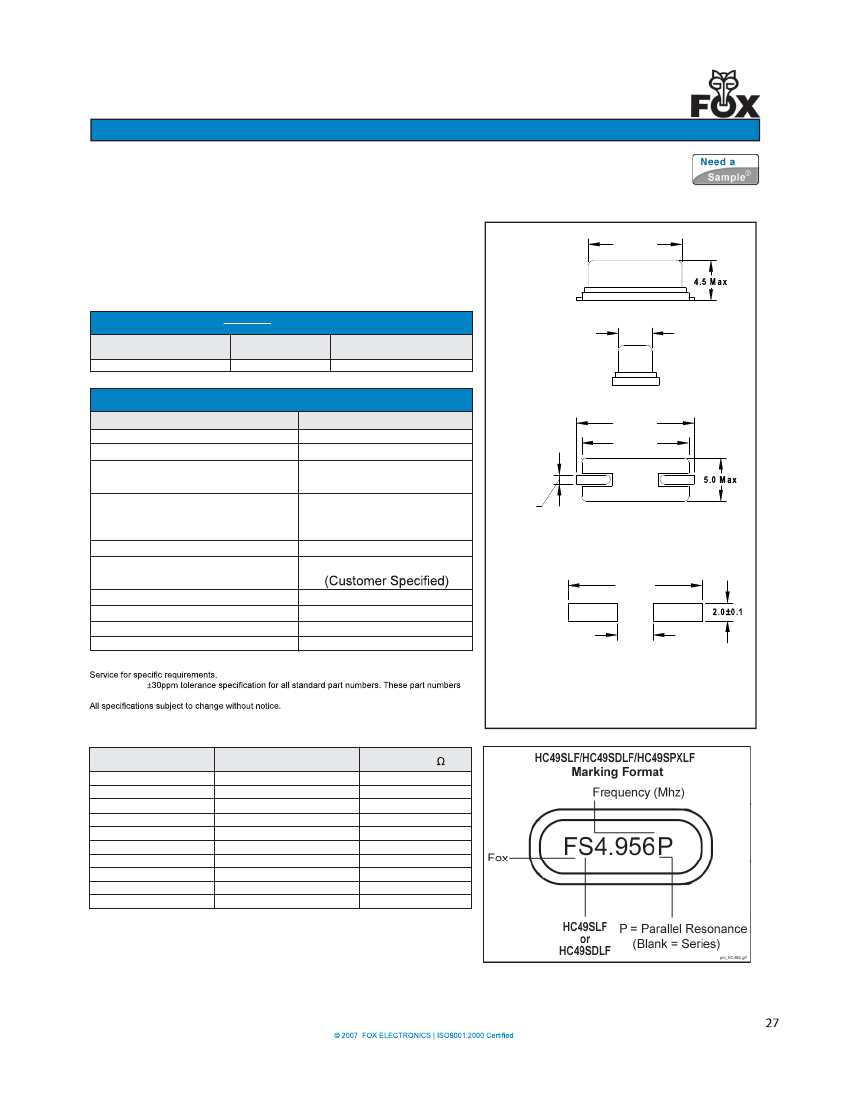

Resistance Weld SMD Crystal
Model: HC49SDLF
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 12/4/2006
http://www.foxonline.com/need_a_sample.htm
FEATURES
OPTIONS
• Stock Standard
(see page 2)
• Tolerances to 10 PPM
• Fundamental to 50 MHz
• Stabilities to 5 PPM

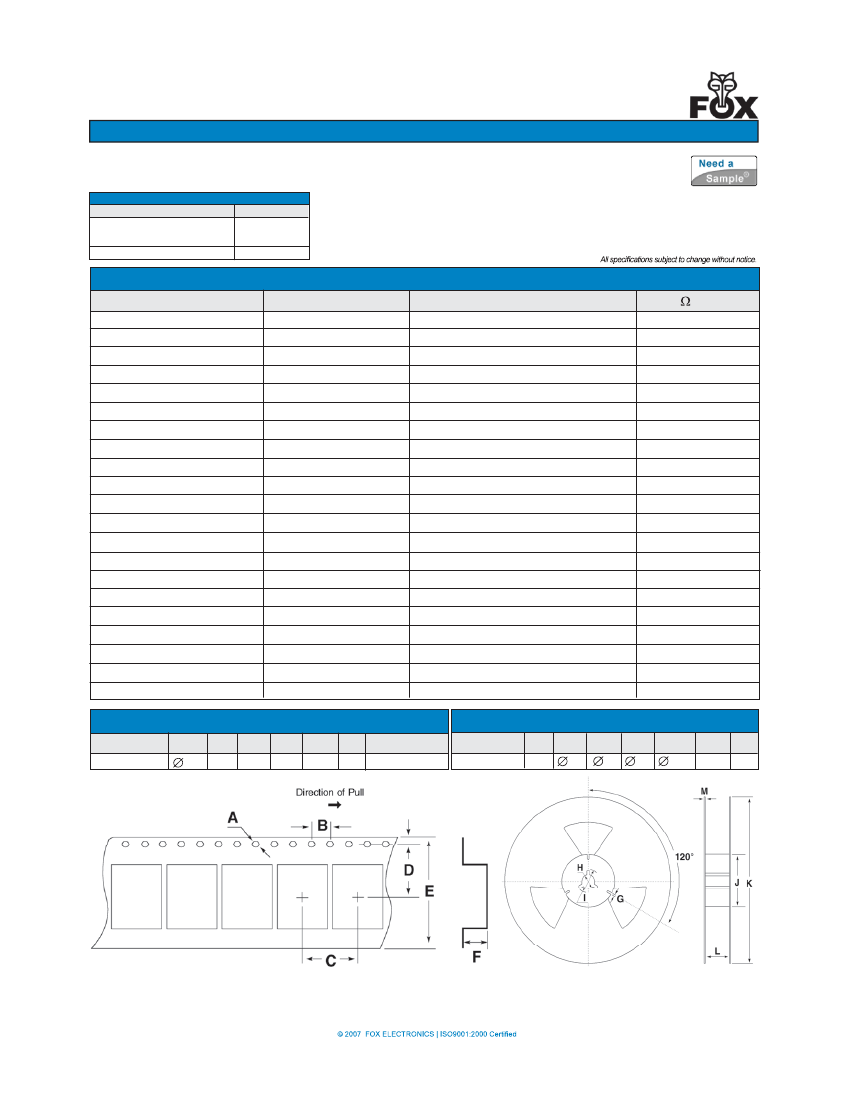

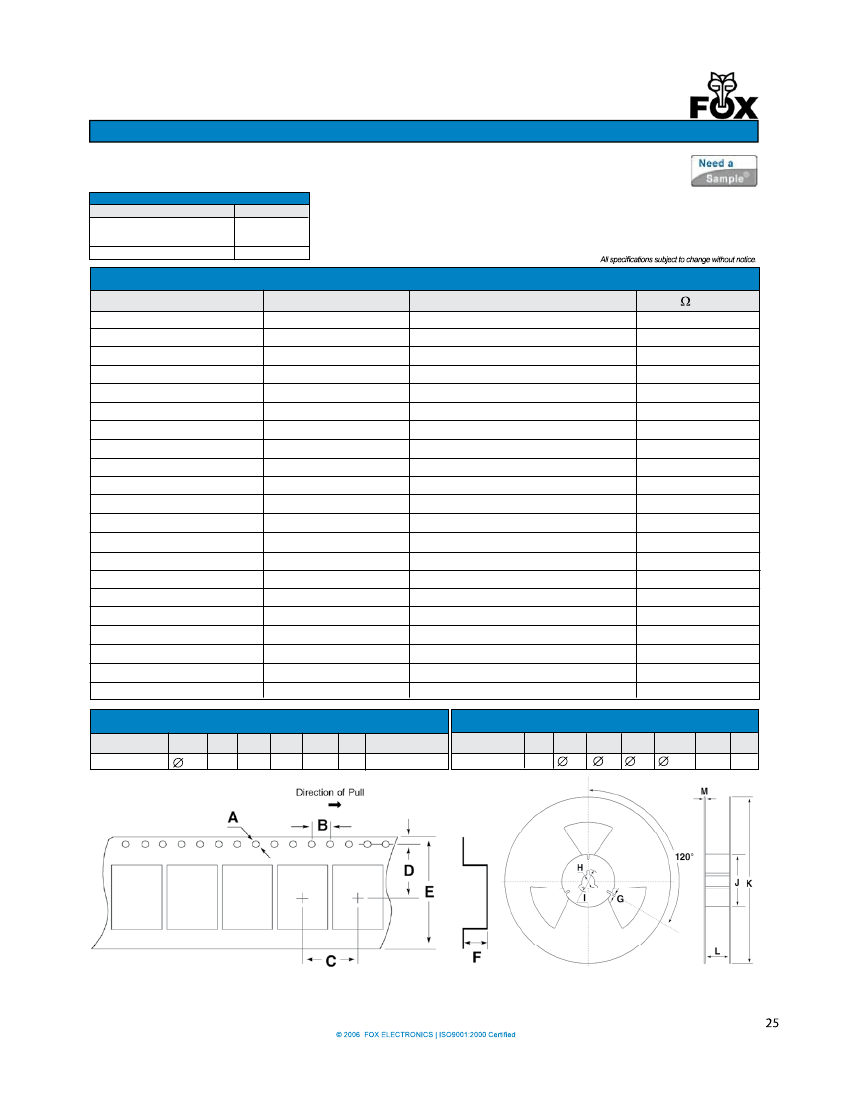

• Tape and Reel
(1,000 pcs. STD)
• Temperatures to -40ºC ~ +105ºC
• 3.2mm Height Max
(HC49SSDLF)
10 .3 M ax
• PART NUMBER
Learn More - Internet Required
Part Number
278LF-Frequency-xxxxx
Model Number
HC49SDLF
Frequency Range (MHz)
3.200 ~ 70.000
3.8 M ax
• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
1
2
MAX
(unless otherwise noted)
3.200 ~ 70.000 MHz
±50 PPM
1,2
±50 PPM
1
0.75±0 .35
13 .9 M ax
11 .7 M ax
-20ºC ~ +70ºC
1
-40ºC ~ +85ºC
7pF
10 pF ~ Series
0.5 mW
±5 PPM
260ºC / 10 Seconds
1
Recommended
HC49SD Solder Pad Layout
15 .0±0 .1
4.0±0.1
Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer
Crystal has a
are listed on page 2 of this datasheet.
All dimensions are in millimeters.
TERMINATION FINISH: Sn/3.0Ag/0.5Cu
Frequency Range
(MHz)
3.200 ~ 3.500
3.500+ ~ 4.000
4.000+ ~ 5.000
5.000+ ~ 6.000
6.000+ ~ 7.000
7.000+ ~ 9.000
9.000+ ~ 13.000
13.000+ ~ 20.000
20.000+ ~ 50.000
27.000 ~ 70.000
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
Max ESR
300
200
150
120
100
80
60
40
30
100
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |
Taiwan
Tel: +886.2.22073427 Fax +886.2.22073486
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
