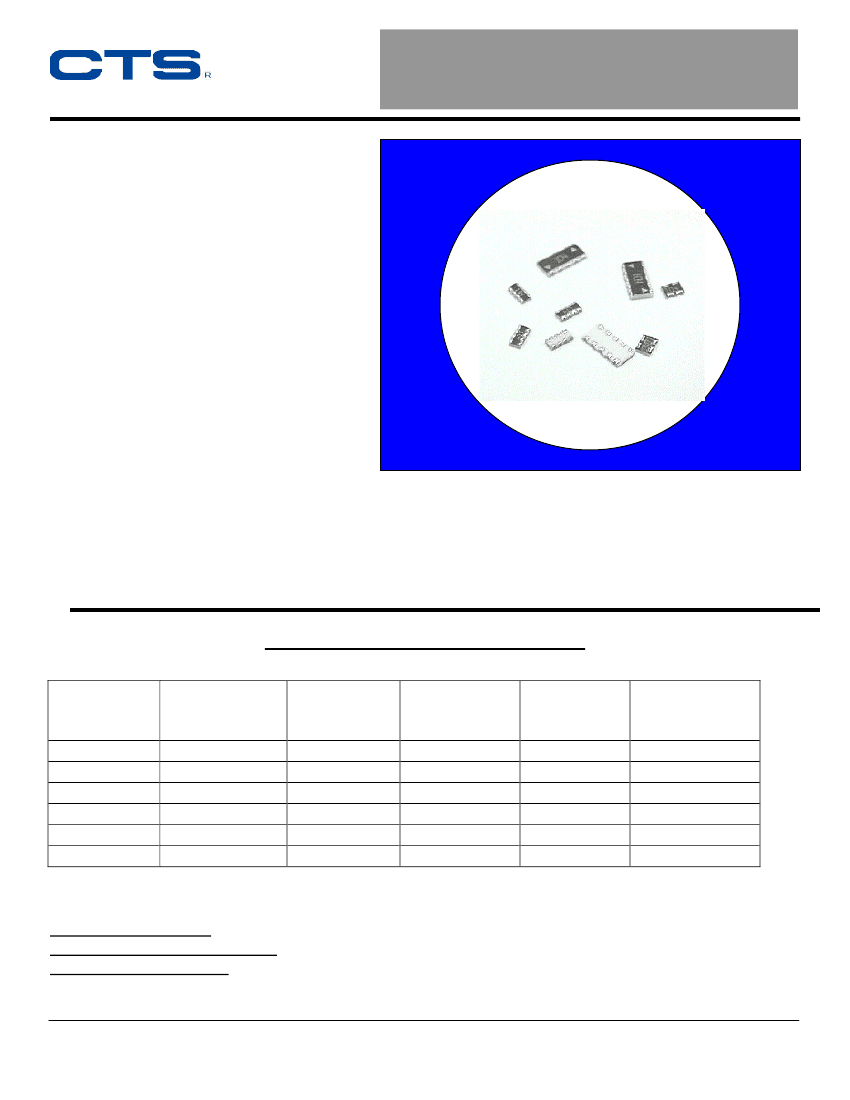

Chip Resistor Arrays
Technical
Data
Features
•
•
•
•
•
•
•
•
•
Low Cost
Thick Film Technology
High Density Packaging
Leadless Surface Mount Construction
Tape and Reel Packaging
Solder Coated Nickel Barrier Pads
Isolated and Bussed Circuits
Concave and Convex Options
RoHS Compliant Version Available
Product Benefits
•
•
•
High Density Packaging
Up to 30% less space per resistor than 0603 chip resistors
Up to 75% less space per resistor than 0805 chip resistors
Placement Efficiency
Networks require fewer placements than discrete components
Larger overall size eases handling compared to discrete components
Low Profile; Can be used in PCMCIA cards
Electrical and Mechanical Specifications
Maximum
Operating
Voltage
25V
50V
100V
200V
50V
25V
Series
741
742
743
744
745
746
PCB Area (in²)
Per Resistor
.0015
.0037
.0071
.0094
.0058
.0013
Circuit Type
Isolated
Isolated
Isolated
Isolated
Bussed
Bussed
Resistance
70°C Power
Range, Ohms Per Resistor*
10 - 1M
.063W
10 - 1M
.063W
10 - 1M
.100W
10 - 1M
.125W
33 - 470K
.063W
33 - 100K
.031W
*Total Rated Package Power equals total number of resistors times rated Power Per Resistor
Resistance Tolerance
Operating Temperature Range
Temperature Coefficient
Page 1 of 5
Standard: ±5% or .5Ω (whichever is greater)
-55°C to +125°C
Standard: 200PPM/°C
February 2006
CTS Electronic Components
www.ctscorp.com
Package Outlines
Concave Termination – Type C
L
P
B
T
C
Termination Area
(all places)
B
Convex Termination – Type X
L
D
P
T
C
Termination Area
(all places)
W
W
A
Dimensions: mm/inch
W
P
0.65 ±0.10
.026 ±.004
A
Part Code Configuration # Pads # Res.
741X043
741X083
741C083
741X163
742C043
742X083
742C083
742C163
743C043
743C083
744C043
744C083
745C101
745C102
745X101
745X102
746X101
0402 X 2
0402 X 4
0402 X 4
0402 X 8
0603 X 2
0603 X 4
0603 X 8
0805 X 2
0805 X 4
1206 X 2
1206 X 4
4
8
8
16
4
8
16
4
8
4
8
10
10
10
2
4
4
8
2
4
8
2
4
2
4
8
8
8
Circuit
Isolated
Isolated
L
1.00 ±0.10
.039 ±.004
T
A
0.33 ±0.10
.013 ±.004
B
C
D
1.00 ±0.10
0.35 ±0.10 0.30 ±0.15 0.15 ±0.10
.039 ±.004
.014 ±.004 .012 ±.006 .006 ±.004
2.00 ±0.10
.079 ±.004
0.50 ±0.10
0.28 ±0.10
Isolated
.020 ±.004
.011 ±.004
3.80 ±0.10 1.60 ±0.10
.150 ±.004 .063± .004
1.60 ±0.20
.063 ±.008
0.38 Max.
.015 Max.
N/A
Isolated
Isolated
0.45 ±0.10 0.30 ±0.10 0.30 ±0.10 0.30 ±0.10
.018 ±.004 .012 ±.004 .012 ±.004 .012 ±.004
0.40 ±0.15
.016 ±.006
N/A
0.60 +0.10
1.60 ±0.20 0.80 ±0.05
0.50 ±0.15 0.30 ±0.20 0.30 ±0.15
-0.25
3.20 ±0.20
Isolated
.126 ±.008 .063 ±.008 .032 ±.002 .024 +.004 .020 ±.006 .012 ±.008 .012 ±.006
-.010
6.40 ±0.20
0.40 ±0.15
Isolated
.252 ±.008
.016 ±.006
Isolated
Isolated
Isolated
Isolated
Bussed
Bussed
Bussed
2.54 ±0.20
.100 ±.008 2.00 ±0.20 1.27 ±0.05 0.60 ±0.10 0.80 ±0.10 0.40 ±0.20 0.40 ±0.15
5.08 ±0.30 .079 ±.008 .050 ±.002 .024 ±.004 .031 ±.006 .016 ±.008 .016 ±.006
.200 ±.012
2.54 ±0.20
.100 ±.008 3.20 ±0.20 1.27 ±0.05 0.60 ±0.10 0.80 ±0.10 0.50 ±0.20 0.50 ±0.15
5.08 ±0.30 .126 ±.008 .050 ±.002 .024 ±.004 .031 ±.006 .020 ±.008 .020 ±.006
.200 ±.012
6.40 ±0.20 3.20 ±0.20 1.27 ±0.05 0.60 ±0.10 0.60 ±0.15 0.35 ±0.15 0.55 ±0.15
.252 ±.008 .126 ±.008 .050 ±.002 .024 ±.004 .024 ±.006 .013 ±.006 .022 ±.006
N/A
N/A
N/A
6.40 ±0.20 3.20 ±0.20 1.27 ±0.05 0.60 ±0.10 0.90 ±0.15 0.50 ±0.20 0.50 ±0.15 1.10 ±0.15
.252 ±.008 .126 ±.008 .050 ±.002 .024 ±.004 .035 ±.006 .020 ±.008 .020 ±.006 .043 ±.006
3.30 ±0.10 1.65 ±0.15 0.64 ±0.05 0.60 ±0.10 0.35 ±0.05 0.40 ±0.10 0.45 ±0.10 0.50 ±0.05
.130 ±.004 .065 ±.006 .025 ±.002 .024 ±.004 .014 ±.002 .016 ±.004 .018 ±.004 .020 ±.002
Page 2 of 5
February 2006
CTS Electronic Components
www.ctscorp.com

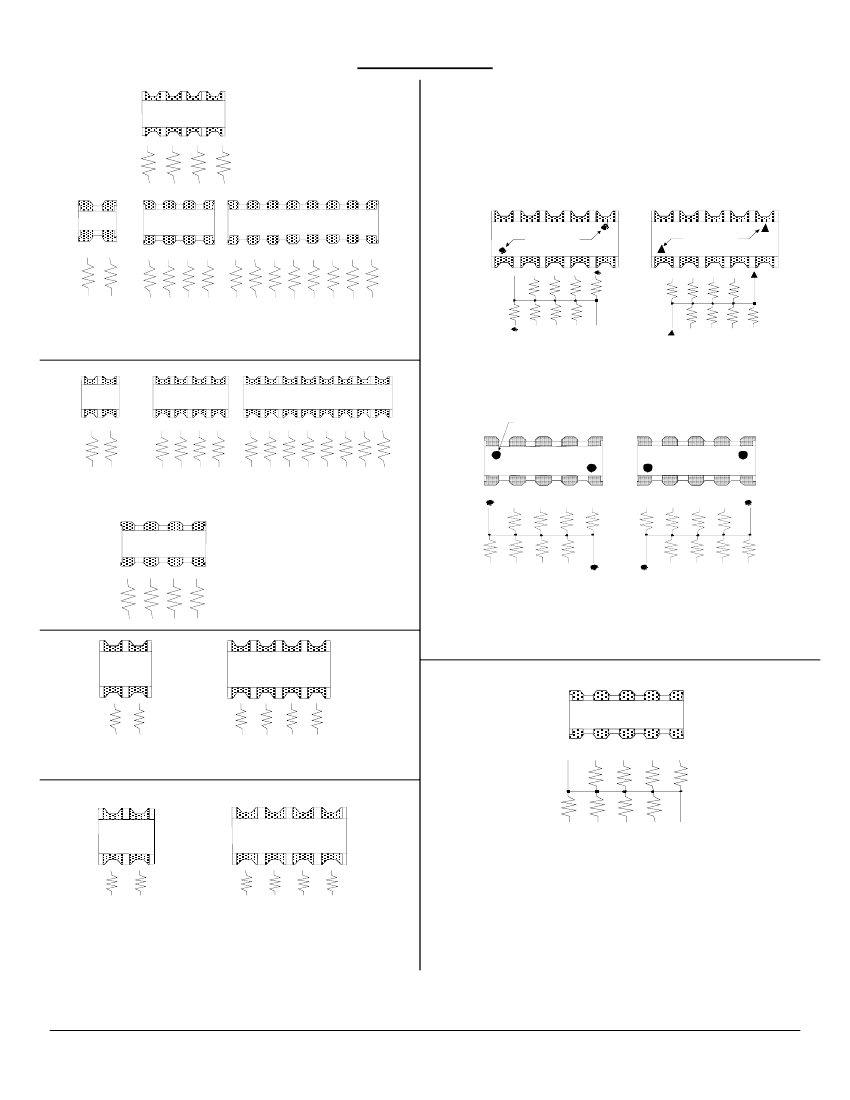

Types of Circuits
741C083
4 Resistors
8 Terminations
PAD 1 Mark
(Dot)
PAD 1 Mark
(Triangle)
741X043
2 Resistors
4 Terminations
741X083
4 Resistors
8 Terminations
741X163
8 Resistors
16 Terminations
745C101
8 Resistors
10 Terminations
745C102
8 Resistors
10 Terminations
C om m on Pad
D esignator
50 m il pitch ( 1.27m m )
2 Resistors
4 Terminations
742C043
4 Resistors
8 Terminations
742C083
8 Resistors
16 Terminations
742C163
742X083
4 Resistors
8 Terminations
8 R es isto rs
10 T er m ina tio ns
7 4 5 X1 0 1
8 R es isto rs
10 T er m ina tio ns
7 4 5 X1 0 2
N ote: T he M arking C oncept for C onvex and
C onc ave Seri es 745 is Di fferent.
2 Resistors
4 Terminations
743C043
4 Resistors
8 Terminations
743C083
746X 101
8 R esistors
10 Term inations
7 44C 043
744C 083
2 R esistors
4 T erm inations
4 R es istors
8 T erm inations
Page 3 of 5
February 2006
CTS Electronic Components
www.ctscorp.com
Recommended Land Patterns
SERIES
A
B
741X043
741X083
741C083
741X163
742
C
D
743
744
745
746
DIMENSIONS mm/in
A
B
C
D
1.00
0.65
0.33
0.50
.039
.026
.013
.020
1.00
0.50
0.30
0.50
.039
.020
.012
.020
1.00
0.50
0.28
0.50
.039
.020
.011
.020
1.60
0.50
0.30
0.80
.063
.020
.012
.031
1.60
0.80
0.50
0.90
.063
.032
.020
.035
2.00
1.27
0.80
1.00
.079
.050
.031
.051
3.20
1.27
0.80
1.00
.126
.050
.031
.039
3.20
1.27
0.90
1.30
.126
.050
.035
.039
1.65
0.64
0.35
0.80
.065
.025
.014
.032
Environmental Performance Specifications
Test
Thermal Cycle
Short Time Overload
Moisture Resistance
High Temperature Exposure
Load Life
Resistance to Solder Heat
Resistance to Solvents
Solderability
Max. Delta R
741
742-746
1.00% 1.00%
2.50% 1.00%
5.00% 2.00%
1.00% 1.00%
5.00% 2.00%
2.50% 1.00%
Test Description
5 Cycles -55°C to +125°C
2½ X Rated Working Voltage for 5 Seconds
240 Hours 10% rated load, -10°C to +65°C, 90% R.H.
1000 Hours, no load, +125°C
1000 Hours @ 70°C, rated load
10 Seconds @ 260°C solder
Isopropyl alcohol, Freon TMC
RMA Flux, 230°C, 5 Seconds dip, 95% coverage
Page 4 of 5
February 2006
CTS Electronic Components
www.ctscorp.com
Standard Resistor Values & EIA Code
Ohms
0
10
12
15
18
22
27
33
39
47
51
56
Code
000X
100
120
150
180
220
270
330
390
470
510
560
Ohms
68
75
82
100
110
120
150
180
220
270
330
390
Code
680
750
820
101
111
121
151
181
221
271
331
391
Ohms
470
510
560
680
820
1K
1.2K
1.5K
1.8K
2.2K
2.7K
3.3K
Code
471
511
561
681
821
102
122
152
182
222
272
332
Ohms
3.9K
4.7K
5.1K
5.6K
6.8K
8.2K
10K
12K
15K
18K
22K
27K
Code
392
472
512
562
682
822
103
123
153
183
223
273
Ohms
33K
39K
47K
51K
56K
68K
82K
100K
120K
150K
180K
220K
Code
333
393
473
513
563
683
823
104
124
154
184
224
Ohms
270K
330K
390K
470K
510K
560K
680K
820K
1M
Code
274
334
394
474
514
564
684
824
105
How to Order
Part Code
See Standard Package
Outlines (Page 2)
742C083 101 J P
RoHS Compliant
Insert “P” for RoHS; otherwise blank
Resistor Code
3 Digit Resistor Code – Refer to the EIA Code noted above
Tolerance
J = ±5% (Standard) 3-digit code
G = ±2% 3-digit code (741-745 only)
F = ±1% 4-digit code (741-745 only)
X for zero ohm jumper
Part Marking
741
742
743
744
745
746
J & G tol.
F tol.
4 Digit Resistor Code (used only for 1% tolerance) – The first
three digits are significant and fourth digit is multiplier; “R”
indicates decimal on values less than 100 ohms.
Examples:
10R0 = 10 ohms
49R9 = 49.9 ohms
1000 = 100 ohms
1001 = 1,000 ohms
1002 = 10,000 ohms
Example:
742C08310R0F
E-24 Value E-24 Value E-96 Value
3 Digit
3 Digit
4 Digit
3 Digit
3 Digit
4 Digit
3 Digit
4 Digit
4 Digit
3 Digit
4 Digit
4 Digit
3 Digit
4 Digit
4 Digit
3 Digit
4 Digit
4 Digit
Tape & Reel Information
Style
Parts/Reel
Pitch
Carrier Width
Material
741X043
742C043 742C083
745C101 745X101
741C083
742C163 743C043 743C083 744C043 744C083
746X101
741X163 742X083
745C102 745X102
741X083
10,000
2mm
8mm
Paper
5,000
4mm
8mm
Paper
5,000
4mm
8mm
Paper
4,000
4mm
12mm
Plastic
4,000
4mm
8mm
Plastic
4,000
4mm
12mm
Plastic
4,000
4mm
8mm
Plastic
2,000
8mm
12mm
Plastic
4,000
4mm
12mm
Plastic
4,000
4mm
12mm
Plastic
5,000
4mm
8mm
Paper
Page 5 of 5
February 2006
CTS Electronic Components
www.ctscorp.com
