LT1058IS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LT1058IS

Preview

LT1058IS: DescriptionDual JFET Input Precision High Speed Op Amp　; CategoryAnalog mixed-signal IC Amplifier circuit; File Size172KB，3 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

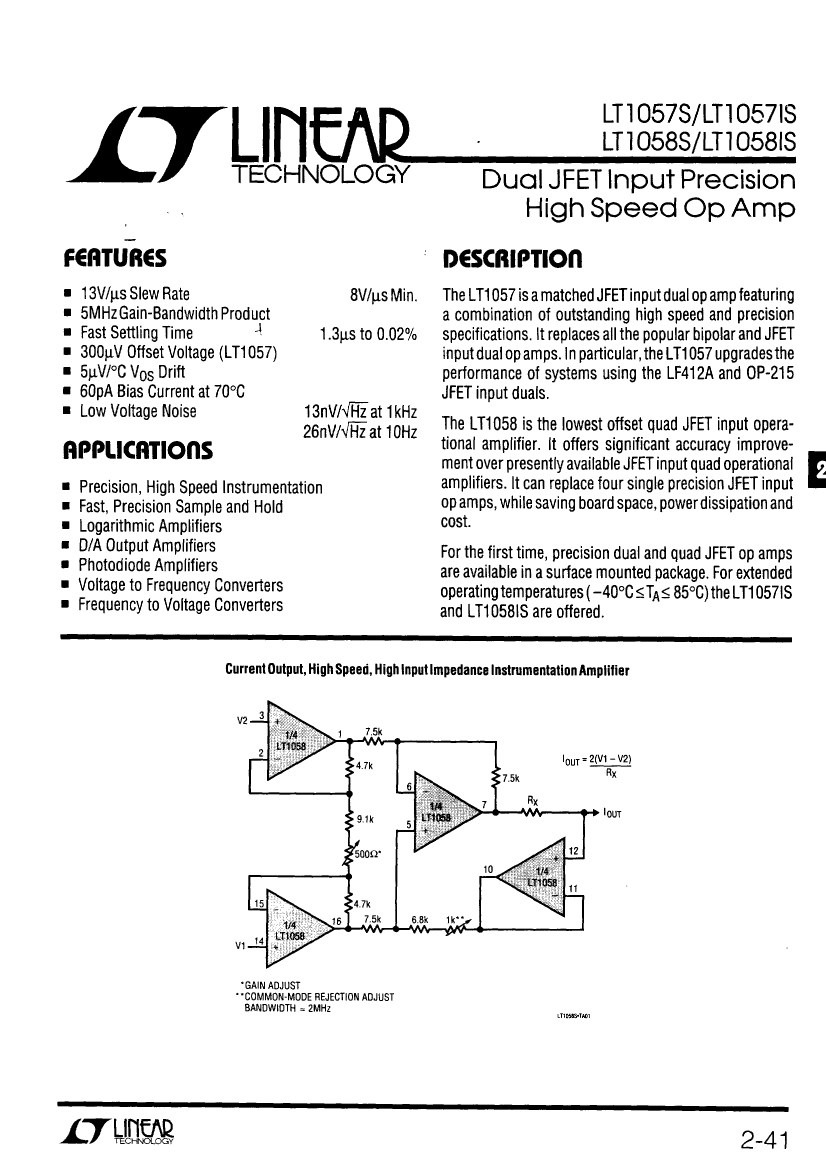

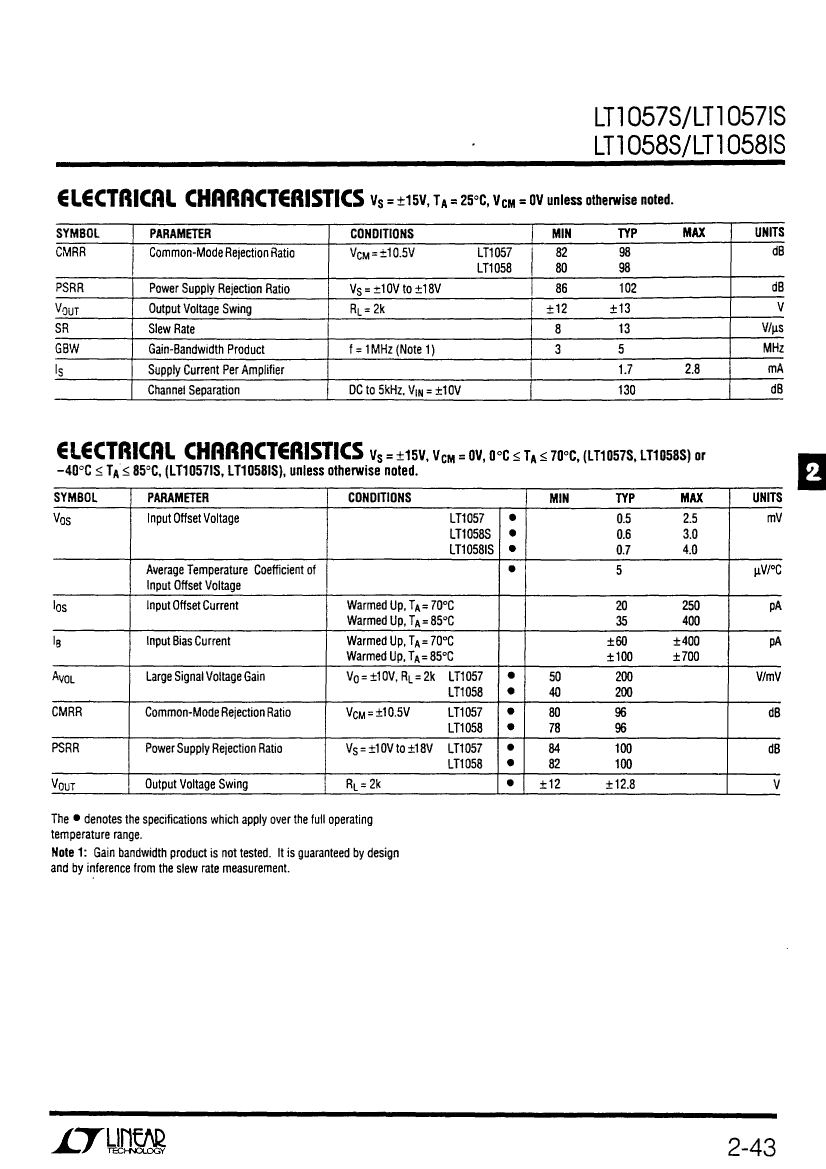

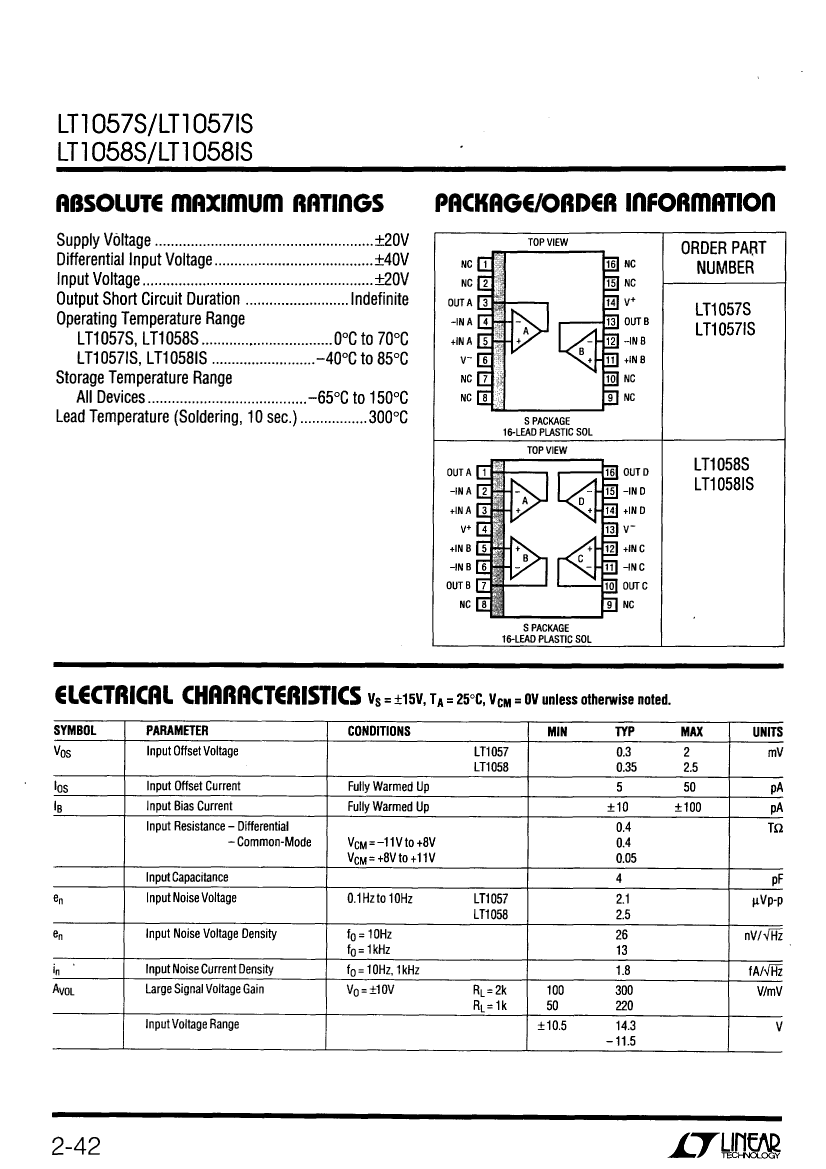

LT1058IS Overview

Dual JFET Input Precision High Speed Op Amp　

LT1058IS Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0001 µA
Maximum bias current (IIB) at 25C	0.0001 µA
Minimum Common Mode Rejection Ratio	80 dB
Nominal Common Mode Rejection Ratio	98 dB
frequency compensation	YES
Maximum input offset current (IIO)	0.0004 µA
Maximum input offset voltage	2500 µV
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.2995 mm
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	255
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	2.642 mm
minimum slew rate	8 V/us
Nominal slew rate	13 V/us
Maximum slew rate	11.2 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	JFET
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Nominal Uniform Gain Bandwidth	5000 kHz
Minimum voltage gain	50000
width	7.493 mm
Base Number Matches	1

Preview

Download Datasheet

View All

LT1058IS Related Products

	LT1058IS	LL55C39	LT1057S	LT1057IS
Description	Dual JFET Input Precision High Speed Op Amp	500mW ZENER DIODE	Dual JFET Input Precision High Speed Op Amp	Dual JFET Input Precision High Speed Op Amp
Is it Rohs certified?	incompatible	-	incompatible	incompatible
Parts packaging code	SOIC	-	SOIC	SOIC
package instruction	SOP, SOP16,.4	-	SOP, SOP16,.4	SOP, SOP16,.4
Contacts	16	-	16	16
Reach Compliance Code	compli	-	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0001 µA	-	0.0001 µA	0.0001 µA
Maximum bias current (IIB) at 25C	0.0001 µA	-	0.0001 µA	0.0001 µA
Minimum Common Mode Rejection Ratio	80 dB	-	82 dB	82 dB
Nominal Common Mode Rejection Ratio	98 dB	-	98 dB	98 dB
frequency compensation	YES	-	YES	YES
Maximum input offset current (IIO)	0.0004 µA	-	0.00025 µA	0.0004 µA
Maximum input offset voltage	2500 µV	-	2000 µV	2000 µV
JESD-30 code	R-PDSO-G16	-	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	-	e0	e0
length	10.2995 mm	-	10.2995 mm	10.2995 mm
low-bias	YES	-	YES	YES
low-dissonance	NO	-	NO	NO
Negative supply voltage upper limit	-20 V	-	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-15 V	-15 V
Number of functions	4	-	2	2
Number of terminals	16	-	16	16
Maximum operating temperature	85 °C	-	70 °C	85 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	-	SOP	SOP
Encapsulate equivalent code	SOP16,.4	-	SOP16,.4	SOP16,.4
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	255	-	245	245
power supply	+-15 V	-	+-15 V	+-15 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	2.642 mm	-	2.642 mm	2.642 mm
minimum slew rate	8 V/us	-	8 V/us	8 V/us
Nominal slew rate	13 V/us	-	13 V/us	13 V/us
Maximum slew rate	11.2 mA	-	5.6 mA	5.6 mA
Supply voltage upper limit	20 V	-	20 V	20 V
Nominal supply voltage (Vsup)	15 V	-	15 V	15 V
surface mount	YES	-	YES	YES
technology	JFET	-	JFET	JFET
Temperature level	INDUSTRIAL	-	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	-	GULL WING	GULL WING
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm
Terminal location	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	40	-	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	5000 kHz	-	5000 kHz	5000 kHz
Minimum voltage gain	50000	-	50000	50000
width	7.493 mm	-	7.493 mm	7.493 mm
