BD-546AG

Description
7 Seg Numeric LED Display
CategoryLED optoelectronic/LED    photoelectric
File Size24KB,2 Pages
ManufacturerBivar
Environmental Compliance
Download Datasheet Parametric Compare View All

BD-546AG Overview

7 Seg Numeric LED Display

BD-546AG Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerBivar
Reach Compliance Codeunknown
color@wavelengthGreen
ConfigurationCommon Anode
Display height13.2 mm
Maximum forward voltage2.6 V
Number of characters1
Optoelectronic device types7 SEG NUMERIC LED DISPLAY
peak wavelength565 nm
Base Number Matches1

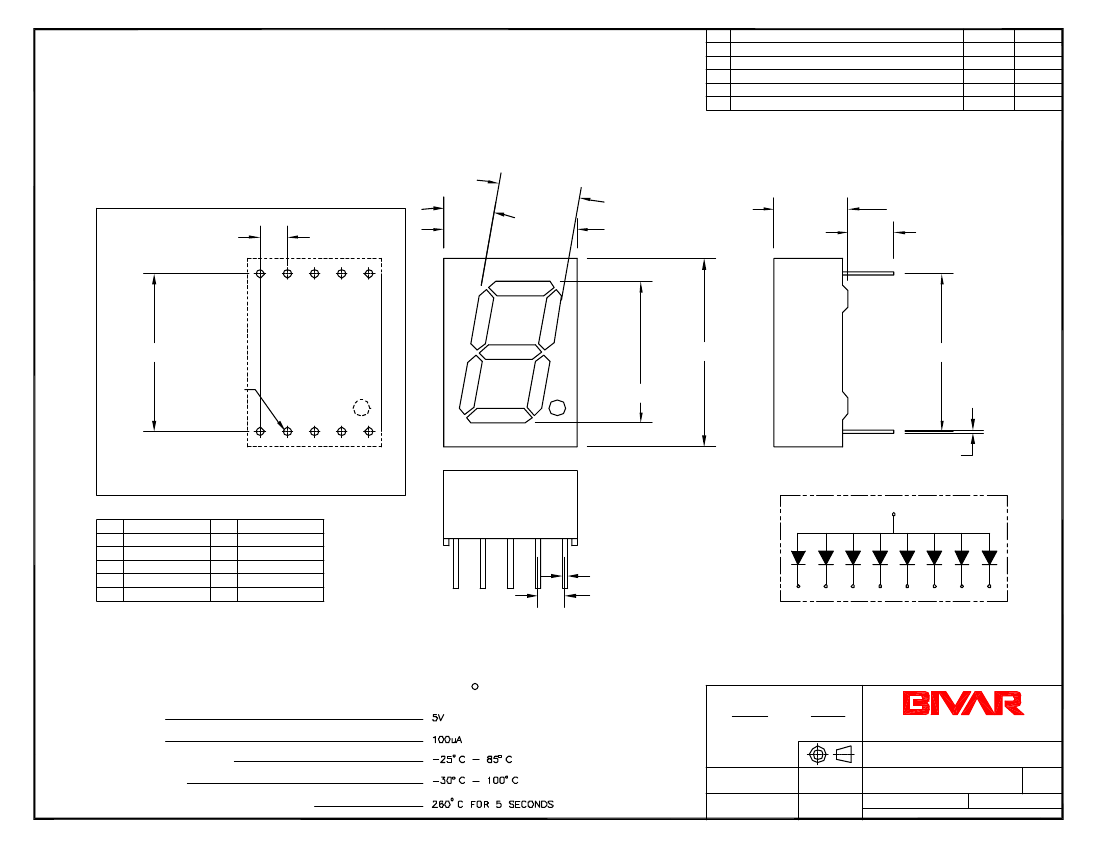

REV.
DESCRIPTION
DATE
APPROVED
A
B
Engineering Update w/o Changes
DIM Update
03/10/04
01/27/06
M. C.
M. C.
10°
0.100 [2.5mm]
TYP.
10
9
8
7
6
F
G
A
REF.
0.300 [7.6mm]
0.488 [12.4mm]
0.270 [6.9mm]
0.169 [4.3mm]
B
0.580 [14.7mm]
Ø.030+.003
-.002
E
1
2
3
4
5
DP
D
DP
C
0.691 [17.6mm]
0.520 [13.2mm]
0.580 [14.7mm]
TYP.
0.012 [0.3mm]
TYP.
Recommended Mounting Holes
3,8
No.
1
2
3
4
5
Connection
Cathode E
Cathode D
Com. Anode
Cathode C
Cathode D.P.
No.
6
7
8
9
10
Connection
Cathode B
Cathode A
Com. Anode
Cathode F
Cathode G
A
B
C
D
E
F
G
DP
0.020 [0.5mm]
0.100 [2.5mm]
TYP.
TYP.
7
6
4
2
1
9
10
5
ABSOLUTE MAXIMUM RATINGS (Ta=25 C)
REVERSE VOLTAGE
REVERSE CURRENT
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE
LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
.X
± .1
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
.XX
± .02
.XXX ± .010
DESIGNED:
DATE:
TITLE:
7-SEGMENT
DIGITAL DISPLAY W/DP
01/27/06
DATE:
David Green
CHECKED:
PART NO:
REVISION:
BD-546AXX
B
2
T. Yin
01/27/06
CAGE CODE : 32559
SHEET #
1
OF
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

BD-546AG Related Products

BD-546AG BD-546AHR BD-546AY BD-546ABW
Description 7 Seg Numeric LED Display 7 Seg Numeric LED Display 7 Seg Numeric LED Display 7 Seg Numeric LED Display
Is it Rohs certified? conform to conform to conform to conform to
Maker Bivar Bivar Bivar Bivar
Reach Compliance Code unknown unknown unknown unknown
color@wavelength Green Orange-Red Yellow Blue
Configuration Common Anode Common Anode Common Anode Common Anode
Display height 13.2 mm 13.2 mm 13.2 mm 13.2 mm
Maximum forward voltage 2.6 V 2.6 V 2.6 V 4 V
Number of characters 1 1 1 1
Optoelectronic device types 7 SEG NUMERIC LED DISPLAY 7 SEG NUMERIC LED DISPLAY 7 SEG NUMERIC LED DISPLAY 7 SEG NUMERIC LED DISPLAY
peak wavelength 565 nm 635 nm 585 nm 465 nm
Base Number Matches 1 1 1 -
