594646 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 594646

594646: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

594646 Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug

594646 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.417 inch
subject depth	0.457 inch
body length	2.165 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	594646
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-60 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.669 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

2,5

Datum

date

Id.-Nr.

3,5

Anforderungsstufe

class

-0,5

11,6 max

7,7

ERNI

594646

2,9

0,6

15 x 2,54 =

55 max.

a16

+0,2

5,08

38,1

10,6

-0,2

0,3

c16

2,8

+0,1

44,4

-0,2

0,1

+0,1

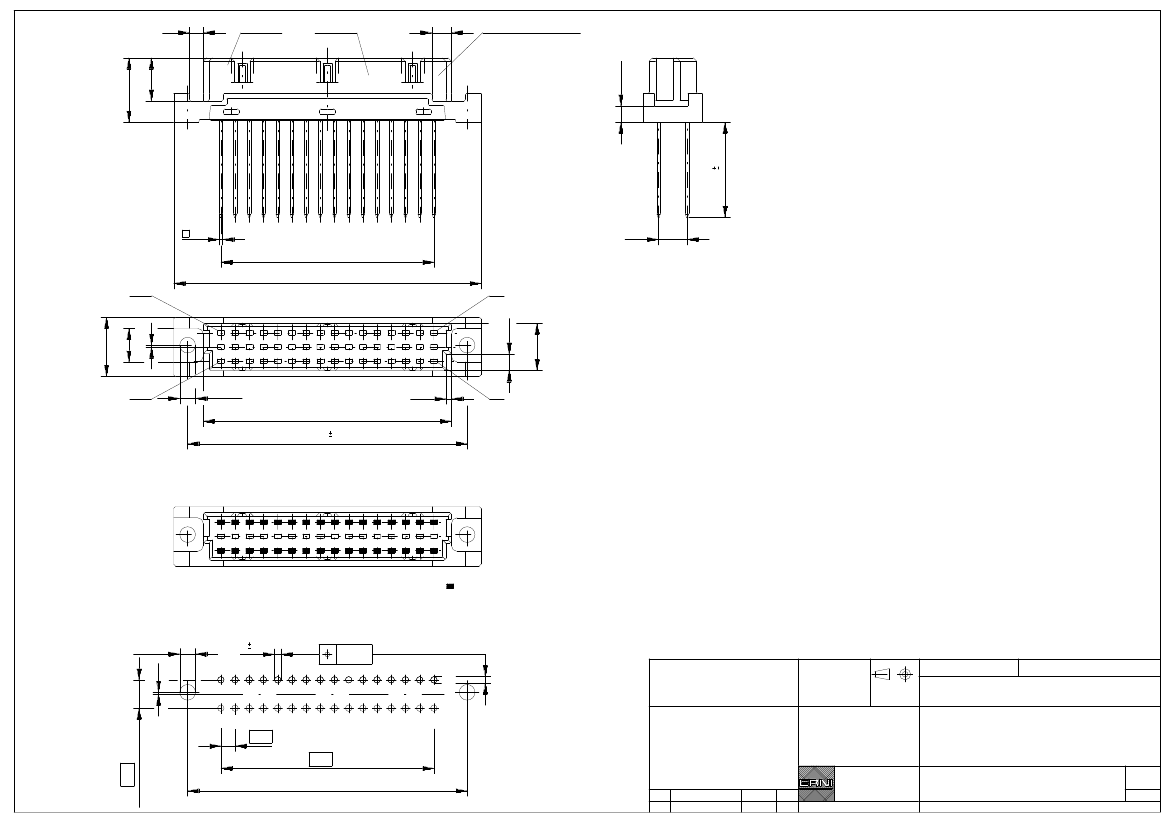

Bestückungsplan /

contact layout

8,5

-0,1

16 15 14 13 12 11 10 9

Anschluß 0,6 x 0,6 mm /

Isolierwerkstoff /

Bauart 2 /

type 2

0,2

terminal 0,6 x 0,6 mm

PBT GF30

housing material :

Anforderungsstufe 1 = 500 Steckzyklen /

assemble

performance class 1 = 500 mating cycles

bestückt /

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2

Leiterplatten-Lochbild /

2,8

+0,1

PCB drillhole pattern

0,05

alle Löcher/

all holes

Consider protection memo from DIN 34

0,1

0,3

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

2 x 2,54 = ( 5,08 )

16 15 14 13 12 11 10 9

2,54

15 x 2,54 = ( 38,1 )

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

Federleiste C/2, 32

Fem. Connector C/2, 32

www.ERNI.com

Index

08.03.2005

Date

H:00045212.SZA

594646

STVC/2
