Part Number

Search

54F74L1M

Description
D Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, TTL, CQCC20, CERAMIC, LCC-20
Categorylogic    logic
File Size62KB,3 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

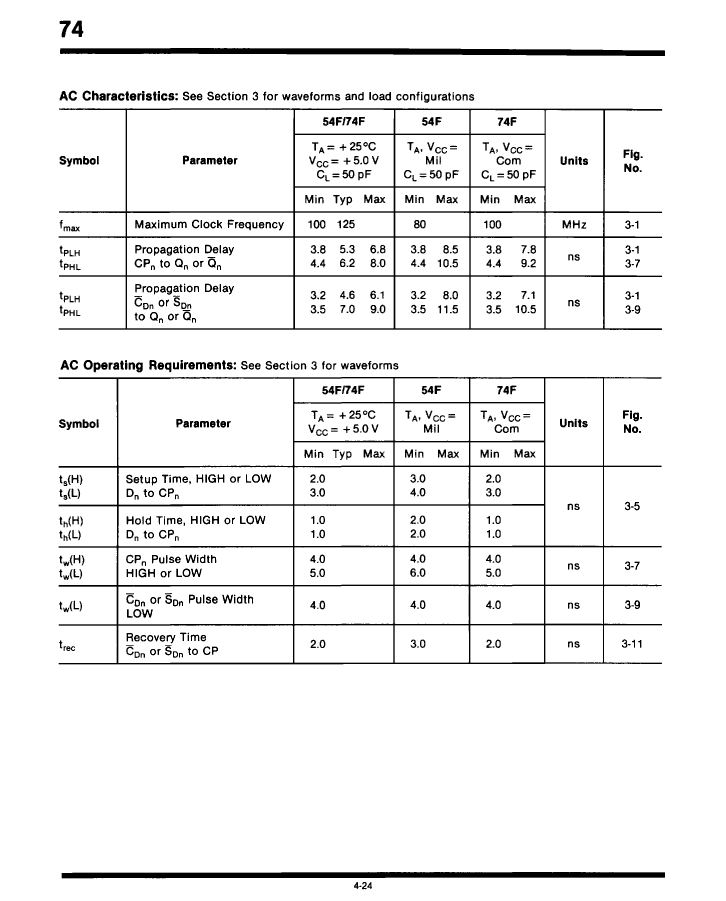

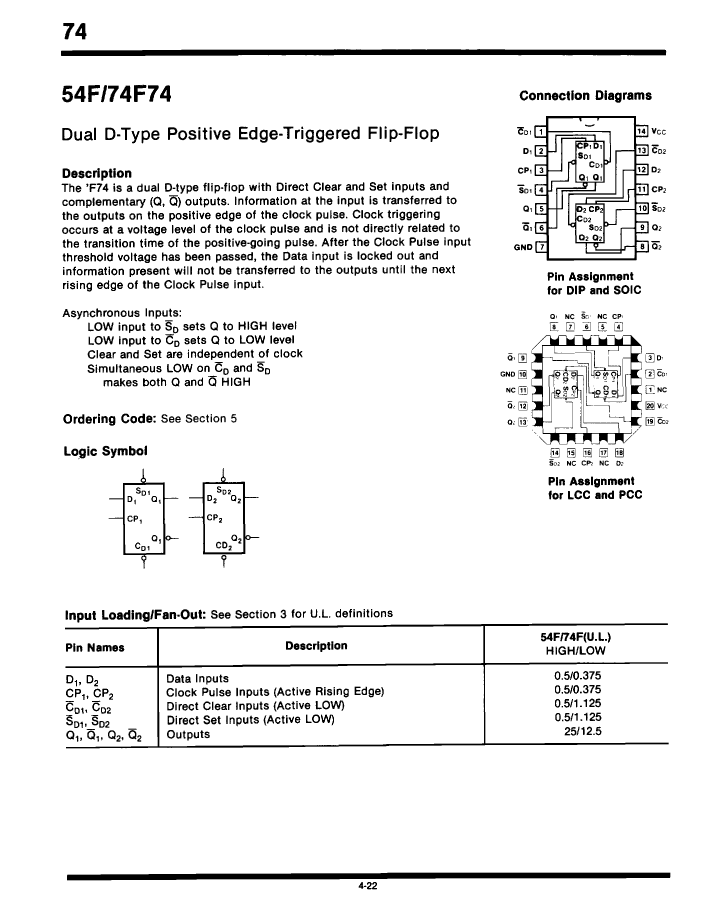

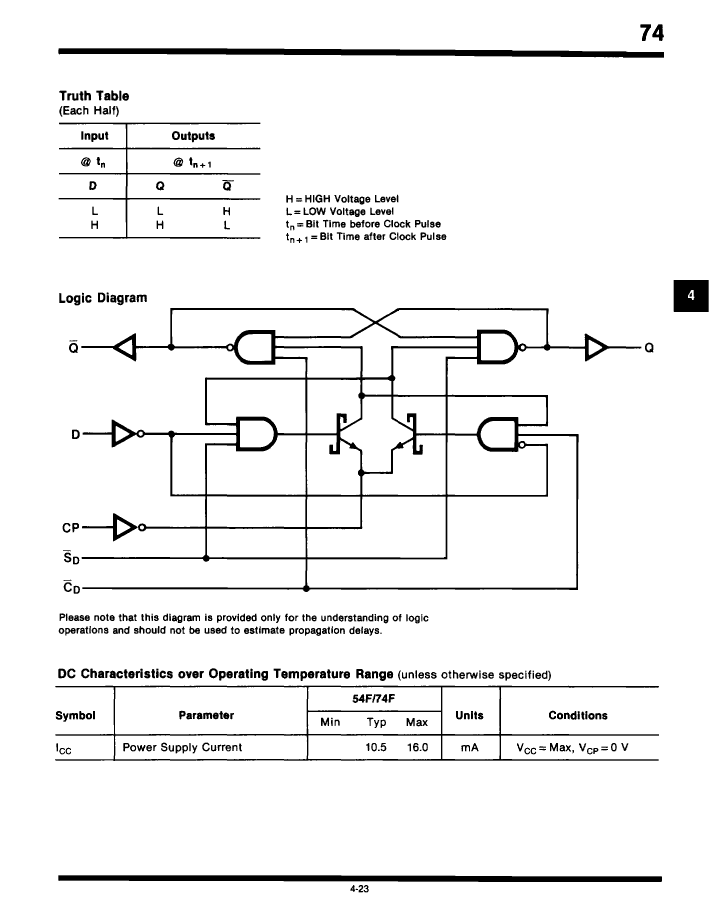

54F74L1M Overview

D Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, TTL, CQCC20, CERAMIC, LCC-20

54F74L1M Parametric

Parameter NameAttribute value
Parts packaging codeQLCC
package instructionQCCN,
Contacts20
Reach Compliance Codeunknown
seriesF/FAST
JESD-30 codeS-CQCC-N20
length8.89 mm
Logic integrated circuit typeD FLIP-FLOP
Number of digits1
Number of functions2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityCOMPLEMENTARY
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeQCCN
Package shapeSQUARE
Package formCHIP CARRIER
propagation delay (tpd)10.5 ns
Certification statusNot Qualified
Maximum seat height2.54 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Trigger typePOSITIVE EDGE
width8.89 mm
minfmax125 MHz
Base Number Matches1
