LS5420-Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LS5420-Q

LS5420-Q: Description5 mm (T1 3/4) LED, Non Diffused; CategoryLED optoelectronic/LED photoelectric; File Size237KB，7 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

LS5420-Q Overview

5 mm (T1 3/4) LED, Non Diffused

LS5420-Q Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknow
Other features	IC COMPATIBLE
color	SUPER RED
Configuration	SINGLE

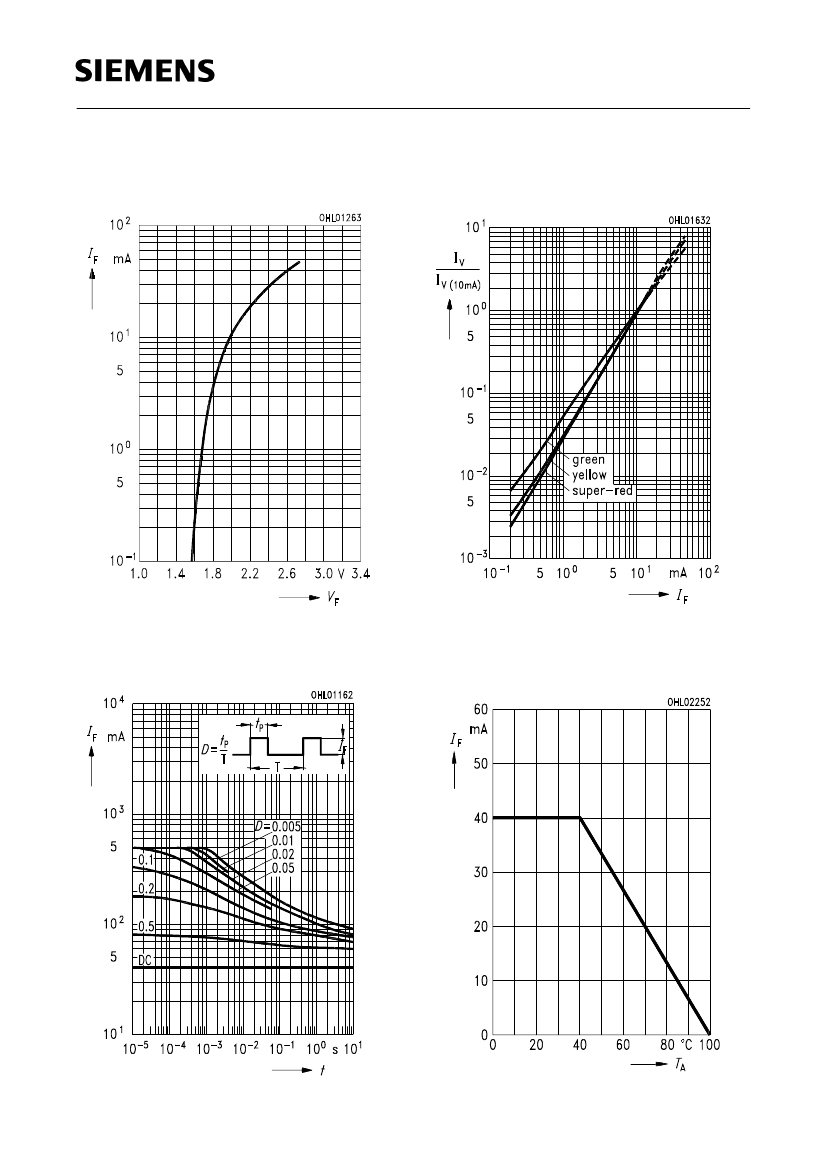

Maximum forward current	0.04 A
Lens type	RED CLEAR
Nominal luminous intensity	94 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	TAPE AND REEL

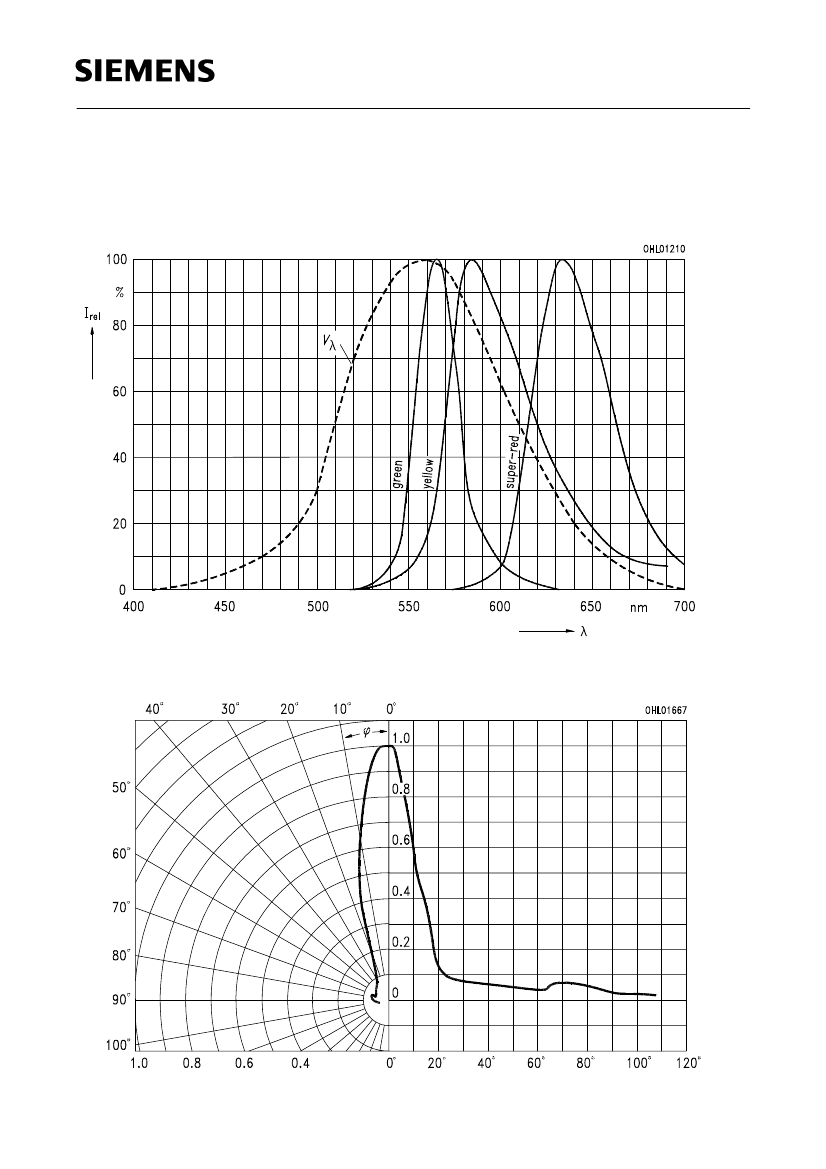

peak wavelength	635 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	24 deg

Preview

Download Datasheet

View All

5 mm (T1

) LED, Non Diffused

LS 5420, LY 5420, LG 5410

Besondere Merkmale

eingefärbtes, klares Gehäuse

zur Einkopplung in Lichtleiter

als optischer Indikator einsetzbar

Lötspieße ohne Aufsetzebene

gegurtet lieferbar

Störimpulsfest nach DIN 40839

VEX06713

Features

colored, clear package

optical coupling into light pipes

for use as optical indicator

solder leads without stand-off

available taped on reel

load dump resistant acc. to DIN 40839

Emissionsfarbe

Color of

Emission

Gehäusefarbe

Color of

Package

Lichtstärke

Luminous

Intensity

= 10 mA

(mcd)

100

… 125

… 80

… 125

… 200

… 500

… 125

… 80

… 125

… 200

… 320

… 125

… 80

… 125

… 200

… 320

Bestellnummer

Ordering Code

Typ

Type

LS 5420-MQ

LS 5420-P

LS 5420-Q

LS 5420-R

LS 5420-PT

LY 5420-MQ

LY 5420-P

LY 5420-Q

LY 5420-R

LY 5420-PS

LG 5410-MQ

LG 5410-P

LG 5410-Q

LG 5410-R

LG 5410-PS

super-red

red clear

Q62703-Q1428

Q62703-Q1430

Q62703-Q1993

Q62703-Q1429

Q62703-Q1431

Q62703-Q1432

Q62703-Q1434

Q62703-Q2004

Q62703-Q3235

Q62703-Q1435

Q62703-Q1439

Q62703-Q1868

Q62703-Q2020

Q62703-Q2021

Q62703-Q2022

yellow

yellow clear

green

colorless clear

Streuung der Lichtstärke in einer Verpackungseinheit

V max

V min

≤

2.0.

Luminous intensity ratio in one packaging unit

V max

V min

≤

2.0.

Semiconductor Group

11.96
