855924 Overview

SAW Filter, 1 Function(s), 881.5MHz, 4 Pin(s), Ceramic,

855924 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerQorvo
Reach Compliance Codecompliant
Other featuresTAPE AND REEL
Center frequency or cutoff frequency (fo/fc)881.5 MHz
filter typeSAW FILTER
high0.84 mm
input resistance50 OHM
Maximum insertion loss2.8 dB
JESD-609 codee4
length2.5 mm
Installation typeSURFACE MOUNT
Number of functions1
Number of terminals4
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Output impedance50 OHM Ω
Packaging MaterialsCERAMIC
physical sizeL2.5XB2XH0.84 (mm)
Terminal surfaceGold (Au)
width2 mm
Base Number Matches1

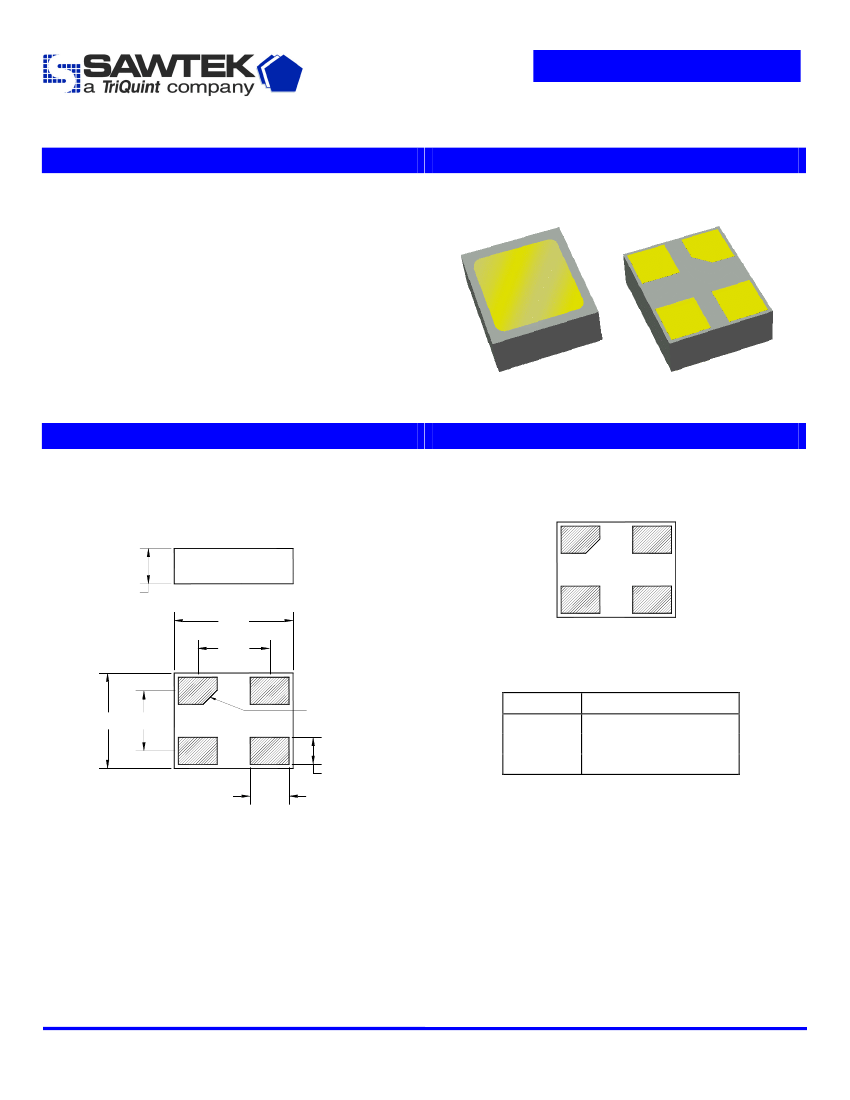

Data Sheet
Features
For AMPS, TDMA, CDMA applications
Usable bandwidth 25 MHz
High attenuation
No impedance matching required for operation
at 50
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small size
Part Number 855924
881.5 MHz SAW Filter
Package
Surface Mount 2.50 x 2.00 x 0.76 mm
Pin Configuration
Bottom View
1
2
0.76 NOM.
0.84 MAX.
2.50
1.54
4
3
2.00
1.30
0.3X45°
CHAMFER
0.58
0.84
Pin No.
1
3
2,4
Description
Input
Output
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev H
04-Sep-2002
Page 1 of 5
