APK3216VGC Overview

3.2 X 1.6 MM SMD CHIP LED LAMP

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	220.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL

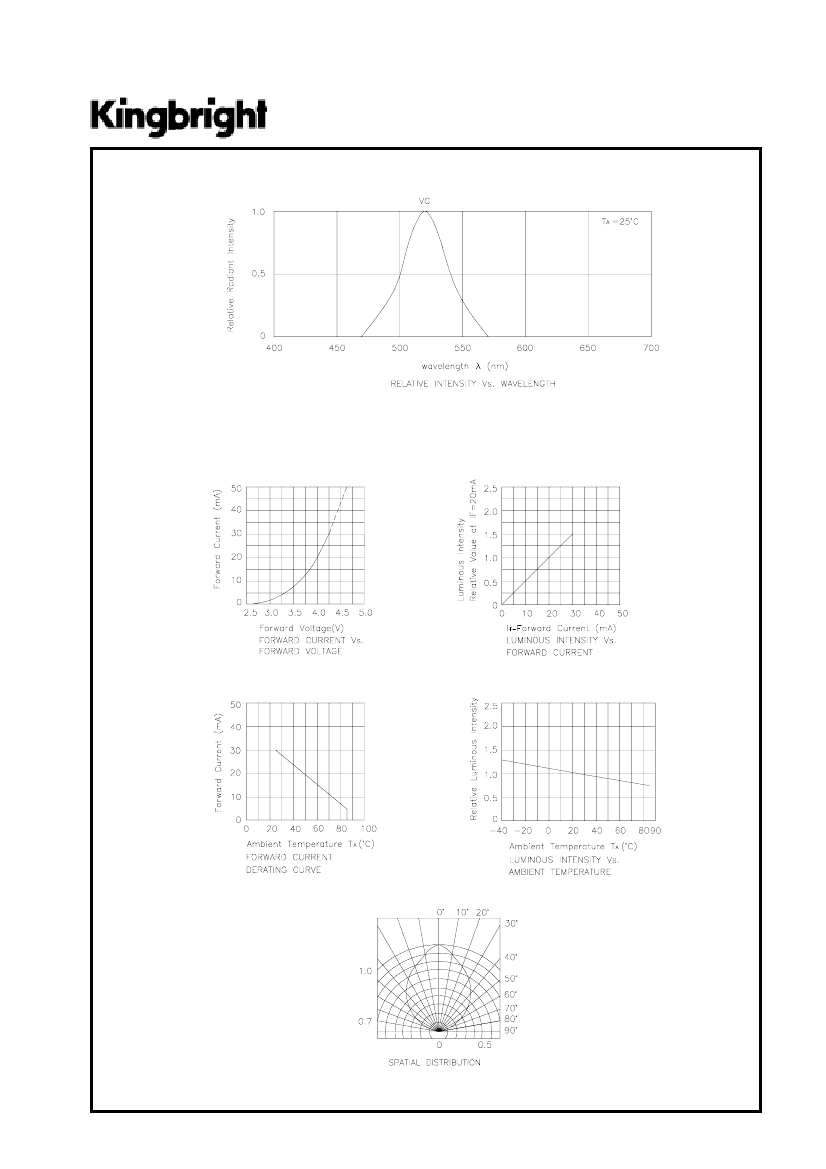

peak wavelength	520 nm
shape	RECTANGULAR
size	2.6 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	90 deg

3.2X1.6mm SMD CHIP LED LAMP

APK3216VGC

GREEN

Features

3.2mmX1.6mm SMT LED, 1.1mm THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR

VARIOUS

PACKAGE

Description

The Green source color devices are made with

InGaN on SiC Light Emitting Diode.

BACKLIGHT AND INDICATOR.

COLORS AND LENS TYPES AVAILABLE.

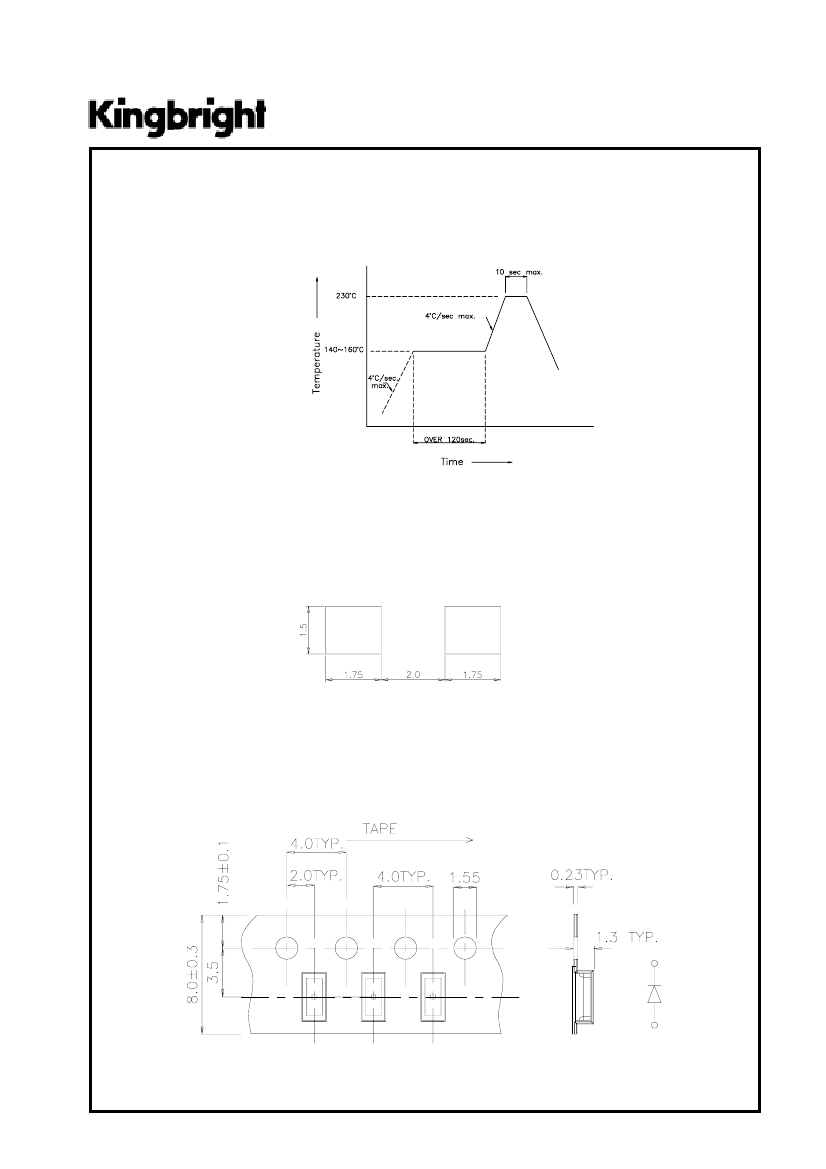

:2000PCS / REEL.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.2(0.0079")

unless otherwise noted.

3. Specifications are subject to change without notice.

SPEC NO:DSAD1152

APPROVED:J.Lu

REV NO: V.1

CHECKED:Allen Liu

DATE:MAR/25/2003

DRAWN: L.ZHANG

PAGE: 1 OF 4
