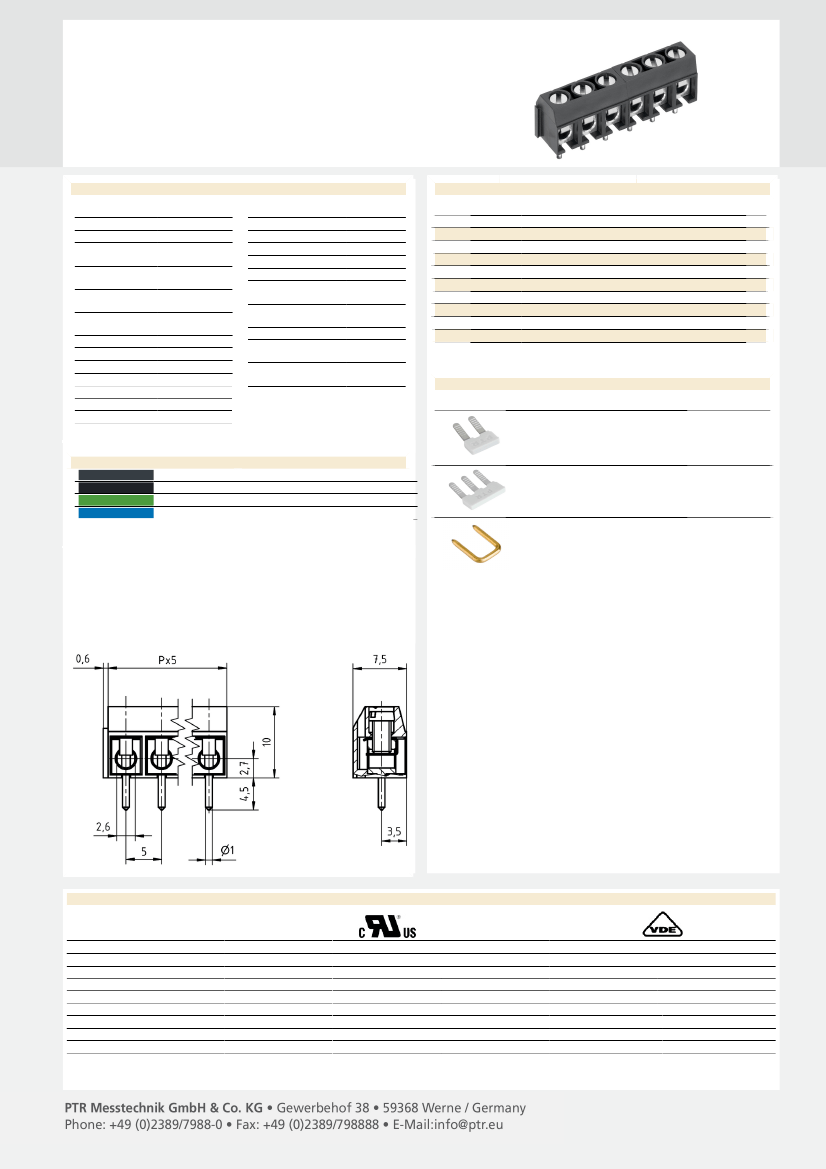

Wire Guard |
Spacing 5.0 mm
AK500/..DS-5.0-V-GREY
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing 5.0 mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
Width (mm)
10.60
15.60
20.60
25.60
30.60
35.60
40.60
45.60
50.60
55.60
60.60
Article Designation
AK500/2DS-5.0-V-GREY
AK500/3DS-5.0-V-GREY
AK500/4DS-5.0-V-GREY
AK500/5DS-5.0-V-GREY
AK500/6DS-5.0-V-GREY
AK500/7DS-5.0-V-GREY
AK500/8DS-5.0-V-GREY
AK500/9DS-5.0-V-GREY
AK500/10DS-5.0-V-GREY
AK500/11DS-5.0-V-GREY
AK500/12DS-5.0-V-GREY
Article Number
50500020121G
50500030121G
50500040121G
50500050121G
50500060121G
50500070121G
50500080121E
50500090121E
50500100121E
50500110121E
50500120121E
PU
250
250
250
250
250
250
100
100
100
100
100
Stranded with Ferrule 0.2 mm²
min
Stranded with Ferrule 1.5 mm²
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Clamp
Wire Guard
Screw
Brass
Stainless Steel
Steel
6.0 mm
1.3 mm
Accessories
Figure
Designation
Bridge, 2-pole, insulated, BRI/2-5.0/5.08-
LIGHT GREY
Article Number
50000000006
Colours
RAL7016
RAL9011
RAL6018
RAL5015
GREY , RAL7016
BLACK, RAL9011
GREEN, RAL6018
BLUE, RAL5015
Bridge, 3-pole, insulated, BRI/3-5.0/5.08-
LIGHT GREY
50000000007
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Bridge, 2-pole, BR/2-5.0/5.08-L7.0
50000000008
Ratings
Usegroup
Rated Voltage
Rated Current
Rated Wire Size
solid
stranded
Torque
Screw Size
Test Voltage
B
300 V
15 A
AWG 22-14
AWG 22-14
0.40 Nm
M2.6
1.6 kV
C
-
-
-
-
-
-
-
D
300 V
10 A
AWG 22-14
AWG 22-14
0.40 Nm
M2.6
1.6 kV
min
0.5 mm²
0.5 mm²
250 V
17.5 A
max
1.5 mm²
1.5 mm²
0.40 Nm
M2.6
2.0 kV
