35605-5253-A00PE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 35605-5253-A00PE

35605-5253-A00PE: Description10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size670KB，4 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

35605-5253-A00PE Overview

10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER, ROHS COMPLIANT

35605-5253-A00PE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (98)
Contact completed and terminated	GOLD FLASH OVER NICKEL (98)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	356
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

™

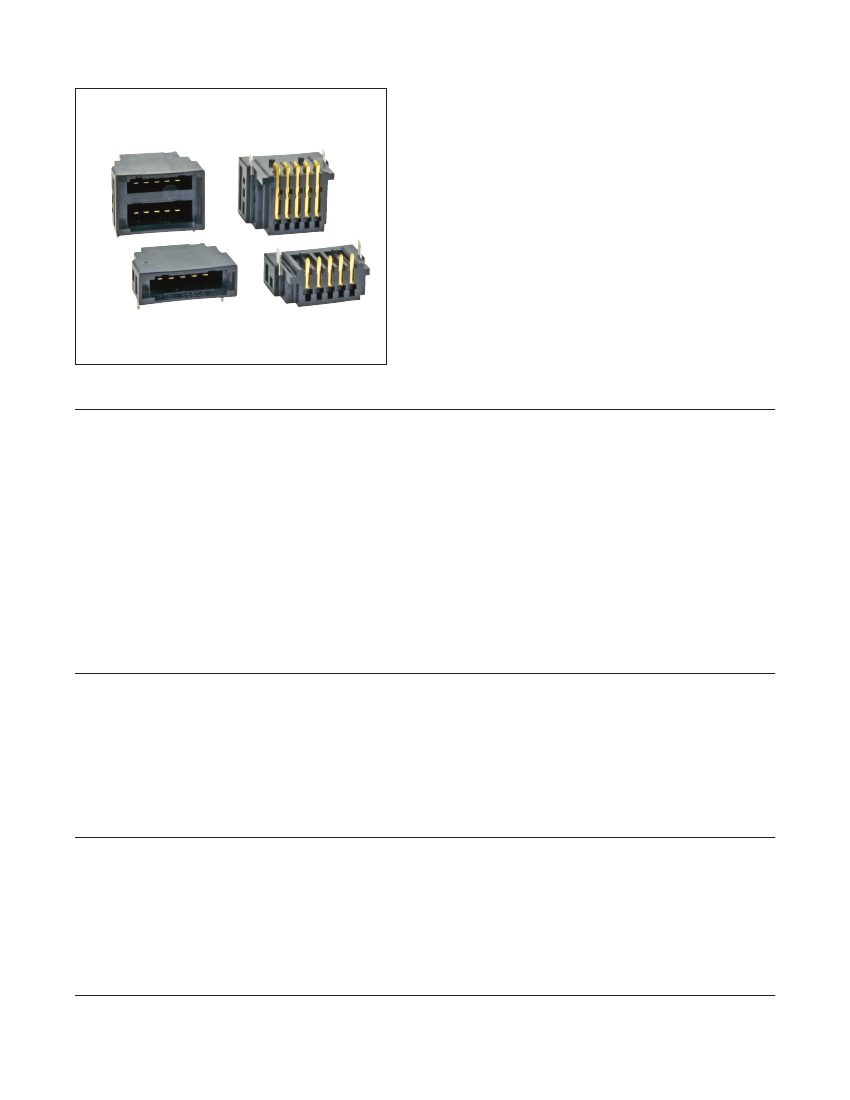

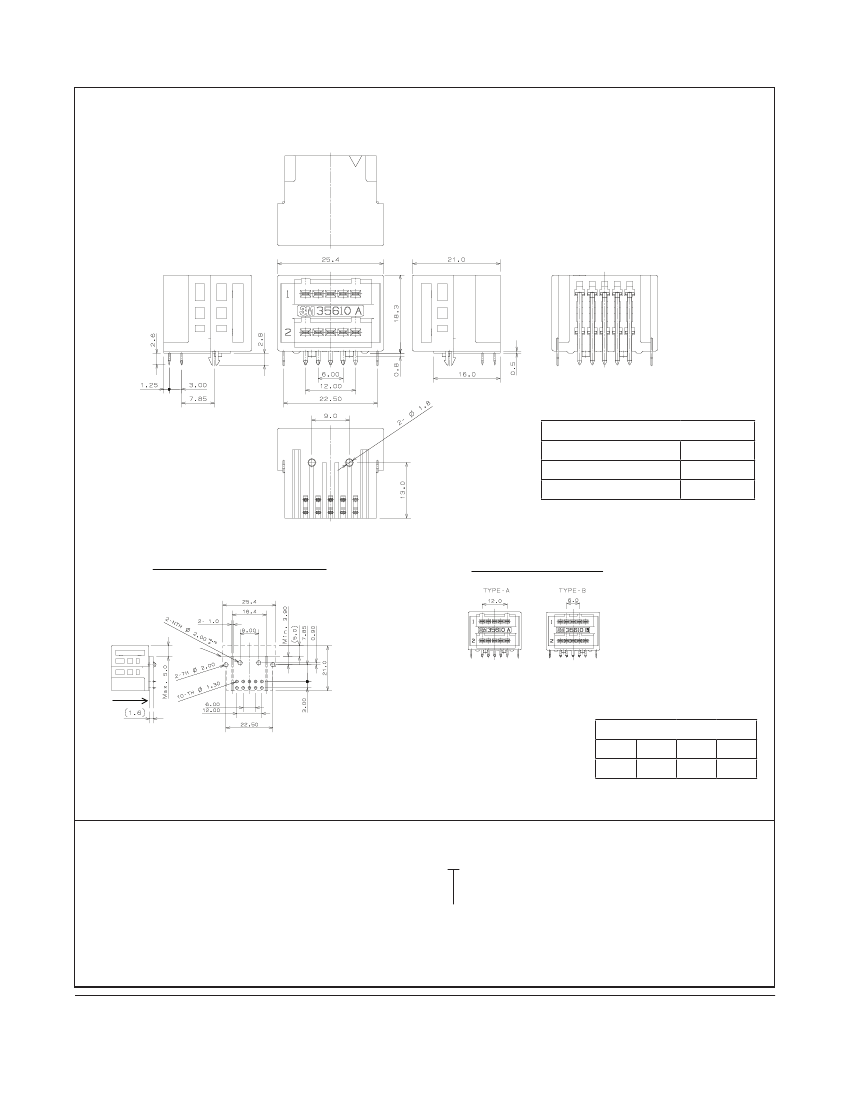

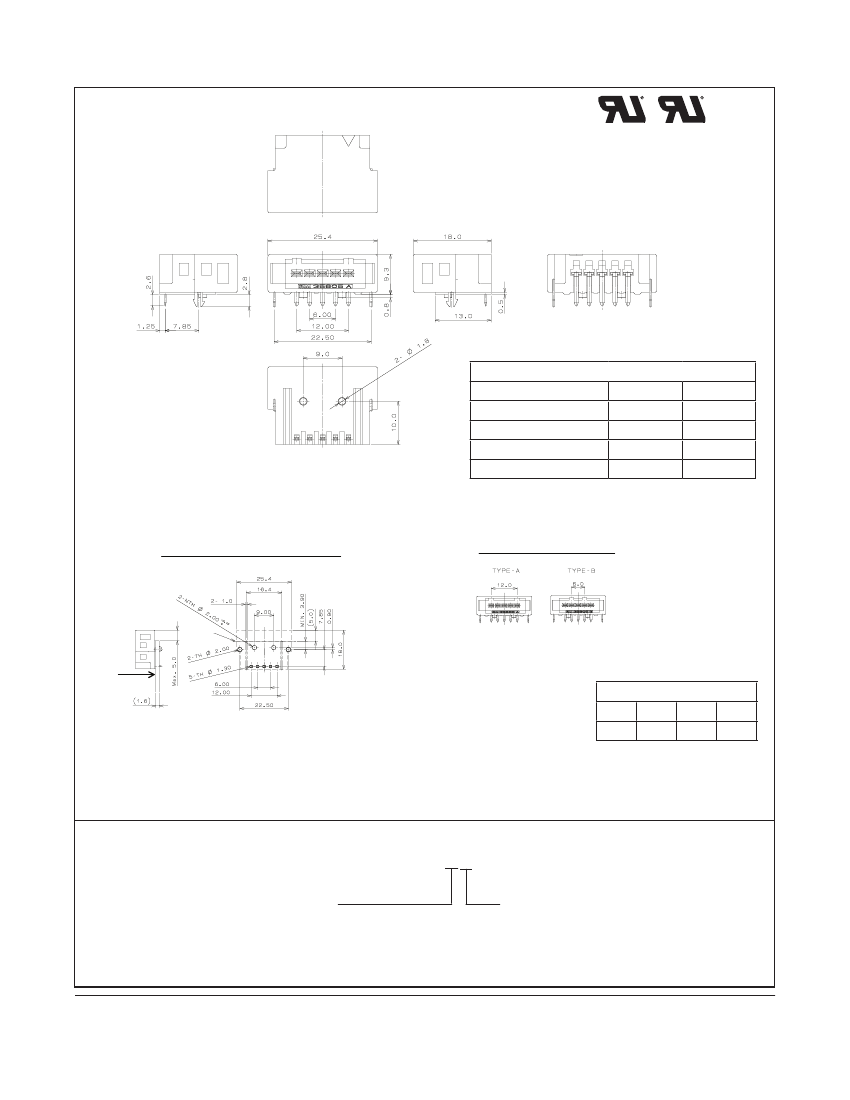

Power Clamp Header

3 mm, Right Angle, 1 and 2 Row, 5 and 10 Contacts

•

356 Series

Accepts one or two Power Clamp Wiremount Sockets

Accepts Branch and Terminator Connectors

End to end stackable at 25.4 mm pitch on PCB

Integrated press fit board retention pins retain the

connector to the board during wave soldering

CC-Link Communication Interconnect Standard

One Touch latching mechanism maintains a reliable

interconnection in demanding field applications

Keyed to prevent reverse insertion of Sockets

Polarization options ensures proper interconnection of

mated connectors

RoHS Compliant. See the Regulatory Information

Appendix (RIA) in the "RoHS compliance" section of

www.3M.com/Interconnects for compliance information

(RIA E1 & C1 apply).

TS-2303-B

Sheet 1 of 3

Date Modified: December 20, 2009

Physical

Insulation:

Body Material: PBT

Flammability: UL 94V-0

Body Color: Black

Contact:

Material: Copper Alloy

Plating:

Underplating: 2.5 µm Ni minimum

Wiping Area: 0.5 µm Au minimum

Solder Tails: Au Flash

Mating Compatability:

355, 357, and 35T series products (with same polarization)

Electrical

Current Rating:

18 AWG: 10A (1 contact/socket); 7A (2 - 5 contacts/socket)

20 AWG: 9A (1 contact/socket); 6A (2 - 5 contacts/socket)

Rating Conditions: 30° C maximum temperature rise

Voltage Rating:

250 V

Insulation Resistance:

MΩ min. at 600 V

Withstanding Voltage:

1,000 V

RMS

for 1 minute

Environmental

Process Rating:

260°C maximum for wave solder process

Temperature Rating:

-20°C to +75°C ambient

UL Rating: 65° C

UL File No: E68080

390°C for 3 seconds maximum for soldering iron

Electronic Solutions Division

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

35605-5253-A00PE Related Products

	35605-5253-A00PE	35605-5253-B00PE
Description	10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER, ROHS COMPLIANT	10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	3M	3M
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	POLARIZED	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (98)	GOLD (20) OVER NICKEL (98)
Contact completed and terminated	GOLD FLASH OVER NICKEL (98)	GOLD FLASH OVER NICKEL (98)
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	356	356
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER	SOLDER
Total number of contacts	10	10
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
