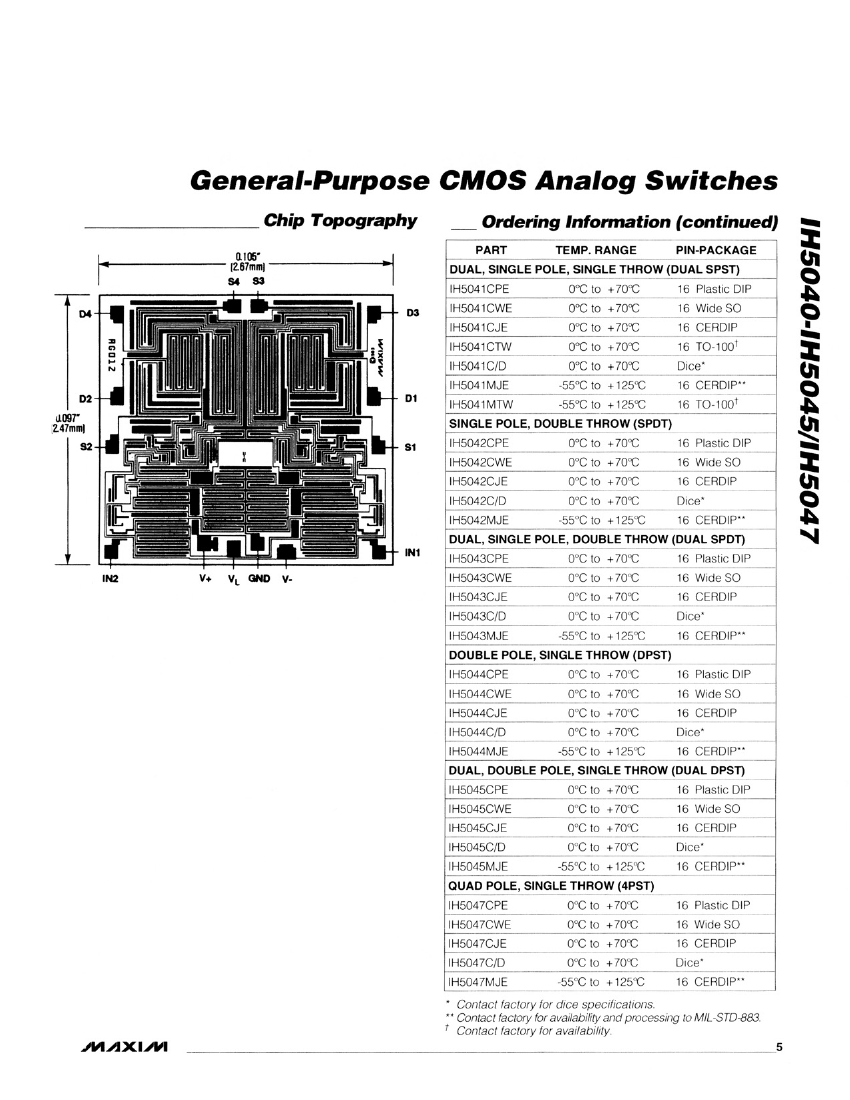

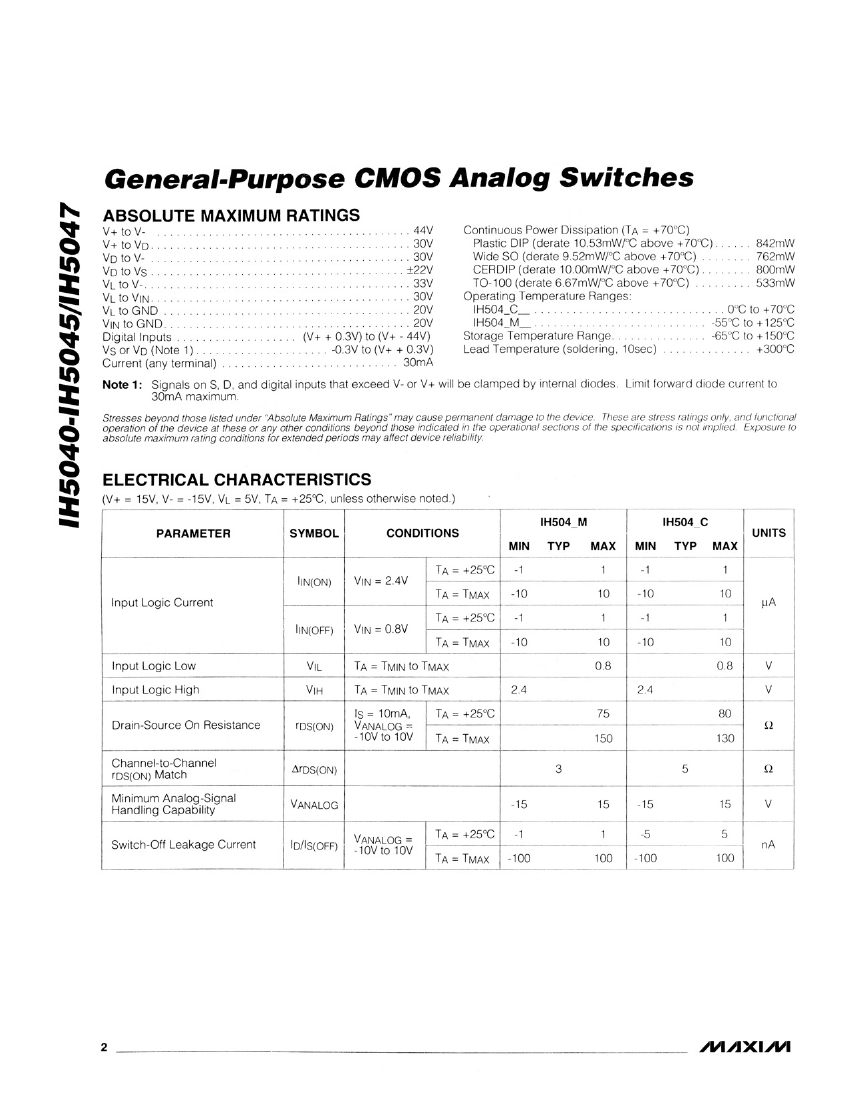

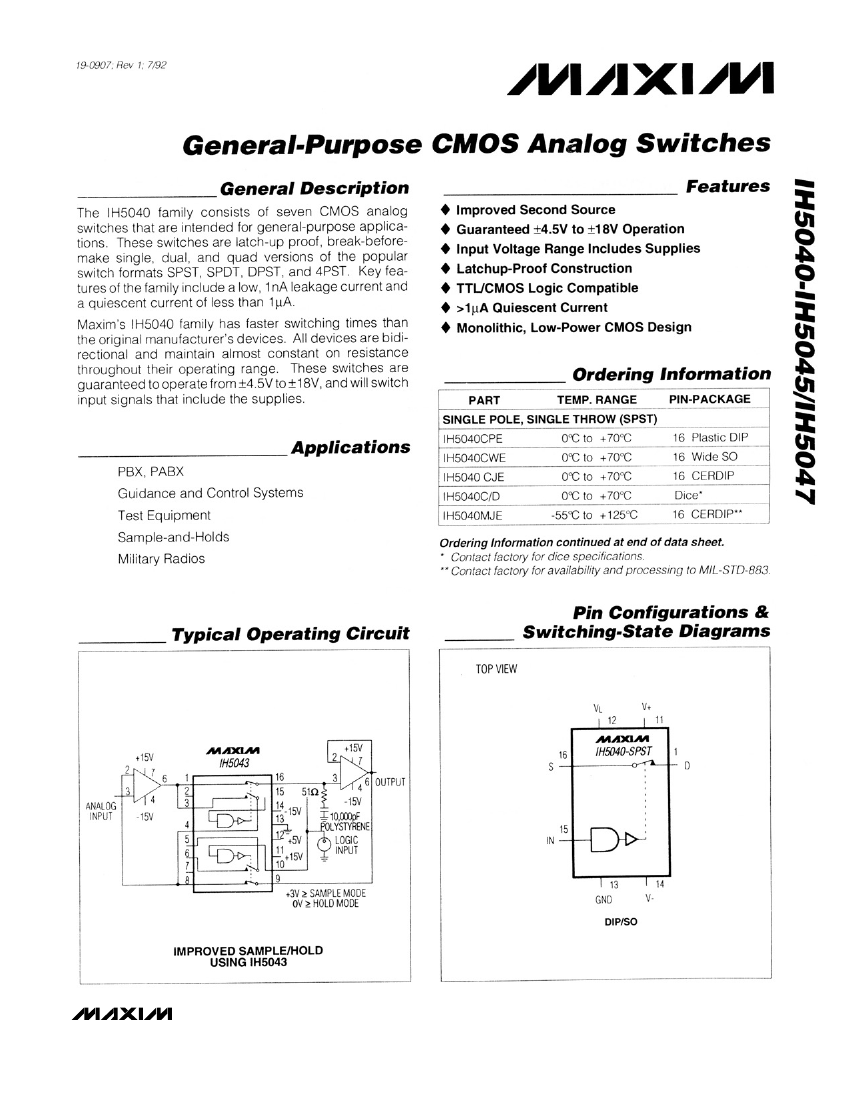

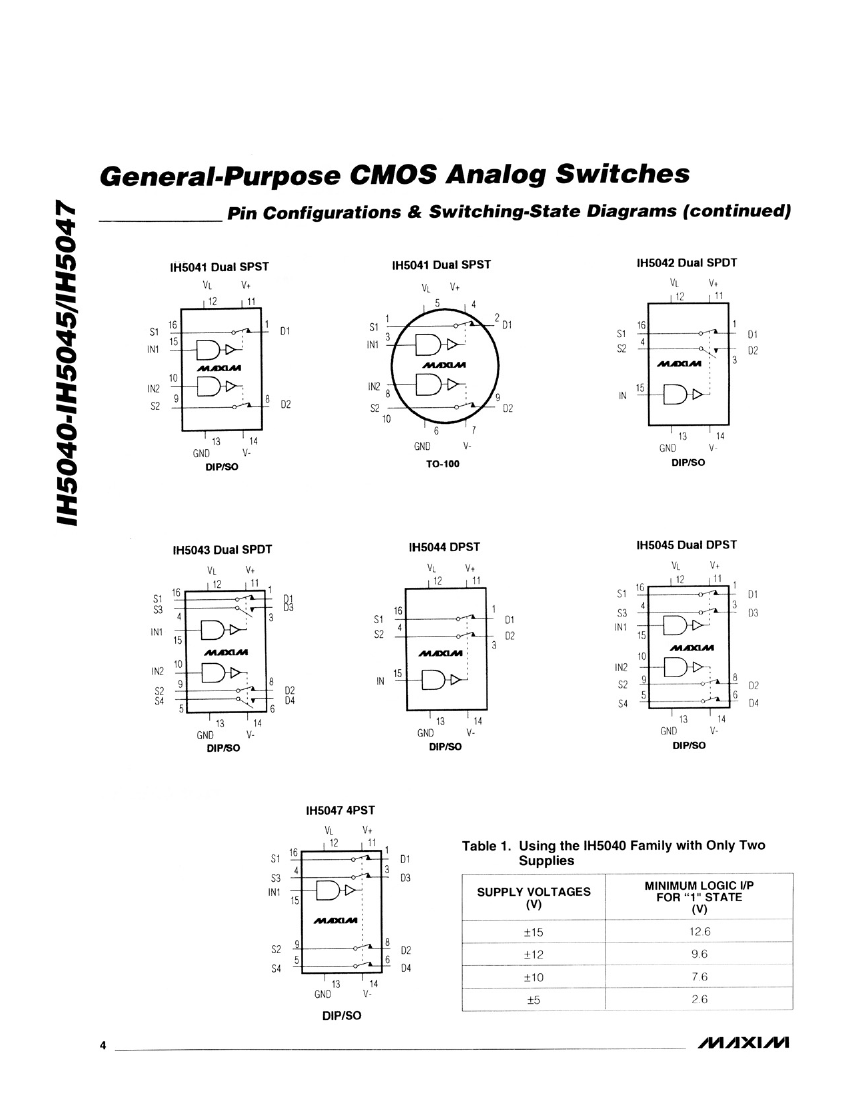

IH5045C/D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> IH5045C/D

IH5045C/D: DescriptionDPST, 2 Func, 2 Channel, CMOS, DIE-14; CategoryAnalog mixed-signal IC The signal circuit; File Size2MB，13 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

IH5045C/D Overview

DPST, 2 Func, 2 Channel, CMOS, DIE-14

IH5045C/D Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIE,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-XUUC-N14
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	2
Number of functions	2
Number of terminals	14
Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	80 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	200 ns
Maximum connection time	400 ns
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

____________________________________________________________________________

Maxim

Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

IH5045C/D Related Products

	IH5045C/D	IH5040IJE	IH5047CWE	IH5040C/D	IH5043CWE	IH5043CWE-T	IH5043IJE
Description	DPST, 2 Func, 2 Channel, CMOS, DIE-14	SPST, 1 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERDIP-16	SPST, 1 Func, 4 Channel, CMOS, PDSO16, 0.300 INCH, SOIC-16	SPST, 1 Func, 1 Channel, CMOS, DIE-14	SPDT, 2 Func, 1 Channel, CMOS, PDSO16, 0.300 INCH, SOIC-16	SPDT, 2 Func, 1 Channel, CMOS, PDSO16, 0.300 INCH, SOIC-16	SPDT, 2 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERDIP-16
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIE,	DIP,	SOP,	DIE,	SOP,	SOP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknow
Analog Integrated Circuits - Other Types	DPST	-	SPST	SPST	SPDT	SPDT	SPDT
JESD-30 code	R-XUUC-N14	-	R-PDSO-G16	R-XUUC-N14	R-PDSO-G16	R-PDSO-G16	R-GDIP-T16
Maximum negative supply voltage (Vsup)	-18 V	-	-18 V	-18 V	-18 V	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V	-	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	2	-	4	1	1	1	1
Number of functions	2	-	1	1	2	2	2
Number of terminals	14	-	16	14	16	16	16
Nominal off-state isolation	50 dB	-	50 dB	50 dB	50 dB	50 dB	50 dB
On-state resistance matching specifications	5 Ω	-	5 Ω	5 Ω	5 Ω	5 Ω	5 Ω
Maximum on-state resistance (Ron)	80 Ω	-	80 Ω	80 Ω	80 Ω	80 Ω	80 Ω
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	UNSPECIFIED	-	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIE	-	SOP	DIE	SOP	SOP	DIP
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	-	SMALL OUTLINE	UNCASED CHIP	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Maximum supply voltage (Vsup)	18 V	-	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	15 V	-	15 V	15 V	15 V	15 V	15 V
surface mount	YES	-	YES	YES	YES	YES	NO
Maximum disconnect time	200 ns	-	200 ns	200 ns	200 ns	200 ns	200 ns
Maximum connection time	400 ns	-	400 ns	400 ns	400 ns	400 ns	400 ns
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	-	GULL WING	NO LEAD	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	UPPER	-	DUAL	UPPER	DUAL	DUAL	DUAL
Maximum seat height	-	-	2.65 mm	-	2.65 mm	2.65 mm	5.08 mm
Terminal pitch	-	-	1.27 mm	-	1.27 mm	1.27 mm	2.54 mm
width	-	-	7.5 mm	-	7.5 mm	7.5 mm	7.62 mm
