LNP129011 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LNP129011

Preview

LNP129011: DescriptionPANEL DISPLAY UNITS; CategoryLED optoelectronic/LED photoelectric; File Size124KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

LNP129011 Overview

PANEL DISPLAY UNITS

LNP129011 Parametric

Parameter Name	Attribute value
Maker	Panasonic
Reach Compliance Code	unknow
Number of characters per line	16
color	RED/AMBER/GREEN
Configuration	COMPLEX
Display height	240 mm
Number of functions	1
Maximum operating temperature	45 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	16 X 16 DOT MATRIX LED DISPLAY
total depth	37 mm
total height	240 mm
total length	240 mm
The number of rows displayed each time	16
Nominal supply voltage	5 V
Observation area height	240 mm

Preview

Download Datasheet

View All

PANEL DISPLAY UNITS

240

×

240 mm

□

13 mm 16

×

16 Dots

■

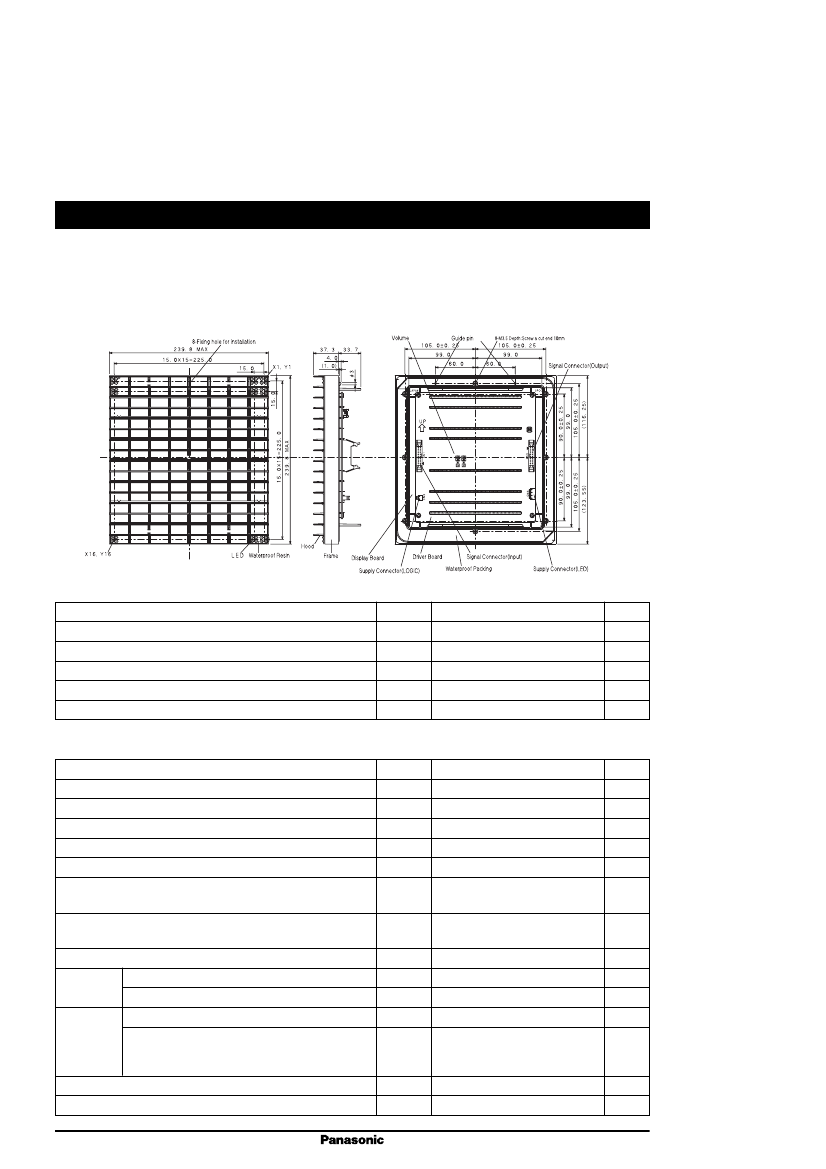

Outline Drawing

LNP129011

■

Absolute Maximum Ratings (Ta

=

25°C)

Item

Supply Voltage for Logic

Supply Voltage for LED

Input Voltage

Operating Ambient Temperature

Storage Temperature

■

Main Specifications (Ta

=

25°C)

Item

Display Colors

Dot Diameter

Dots Pitch

Dot Total Number

Display Surface Size

Brightness

(when lighting all lamps)

Operating Method

Clock Frequency

for Logic

Supply Voltage

Supply Current

Supply Voltage

for LED

Supply Current

Viewing Angle (50 % Luminouse)

Weight

As it is under development the standard values are for reference.

Symbol

V

CC

V

LED

Vin

Topr

Tstg

Ratings

−

0.3

∼ +

5.5

Max 5.5

−

0.3

∼

V

CC

+

0.3

−

20

∼ +

45

−

30

∼ +

85

Unit

V

°C

Symbol

Ratings

Red, Green, Amber

13

×

13

15.0

256 (16

×

16)

240

×

240

Unit

mm

cd/m

2

B

R e d : 2,000

Green : 1,200 Controllable

Static lighting

CLK

V

CC

I

CC

V

LED

I

LED

2θ 1/2

Max 5

5.0

±

0.25

Max 1.5

5.0

±

0.2

Max 8.9 when two colors are

all turned “ON”

Min 40

1100

MHz

V

mA

V

A

°

g

360
