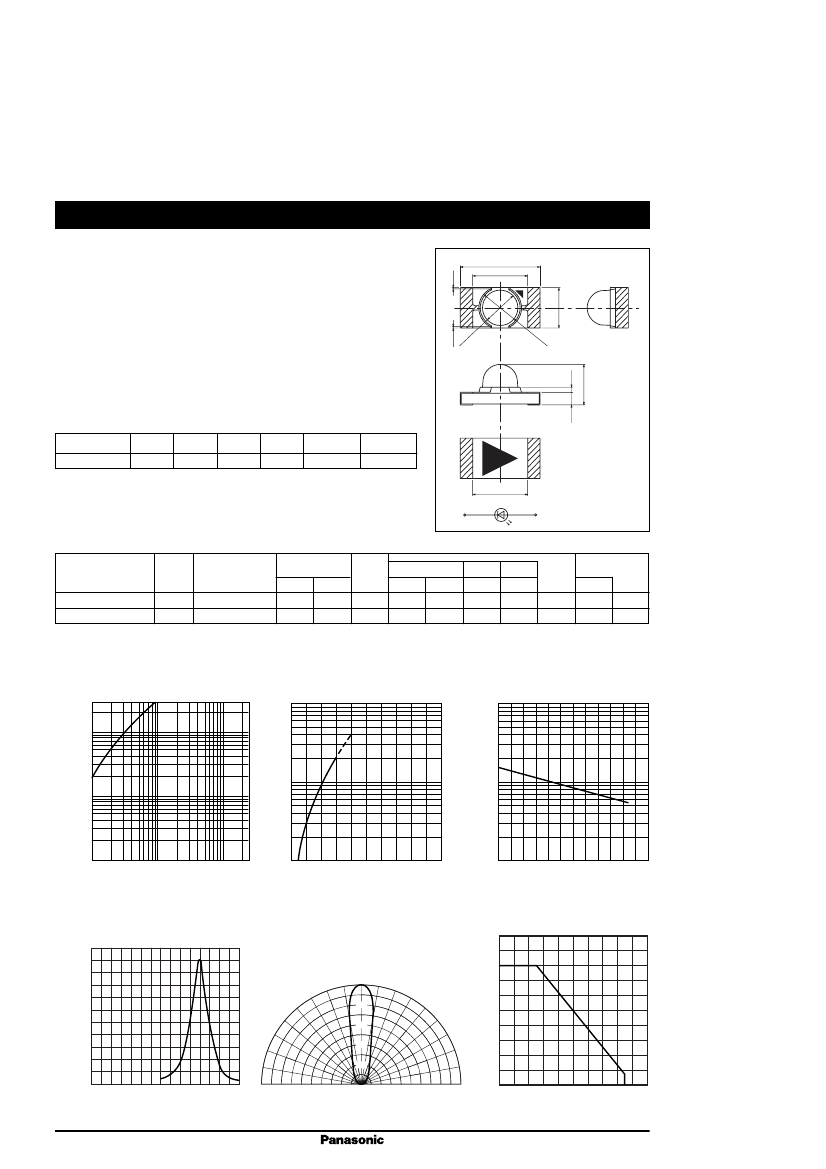

高輝度表面実装用チップ
LED Ultra Hight Bright Surface Mounting Chip LED
Dome-Lens Type
0.05
3.20
2.20
Unit: mm
0.05
Conventional Part No.
Global Prat No.
Lighting Color
LNJ218C8TRU ········· LNJ218C8TRU ········· Red
φ
42
1.
φ
1
.70
1.60
s
絶対最大定格 Absolute
Maximum Ratings (T
a
=
25°C)
Lighting Color P(mW) I
FDC
(mA) I
FP
(mA)
∗
V
R
(V) T
opr
(°C) T
stg
(°C)
Red
60
20
100
3
−30 ∼ +85 −40 ∼ +100
★I
FP
の条件は，
duty 10%，
Pulse width 1 msec. The condition of I
FP
is duty 10%, Pulse width 1 msec
2.20
2
1
1: Anode
2: Cathode
s
電気的光学的特性 Electro−Optical
Characteristics (T
a
=
25°C)
Conventional
Part No.
LNJ218C8TRU
Unit
Lighting
Lens Color
Color
Red
Clear
−
−
I
O
Typ
32
mcd
Min
17
mcd
I
F
10
mA
Typ
1.72
V
V
F
Max
2.5
V
λ
P
Typ
660
nm
∆λ
Typ
20
nm
I
R
I
F
10
mA
Max
100
µA
V
R
3
V
I
F
V
F
30
100
I
O
T
a
相対発光強度
(%)
Relative Luminous Intensity
500
300
光 度（軸上） I
O
(mcd)
Luminous Intensity
順方向電流 I
F
(mA)
Forward Current
10
5
3
50
30
10
5
3
100
50
30
1
0.5
0.3
0.1
1
3
5
10
30
50 100
300
1
1.6
1.8
2.0
2.2
2.4
10
−20
0
20
0.50
40
60
0.20
1.60
80
100
順方向電流 I
F
(mA)
Forward Current
順方向電圧 V
F
(V)
Forward Voltage
周囲温度
T
a
(˚C )
Ambient Temperature
相対発光強度
波長特性
順方向電流 I
F
(mA)
Forward Current
Relative Luminous Intensity
Wavelength Characteristics
25
I
F
T
a
指向特性
Directive Characteristics
20° 10°
30°
40°
0°
80°
60°
10° 20°
30°
40°
50°
60°
40°
20°
80
60
40
20
0
20
40
60
80
70°
80°
90°
100
0
0
20
40
60
80
100
相対発光強度
(%)
Relative Luminous Intensity
100
80
60
40
20
0
550
20
15
50°
60°
70°
80°
600
650
700
90°
100
10
5
波 長
λ
P
(nm)
Wavelength
相対発光強度
(%)
Relative Luminous Intensity
周囲温度
T
a
(
°C
)
Ambient Temperature
90
