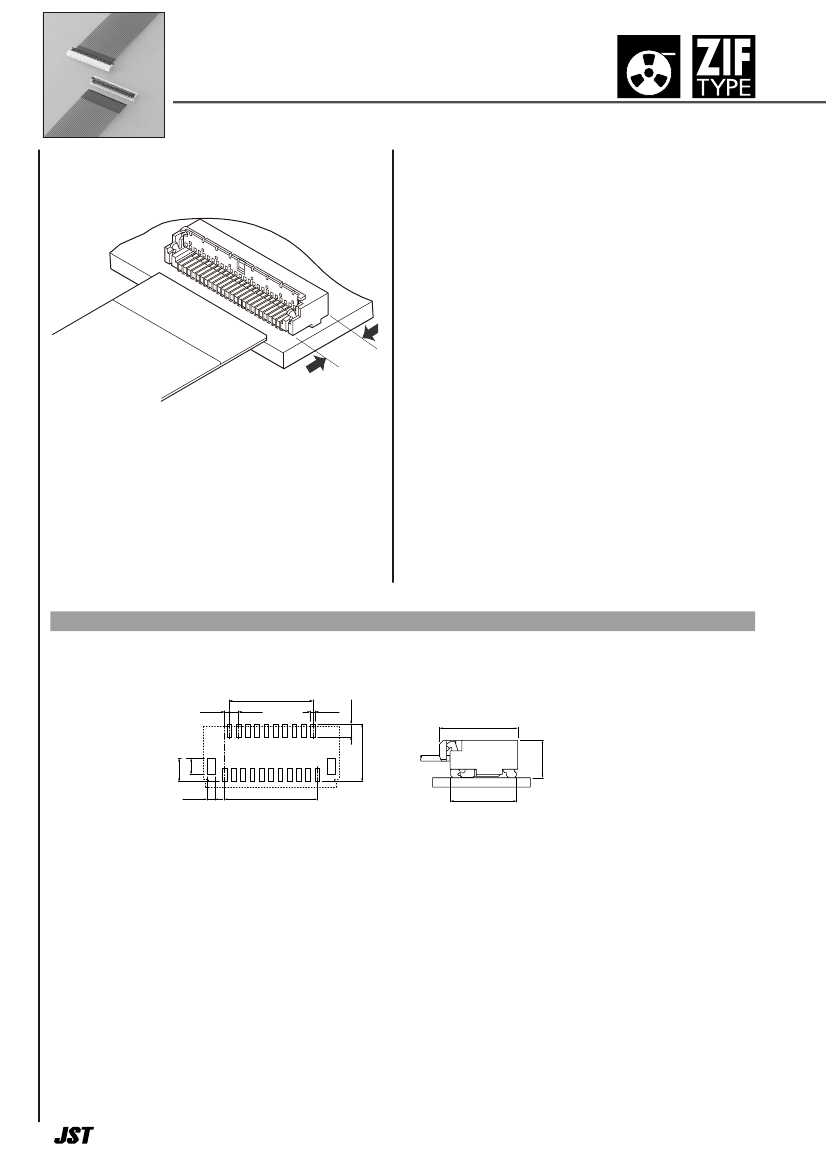

FXS
CONNECTOR
0.3mm pitch/Connectors for FPC
Emboss Tape
Specifications –––––––––––––––––––
• Current rating: 0.2A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/50m
Ω
max.
After environmental testing/50m
Ω
max.
(variation from initial value)
• Insulation resistance:
50M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/0.3mm
<0.6mm pitch staggered>
Conductor width/0.3mm
Mating part thickness/0.2±0.03mm
Note
:
FPC to be actually used should be checked for applicability.
3.85mm
only
Space saving flip lock type connector, with
1.8mm height and 3.85mm depth.
• Space saving design
• Rotating cover structure
• Locking structure
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
1
Certified LR20812
0
Recognized E60389
PC board layout (viewed from component side) and Assembly layout
0.3
±0.03
0.6
±0.03
0.3
±0.05
0.8
±0.05
A
±0.05
3.85
±0.05
3.65
1.45
±0.05
1.0
±0.05
0.5
±0.05
B
±0.05
3.25
Note: 1. Tolerances are non-cumulative:
±
0.03mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
1
1.8
FXS CONNECTOR
Connector
Gold-plated
1.7
0.6
A
Circuits
17
21
25
33
39
45
Model No.
17FXS-RSM1-GAN-TF
（B）
21FXS-RSM1-GAN-TF
（B）
25FXS-RSM1-GAN-TF
（B）
33FXS-RSM1-GAN-TF
（B）
39FXS-RSM1-GAN-TF
（B）
（B）
45FXS-RSM1-GAN-TF
51FXS-RSM1-GAN-TF
（B）
Dimensions (mm)
A
4.2
5.4
6.6
9.0
10.8
12.6
14.4
B
4.8
6.0
7.2
9.6
11.4
13.2
15.0
C
7.6
8.8
10.0
12.4
14.2
16.0
17.8
Q'ty /
reel
2,500
2,500
2,500
2,500
2,500
2,500
2,500
0.6
51
B
1.4
Material and Finish
Contact: Copper alloy, nickel-undercoated, gold-plated
Housing: Heat resisting resin, UL94V-0
Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Cover: Heat resisting resin, UL94V-0
Reinforcing pin: KOVAR
Rotary pin: KOVAR
C
3.85
RoHS compliance
This product displays (LF)(SN) on a label.
Note: Contact JST for tin-plated products.
1.8
0.3
0.7
3.25
Lead section dimensions of FPC
±
0.3×
N+1
）
0.05
（
±
0.3×
N- 1
）
0.03
（
±0.07
0.3
0.6
±0.02
0.3
＋0.04
−0.03
0.3
±0.07
0.2
±0.03
3.3
±0.3
Reinforcing layer
Note: N---Number of circuits
4.5
2
