MOTOROLA

Freescale Semiconductor, Inc.

SEMICONDUCTOR ENGINEERING BULLETIN

Order this document

by EB212/D

EB212

Using Data Sheet Impedances

for RF LDMOS Devices

Prepared by: Darin Wagner

Motorola Semiconductor Products Sector

INTRODUCTION

This document explains the format used by Motorola for

presenting LDMOS impedance information for both

single - ended and push - pull devices on RF Power data

sheets. The purpose of this document is to clarify the use of

this information in the initial design of input and output

matching networks for these devices.

Multiple methods are available for impedance extraction.

The scope of this document does not cover detailed extraction

methods; however, a possible extraction method is explained

here. Whichever method is used, the main concern to be

Freescale Semiconductor, Inc...

addressed is the need to de - embed the extracted data back

to the reference plane of the device as shown in Figure 1.

As a byproduct of the impedance extraction methodology,

a zero length width step simulation block should be used

during simulation The MSTEP block for Agilent Advanced

Design System (ADS) users shows the difference between

the reference plane width and the copper lead pad width.

Figure 2 illustrates that the copper lead pad width (Dimension

“b”) is larger than the reference plane width (Dimension “a”).

For more information on this topic, the reference provided

at the end of this document is a rigorous but accurate method

for impedance measurements:

DUT Reference Plane

MRF

XXXXX

DUT

Reference Planes

Figure 1. Location of Reference Planes on a Package

REV 0



Motorola, Inc. 2004

ÎÎÎÎ

DUT

Reference Planes

For More Information On This Product,

Go to: www.freescale.com

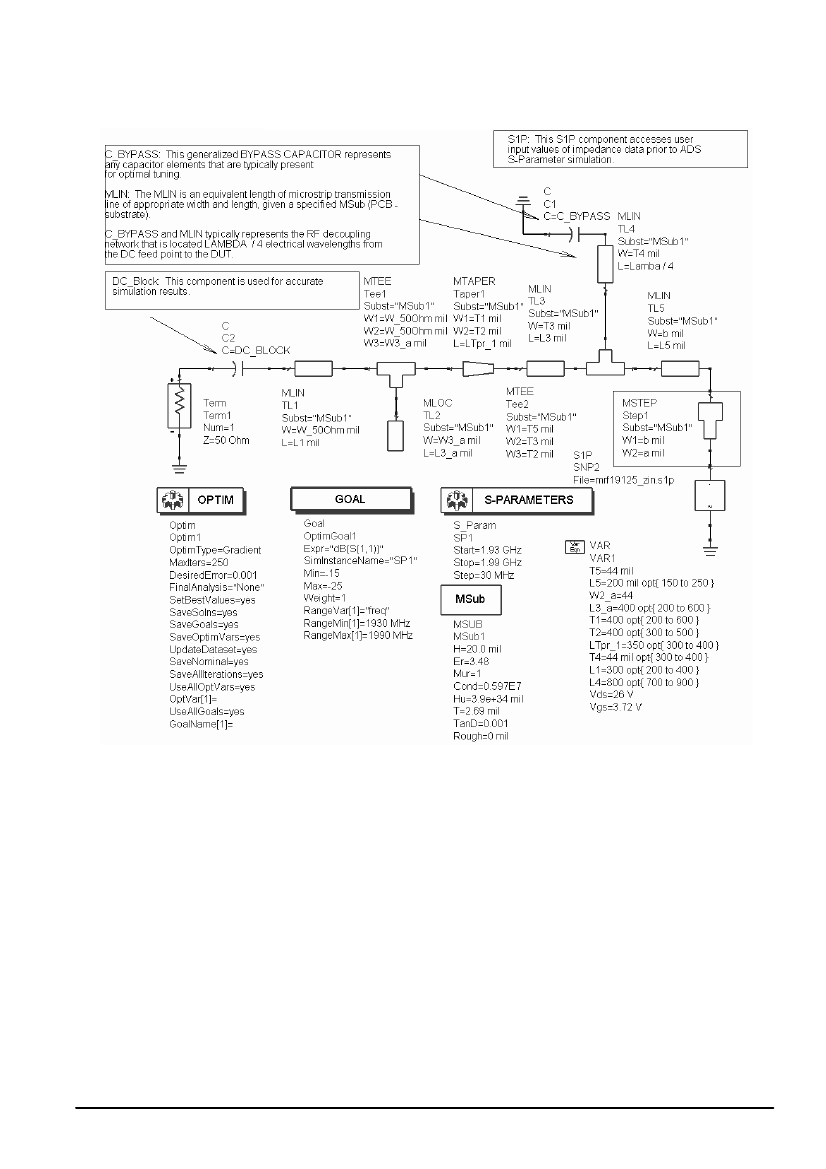

Figure 2. Illustration of the Instantaneous

Impedance Change and Need for MSTEP Blocks
