8AD050P-321JBC datasheet, PDF - EEWORLD Datasheet

8AD050P-321JBC: DescriptionRectangular Connector, 50 Contact(s), Male, 0.05 inch Pitch, Receptacle; CategoryThe connector The connector; File Size386KB，7 Pages; ManufacturerFreeport Resources Enterprises Corp

Download Datasheet Parametric View All

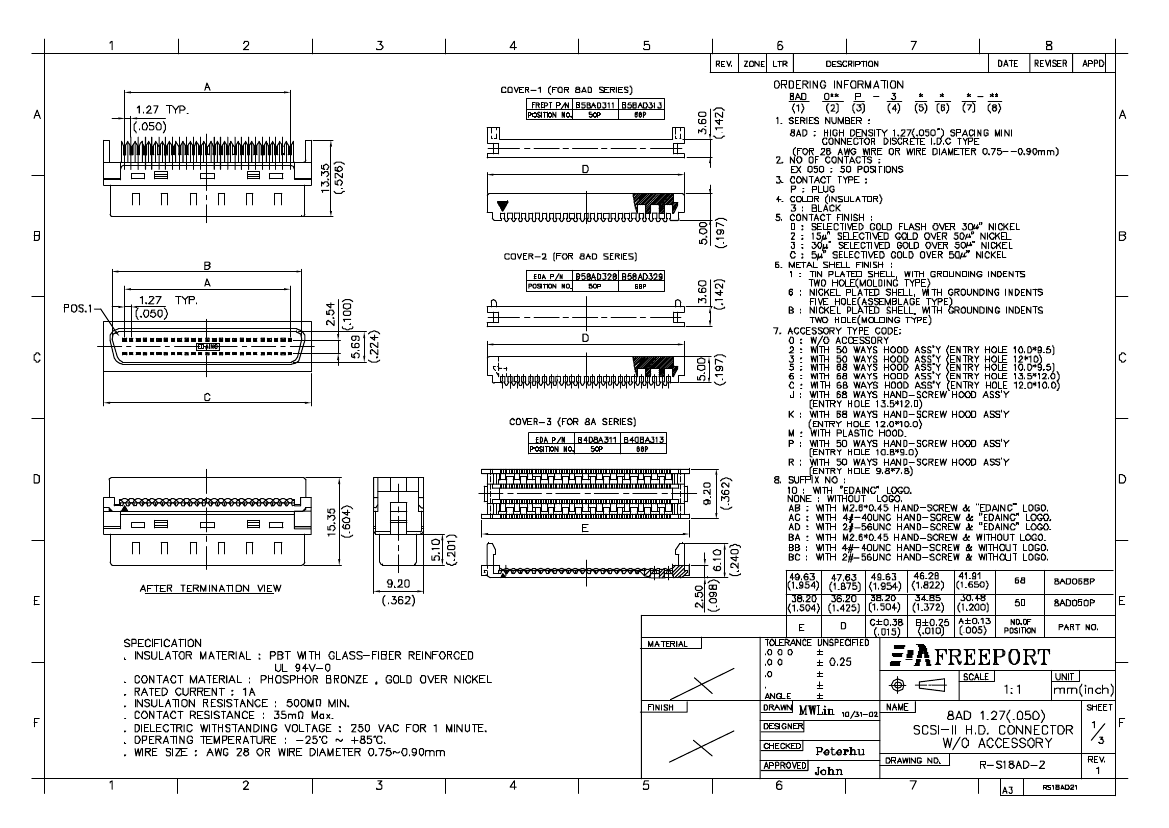

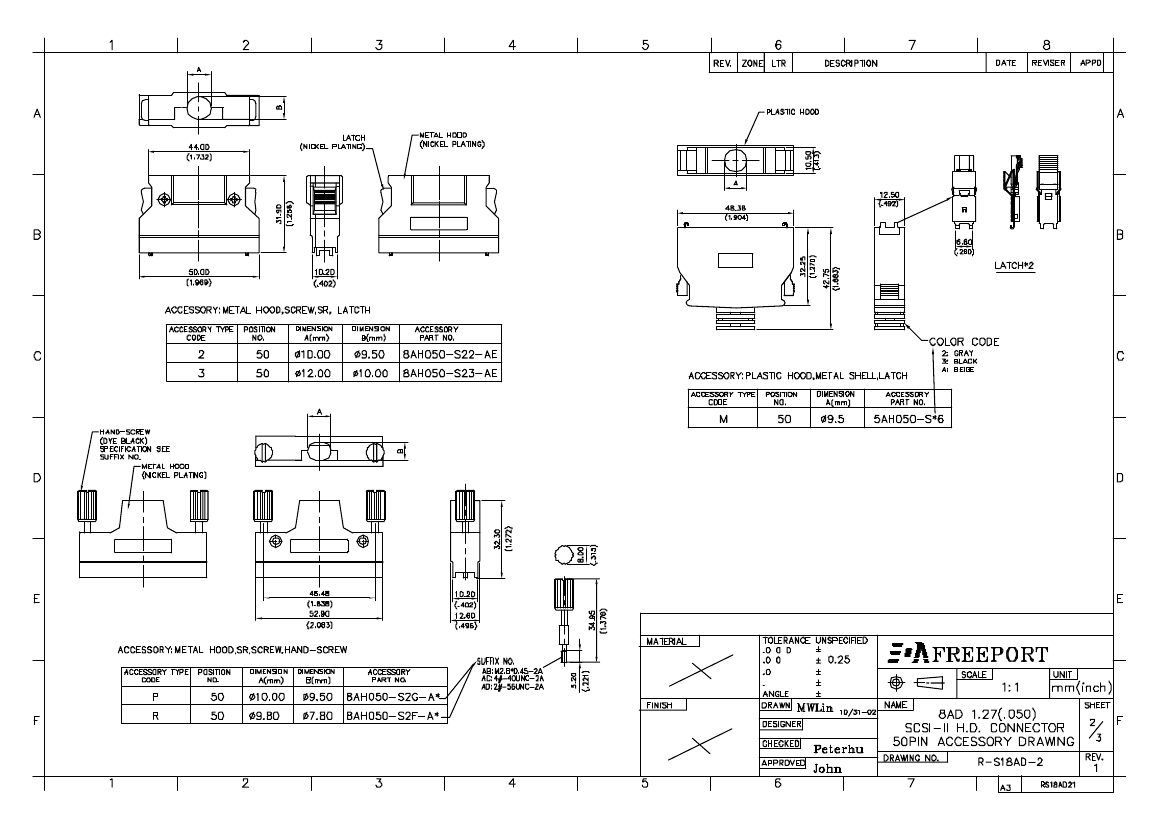

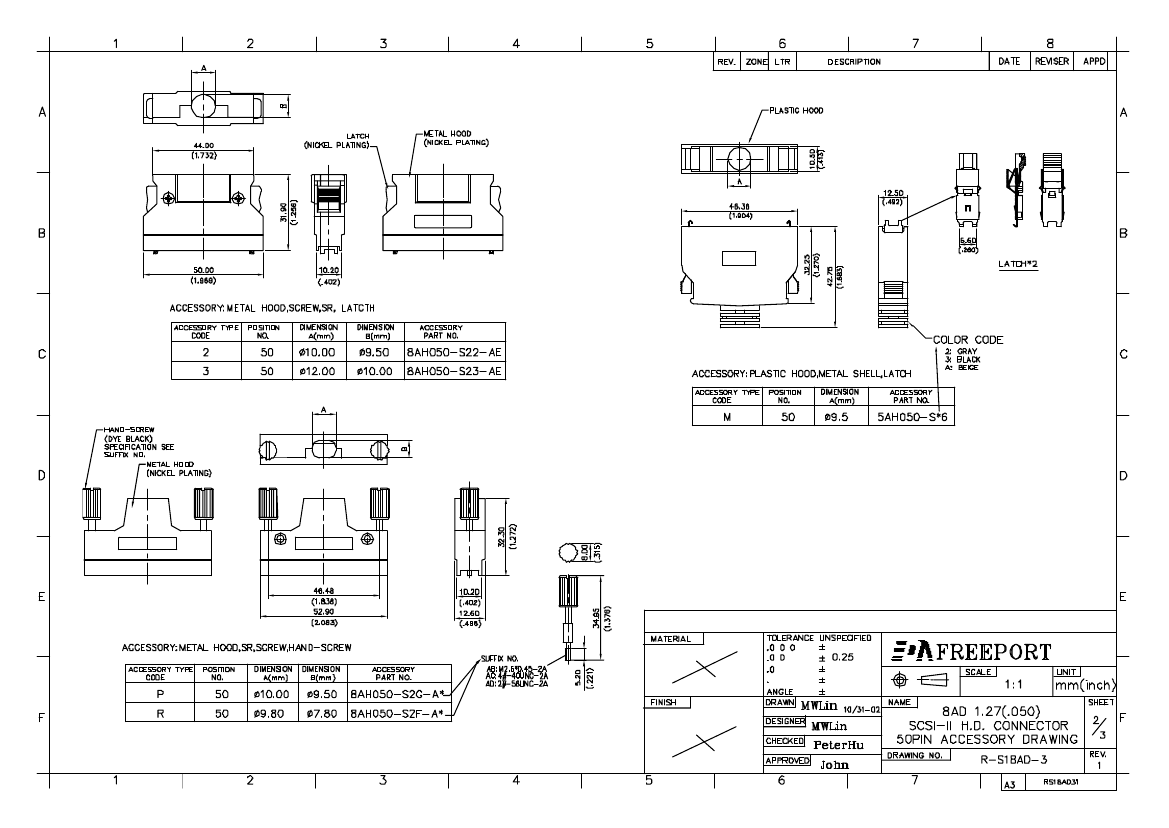

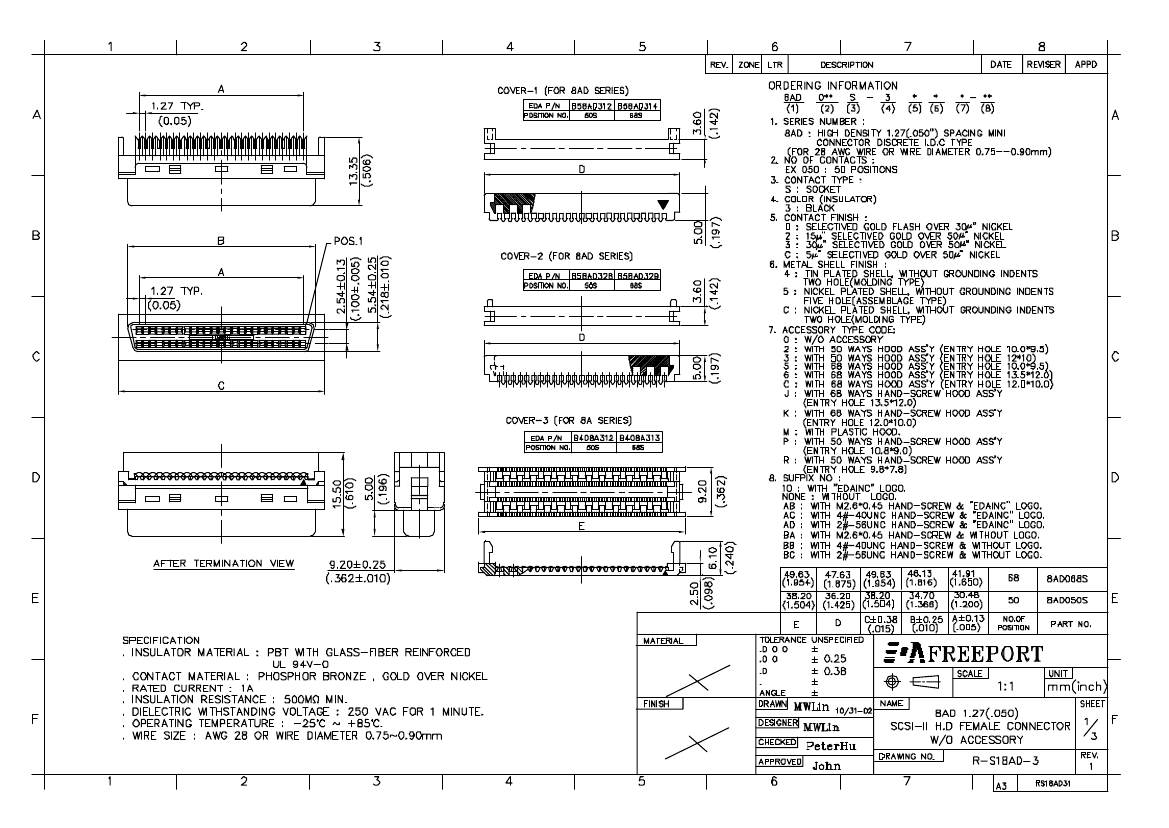

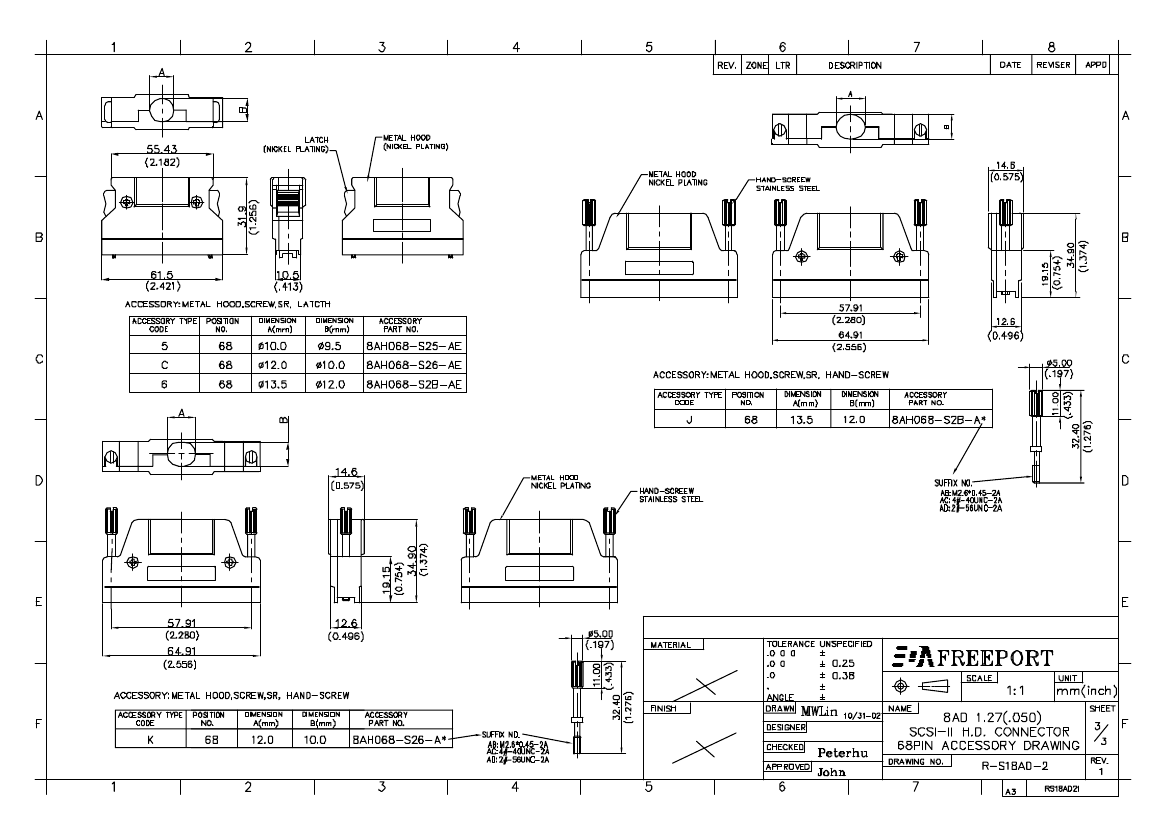

8AD050P-321JBC Overview

Rectangular Connector, 50 Contact(s), Male, 0.05 inch Pitch, Receptacle

Parameter Name	Attribute value
Maker	Freeport Resources Enterprises Corp
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.362 inch
subject depth	0.403 inch
body length	1.504 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8AD
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED BRACKET
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Total number of contacts	50
Base Number Matches	1
