LM336Z2.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LM336Z2.5

LM336Z2.5: Description1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PBCY3; CategoryPower/power management The power supply circuit; File Size61KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Related ProductsFound18parts with similar functions to LM336Z2.5

Download Datasheet Parametric Compare View All

LM336Z2.5 Overview

1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PBCY3

LM336Z2.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	TO-92
package instruction	TO-92, 3 PIN
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	2.54 V
Minimum output voltage	2.44 V
Nominal output voltage	2.49 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.05,50
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

www.fairchildsemi.com

LM336-2.5/LM336B-2.5

Programmable Shunt Regulator

Features

•

Low Temperature Coefficient

Guaranteed Temperature Stability 4mV Typical

0.2Ω

ynamic Impedance

±1.0% Initial Tolerance Available

Easily Trimmed for Minimum Temperature Drift

Description

The LM336-2.5/LM336B-2.5 integrated circuits are

precision 2.5V shunt regulators. The monolithic IC voltage

reference operates as a low temperature coefficient 2.5V

zener with 0.2W dynamic impedance. A third terminal on

the LM336-2.5/LM336B-2.5 allows the reference voltage

and temperature coefficient to be trimmed easily. LM336-

2.5/LM336B-2.5 are useful as a precision 2.5V low voltage

reference for digital voltmeters, power supplies or OP-AMP

circuitry. The 2.5V makes it convenient to obtain a stable

reference from low voltage supplies. Further, since the

LM336-2.5/LM336B-2.5 operate as shunt regulators, they

can be used as either a positive or negative voltage reference.

TO-92

1. Adj 2. + 3. -

Internal Block Diagram

C2 R4

Q16

Q10

Q11

Q15

Q12

Q14

Q18

R10

Q17

ADJUST

Q13

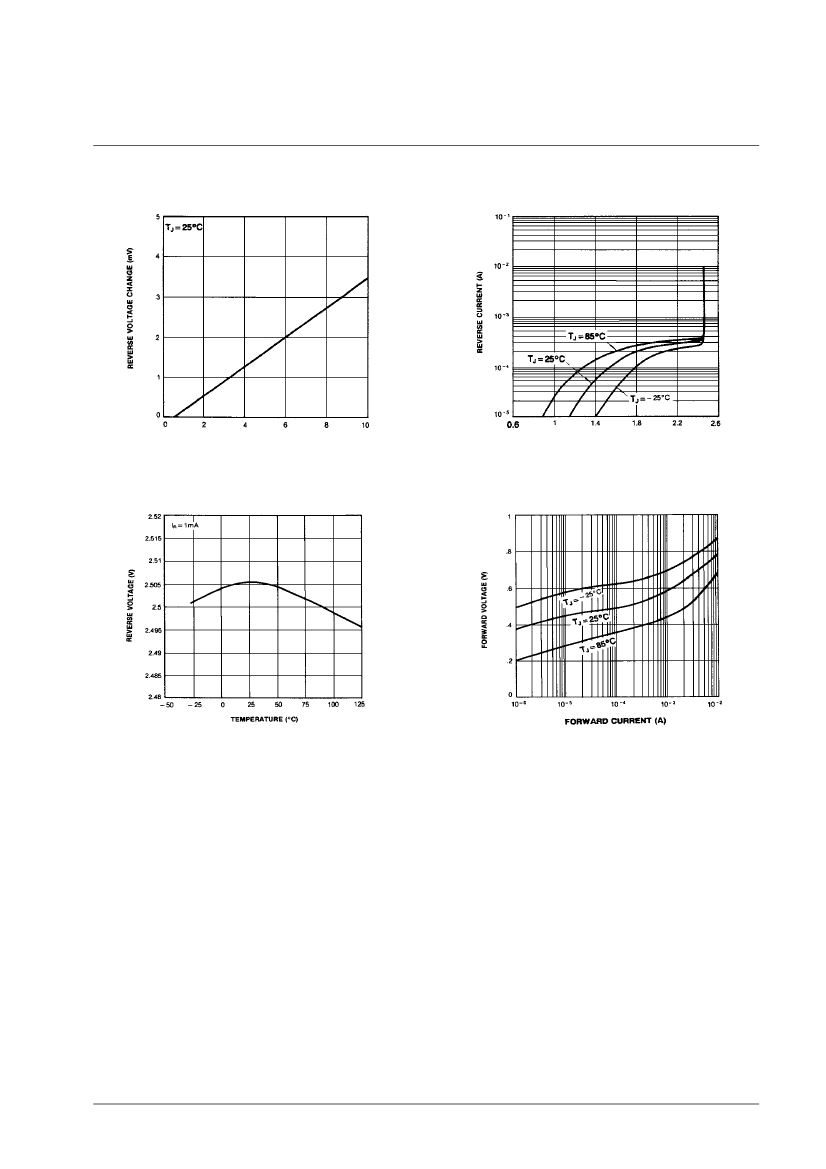

Rev. 1.0.1

LM336Z2.5 Related Products

	LM336Z2.5	LM336-2.5	LM336BZ25	LM336
Description	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PBCY3	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PBCY3	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PBCY3	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PBCY3
Number of functions	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	70 °C	70 °C	70 °C	70 Cel
Maximum output voltage	2.54 V	2.54 V	2.515 V	2.54 V
Minimum output voltage	2.44 V	2.44 V	2.465 V	2.44 V
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-hole
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Parts packaging code	TO-92	TO-92	TO-92	-
Contacts	3	3	3	-
Reach Compliance Code	compli	unknow	unknow	-
ECCN code	EAR99	EAR99	EAR99	-
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	-
JESD-30 code	O-PBCY-T3	O-PBCY-W3	O-PBCY-T3	-
Output times	1	1	1	-
Nominal output voltage	2.49 V	2.49 V	2.49 V	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	ROUND	ROUND	ROUND	-
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
surface mount	NO	NO	NO	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	-
Fine-tuning/adjustable output	YES	YES	YES	-
