S020180L1602

Description
Wide Band Low Power Amplifier, 2000MHz Min, 18000MHz Max,
CategoryWireless rf/communication    Radio frequency and microwave
File Size92KB，2 Pages
ManufacturerHEICO Corporation
Download Datasheet Parametric Compare View All

S020180L1602 Overview

Wide Band Low Power Amplifier, 2000MHz Min, 18000MHz Max,

S020180L1602 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Is SamacsysN
structureCOAXIAL
Gain16 dB
Maximum operating frequency18000 MHz
Minimum operating frequency2000 MHz
Maximum operating temperature70 °C
Minimum operating temperature
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2
Base Number Matches1

Preview

Download Datasheet
6/16/2016

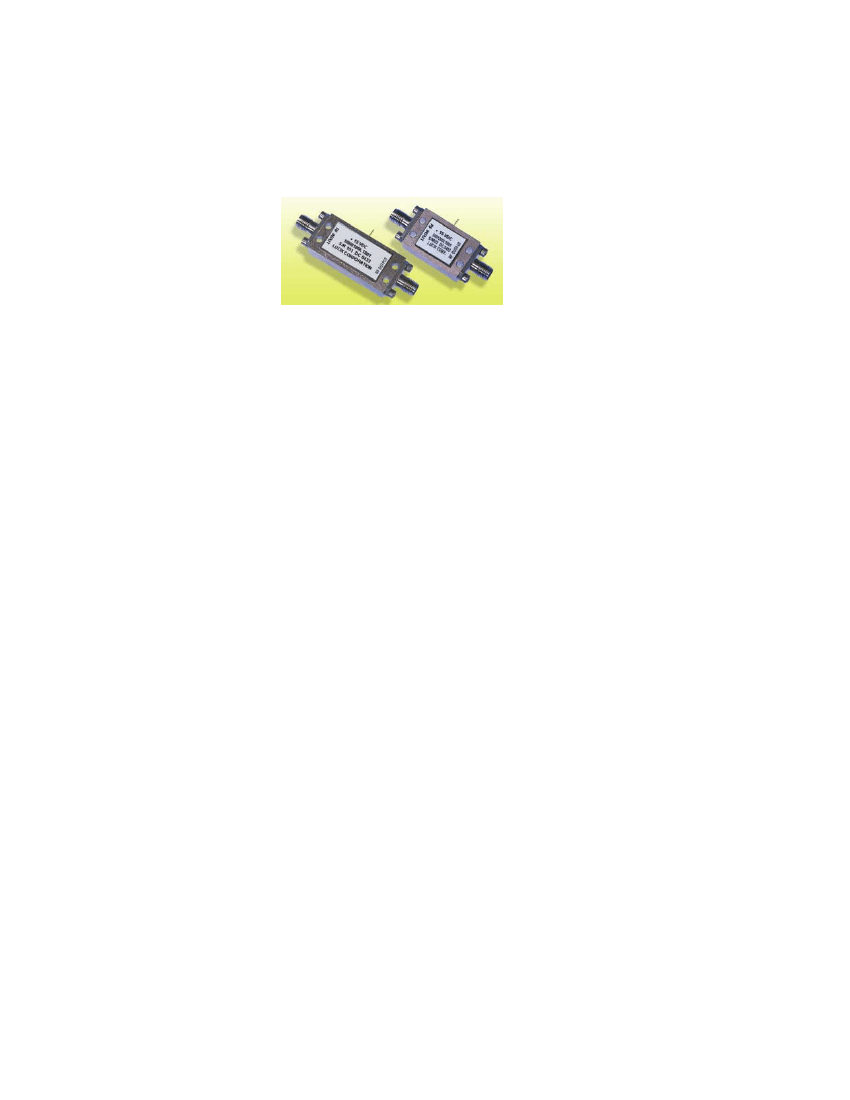

2.0 ­ 18.0 GHz
SPACE COMMUNICATIONS PAYLOAD ELECTRONICS
HOME
COMPANY
PRODUCTS
NEWS
Ultra­Broadband Amplifiers
Ultra­Broadband Amplifiers
0.5 ­3.0 GHz
0.1 ­ 4.0 GHz
0.01 ­ 6.0 GHz
0.01 ­ 10 GHz
0.5 ­ 18.0 GHz
2.0 ­ 18.0 GHz
0.1 ­ 20.0 GHz
Broadband Amplifiers
2.0 ­ 4.0 GHz
2.0 ­ 6.0 GHz
4.0 ­ 8.0 GHz
4.0 ­ 10.0 GHz
6.0 ­ 12.0 GHz
8.0 ­ 12.0 GHz
6.0 ­ 18.0 GHz
8.0 ­ 18.0 GHz
12.0 ­ 18.0 GHz
18.0 ­ 26.5 GHz
15.0 ­ 30.0 GHz
Narrowband Amplifiers
1.2 ­ 1.6 GHz
2.7 ­ 2.9 GHz
5.4 ­ 5.9 GHz
9.5 ­ 10.5 GHz
14.0 ­ 14.5 GHz
13.75 ­ 15.4 GHz
17.7 ­18.3 GHz
2.0 ­ 18 GHz
Model Number
Frequency
Range
(GHz)
Output Power,
P1dB min.
(dBm)
IP3
typical
(dBm)
Gain
Gain
min.  Flatness
(dB)
max.
(+/­ dB)
Noise
Figure
max. (dB)
VSWR
In/Out
max.
Current
draw
12­15 VDC
typical (mA)
Outline
S020180L1601
S020180L2401
S020180L3201
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
18.0
2.0 ­
8
8
8
16
16
16
16
24
32
1
1.25
1.5
2.8
2.8
2.8
2.0:1
2.0:1
2.0:1
100
150
200
LK3
LK4
LK5
S020180L1602
S020180L2402
S020180L3202
10
10
10
18
18
18
16
24
32
1
1.25
1.5
2.8
2.8
2.8
2.0:1
2.0:1
2.0:1
110
160
210
LK3
LK4
LK5
S020180L1603
S020180L2403
S020180L3203
13
13
13
21
21
21
16
24
32
1
1.25
1.5
3
2.8
2.8
2.0:1
2.0:1
2.0:1
120
170
220
LK3
LK4
LK5
S020180L1604
S020180L2404
S020180L3204
17
17
17
25
25
25
16
24
32
1
1.25
1.5
3.5
3
2.8
2.0:1
2.0:1
2.0:1
150
200
250
LK3
LK4
LK5
S020180L1605
S020180L2405
S020180L3205
20
20
20
28
28
28
16
24
32
1
1.25
1.5
4
3.5
2.8
2.0:1
2.0:1
2.0:1
180
230
280
LK3
LK4
LK5
S020180M1601
S020180M2401
22
22
30
30
16
24
1
1.25
5
3.5
2.0:1
2.0:1
260
310
LK3
LK4
http://www.lucix.com/index.php/2­0­18­0­ghz
1/2
