Low Voltage PC Board Mount
160-161 Series
Low Voltage, P.C. Board Mount Vertical - 115 & 115/230 V Primary
Features
20 output voltages to choose from (5 - 120VAC R.M.S.)
Six VA size models available from - .5 to 24 VA
Vertical mount, split bobbin design.
1.2, 4.4, 10, 24 VA models are non-concentric wound.
0.5 and 1 VA are both concentric wound.
Low primary to secondary coupling - no electrostatic shield required.
Choice of economical single primary 115V - 60 Hz only (161 series) or the universal dual
primary 115/230V - 50/60 Hz (160 series).
High insulation - Hipot of 2,000V RMS.
Class B insulation - 130 degrees C.
CSA certified (File # LR3902) and UL recognized (File #E207860).
https://www.hammfg.com/electronics/transformers/power/160-161
1/4
1/23/2018
Low Voltage PC Board Mount (160-161 Series) - Hammond Mfg.

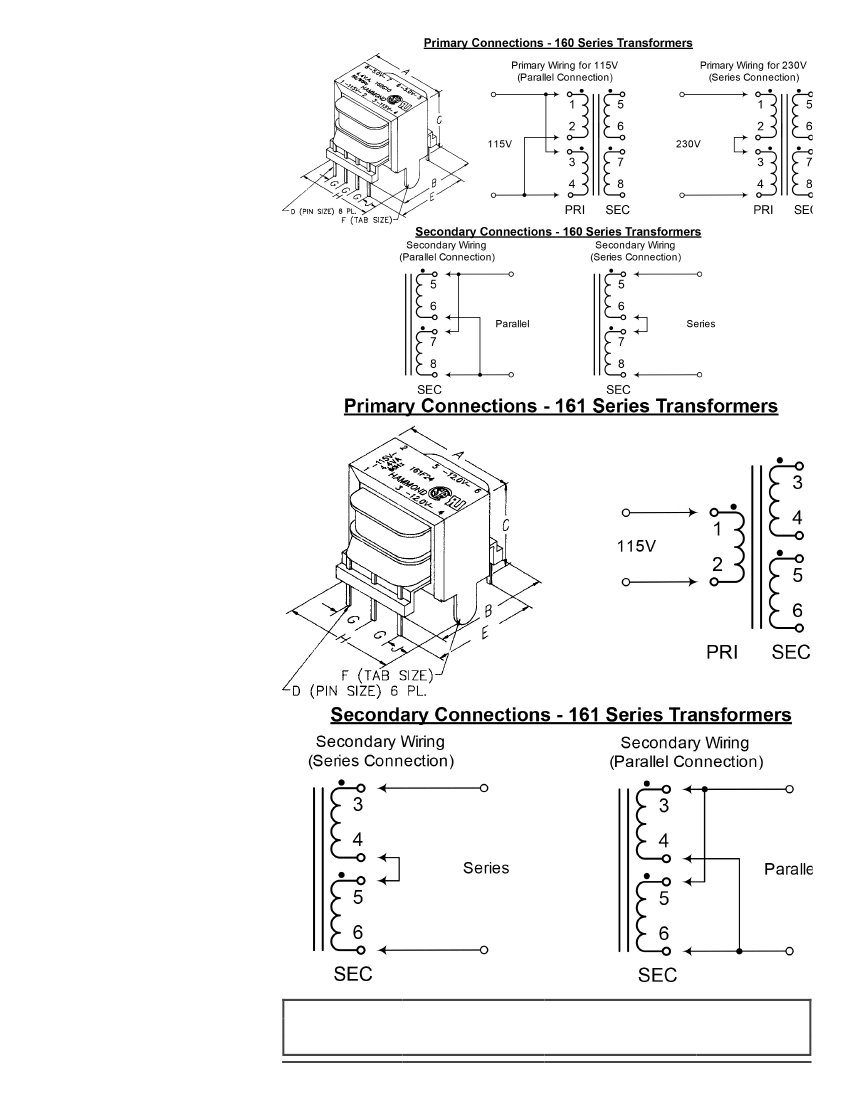

Mechanical & Schematic Data (160 Series):
Size
(VA)
1
1.2
4.4
10
24
A
1.00
1.38
1.69
1.94
1.63
B
1.38
1.19
1.25
1.44
2.25
C
0.83
1.22
1.45
1.69
1.38
D Thickness
0.02
0.02
0.02
0.02
0.02
Overall Dimensions
D Width
0.04
0.04
0.04
0.04
0.04
E
1.20
1.00
1.10
1.30
2.10
F Thickness
-
-
0.03
0.03
-
F Width
-
-
0.12
0.19
-
G
0.20
0.20
0.25
0.25
0.25
H
N/A
N/A
1.67
1.89
N/A
J
N/A
N/A
0.46
0.57
N/A
Mechanical & Schematic Data (161 Series):
Size
(VA)
0.50
1.00
1.20
4.40
10.00
24.00
A
1.00
1.00
1.38
1.69
1.94
1.63
B
0.94
1.38
1.19
1.25
1.44
2.25
C
0.84
0.83
1.22
1.45
1.69
1.38
D Thickness
0.025
0.02
0.02
0.02
0.02
0.02
Overall Dimensions
D Width
0.03
0.04
0.04
0.04
0.04
0.04
E
0.78
1.20
1.00
1.10
1.30
2.10
F Thickness
-
-
-
0.03
0.03
-
F Width
-
-
-
0.12
0.19
-
G
0.20
0.20
0.31
0.40
0.40
0.40
H
-
-
-
1.67
1.89
-
J
-
-
-
0.44
0.55
-
Data subject to change without notice
