1182U110P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 1182U110P

1182U110P: DescriptionToroidal Power Transformer,; CategoryPower management transformer; File Size289KB，5 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric View All

1182U110P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1182U110P	-	-	View	Buy Now

1182U110P Overview

Toroidal Power Transformer,

1182U110P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Reach Compliance Code	unknown
Transformer type	TOROIDAL POWER TRANSFORMER
Base Number Matches	1

Preview

Download Datasheet

View All

1/25/2018

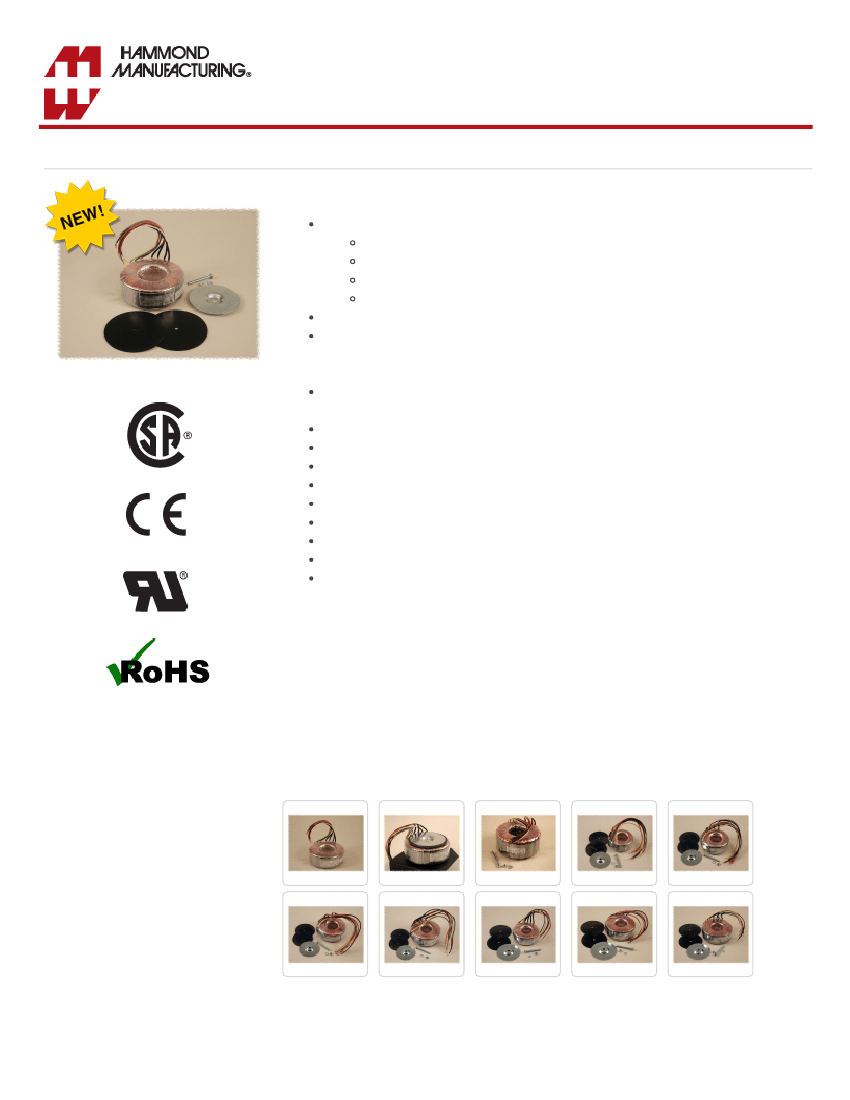

Toroid Power Transformers (1182 Series) - Hammond Mfg.

Quality Products. Service Excellence.

Toroid Power Transformers

1182 Series

Features

Torodial transformer benefits:

low profile

lightweight

cool running / high efficiency

due to the core shape - low stray magnetic flux leakage (low EMI)

Dual 117/234 VAC primary, 50/60 Hz. operation.

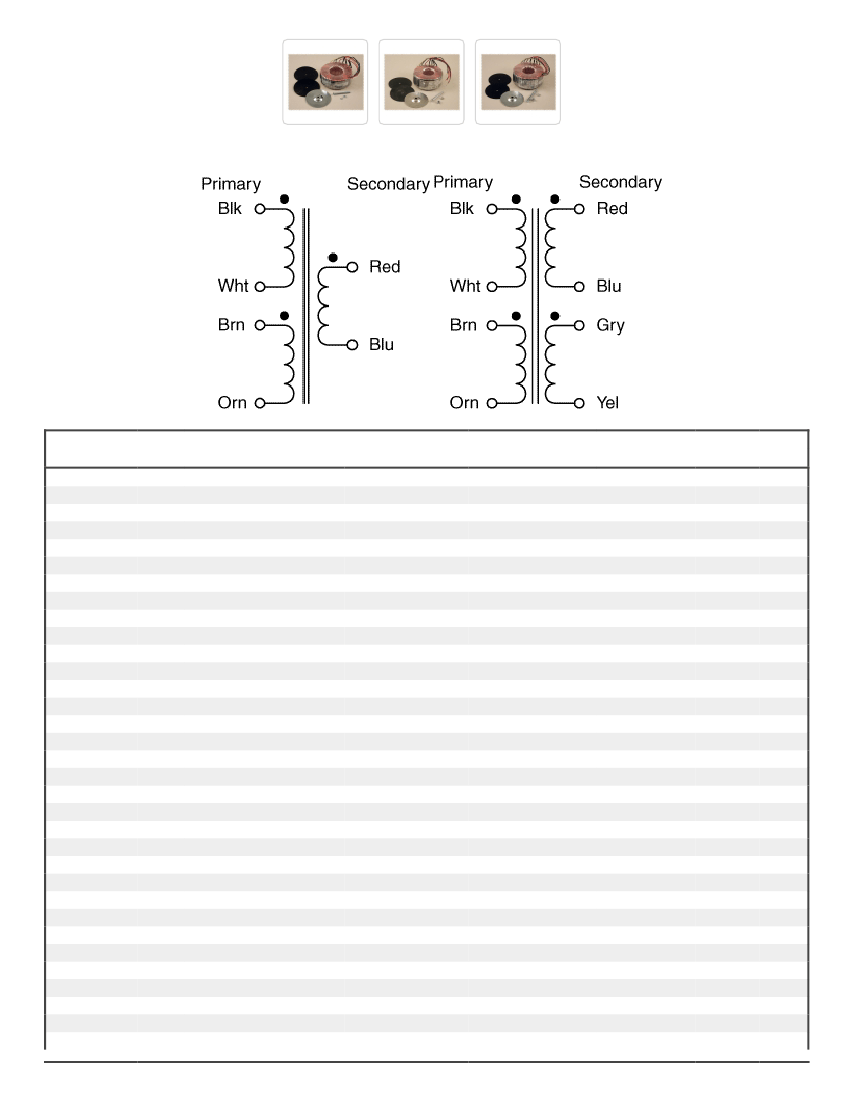

Note: Units are designed to have all windings engaged (either series or parallel

connected) or connected as an autotransformer. Connection sheet included with

transformer.

See Product Resources for Download.

Supplied with two rubber insulating pads, one metal centering washer and all mounting

hardware (except the 1,500 VA size).

1,500 VA size - is supplied with a potted center for extra strength.

Minimum 8" long flexible leads

Manufactured using Class B (130 degree C) materials.

Hi-Pot test of 4,000VAC RMS between primary & secondary

UL recognized to UL506 (XPTQ2.Guide) UL file #E207860

CSA certified to C22.2 #66 - CSA file #209651

CE compliant to IEC 61558-2-4

This series replaces our older

182 Toroid Series.

Note about Inrush Current:

Due to the superior magnetic properties of Toroidal transformers they will be susceptible

to high magnetizing current when initially energized, only limited by the low DC resistance

of the primary winding. Depending on where you are in the AC cycle when the

transformer is energized dictates the chances of overloading the supply circuit. This is

why the transformer may sometimes energize without a problem and other times it will

blow the fuse or trip the circuit breaker. The duration of this overload is rarely longer than

a half of a cycle. Therefore, you should consider using a slow-blow fuse, time delayed

circuit breaker or other form of soft start circuitry for the supply line when using these high

efficient Toroidal transformers.

Gallery

https://www.hammfg.com/electronics/transformers/power/1182

1/5
