86091166315785E1LF datasheet, PDF

86091166315785E1LF: DescriptionBoard Euro Connector, 16 Contact(s), 1 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

86091166315785E1LF Overview

Board Euro Connector, 16 Contact(s), 1 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	16
UL Flammability Code	94V-0

2 3

8609 XXX XX XX XXX XXXXX YY XX

FCIconnect.com

linear

NOTES:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

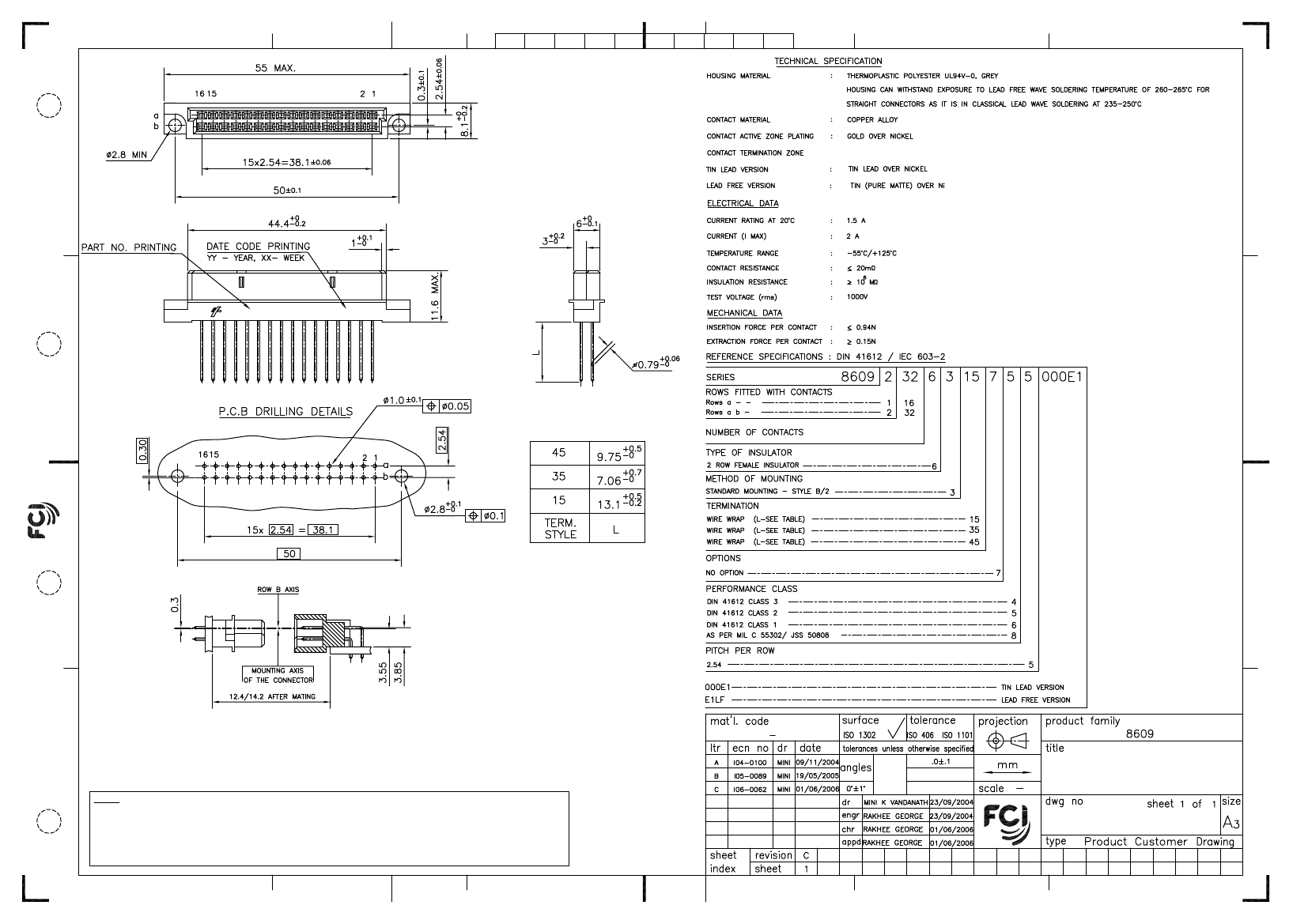

DIN STANDARD RECEPTACLE

WIRE WRAP DIN 41612 STYLE-B/2

C-8609-2024

STATUS:

Released

Printed: May 14, 2011

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

form: A3

PDM: Rev:C
