86092648194755E3LF datasheet, PDF

86092648194755E3LF: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86092648194755E3LF Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

Parameter Name	Attribute value
Objectid	2139419775
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8
Other features	STANDARDS: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	MATTE TIN (295) OVER NICKEL
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64

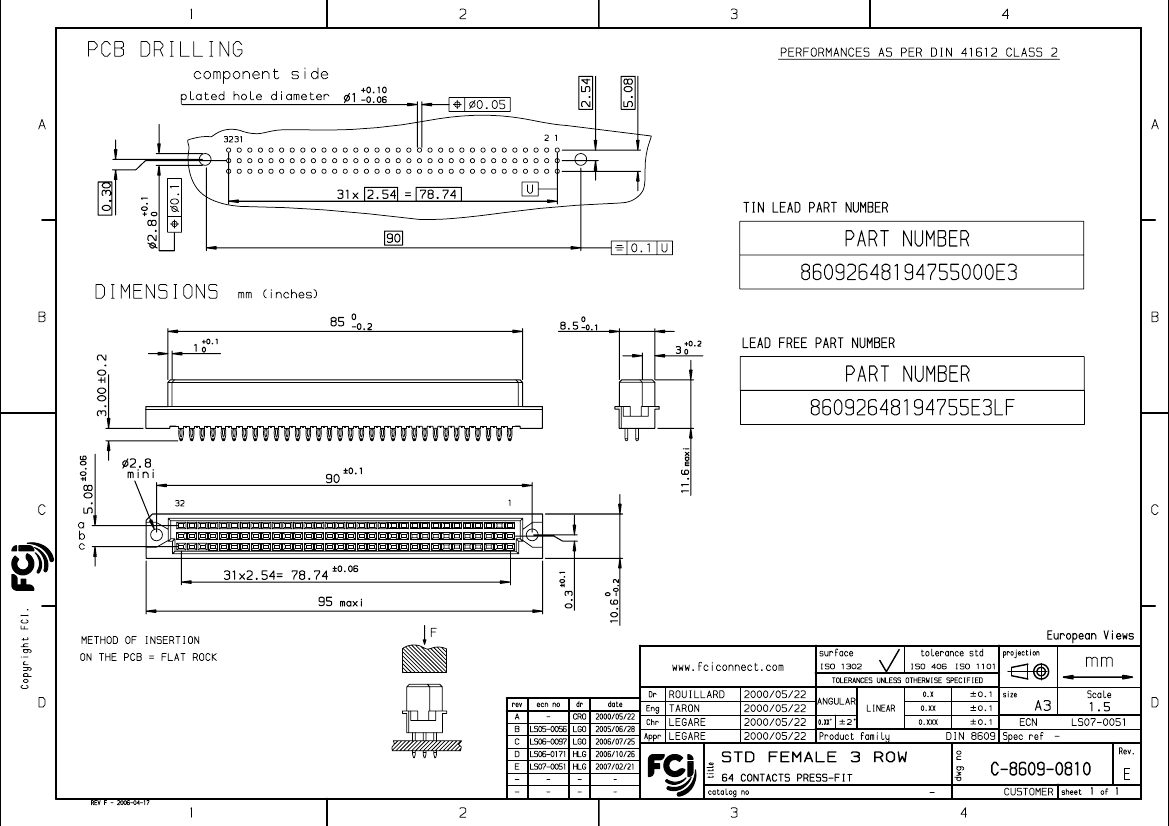

PDM: Rev:E

STATUS:

Released

Printed: May 14, 2011

.

	86092648194755E3LF	86092648194755000E3
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant
Other features	STANDARDS: DIN 41612	STANDARDS: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	8609	8609
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	64	64
