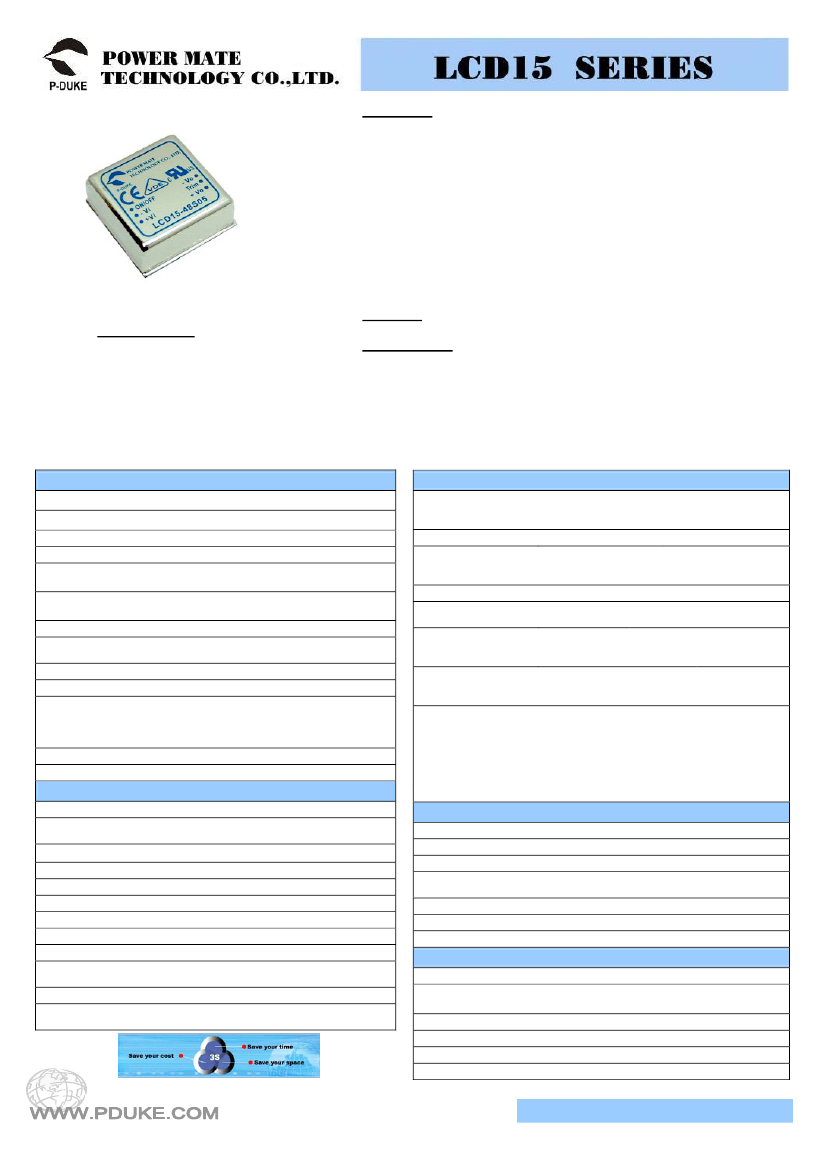

FEATURES
•
15 WATTS MAXIMUM OUTPUT POWER
•
SINGLE OUTPUT UP TO 4A
•
SMALL SIZE AND LOW PROFILE：1.0 x 1.0 x 0.39 Inch
•
HIGH EFFICIENCY UP TO 89%
•
2:1 WIDE INPUT VOLTAGE RANGE
•
SIX-SIDED CONTINUOUS SHIELD
•
FIXED SWITCHING FREQUENCY
•
INPUT TO OUTPUT ISOLATION:1600VDC
•
INDUSTRY STANDARD PIN-OUT FEC15 SERIES COMPATIBLE
•
CE MARK MEETS 2006/95/EC, 93/68/EEC AND 2004/108/EC
•
UL60950-1, EN60950-1 AND IEC60950-1 LICENSED
•
ISO9001 CERTIFIED MANUFACTURING FACILITIES
•
COMPLIANT TO RoHS EU DIRECTIVE 2002/95/EC
APPLICATIONS
Wireless Network
Telecom/Datacom
Industry Control System
Measurement Equipment
Semiconductor Equipment
OPTIONS
Positive logic Remote On/Off, Without trim, Without On/Off pin
DESCRIPTION
LCD15 DC/DC converters provide up to 15 watts of output power in an industry
standard package and footprint. These units are specifically designed to meet the
power needs of low profile. All models feature with 2:1 wide input voltage of 9~18
VDC, 18~36 VDC and 36~75VDC, comprehensively protected against over-current,
over-voltage and input under-voltage protection conditions, and trimmable output
voltage.
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load
Voltage adjustability (Note 6)
All specifications are typical at nominal input, full load and 25ºC otherwise noted
INPUT SPECIFICATIONS
15 Watts
±1%
Input voltage range
Input filter
Input surge voltage
12VDC nominal input
24VDC nominal input
48VDC nominal input
9 ~ 18VDC
18 ~ 36VDC
36 ~ 75VDC
Pi type
36VDC 100ms, max.
50VDC 100ms, max.
100VDC 100ms, max.
30mAp-p
Power up
30ms, max.
Remote ON/OFF
30ms, max.
9VDC, max.
18VDC, max.
36VDC, max.
8VDC
14.5VDC
30.5VDC
0%
±10%
± 0.2%
Single
Line regulation
LL to HL at Full Load
± 0.5%
Dual
± 0.2%
Single
Load regulation
No Load to Full Load
± 1.0%
Dual
Cross regulation (Dual) Asymmetrical load 25% / 100% FL
± 5%
20MHz bandwidth
See
Ripple and noise
(Measured with a 1uF M/C and a 10uF T/C)
table
±0.02%
/ ºC, max.
Temperature coefficient
Transient response recovery time 25% load step change
250uS
3.7VDC~5.4VDC
3.3VDC output
5.6VDC~7.0VDC
5VDC output
Over voltage protection
13.5VDC~19.6VDC
12VDC output
16.8VDC~20.5VDC
15VDC output
Over load protection
% of FL at nominal input
150%
Short circuit protection
Hiccup, automatics recovery
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Isolation resistance
Input to Output
Input(Output) to Case
See table
1600VDC, min. 1minute
1000VDC, min. 1minute
9
12VDC input
24VDC input
48VDC input
Input reflected ripple current
Nominal input and
Start up time
constant resistive load
12VDC input
Start-up voltage
24VDC input
48VDC input
12VDC input
Shutdown voltage
24VDC input
48VDC input
Remote ON/OFF (Note 7)
DC-DC ON
Positive logic(Option)
Open or 3 V < Vr < 15V
DC-DC OFF
Short or 0V < Vr < 1.2V
DC-DC ON
Negative logic(Standard)
Short or 0V < Vr < 1.2V
DC-DC OFF
Open or 3V < Vr < 15V
Input current of Remote control pin
Nominal input
-0.5mA~1.0mA
Remote off state input current
Nominal input
2.5mA
ENVIRONMENTAL SPECIFICATIONS
Operating ambient temperature
-40ºC ~ +85ºC (with derating)
Maximum case temperature
+105ºC
Storage temperature range
-55ºC ~ +125ºC
Thermal impedance
Natural convection
18.2ºC/Watt
(Note 8)
Natural convection with heat-sink
15.8ºC/Watt
Thermal shock
MIL-STD-810F
Vibration
MIL-STD-810F
Relative humidity
5% to 95% RH
10 ohms, min.
Isolation capacitance
1000pF, max.
Switching frequency
400KHz±10%
Approvals and standard
IEC60950-1, UL60950-1, EN60950-1
Case material
Nickel-coated copper
Base material
FR4 PCB
Potting material
Epoxy (UL94-V0)
1.0 X 1.0 X 0.39 Inch
Dimensions
(25.4 X 25.4 X 9.9 mm)
Weight
15g
6
BELLCORE TR-NWT-000332
1.330x10 hrs
MTBF (Note 1)
5
MIL-HDBK-217F
5.630x10 hrs
EMC CHARACTERISTICS
EMI (Note 9)
ESD
Radiated immunity
Fast transient (Note 10)
Surge (Note 10)
Conducted immunity
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Air
±
8KV
Contact
±
6KV
10 V/m
±
2KV
±
1KV
3 Vr.m.s
Class A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Page 1 of 3
Issued Date：2011/08/09
Model
Number
LCD15-12S3P3
LCD15-12S05
LCD15-12S12
LCD15-12S15
LCD15-12D05
LCD15-12D12
LCD15-12D15
LCD15-24S3P3
LCD15-24S05
LCD15-24S12
LCD15-24S15
LCD15-24D05
LCD15-24D12
LCD15-24D15
LCD15-48S3P3
LCD15-48S05
LCD15-48S12
LCD15-48S15
LCD15-48D05
LCD15-48D12
LCD15-48D15
Input
Range
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
9 ~ 18 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
18 ~ 36 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
36 ~ 75 VDC
Output
Voltage
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
Output Current
Min. Load
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
Full Load
4000mA
3000mA
1300mA
1000mA
± 1500mA
± 625mA
± 500mA
4000mA
3000mA
1300mA
1000mA
± 1500mA
± 625mA
± 500mA
4000mA
3000mA
1300mA
1000mA
± 1500mA
± 625mA
± 500mA
Output
(4)
Ripple & Noise
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
Input Current
No Load
120mA
90mA
40mA
40mA
30mA
30mA
30mA
50mA
65mA
20mA
20mA
20mA
15mA
25mA
40mA
40mA
15mA
15mA
15mA
15mA
20mA
(3)
Full Load
1375mA
1524mA
1605mA
1506mA
1543mA
1506mA
1488mA
671mA
763mA
783mA
744mA
772mA
744mA
744mA
336mA
372mA
387mA
372mA
386mA
368mA
372mA
(2)
Eff
(4)
Capacitor
(5)
(%) Load max
84
86
85
87
85
87
88
86
86
87
88
85
88
88
86
88
88
88
85
89
88
12000μF
6000μF
1000μF
660μF
± 3000μF
± 520μF
± 330μF
12000μF
6000μF
1000μF
660μF
± 3000μF
± 520μF
± 330μF
12000μF
6000μF
1000μF
660μF
± 3000μF
± 520μF
± 330μF
Note
BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40ºC.
MIL-HDBK-217F Notice2 @Ta=25 ºC, Full load(Ground, Benign, controlled environment)
2. Maximum value at nominal input and full load.
3. Typical value at nominal input and no load.
4. Typical value at nominal input and full load.
5. Test by minimum input and constant resistive load.
6. Trimming allows the user to increase or decrease the output voltage set point of the module. This is accomplished by connecting an external resistor
between the TRIM pin and either the +OUTPUT pin or the -OUTPUT pin.
7. The ON/OFF pin voltage is reference to -INPUT.
The order number please see product standard table.
8. Heat-sink is optional and P/N:7G-0047C-F
9. The LCD15 series can meet EN55022 Class A with parallel external capacitors to the input pins.
Recommend: 12 VDC input: 10μF /25V 1812 MLCC
24VDC input: 2pcs of 6.8μF /50V 1812 MLCC
48VDC input: 2pcs of 2.2μF /100V 1812 MLCC
10. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
The filter capacitor Power Mate suggest: Nippon chemi-con KY series, 220μF /100V, ESR 48mΩ.
CAUTION:
This power module is not internally fused. An input line fuse must always be used.

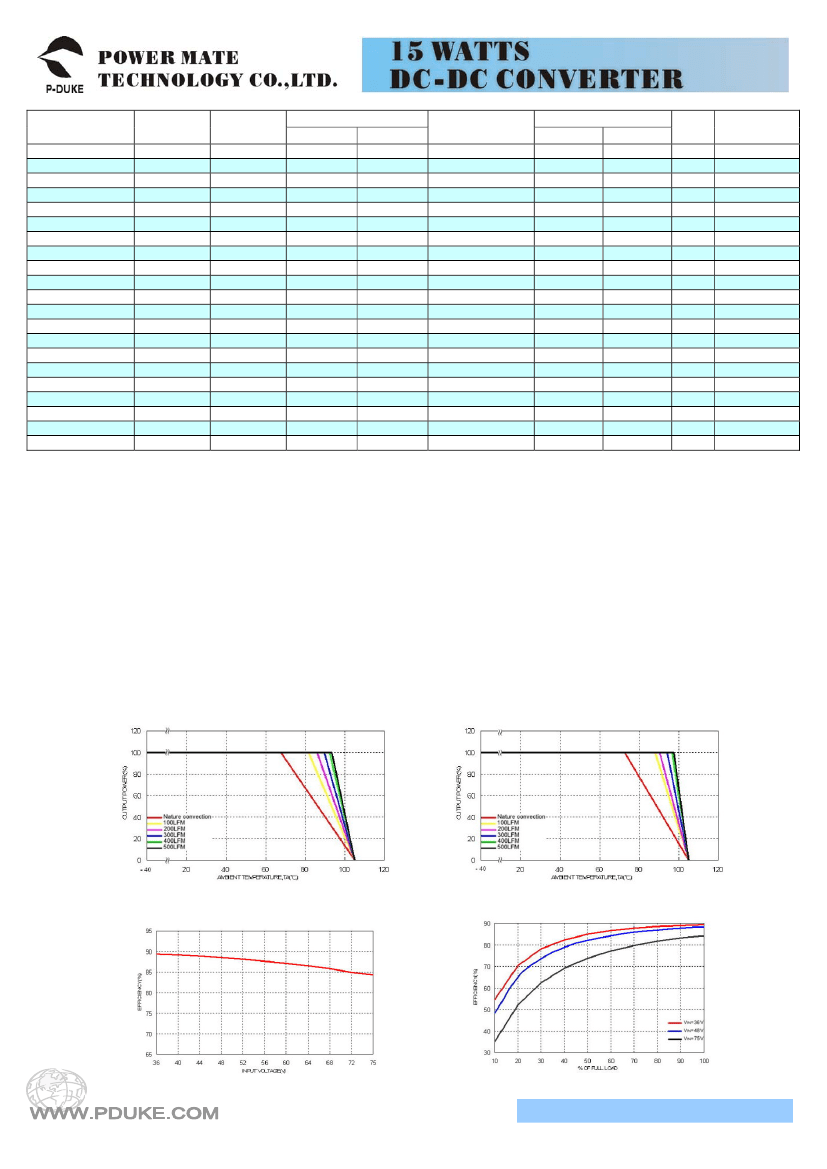

LCD15-48S05 Derating Curve
LCD15-48S05 Derating Curve With Heat-sink
1.
LCD15-48S05 Efficiency VS Input Voltage
LCD15-48S05 Efficiency VS Output Current
Page 2 of 3
Issued Date：2011/08/09

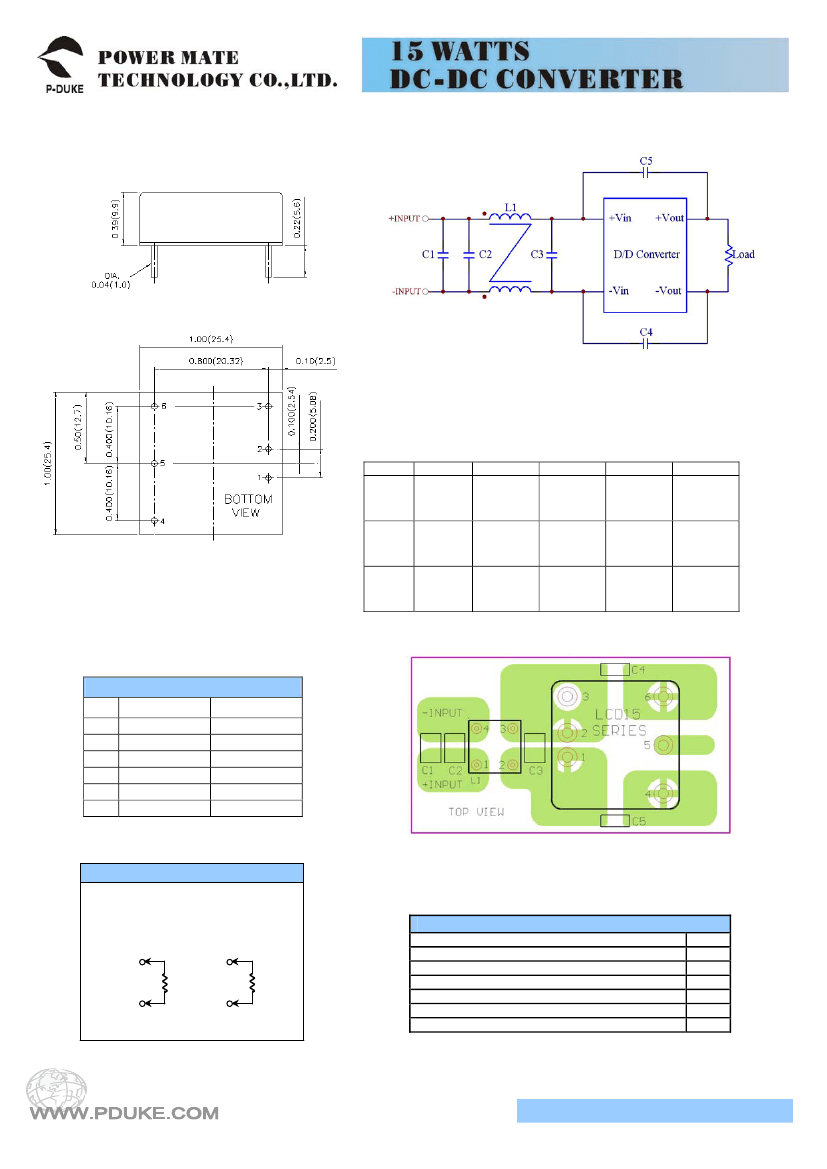

Mechanical Drawing:
Recommended EMI Filter:
Recommended Filter for EN55022 Class B Compliance
The components used in the above figure, together with the
manufacturers’ part numbers for these components, are as follows:
C1
LCD15-
12xxx
LCD15-
24xxx
LCD15-
48xxx
10μF/25V
1812 MLCC
6.8μF/50V
1812 MLCC
2.2μF/100V
1812 MLCC
C2
N/A
C3
10μF/25V
1812 MLCC
6.8μF/50V
1812 MLCC
2.2μF/100V
1812 MLCC
C4 & C5
0.047nF/2KV
1808 MLCC
0.047nF/2KV
1808 MLCC
0.1nF/2KV
1808 MLCC
L1
145μH
Common
Choke
PMT-051
325μH
Common
Choke
PMT-050
325μH
Common
Choke
PMT-050
N/A
1. All dimensions in Inch (mm)
Tolerance: X.XX±0.02 (X.X±0.5)
X.XXX±0.01 (X.XX±0.25)
2. Pin pitch tolerance
±0.01(0.25)
3. Pin dimension tolerance
±0.004
(0.1)
2.2μF/100V
1812 MLCC
PIN CONNECTION
PIN
1
2
3
4
5
6
SINGLE
+ INPUT
- INPUT
ON/OFF
+OUTPUT
TRIM
-OUTPUT
DUAL
+ INPUT
- INPUT
ON/OFF
+OUTPUT
COMMON
-OUTPUT
Recommended EN55022 Class B Filter Circuit Layout
EXTERNAL OUTPUT TRIMMING
Output can be externally trimmed by using
the method shown below.
PRODUCT STANDARD TABLE
TRIM UP
TRIM DOWN
6
5
R
U
5
4
R
D
Option
Negative remote ON/OFF(Standard)
Positive remote ON/OFF
without ON/OFF pin
negative remote ON/OFF without TRIM pin
without ON/OFF&TRIM pin
positive remote ON/OFF without TRIM pin
Suffix
-A
-B
-C
-D
-E
Page 3 of 3
Issued Date：2011/08/09
