PTIN15- Series
PTIN62- Series
PTIN1.2- Series
PTIN2.5– Series
Receivers for Fiber Optics
InGaAs PIN w/TIA
InGaAs PIN TIA Receivers

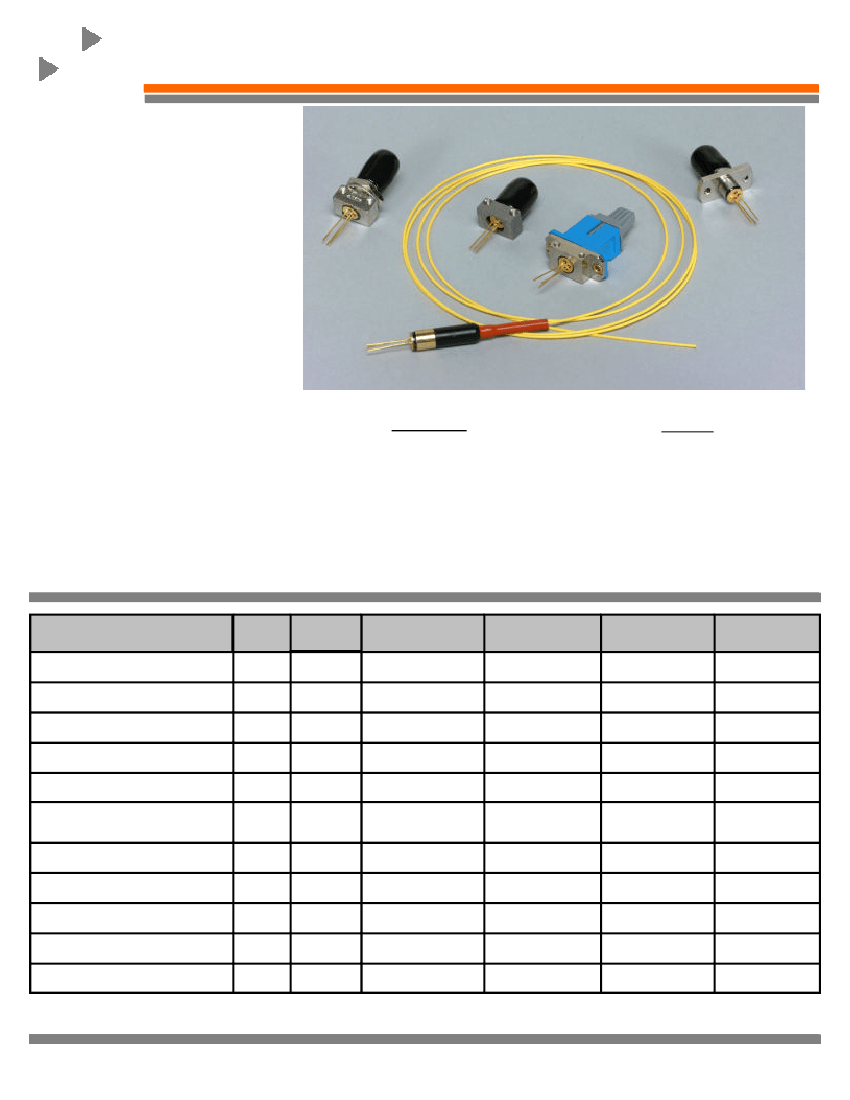

PD-LD Inc. offers low noise, high
responsivity InGaAs photo detectors
paired with a transimpedance amplifiers
(TIA) in convenient fiber coupled
packages. These assemblies incorporate
a 75 micron diameter active area
detector that responds optimally to both
1310 and 1550 nm light sources. This
PIN/Preamp combination delivers
superior characteristics
making them
ideal for both digital and analog systems.
Each module contains a TIA whose
bandwidth is ideally suited to industry
standard transmission speeds: 150 MHz,
450 MHz, 1.0 GHz and 2.5GHz. All
devices include automatic gain control
(AGC), a feature that allows the circuit to
operate with high optical input power
without becoming saturated. AGC makes
possible full dynamic range receivers,
lessening the need to use attenuators
within the cable plant. These modules
are available with either bare or
connectorized fiber pigtails or in
receptacle style housings suitable for
board or panel mounting. These high
reliability units are operational over
industrial environmental conditions.
•
•
•
Applications
Networking
10/100/1000 MB Ethernet
FDDI
ATM
Telecommunications
SONET OC-3/OC-12/OC-24/OC-48
SDH: STM1/STM3/STM6/STM12
Storage
Fiber Channel
•
•
•
•
•
•
•
•
Features
IEEE 802.3 Performance
Belcore TA983 Compliant
ITU G.957 Compliant
-40 to 85ºC Operating Range
Differential or Single Ended Ouput
Operates with 3.3V or 5V Supply
FC, ST ,SC Receptacle Housing
Pigtailed w/9/125 ì m Fiber
Parameter
Operating Wavelength
Differential Gain
Analog Bandwidth (-3dB)
Rise and Fall Times
PowerSupply (3.3V available)
Output offset Voltage
Differential Output Voltage
Optical Sensitivity
Optical Saturation Power
Output Resistance
Operating Current
Units
nm
V/mW
MHz
nsec
V
V
V
dBm
dBm
ohm
mA
Symbol
155 MHz
Min.
Max.
1100
.17
120
—
4.5
V
cc
-3.5
—
—
—
30
—
-38
-3
65
35
1650
220
175
3.3
5.5
V
cc
-1.5
1
-36
450 MHz
Min.
Max
1100
0.2
450
5.0
4.5
V
cc
-3.5
—
—
—
50
—
-31.5
-3
65
50
1600
24
—
8.0
5.5
1100 MHz
Min.
Max.
1100
0.2
800
—
4.5
2500 MHZ
Min. Typ. Max.
1600
26
1600
—
4.5
2000
0.15
5.5
ë
G
BW
e
t
r,f
V
cc
V
os
V
d
S
P
sat
R
out
I
cc
1600 1100
24
1100
0.26
5.5
V
cc
-1.5 V
cc
-3.5
1.3
—-
V
cc
-1.5 V
cc
-3.5 V
cc
-1.5
0.5
-24
–22 --
-3
65
50
—-
48
—
60
47
0.6
-21
-18
-3
72
57
-29 —
—
30
—
Specifications are subject to change without notice. Please contact PD-LD Sales .
01-10 PINTIA .Rev.A
30-B Pennington-Hopewell Rd., Pennington NJ 08543 FON: 609-564-7900 FAX: 609-564-7901 EMAIL: info@pd-ld.com www.pd-ld.com
PTIN15- Series
PTIN62- Series
PTIN1.2- Series
PTIN2.5– Series
Receivers for Fiber Optics
InGaAs PIN w/TIA
4 GND (CASE)
3 D out
2.54
1 +5V
Bottom View
2 D out
4.5+/-0.15
5.35+/-0.1
4.66+/-0.05
1.3+/-0.1
/ +53 . 5
3.8+/-0.1
4.66+/ -0.05
-
1.0
14+/-1
1
2 3 4
1.0
45 deg
InGaAs PIN Photodiode with TIA

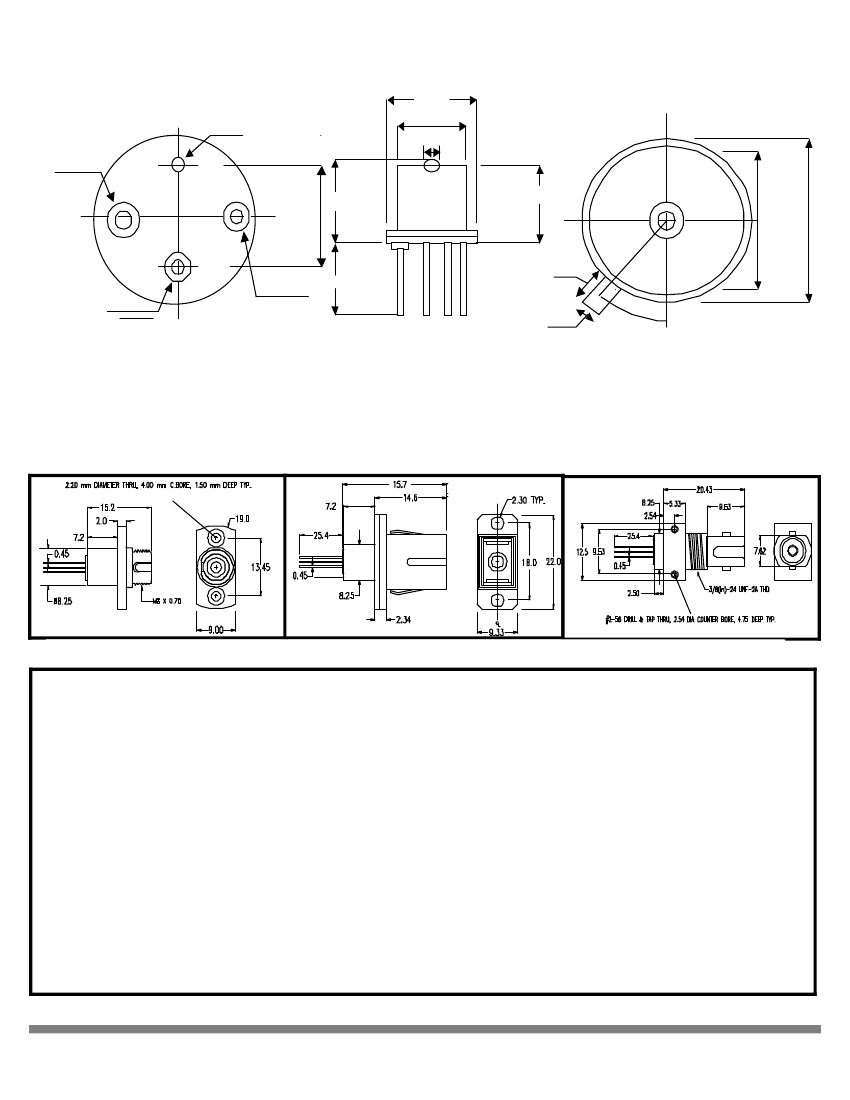

Pinout & Mechanical Dimensions (mm)
1.0
Ordering Information
PIN TIA Pigtails
PIN TIA Receptacles
PTINDXXXFCCB-O-V-MM
T= PIN TIA
XXX= Bandwidth
150
Mhz
450
MHz
1.2
GHz
2.5
GHz
IN= InGaAs Photodiode
D=
PTINDXXXRRRF-O-V
CC = Connector Type
ST
= ST
SC
= SC
SA
= SC/APC
FC
= FC PC
FA
= FC/APC .
OO
= No Connector
RRR = Receptacle
FC1
= FC Panel Mount
FC2
= FC Board Mount
ST1
= ST
ST2
= ST low profile
SC1
= SC
Bracket Type (pigtail only)
M = Length in meters (pigtail only)
A
= None
10
= 10meter
B =
Panel Mount
03 =
3 meters
D
= Board Mount
01
= 1 meter
W
= Shipped Seperately with PIN TIA
.1
= .1 meters
X
= Customer Supplied
.5
= 0.5 meters
Device Identification
Unique & Assigned by PD-LD
F = Fiber Type
1
= 9/125/900 SMF
2
= 50/125 MMF
3
= 62.5/125 MMF
9
= Supplied by cust
Specifications are subject to change without notice. Please contact PD-LD Sales .
01-10 PINTIA .Rev.A
30-B Pennington-Hopewell Rd., Pennington NJ 08543 FON: 609-564-7900 FAX: 609-564-7901 EMAIL: info@pd-ld.com www.pd-ld.com
