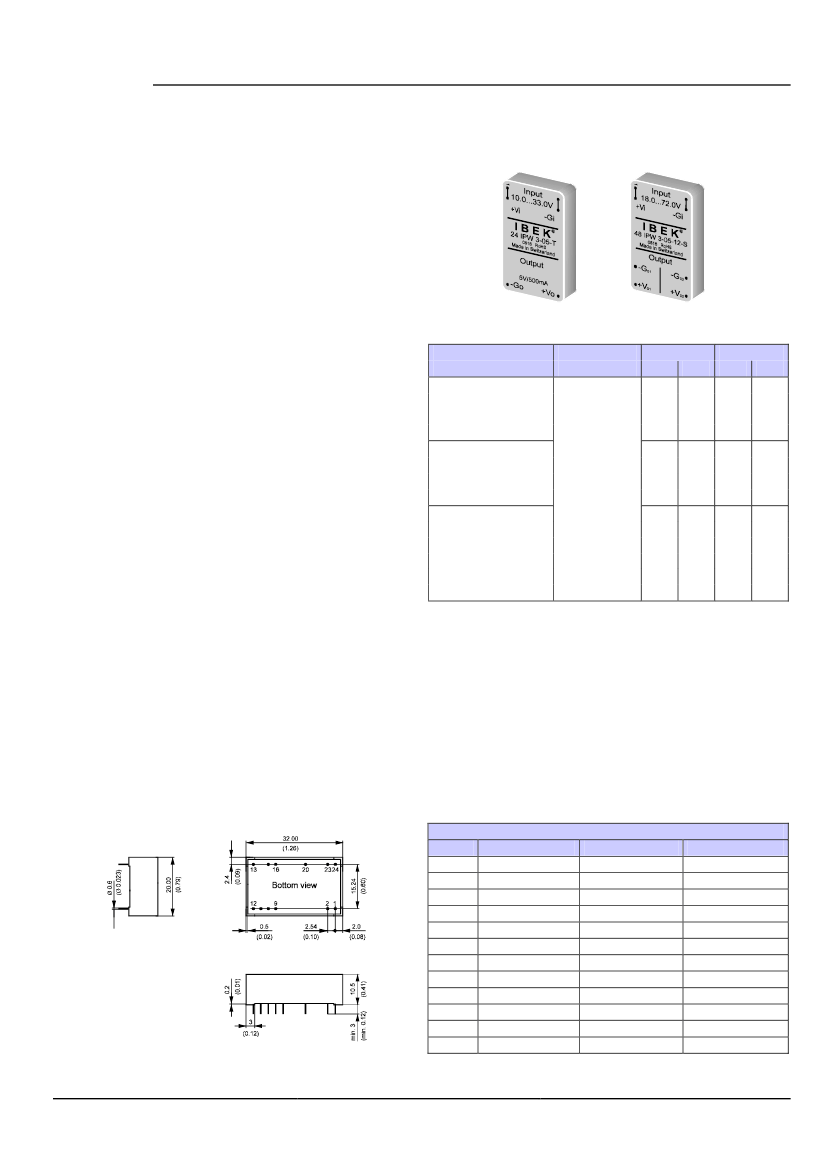

3 Watt
DC-DC-Converter
Family IPW3
Single, double & dual outputs
Input to output isolated
I/O Electric strength test voltage 1.5 kVDC, 1.06 kVrms
•
•
•
•
•
•
•
•
•
Ultra wide input voltage ranges up to 1:4
Shutdown input
Very high efficiency up to 83%
High reliability
Continuous no-load and short-circuit proof
Extended ambient temperature range -40…+85‚C
No derating
Made in Switzerland, accordingly ISO 9001:2000
2 years warranty
Standard Types
1
Single output
xx IPW3-05-T
RoHS
xx IPW3-12-T
RoHS
xx IPW3-15-T
RoHS
Double output
2
xx IPW3-0505-T
RoHS
xx IPW3-1212-T
RoHS
xx IPW3-1515-T
RoHS
Dual output
xx IPW3-05-05-T
RoHS
xx IPW3-05-12-T
RoHS
xx IPW3-05-15-T
RoHS
xx IPW3-12-12-T
RoHS
xx IPW3-15-15-T
RoHS
1
Electromagnetic emission EN 55022 < B
Conducted and radiated emissions
24 IPW
48 IPW
Input voltage
VDC
10…33
(nominal 24)
35 V for 500 ms
repetition rate 50 s
45 V for 10 ms
repetition rate 10 s
Output 1
VDC mA
5
12
15
500
250
200
Output 2
VDC mA
-
-
-
-
-
-
5
12
15
12
15
-
-
-
-
-
-
250
125
100
125
100
No load input current
5
3
mA typ.
Input current in shutdown condition 1.3 mA typ.
Switching frequency
130 kHz typ.
Output voltage accuracy
€ 2% max.
Static line regulation
€ 15 mV typ.
Static load regulation FL to • L
0…2%; 5 VDC outputs 0…5% typ.
Output voltage noise (20 MHz BW) 100 mVpp typ.
Efficiency
79% to 83% typ.
I/O Electric strength test voltage
1.5 kVDC, 1.06 kVrms (50 Hz, 1 min.)
O/O Electric strength test voltage
700 VDC
Coupling capacitance
External required (see below)
Shutdown input (SD) Apply -0.3…+1.35 VDC / 100…200
A
to shut down
(switch off) the output voltage(s).
Normal operation with open pin.
Ambient temperature range
-T: -25…+71ƒC; -S: -40…+85ƒC
Case temperature range
-T: -25…+95ƒC; -S: -40…+105ƒC
Storage temperature range
-T: -55…+105ƒC; -S: -55…+105ƒC
Case material
Non-conductive plastic, UL94 V-0 rated
MTBF, GB @ 40ƒC case
2.200.000 hours
(MIL-HDBK-217F, Notice 2)
€ 5 € 250
€ 12 € 125
€ 15 € 100
5
5
5
12
15
250
250
250
125
100
18…75
(nominal 48)
To complete type number replace "xx" by the required nominal input
voltage, e.g. 24 IPW3-05-T
RoHS
.
2
Double outputs should have symmetrical load conditions to comply
with the specifications listed on the left side.
Extended temperature range -S is available for all types.
Replace -T by -S on type number, e.g. 48 IPW3-05-12-S
RoHS
.
Modifications and customs are available upon request.
Important: All units require (an) external coupling capacitor(s) Cio = 270 pF / 2 kVDC
Single output: -Gi (pin 23,24) to -Go (pin 12)
Double output: -Gi (pin 23,24) to Go (pin 10,11)
Dual output:
-Gi (pin 23,24) to -Go1 (pin 9) and -Gi (pin 23,24) to -Go2 (pin 16)
Dimensions in mm (inches)
Pin
1
2
9
10
11
12
13
15
16
20
23
24
Pin Configuration
Single output
Double output
+Vi
+Vi
+Vi
+Vi
No Pin
No Pin
No Pin
Go
No Pin
Go
-Go
No Pin
+Vo
-Vo
No Pin
+Vo
No Pin
No Pin
SD
SD
-Gi
-Gi
-Gi
-Gi
Dual output
+Vi
+Vi
-Go1
No Pin
No Pin
+Vo1
+Vo2
No Pin
-Go2
SD
-Gi
-Gi
Specifications subject to change without notice
15.12.2008
More power with IBEK
€
!
Page 26.4
