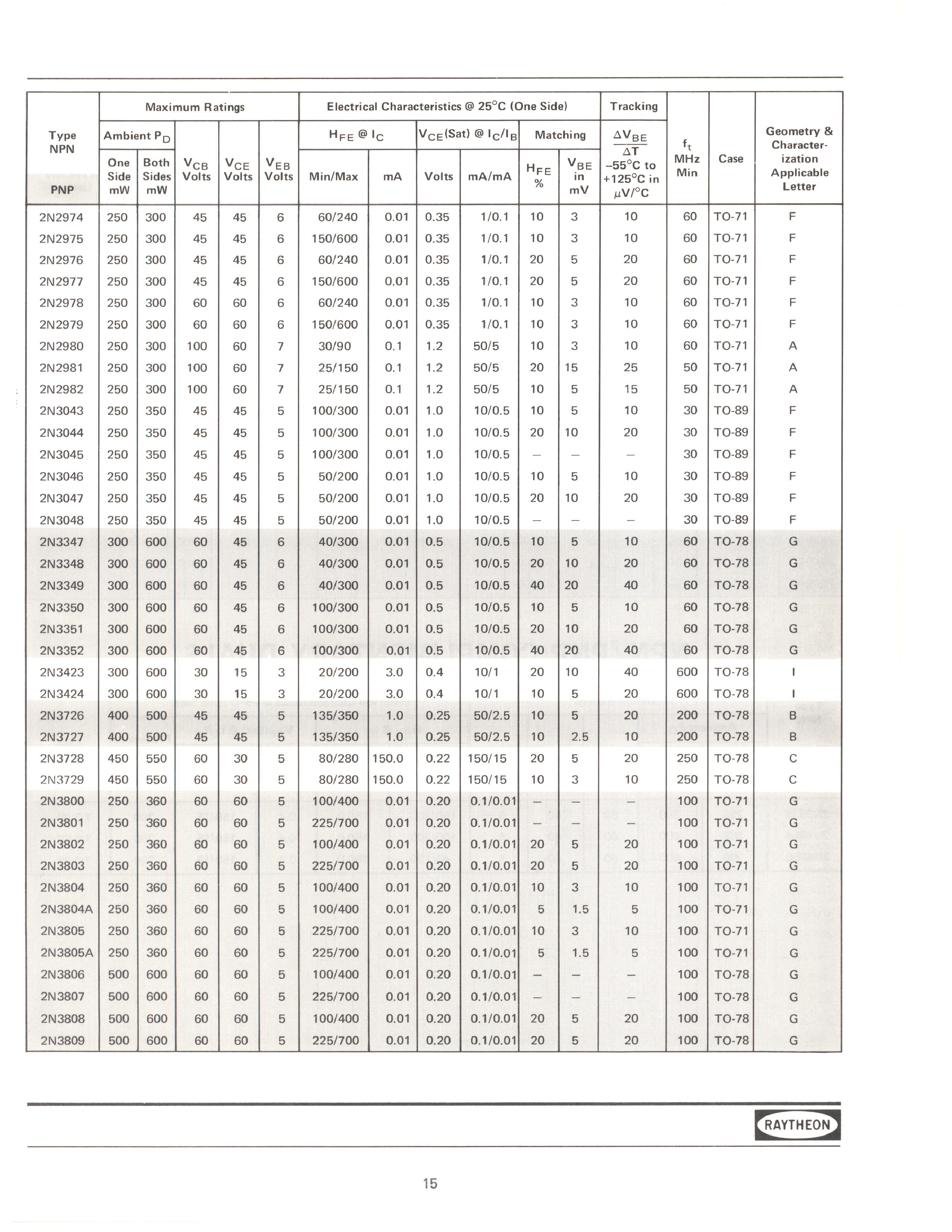

2N3728: DescriptionSmall Signal Bipolar Transistor, 30V V(BR)CEO, 2-Element, NPN, Silicon, TO-78, TO-78, 8 PIN; CategoryDiscrete semiconductor The transistor; File Size1MB，1 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

2N3728 Overview

Small Signal Bipolar Transistor, 30V V(BR)CEO, 2-Element, NPN, Silicon, TO-78, TO-78, 8 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	TO-78, 8 PIN
Reach Compliance Code	unknown
Collector-emitter maximum voltage	30 V
Minimum DC current gain (hFE)	80
JEDEC-95 code	TO-78
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
Number of components	2
Number of terminals	8
Maximum operating temperature	175 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.45 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Base Number Matches	1

	2N3728	2N3726
Description	Small Signal Bipolar Transistor, 30V V(BR)CEO, 2-Element, NPN, Silicon, TO-78, TO-78, 8 PIN	Small Signal Bipolar Transistor, 0.3A I(C), 45V V(BR)CEO, 2-Element, PNP, Silicon, TO-78, TO-78, 8 PIN
Is it Rohs certified?	incompatible	incompatible
package instruction	TO-78, 8 PIN	TO-78, 8 PIN
Reach Compliance Code	unknown	unknown
Collector-emitter maximum voltage	30 V	45 V
Minimum DC current gain (hFE)	80	135
JEDEC-95 code	TO-78	TO-78
JESD-30 code	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0
Number of components	2	2
Number of terminals	8	8
Maximum operating temperature	175 °C	175 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	PNP
Maximum power dissipation(Abs)	0.45 W	0.4 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	200 MHz
