PH2729-25M
Radar Pulsed Power Transistor
25W, 2.7-2.9 GHz, 100µs Pulse, 10% Duty
Features
NPN silicon microwave power transistors
Common base configuration
Broadband Class C operation
High efficiency inter-digitized geometry
Diffused emitter ballasting resistors
Gold metallization system
Internal input and output impedance matching
Hermetic metal/ceramic package
RoHS compliant
Rev. V1
Outline Drawing
Absolute Maximum Ratings at 25°C
Parameter
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (Peak)
Power Dissipation @ +25°C
Storage Temperature
Junction Temperature
Symbol
V
CES
V
EBO
I
C
P
TOT
T
STG
T
J
Rating
60
3.0
4.0
70
-65 to +200
200
Units
V
V
A
W
°C
°C
Electrical Specifications: T
C
= 25 ± 5°C (
Room Ambient
)
Parameter
Test Conditions
Frequency
Symbol
BV
CES
I
CES
F = 2.7, 2.8, 2.9 GHz
F = 2.7, 2.8, 2.9 GHz
F = 2.7, 2.8, 2.9 GHz
F = 2.7, 2.8, 2.9 GHz
F = 2.7, 2.8, 2.9 GHz
F = 2.7, 2.8, 2.9 GHz
F = 2.7, 2.8, 2.9 GHz
R
TH(JC)
P
OUT
G
P
Min
60
-
-
25
9.2
45
-
-
-
Max
-
1.5
1.25
-
-
-
-6
3:1
1.5:1
Units
V
mA
°C/W
W
dB
%
dB
-
-
Collector-Emitter Breakdown Voltage I
C
= 10mA
Collector-Emitter Leakage Current
Thermal Resistance
Output Power
Power Gain
Collector Efficiency
Input Return Loss
Load Mismatch Tolerance
Load Mismatch Stability
V
CE
= 40V
Vcc = 36V, Pin = 3.0W
Vcc = 36V, Pin = 3.0W
Vcc = 36V, Pin = 3.0W
Vcc = 36V, Pin = 3.0W
Vcc = 36V, Pin = 3.0W
Vcc = 36V, Pin = 3.0W
Vcc = 36V, Pin = 3.0W
C
RL
VSWR-T
VSWR-S
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
PH2729-25M
Radar Pulsed Power Transistor
25W, 2.7-2.9 GHz, 100µs Pulse, 10% Duty
Rev. V1
Typical RF Performance
Freq.
(GHz)
2.7
2.8
2.9
Pin
(W)
3.0
3.0
3.0
Pout
(W)
29.9
29.1
27.1
Gain
(dB)
9.98
9.87
9.56
Ic
(A)
1.45
1.37
1.26
Eff
(%)
57.2
59.2
59.6
RL
(dB)
-13.9
-19.6
-19.3
VSWR-S
(1.5:1)
S
S
S
VSWR-T
(3:1)
P
P
P
Gain vs. Frequency
11.0
Collector Efficiency vs. Frequency
65
9.8
9.2
8.6
2.70
Efficiency (%)
2.75
2.80
Freq (GHz)
2.85
2.90
Gain (dB)
10.4
60
55
50
45
2.70
2.75
2.80
Freq (GHz)
2.85
2.90
RF Test Fixture Impedance
F (GHz)
2.7
2.8
2.9
Z
IF
(Ω)
38.0 - j14.4
35.0 - j16.3
33.0 - j17.8
Z
OF
(Ω)
17.1 - j8.7
15.0 - j8.7
13.3 - j8.3
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
PH2729-25M
Radar Pulsed Power Transistor
25W, 2.7-2.9 GHz, 100µs Pulse, 10% Duty

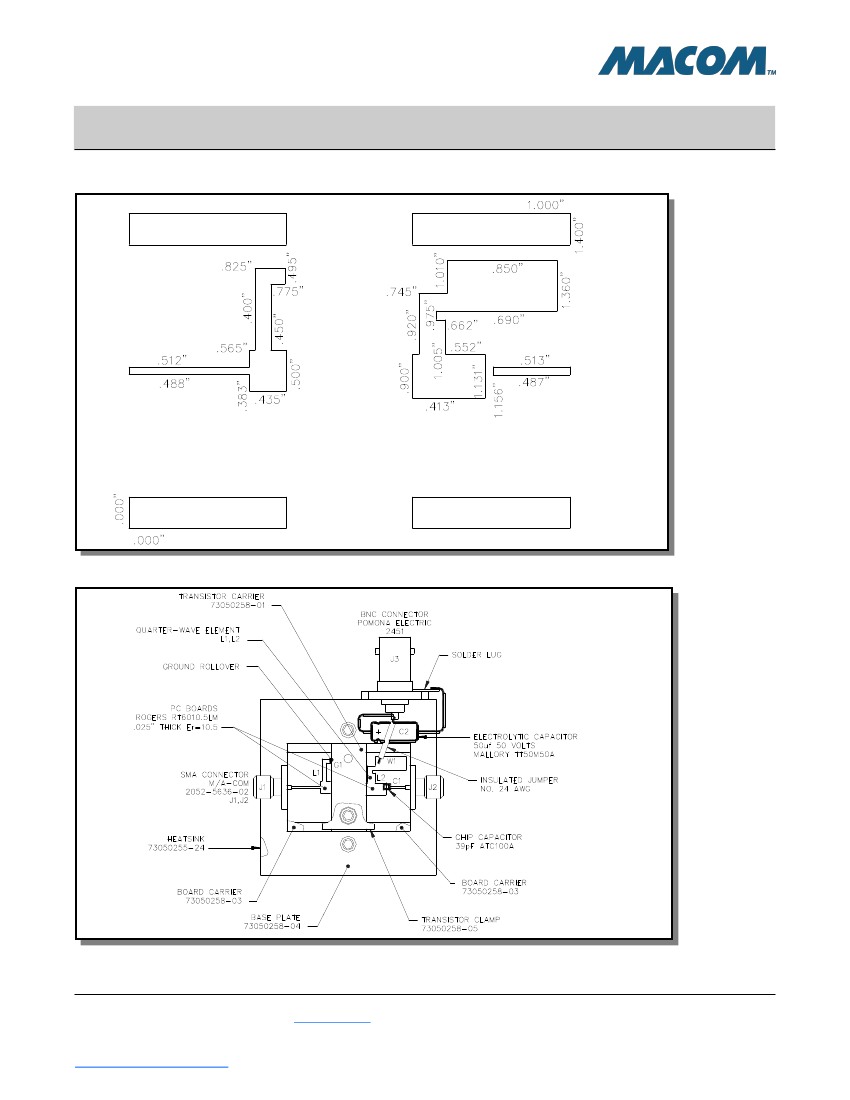

Test Fixture Circuit Dimensions
Rev. V1
Test Fixture Assembly
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
PH2729-25M
Radar Pulsed Power Transistor
25W, 2.7-2.9 GHz, 100µs Pulse, 10% Duty
Rev. V1
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
