PH2731-20M: DescriptionRF Power Bipolar Transistor, 1-Element, S Band, Silicon, NPN, ROHS COMPLIANT, HERMETIC SEALED, METAL CERAMIC PACKAGE-2; CategoryDiscrete semiconductor The transistor; File Size143KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric View All

PH2731-20M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PH2731-20M	-	-	View	Buy Now

PH2731-20M Overview

RF Power Bipolar Transistor, 1-Element, S Band, Silicon, NPN, ROHS COMPLIANT, HERMETIC SEALED, METAL CERAMIC PACKAGE-2

PH2731-20M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	FLANGE MOUNT, S-CDFM-F2
Contacts	2
Reach Compliance Code	compliant
Other features	WITH EMITTER BALLASTING RESISTORS
Shell connection	BASE
Maximum collector current (IC)	1.9 A
Configuration	SINGLE
highest frequency band	S BAND
JESD-30 code	S-CDFM-F2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	70 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

an

AMP

company

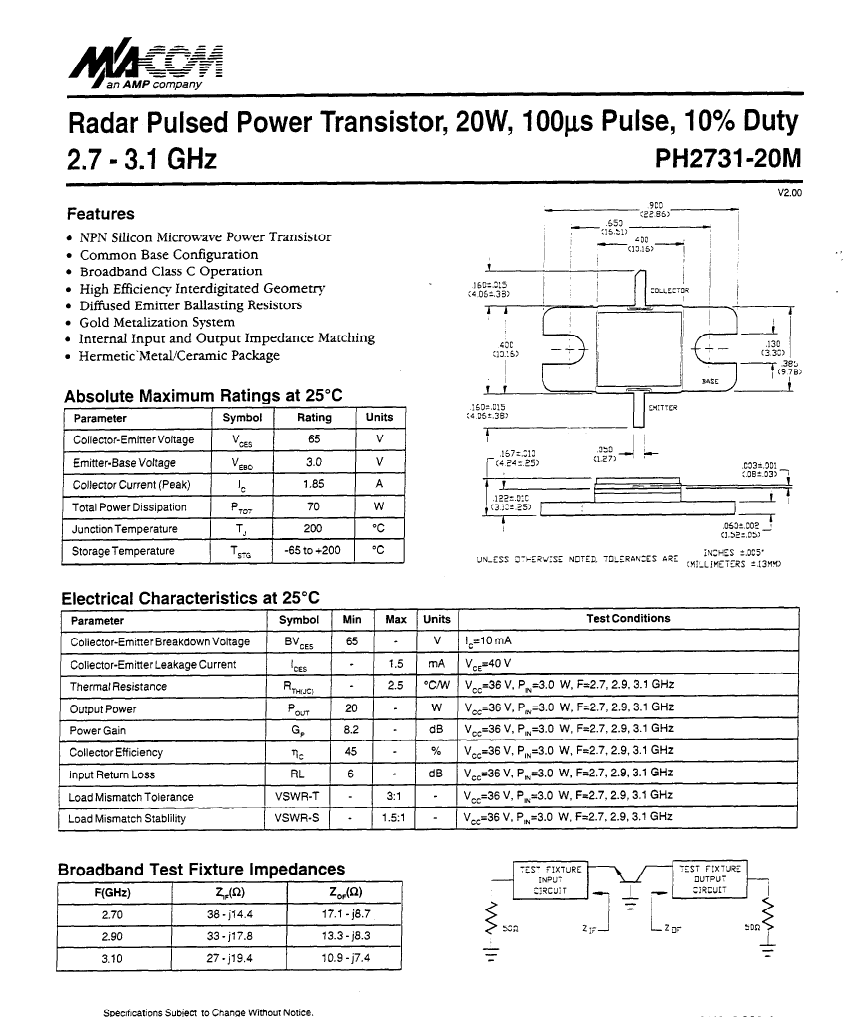

Radar Pulsed Power Transistor, 2OW, loops Pulse, 10% Duty

PH2731-20M

2.7 - 3.1 GHz

v2.00

Features

NPN Silicon Microwave Power Transistor

Common Base Configuration

Broadband

Class C Operation

High Efficiency Interdigicated

Geometry

Diffused Emitter Ballasting Resistors

Gold Metalization

System

Internal Input and Output Impedance

Matching

Hermetic‘MetaUCeramic

Package

9co

,-^

:22.85>

Absolute Maximum Ratings at 25°C

StorageTemperature

T S%

-65 to +200

“C

UN-ESS

3-kERW:SE

NOTED,

TDLERANZES

4RZ

INS’S -

(MILLIMETERS

i.O”j’

u

*.13MY)

Electrical Characteristics

at 25°C

Input Return Loss

Load MismatchTolerance

Load Mismatch Stablility

RL

VSWR-T

VSWR-S

6

-

3:l

1.51

dB

-

I’,,=36

V,,=36

V, P,,=3.0

W, F=2.7,2.9,3.1

GHz

V, P,,=3.0 W, F=2.7,2.9,3.1 GHz

V, P,,=3.0

W, F=2.7,2.9,3.1

GHz

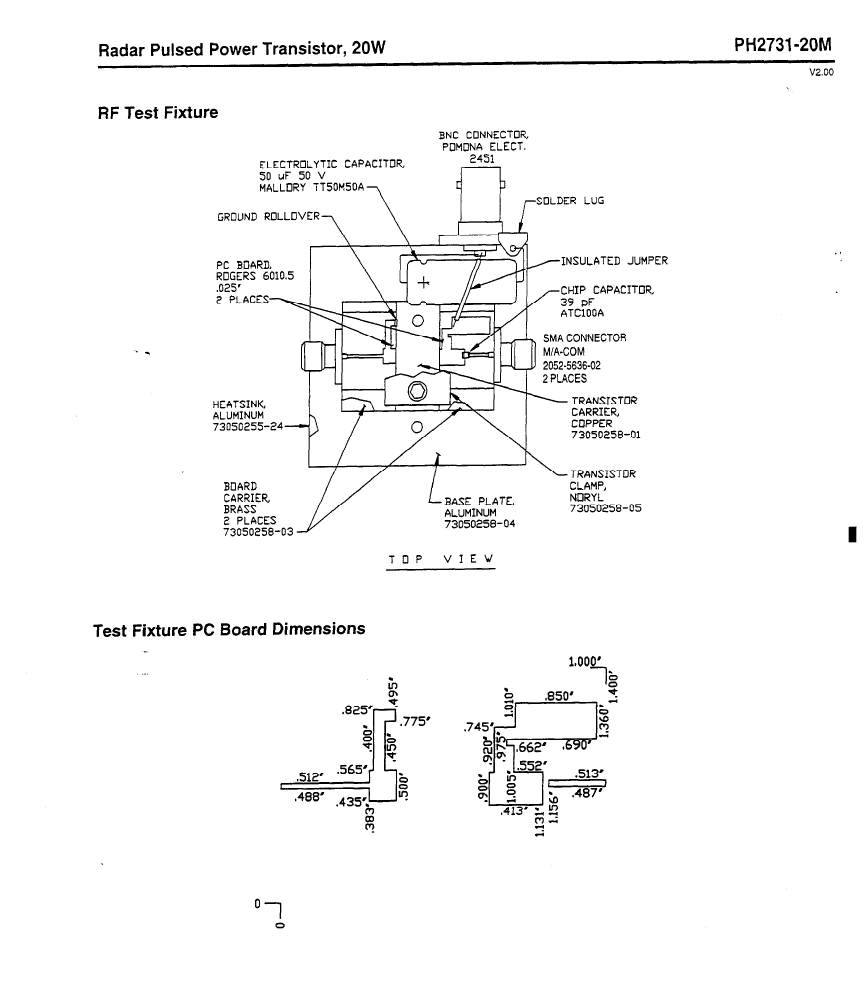

Broadband Test Fixture impedances

TEST

FIXTURE
