REVISION X
DO NOT
SCALE FROM
THIS PRINT
QSS-XXX-01-XXX-D-DP-RA-WT-XXX
No OF POSITIONS
C
C1-A,F-DC
-016, -032, -048, -064
(PER ROW)
(SEE NOTE 4)
((No OF POS / 16) x .7875[20.003]) + .550[13.97]
((No OF POS / 16) x .7875[20.003]) + .300[7.62] REF
.250 6.35 REF (TYP)
.1240 3.15
REF(TYP)
.250 6.35 MAX REF (TYP)
.006 0.15 REF
LEAD STYLE
-01
PLATING SPECIFICATION
SEE TABLE 2
-LS1: LOCKING SCREW
(SEE FIG. 2, SHT 3)
(FOR MATING WITH
QTS-...-RA-..LS1)
-SP: SOLDER PIN
(NOT AVAILABLE W/ LS1 OPTION)
(USE SP-19-T) SEE FIG. 3, SHT 4)
-K: KAPTON PAD
(SEE FIG 4, SHT 4)
(USE K-500-300)
OPTION
-WT: WELD TAB
(SEE NOTE 4)
(USE WT-16-XX-T)
-RA: RIGHT ANGLE
.280 7.11
REF
.560 14.22
REF
-DP: DIFFERENTIAL PAIR
ROW SPECIFICATION
-D: DOUBLE (USE QSS-25-01-D-XX-RA)
.435 11.05
REF
((No OF POS / 16) x .7875[20.003]) + .005[0.13]
.7875 20.00
C15-A-MV
(SEE TABLE 3)
"A" REF
QSS-25-01-D-XX-RA
C
L
7 EQ SPACES
@ .0750[1.905]
QSS-048-01-XXX-D-DP-RA SHOWN
C2-F-MV
FIG. 1
"A"
.096 2.44
.069 1.75
01
NOT FILLED
.245 6.22
REF
NOT FILLED
(SEE NOTE 9)
01
C20-B-VE
.186 4.71
REF
.328 8.33
REF
.025 0.64 SQ
REF (TYP)
(SEE NOTE 4)
.114±.003 2.89±0.08
(TYP)(SEE NOTE 4)
02
7 EQ SPACES
@ .080[2.03]
.012 0.30 REF
C3-F-MV
NOT FILLED
(SEE NOTE 9)
C19-A-VE
02
((No OF POS / 16) x .7875[20.003]) + .550[13.97]
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .0010 MAX.
3. MINIMUM PUSHOUT FORCE: 6 OZ.
4. WELD TABS (WT-16-02-T) NOT AVAILABLE ON -016 POSITION.
5. IF NEEDED, -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
6. IM-1G18-01-1-XX RETENTION TO BE 1.0 LBS. MINIMUM PRIOR
TO SECOND ROW FILL.
7. DESIGNED FOR USE WITH AT .062 THICK PCB
8. ASSEMBLIES TO BE PACKAGED IN TRAYS.
9. CRITICAL REFERS TO FILL / NOT FILLED PATERN.
10. DELETE
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
DETAIL "A"
SCALE 4 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
.635mm DOUBLE ROW DIFFERENTIAL PAIR RA SOCKET STRIP
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
DESCRIPTION:
INSULATOR: LCP, COLOR: BLACK
TERMINAL, GROUND PLANE &
WELD TAB: PHOS BRONZE
F:\DWG\MISC\MKTG\QSS-XXX-01-XXX-D-DP-RA-WT-XXX-MKT.SLDDRW
QSS-XXX-01-XXX-D-DP-RA-WT-XXX
02/26/04
SHEET
1
OF
4
BY:
KEVIN B
REVISION X
.113 2.87 REF
C-178-02-XXX
IM-1G18-01-1-XXX
'F'
C
.1700 4.318
C
C5-F-CP
C11-F-CP
C4-F-MV
.0040 0.102
C-177-01-XXX
C
.001[0.03] - .006[0.15]
(BOTH ROWS)
C
C13-F-OG
X
C6-B-MV
C
SEE TABLE 1
.064 1.63
(SEE NOTE 4)
C
C
.058 1.47
C12-F-CP
WT-16-02-T
(SEE NOTE 4)
.207 5.25 REF
(SEE NOTE 4)
.025 0.64 REF
.148 3.75
(SEE NOTE 4)
.040 1.02 REF
30° REF (TYP)
.010 0.25 REF
C7-B-MV
C
.285 7.24 REF
.354 8.99 REF
.0180 0.46 REF
C9-A-MV
C
.442 11.21 REF
DETAIL 'F'
SCALE 12 : 1
F:\DWG\MISC\MKTG\QSS-XXX-01-XXX-D-DP-RA-WT-XXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.166667
.635mm DOUBLE ROW DIFFERENTIAL PAIR RA SOCKET STRIP
DWG. NO.
QSS-XXX-01-XXX-D-DP-RA-WT-XXX
02/26/04
SHEET
2
OF
4
BY:
KEVIN B
REVISION X
IN-PROCESS 1
C-177-01-XXX
FIG. 2
QSS-048-01-XXX-D-DP-RA-LS1 SHOWN
(SAME AS FIG. 1, EXCEPT AS SHOWN)
.285 7.24
C7-B-MV
QSS-25-01-D-XX-RA
"A" REF
IN-PROCESS 2
IM-1G18-01-1-XXX
((No OF POS / 16) x .7875[20.003]) + .330[8.38] REF
CRITICAL DIMENSION INSPECTION INSTRUCTION TABLE
ASSEMBLY OPERATION
FILL C-177-01-X
.424 10.77
C17-B-DC
START-UP INSPECTION
INSPECT CODE A
C1, C15, C19
C1, C7, C19, C20
C1, C7, C19, C20
C1, C7, C18, C19,C20
C1, C18, C15
C1, C18
C1, C18
IN-PROCESS INSPECTION
INSPECT CODE B
C7, C20
C17
C18
C6
C21
C21
C16
FILL IM-1G18-XX-1-XX
FILL C-178-02-X
FILL WT-16-XX-T
LS1
SP
IN-PROCESS 3
C-178-02-XXX
K
F:\DWG\MISC\MKTG\QSS-XXX-01-XXX-D-DP-RA-WT-XXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
.635mm DOUBLE ROW DIFFERENTIAL PAIR RA SOCKET STRIP
.442 11.21
C18-A-MV
SHEET SCALE: 1:0.666667
QSS-XXX-01-XXX-D-DP-RA-WT-XXX
BY:
KEVIN B
DWG. NO.
02/26/04
SHEET
3
OF
4
REVISION X

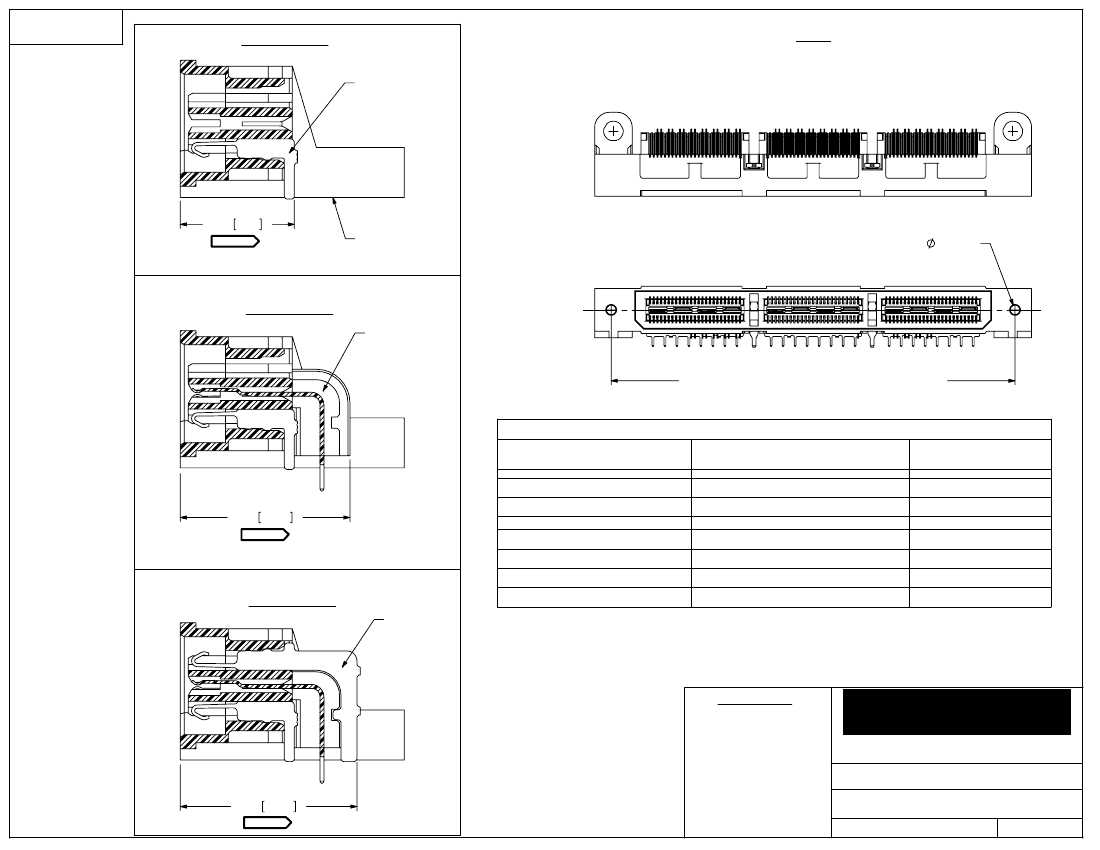

FIG. 3
QSS-048-01-XXX-D-DP-RA-WT-SP SHOWN
(SAME AS FIG. 1, EXCEPT AS SHOWN)
.055 1.40
C21-B-MV
.035 0.89 REF
{NO OF POS X .0315[.800] +.300[7.62]} ± .005[.13]
SP-19-T
.094 2.38 REF
FIG. 4
QSS-048-01-XXX-D-DP-RA-WT-K SHOWN
(SAME AS FIG. 1, EXCEPT AS SHOWN)
C16-B-MV
"B"
.790 20.07 REF
.250 6.35
REF
.065±.010 1.65±0.25
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING SHEET SCALE: 3:2
.635mm DOUBLE ROW DIFFERENTIAL PAIR RA SOCKET STRIP
SHEET SCALE: 1:0.666667
DWG. NO.
QSS-XXX-01-XXX-D-DP-RA-WT-XXX
BY:
KEVIN B
F:\DWG\MISC\MKTG\QSS-XXX-01-XXX-D-DP-RA-WT-XXX-MKT.SLDDRW
02/26/04
SHEET
4
OF
4
