PMR20-24D12W-C

Description
Analog Circuit, MDIP6
CategoryAnalog mixed-signal IC    The signal circuit
File Size630KB，3 Pages
ManufacturerPowerbox
Websitehttps://www.powerbox.com
Environmental Compliance
Download Datasheet Parametric Compare View All

PMR20-24D12W-C Overview

Analog Circuit, MDIP6

PMR20-24D12W-C Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionDIP, DIP6/18,.8
Reach Compliance Codeunknown
Maximum input voltage36 V
Minimum input voltage9 V
JESD-30 codeR-MDIP-T6
Number of terminals6
Maximum operating temperature101 °C
Minimum operating temperature-40 °C
Maximum output current0.833 A
Nominal output voltage12 V
Package body materialMETAL
encapsulated codeDIP
Encapsulate equivalent codeDIP6/18,.8
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
surface mountNO
Temperature levelINDUSTRIAL
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1

Preview

Download Datasheet

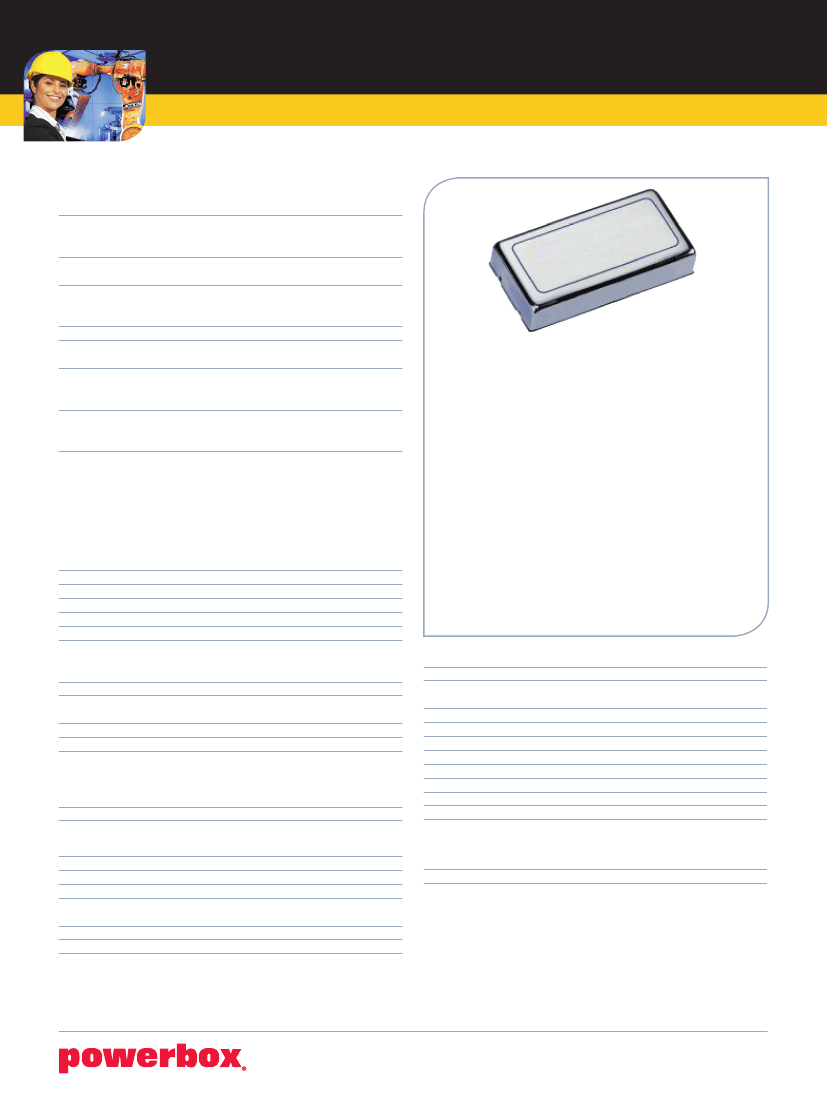

Industrial Line – PMR20W Series
20W SINGLE & DUAL OUTPUT HIGH PERFORMANCE DC/DC CONVERTER
Specifications
INPUT
Voltage range
24V nominal input
9-36VDC
48V nominal input
18-75VDC
110V nominal input
43-160VDC
24V, 48V input
Common chock
110V input
Pi filter
24V input
50VDC 1sec max
48V input
100VDC 1sec max
110V input
170VDC 1sec max
30mA p-p, nominal Vin and full load.
Power up 30mS typ. Remote on/off 30mS typ.
Nominal Vin and constant resistive load.
24V input
9VDC max
48V input
18VDC max
110V input
43VDC max
24V input
8VDC max
48V input
16VDC max
110V input
40VDC max
Positive logic (standard):
DC/DC ON: Open or 3V < Vr < 15V
DC/DC OFF: Short or 0V < Vr < 1.2V
Negative logic (option):
DC/DC ON: Short or 0V < Vr < 1.2V
DC/DC OFF: Open or 3V < Vr < 15V
Remote off input current: 2.5mA, nominal Vin.
Input filter
Input surge voltage
Reflected ripple
Start up time
Start up voltage
Features
• Railway application
• 20 watts maximum output power
• Ultra low quiescent current
• Single output up to 4.5A
• High efficiency up to 89%
• 4:1 ultra wide input voltage range
• Six-sided continuous shield
• Fixed switching frequency
• CE mark meets 2006/95/EC, 93/68/EEC & 2004/108/EC
• UL60950-1, EN60950-1, IEC60950-1 & EN50155
safety approvals pending
• Compliant to RoHS EU Directive 2002/95/EC
• Suitable for Railway applications
Shutdown voltage
Remote ON/OFF
6)
OUTPUT
Power
Voltage accuracy
Min load
Voltage adjustability
5)
Line regulation
Load regulation
20W max.
±1%.
0%.
±10%, single output
Single ±0.2%. Dual ±0.5%. LL to HL at full load.
No load to full load: Single ±0.2%. Dual ±1%.
10% load to 90% load:
Single ±0.1%. Dual ±0.8%.
Cross regulation (dual) ±5%, asymmetrical load 25%/100% FL.
Ripple and noise
See table, At 20MHz bandwidth,
(measured with a 0.1uF/50V MLCC).
Temperature coefficient ±0.02%/°C max.
Transient response
250uS,recovery time 25% load step change.
Overload protection
3.3V output
3.7-5.4VDC
5V output
5.6-7.0VDC
12V output
13.5-19.6VDC
15V output
16.8-20.5VDC
Overload protection
150% max, % of FL at nominal input.
Short circuit protection Hiccup, automatics recovery.
ENVIRONMENTAL

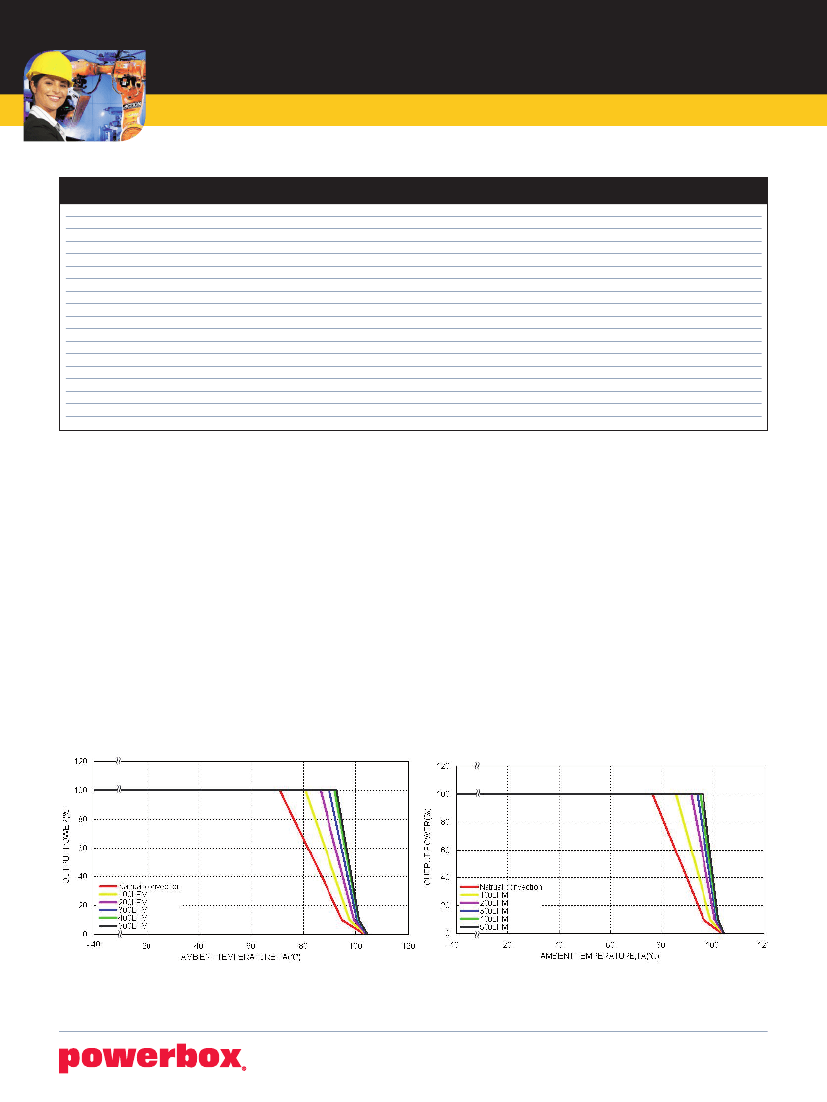

Operating ambient temp
7)
Max case temperature
Storage temperature
Thermal impedance
8)
Thermal shock
Vibration
Relative humidity
–40°C to +101°C (with derating).
+105°C.
–55°C to +125°C.
Nature convection: 12°C/W.
Nature convection with heat-sink: 10°C/W.
EN61373, MIL-STD-810F.
EN61373, MIL-STD-810F.
5-95% RH.
GENERAL
Efficiency
Isolation voltage
Isolation resistance
Isolation capacitance
Switching frequency
Case material.
Base material
Potting material

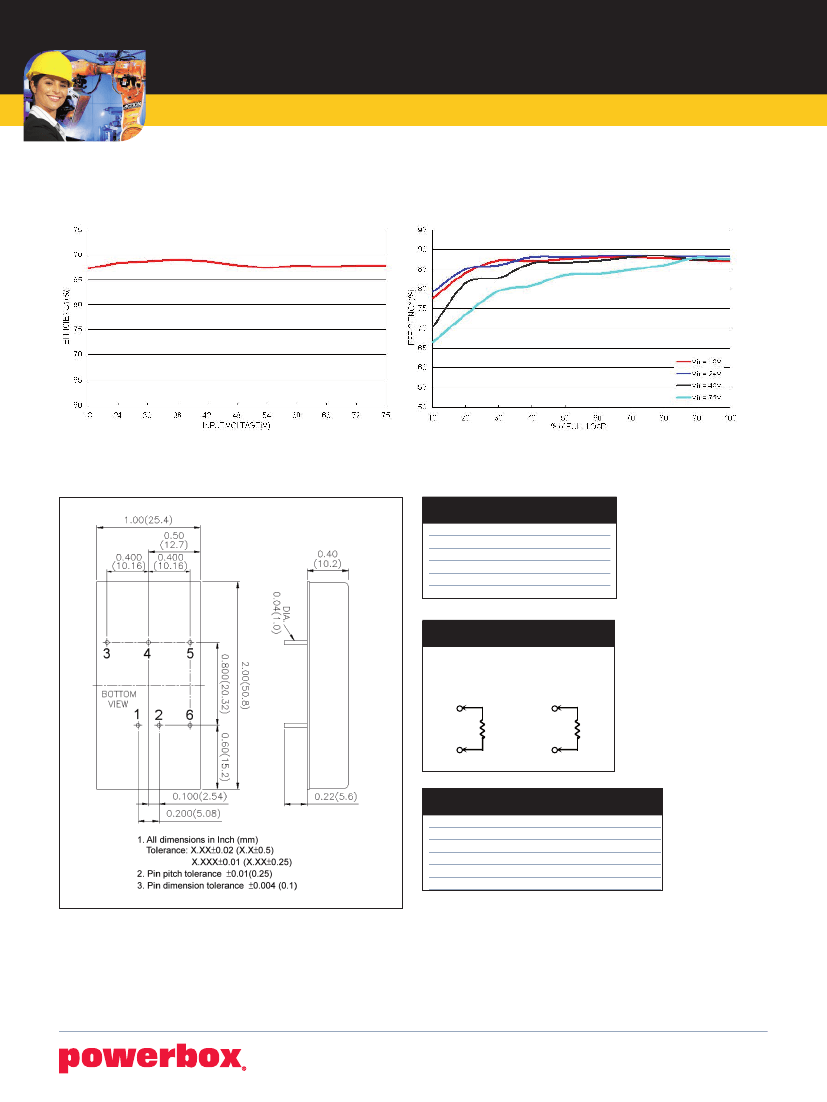

Dimensions
Weight
MTBF
1)
STANDARDS
Safety standards
EMC
EMI
9)
ESD
Radiated immunity
Fast transient
10)
Surge
10)
Conducted immunity
See table.
1600VDC min, input to output.
1000VDC min, input (output) to case..
10
9
ohms, min.
3000pF, max.
330KHz typ.
Nickel-coated copper.
FR4 PCB.
Silicon (UL94-V0).
50.8 x 25.4 x 10.2 mm.
30g.
BELLCORE-TR-NWT-000332 1.630 x 10
6
hrs.
MIL-HDBK-217F 4.950 x 10
5
hrs.
IEC60950-1, UL60950-1, EN60950-1, EN50155.
Designed to meet EN50155.
EN55022, EN55011 24VDC & 48VDC Class B
110VDC Class A
EN61000-4-2Air ±8kV
Criteria A
EN61000-4-320V/m
Criteria A
EN61000-4-4 ±2kV
Criteria A
En61000-4-5 ±2kV
Critiera A
EN61000-4-610Vr.m.s.
Criteria A
20130404
