32R2031A-4CV datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 32R2031A-4CV

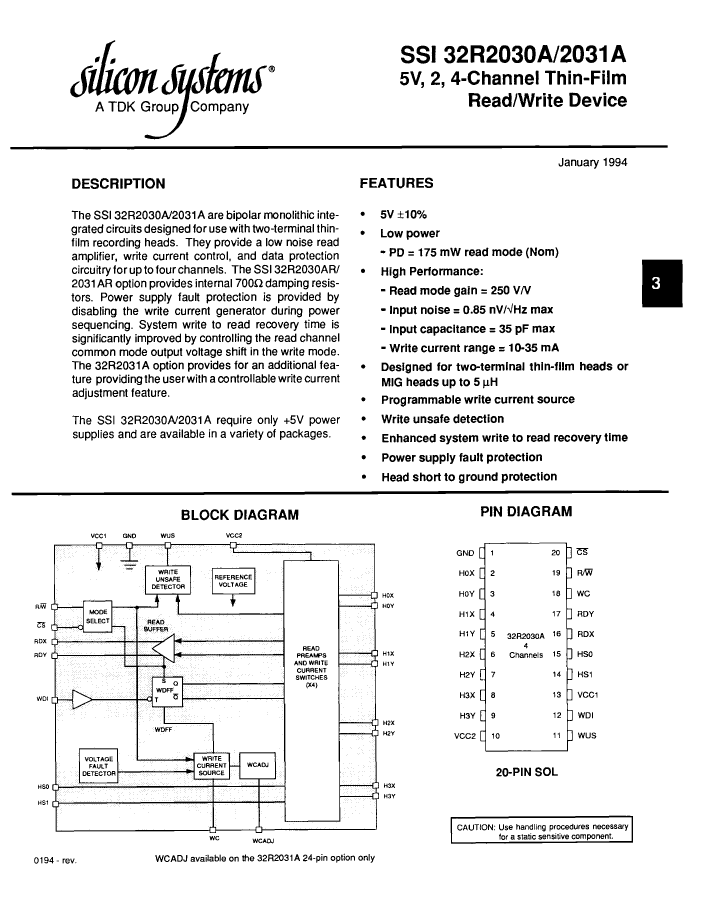

Preview

32R2031A-4CV: DescriptionRead/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size287KB，10 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

32R2031A-4CV Overview

Read/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO24

32R2031A-4CV Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Drive type	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G24
Number of channels	4
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum slew rate	37 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	5.5 V
Mains voltage 1-minute	4.5 V
Supply voltage1-Nom	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

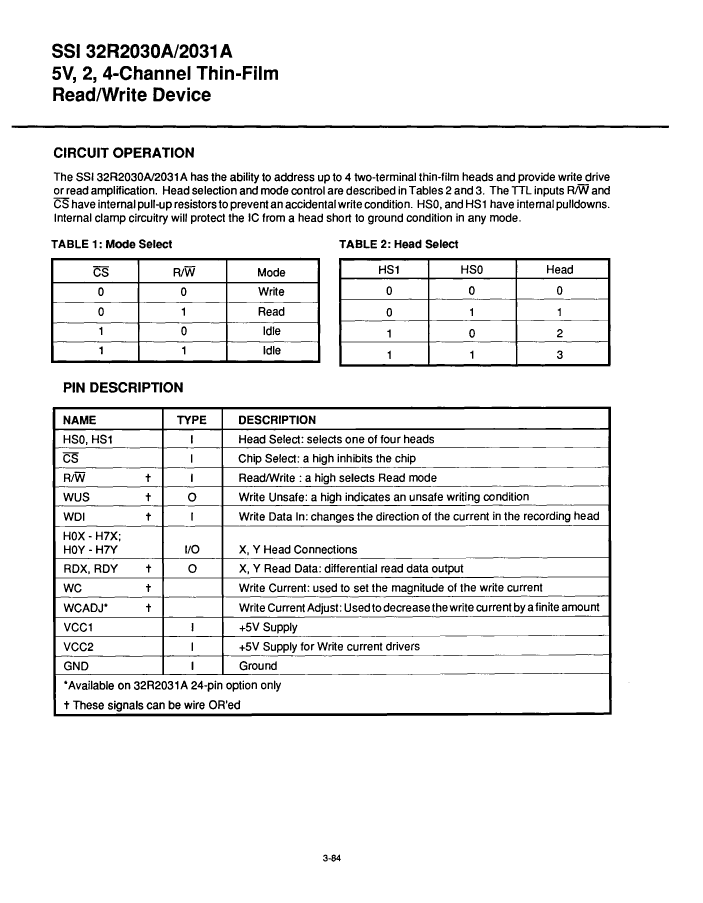

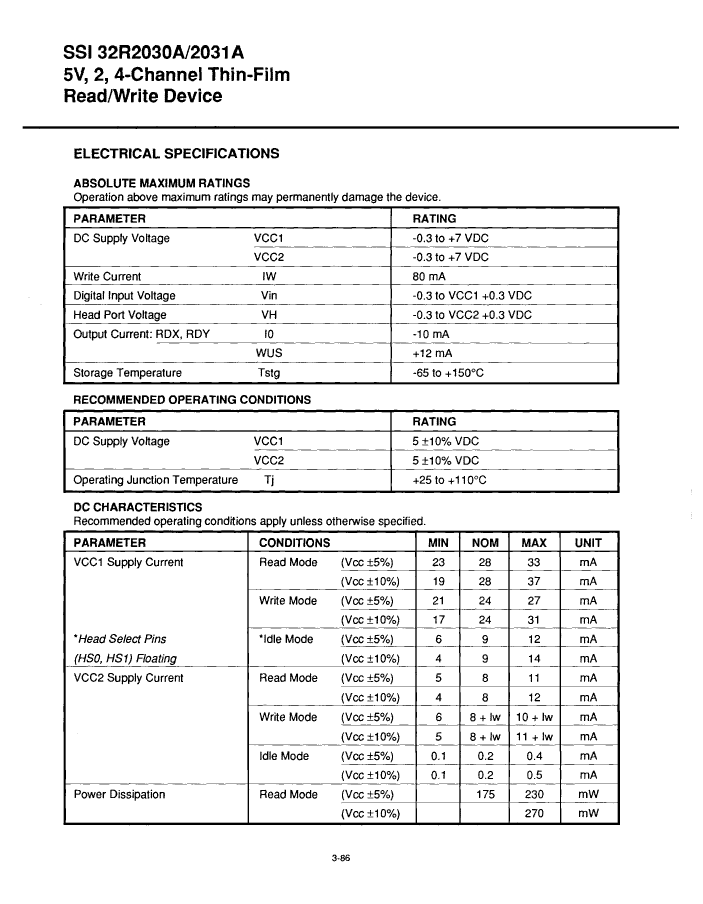

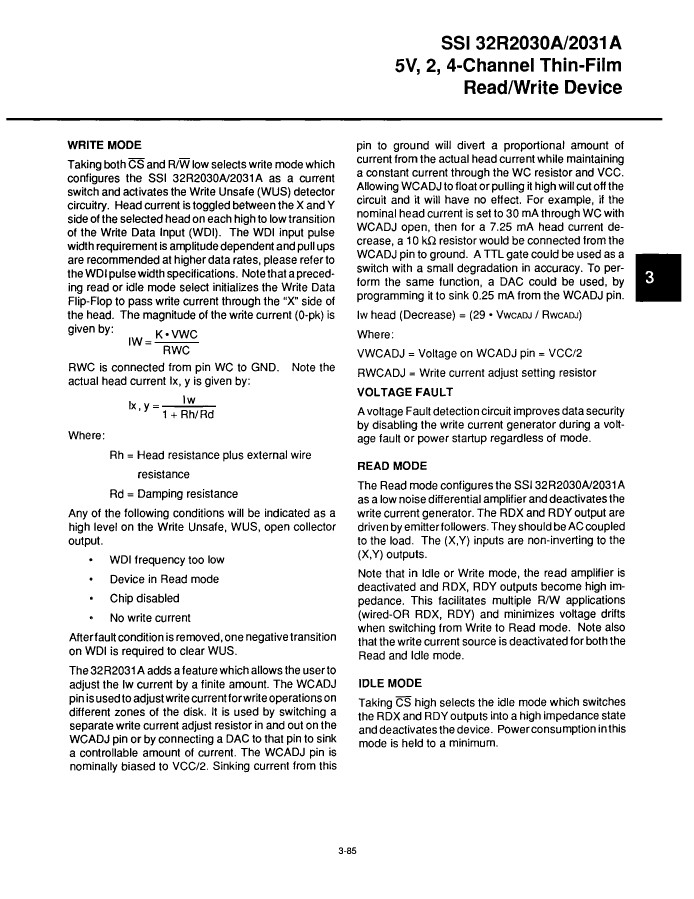

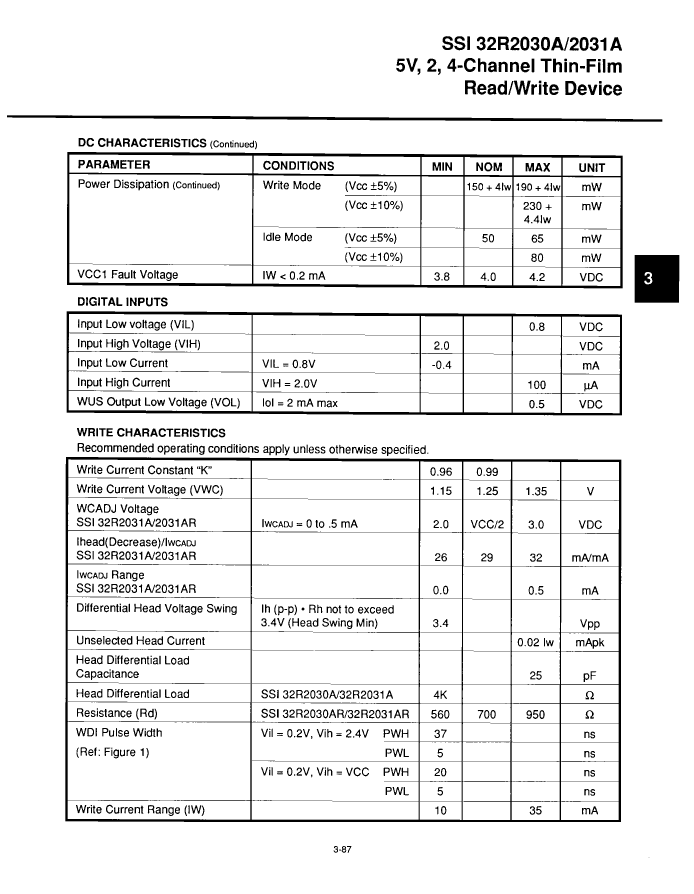

Preview

Download Datasheet

View All

32R2031A-4CV Related Products

	32R2031A-4CV	32R2031A-4CL	GUB-GL0A-03-1960-F-	32R2030A-4CL	32R2030A-2CL
Description	Read/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO24	Read/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO24	Array/Network Resistor, Isolated, Thin Film, 0.16W, 196ohm, 1% +/-Tol, -25,25ppm/Cel, 5030,	Read/Write Amplifier Circuit, 4 Channel, BIPolar, PDSO20	Read/Write Amplifier Circuit, 2 Channel, BIPolar, PDSO16
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown
Number of terminals	24	24	20	20	16
Maximum operating temperature	70 °C	70 °C	125 °C	70 °C	70 °C
Package form	SMALL OUTLINE	SMALL OUTLINE	SMT	SMALL OUTLINE	SMALL OUTLINE
technology	BIPOLAR	BIPOLAR	THIN FILM	BIPOLAR	BIPOLAR
Drive type	WINCHESTER	WINCHESTER	-	WINCHESTER	WINCHESTER
Interface integrated circuit type	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT	-	READ WRITE AMPLIFIER CIRCUIT	READ WRITE AMPLIFIER CIRCUIT
JESD-30 code	R-PDSO-G24	R-PDSO-G24	-	R-PDSO-G20	R-PDSO-G16
Number of channels	4	4	-	4	2
Number of functions	1	1	-	1	1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum slew rate	37 mA	37 mA	-	37 mA	37 mA
Maximum supply voltage	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	-	5 V	5 V
Supply voltage 1-max	5.5 V	5.5 V	-	5.5 V	5.5 V
Mains voltage 1-minute	4.5 V	4.5 V	-	4.5 V	4.5 V
Supply voltage1-Nom	5 V	5 V	-	5 V	5 V
surface mount	YES	YES	-	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	-	GULL WING	GULL WING
Terminal location	DUAL	DUAL	-	DUAL	DUAL
Base Number Matches	1	1	-	1	1
