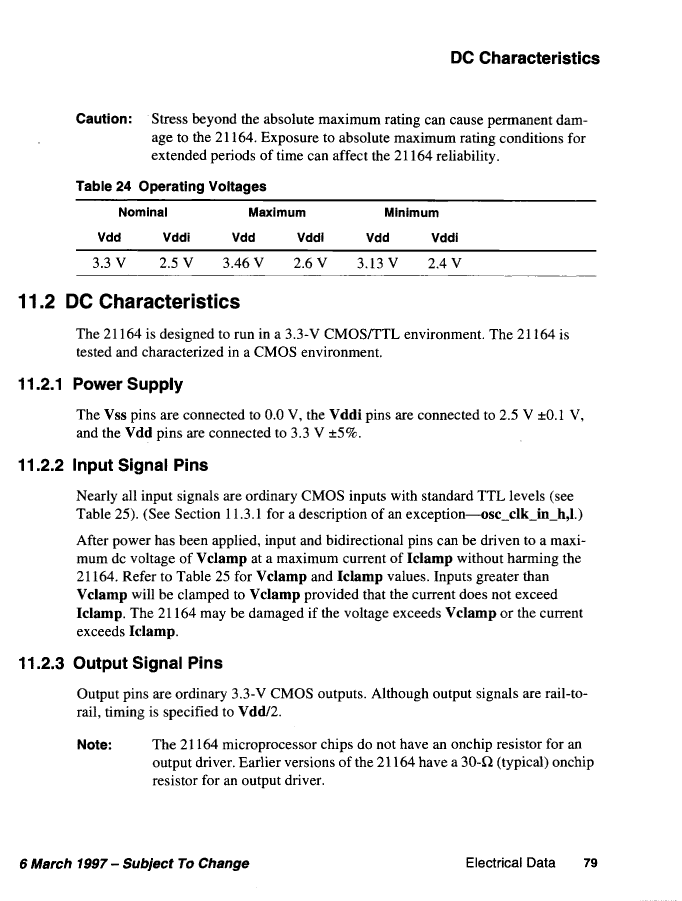

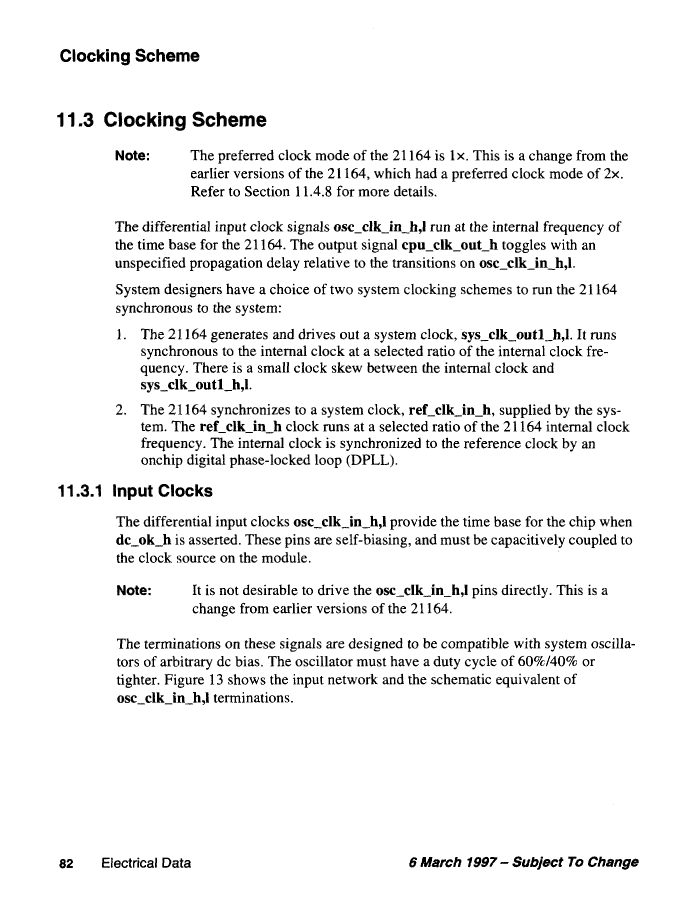

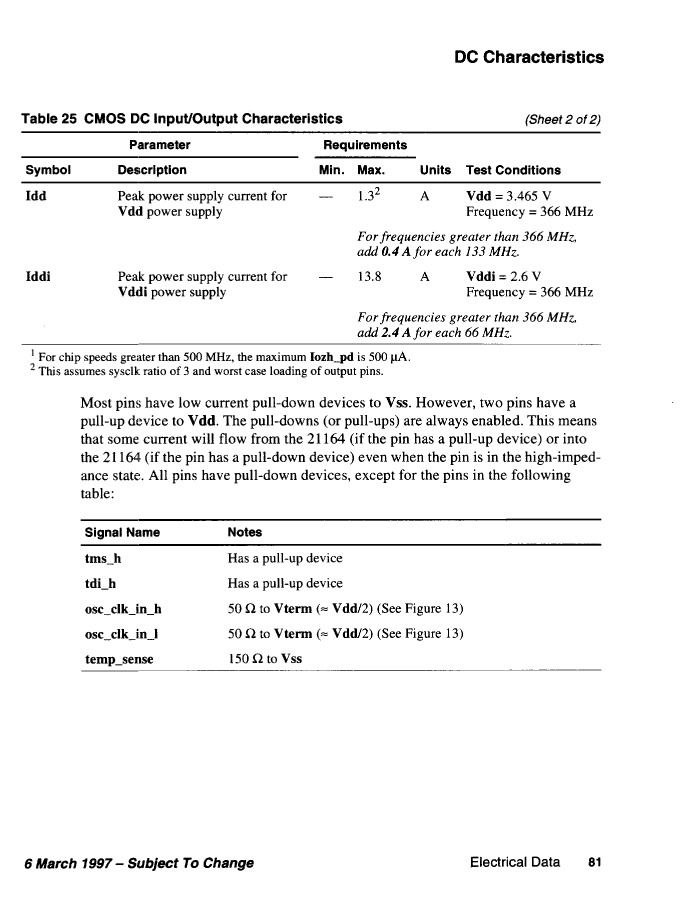

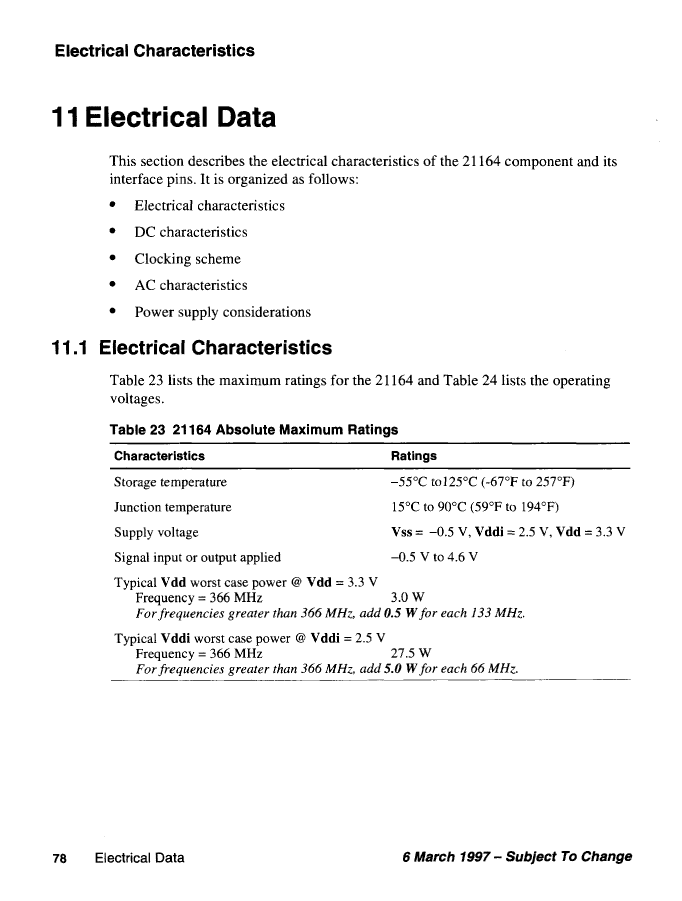

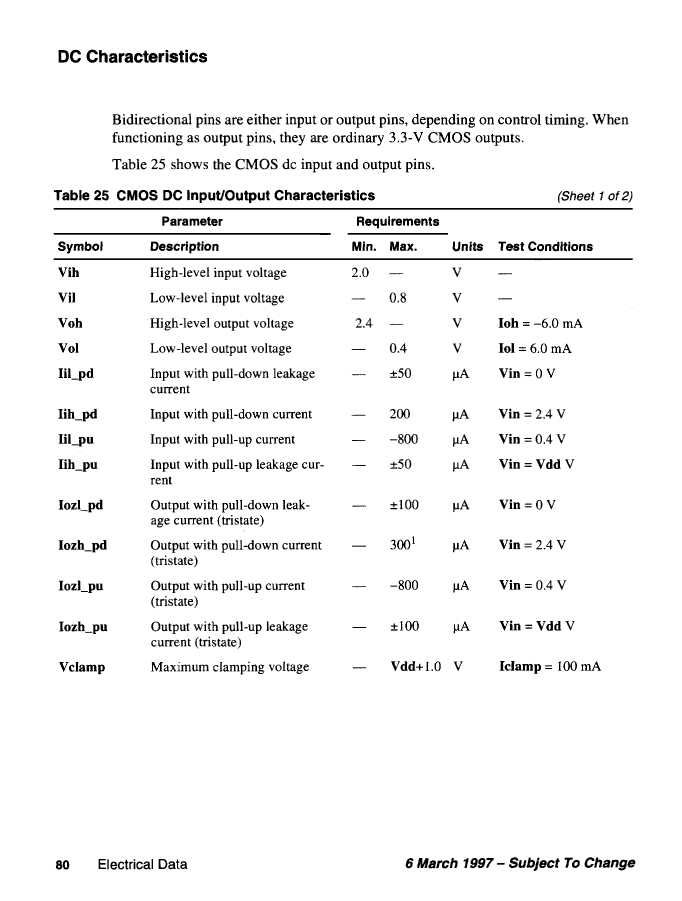

Preview

21164-P6: DescriptionRISC Microprocessor, 64-Bit, 433MHz, CMOS, CPGA499; CategoryThe embedded processor and controller Microcontrollers and processors; File Size887KB，29 Pages; ManufacturerDigital Equipment Corp

Download Datasheet Parametric Compare View All

21164-P6 Overview

RISC Microprocessor, 64-Bit, 433MHz, CMOS, CPGA499

21164-P6 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.3
Address bus width	40
bit size	64
boundary scan	YES
maximum clock frequency	1732 MHz
External data bus width	128
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	S-CPGA-P499
low power mode	YES
Number of DMA channels
Number of external interrupt devices	15
Number of serial I/Os
Number of terminals	499
On-chip data RAM width
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
RAM (number of words)	0
speed	433 MHz
Maximum slew rate	1300 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

21164-P6 Related Products

	21164-P6	21164-EB	21164-P5	21164-P7	21164-FB	21164-HB	21164-JB	21164-IB
Description	RISC Microprocessor, 64-Bit, 433MHz, CMOS, CPGA499	RISC Microprocessor, 64-Bit, 366MHz, CMOS, CPGA499	RISC Microprocessor, 64-Bit, 366MHz, CMOS, CPGA499	RISC Microprocessor, 64-Bit, 500MHz, CMOS, CPGA499	RISC Microprocessor, 64-Bit, 400MHz, CMOS, CPGA499	RISC Microprocessor, 64-Bit, 433MHz, CMOS, CPGA499	RISC Microprocessor, 64-Bit, 500MHz, CMOS, CPGA499	RISC Microprocessor, 64-Bit, 466MHz, CMOS, CPGA499
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3
Address bus width	40	40	40	40	40	40	40	40
bit size	64	64	64	64	64	64	64	64
boundary scan	YES	YES	YES	YES	YES	YES	YES	YES
maximum clock frequency	1732 MHz	1464 MHz	1464 MHz	2000 MHz	1600 MHz	1732 MHz	2000 MHz	1864 MHz
External data bus width	128	128	128	128	128	128	128	128
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	S-CPGA-P499	S-CPGA-P499	S-CPGA-P499	S-CPGA-P499	S-CPGA-P499	S-CPGA-P499	S-CPGA-P499	S-CPGA-P499
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	15	15	15	15	15	15	15	15
Number of terminals	499	499	499	499	499	499	499	499
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	433 MHz	366 MHz	366 MHz	500 MHz	400 MHz	433 MHz	500 MHz	466 MHz
Maximum slew rate	1300 mA	1300 mA	1300 mA	1300 mA	1300 mA	1300 mA	1300 mA	1300 mA
Maximum supply voltage	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Base Number Matches	1	1	1	1	1	1	1	1
