Ordering number : ENN7167
TIG002SS
N-Channel IGBT
TIG002SS
Light-Controlling Strobe Applications
Features
•
•
•
Package Dimensions
unit : mm
2203
[TIG002SS]
8
5
Low-saturation voltage.
4V drive.
Enhansment type.
4.4
6.0
0.2
0.3
5.0
0.1
1.5
1.8max
1
4
1 : Emitter
2 : Emitter
3 : Emitter
4 : Gate
5 : Collector
6 : Collector
7 : Collector
8 : Collector
SANYO : SOP8
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Emitter Voltage
Gate-to-Emitter Voltage (DC)
Gate-to-Emitter Voltage (Pulse)
Collector Current (Pulse)
Channel Temperature
Storage Temperature
Symbol
VCES
VGES
VGES
ICP
Tch
Tstg
0.595
1.27
0.43
Conditions
Ratings
400
±6
±8
Unit
V
V
V
A
°C
°C
PW≤500µs, duty cycle≤0.5%
150
150
--40 to +150
Electrical Characteristics
at Ta=25°C
Parameter
Collector-to-Emitter Breakdown Voltage
Collector-to-Emitter Cutoff Current
Gate-to-Emitter Leakage Current
Gate-to-Emitter Cutoff Voltage
Collector-to-Emitter Saturation Voltage
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Symbol
V(BR)CES
ICES
IGES
VGE(off)
VCE(sat)1
VCE(sat)2
Cies
Coes
Cres
Conditions
IC=5mA, VGE=0
VCE=320V, VGE=0
VGE=±6V, VCE=0
VCE=10V, IC=1mA
IC=150A, VGE=4V
IC=60A, VGE=2.5V
VCE=10V, f=1MHz
VCE=10V, f=1MHz
VCE=10V, f=1MHz
Ratings
min
400
10
±100
0.5
4.2
2.4
3300
75
40
1.2
5.5
3.4
typ
max
Unit
V
µA
nA
V
V
V
pF
pF
pF
(Note) Handling the TIG002SS requires sufficient care to be taken because it has no protection diode between gate and emitter.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
41002 TS IM TA-3515 No.7167-1/3
TIG002SS

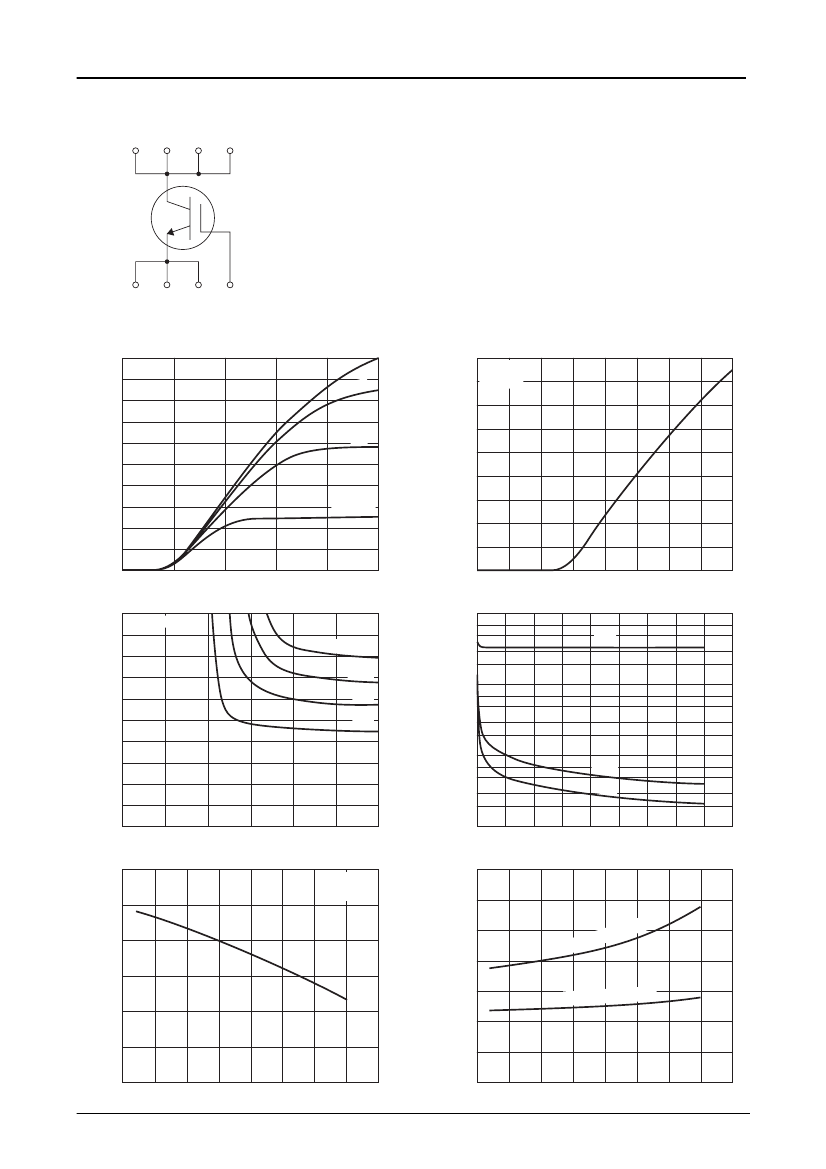

Eleclrical Connection
C
8
C
7
C
6
C
5
1
E
2
E
3
E
4
G
200
IC -- VCE
Tc=25°C
5V
180
IC -- VGE
Tc=25°C
VCE=5V
180
4V
Collector Current, IC -- A
160
140
120
100
80
60
40
20
0
Collector Current, IC -- A
160
140
120
100
80
60
40
20
0
0
1
2
3
4
5
IT04213
3V
VGE=2V
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
Collector-to-Emitter Voltage, VCE -- V
5.0
VCE -- VGE
Tc=25°C
Collector-to-Emitter Voltage, VCE -- V
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
1
2
3
4
5
6
IT04215
10000
7
5
Cies, Coes, Cres -- VCE
Cies
Gate-to-Emitter Voltage, VGE -- V
IT04214
IC=150A
120A
Cies, Coes, Cres -- pF
3
2
1000
7
5
3
2
100
7
5
3
2
10
0
5
10
15
20
25
30
35
40
45
90A
60A
Coes
Cres
Gate-to-Emitter Voltage, VGE -- V
Gate-to-Emitter Cutoff Voltage, VGE(off) -- V
1.2
VGE(off) -- Tc
Collector-to-Emitter Voltage, VCE -- V
7
IT04216
VCE(sat) -- Tc
1.0
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- V
VCE=10V
IC=1mA
6
5
0.8
=150
0V, I C
=4.
VGE
A
4
0.6
3
VGE=2.5V, IC=60A
0.4
2
0.2
1
0
--50
0
--50
--25
0
25
50
75
100
125
150
--25
0
25
50
75
100
125
150
Case Temperature, Tc --
°C
IT04217
Case Temperature, Tc --
°C
IT04218
No.7167-2/3
TIG002SS
160
ICP -- VGE
CM=240µF
400
350
CM -- ICP
VCM=350V
Tc≤70°C
VGE=4V
RG≥30Ω
Collector Current(Pulse), ICP -- A
140
120
100
80
60
40
20
0
0
Tc=70°C
Maximum Capacitor, CM --
µF
6
7
8
IT04219
Tc=25°C
300
250
200
150
100
50
0
0
1
2
3
4
5
20
40
60
80
100
120
140
160
Gate-to-Emitter Voltage, VGE -- V
Collector Current(Pulse), ICP -- A
IT04220
The gate series resistance RG must be 30Ω or more to protect the device when it is turned off.
Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer's
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer's products or equipment.
SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.
In the event that any or all SANYO products(including technical data,services) described or
contained herein are controlled under any of applicable local export control laws and regulations,
such products must not be expor ted without obtaining the expor t license from the authorities
concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co., Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"
for the SANYO product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.
This catalog provides information as of April, 2002. Specifications and information herein are subject
to change without notice.
PS No.7167-3/3
