Frequency Mixer
Level 23 (LO Power +23 dBm) 5 to 500 MHz
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
IF Current
-55°C to 100°C
-55°C to 100°C
350mW
40mA
Coaxial
ZMY-1+
ZMY-1
Features
• low conversion loss, 6.62 dB typ.
• high isolation, 40 dB typ. L-R & L-I
• wideband, 5 to 500 MHz
Permanent damage may occur if any of these limits are exceeded.
Applications
• VHF/UHF
• instrumentation
Coaxial Connections
LO
RF
IF
1
3
2
CASE STYLE: M21
Connectors
Model
Price
SMA
ZMY-1(+)
$67.95
BRACKET (OPTION “B”)
$5.00
BRACKET (OPTION “BR”)
$1.50
Qty.
(1-9)
(1+)
(1+)
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications.
Electrical Specifications

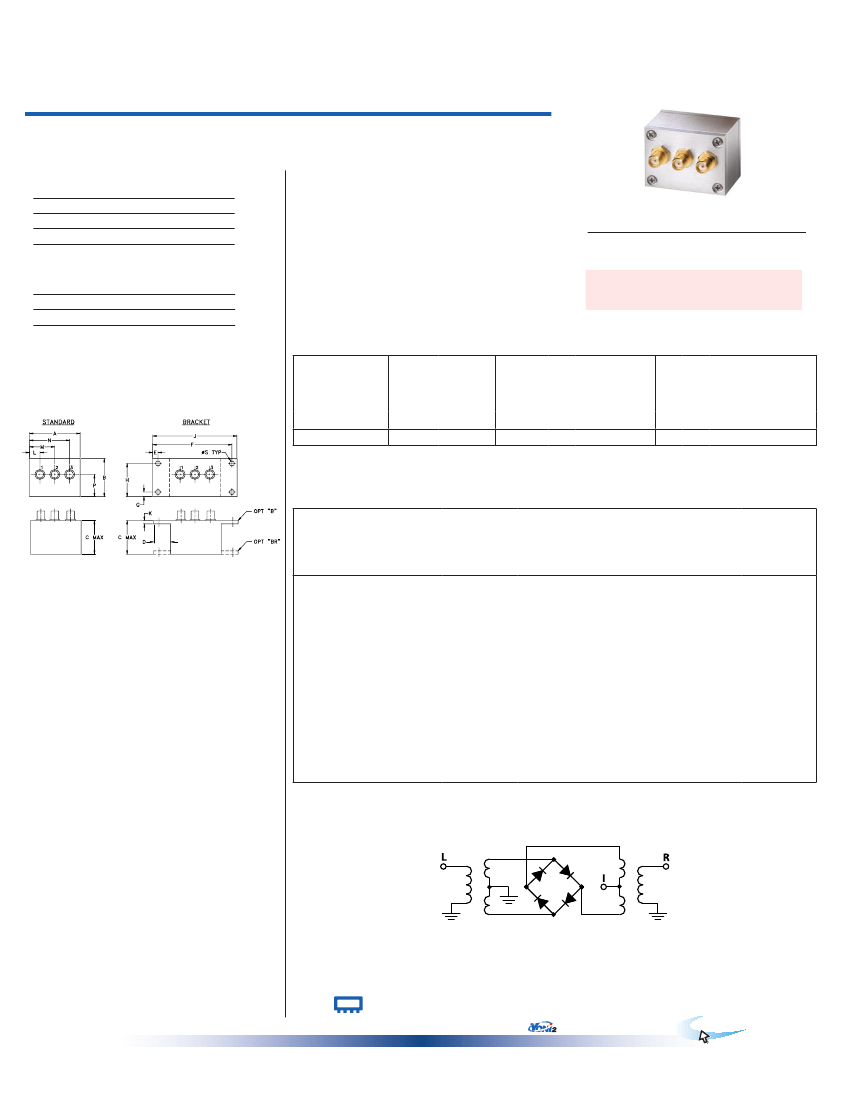

Outline Drawing
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
5-500
DC-500
IF
—
X
6.62
CONVERSION LOSS
(dB)
Mid-Band
m
σ
0.10
Total
Range
Max. Max.
7.5
8.5
L
Typ.
55
LO-RF ISOLATION
(dB)
M
Min.
45
Typ.
40
Min.
30
Typ.
30
U
Min.
25
Typ.
55
L
LO-IF ISOLATION
(dB)
M
Min.
45
Typ.
40
Min.
30
Typ.
30
U
Min.
20
1 dB COMP.: +15 dBm typ.
L = low range [f
L
to 10 f
L
]
m= mid band [2f
L
to f
U
/2]
M = mid range [10 f
L
to f
U
/2]
U = upper range [f
U
/2 to f
U
]
Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
35.00
40.00
50.00
65.94
80.00
52.35
70.00
114.22
145.16
170.00
191.57
222.50
253.44
284.38
315.32
346.26
377.19
408.13
439.07
470.00
LO
+23dBm
6.52
6.40
6.40
6.43
6.40
6.39
6.36
6.53
6.68
6.69
6.52
6.52
6.64
6.74
6.62
6.50
6.43
6.50
6.81
6.62
Isolation
L-R
(dB)
LO
+23dBm
57.02
56.72
54.48
51.51
48.82
45.62
44.05
41.60
40.04
39.45
36.41
36.33
36.36
36.35
33.85
30.50
32.89
33.81
33.63
34.24
Isolation
L-I
(dB)
LO
+23dBm
82.02
82.32
81.28
75.99
72.57
62.91
58.66
53.71
51.38
50.73
46.45
47.23
47.98
46.73
44.99
41.75
42.28
42.66
41.41
40.42
VSWR
RF Port
(:1)
LO
+23dBm
1.29
1.14
1.06
1.05
1.07
1.08
1.10
1.12
1.14
1.16
1.18
1.20
1.22
1.24
1.26
1.29
1.31
1.35
1.38
1.44
VSWR
LO Port
(:1)
LO
+23dBm
2.50
2.37
2.33
2.31
2.37
2.20
2.25
2.11
2.25
2.06
2.17
2.04
2.10
1.96
2.04
1.96
1.95
1.90
1.87
1.83
RF
5.00
10.00
20.00
35.94
50.00
Outline Dimensions (
inch
)
mm
A
1.50
38.10
J
2.50
63.50
B
1.13
28.70
K
.10
2.54
C
1.00
25.40
L
.31
7.87
D
.50
12.70
M
.75
19.05
E
.155
3.94
N
1.19
30.23
F
2.345
59.56
P
.66
16.76
G
.138
3.51
H
.987
25.07
82.35
100.00
144.22
175.16
200.00
221.57
252.50
283.44
314.38
345.32
376.26
407.19
438.13
469.07
500.00
S
wt
.150 grams
3.81
40.0
Electrical Schematic
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. A
M124192
ZMY-1
DJ/TD/CP/AM
090821
Page 1 of 2

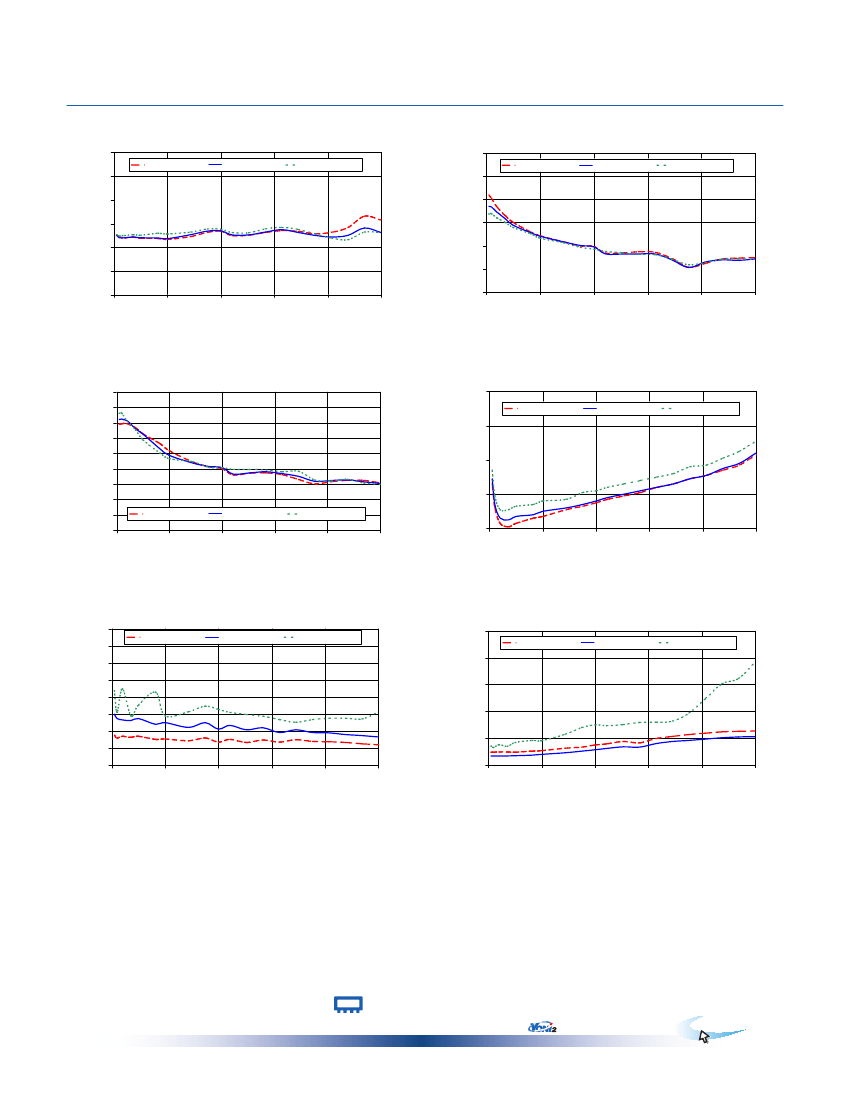

Performance Charts
