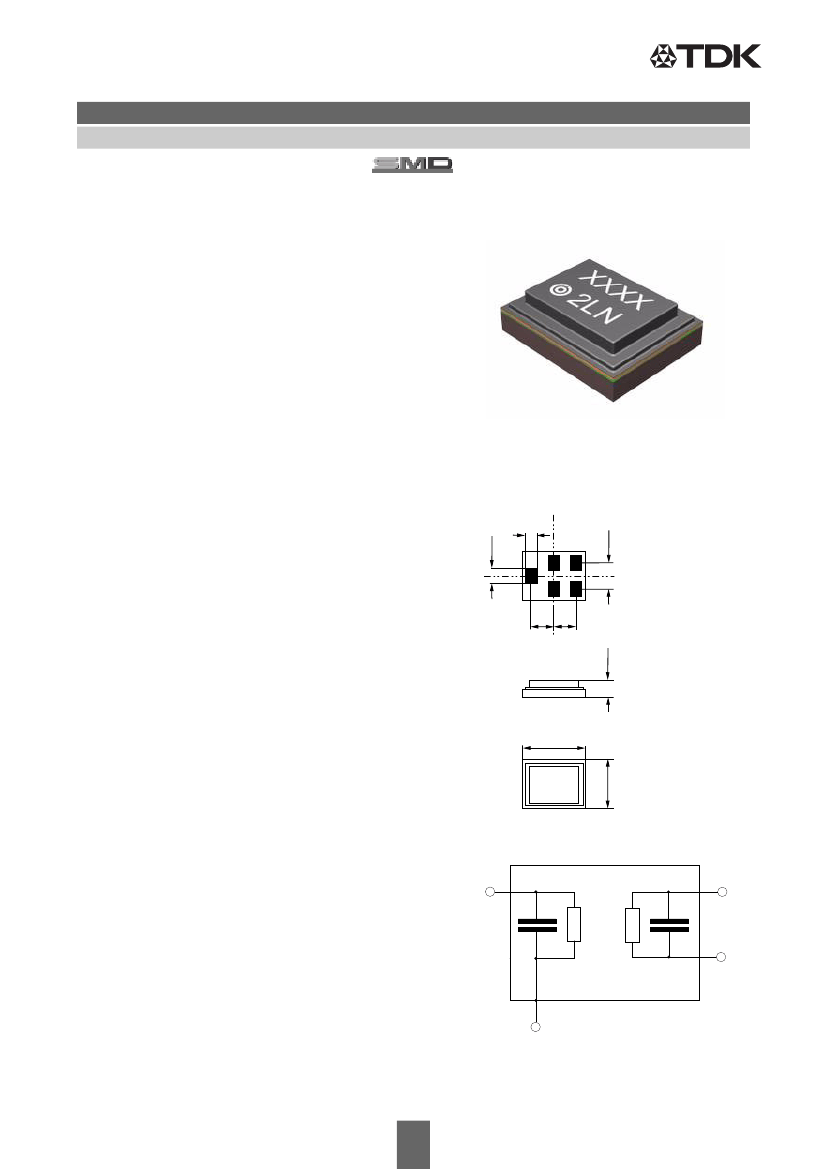

SAW Components
SAW RF filter
Data sheet
Application
s
Low-loss RF filter for automotive telematics applica-
B4310
1588.655 MHz
tions
s
Low insertion attenuation
s
Low amplitude ripple
s
Usable passband up to 34.37 MHz
Package size 1.4 x 1.1 x 0.4
Package code QCS5P
RoHS compatible
Approximate weight 0.003 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
AEC-Q200 qualified component family (operable
temperature range –40˚C to +85˚C)
s
Electrostatic Sensitive Device
(ESD)
s
s
s
s
s
s
s
mm
3
0.325
2 3
1
0.575
Features
0.25
bottom view
5
0.5 0.5
0.4
4
side view
1.4
1.1
top view
Pin configuration
s
1
s
4
s
2,3,5
Input
Output
to be grounded
1
4
3
2,5
Please read
cautions and warnings and
important notes
at the end of this document.
2
July 24, 2015
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
50
Ω
Z
S
=
Z
L
=
50
Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
1588.655
max.
—
B4310
1588.655 MHz
MHz
Maximum insertion attenuation
α
max
1573.42 ... 1577.42 MHz
1571.42 ... 1605.89 MHz
1597.55 ... 1605.89 MHz
Amplitude ripple
(p-p)
∆α
1573.42 ... 1577.42 MHz
1571.42 ... 1605.89 MHz
1597.55 ... 1605.89 MHz
Input VSWR
1573.42 ... 1577.42 MHz
1571.42 ... 1605.89 MHz
1597.55 ... 1605.89 MHz
Output VSWR
1573.42 ... 1577.42 MHz
1571.42 ... 1605.89 MHz
1597.55 ... 1605.89 MHz
Group delay ripple
1)
(p-p)
1573.42 ... 1577.42 MHz
1571.42 ... 1605.89 MHz
1597.55 ... 1605.89 MHz
Attenuation
10.0
1450.0
1650.0
1700.0
2150.0
2400.0
1)
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
1.0
1.5
1.3
0.1
0.6
0.4
1.3
1.8
1.5
1.3
1.8
1.5
2
6
5
40
34
34
40
36
45
1.5
1.9
1.9
0.6
1.1
0.9
2.0
2.2
2.1
2.0
2.2
2.1
8
12
12
dB
dB
dB
dB
dB
dB
ns
ns
ns
dB
dB
dB
dB
dB
dB
α
... 1450.0
... 1525.0
...
...
...
...
1700.0
2150.0
2270.0
2700.0
MHz
MHz
MHz
MHz
MHz
MHz
36
30
30
36
30
40
Averaged over 500 kHz
