4 Watt Flip-Plug Compact Adapter
PSM04A Wall Plug Adapter Meets CEC and EISA Requirements
Features
•
•
•
•
•
•
•
•
No Load Power Consumption < 0.5 Watt
Flip Plug Design
EISA Compliant
*
Wireless Communications
Peripherals
•
•
•
•
Low Leakage Current
Low Cost
Applications
Portable Equipment
PDA
Safety Approvals
cUL/UL
•
•
Mechanical Characteristics
Length: 69.4mm (2.73in)
Width: 48mm (1.89in)
Height: 25mm (0.98in)
Weight: 145g (5.12oz)
Output Specifications
Model
PSM04A-050(STD)
DC Output
Voltage
5V
Load
Min.
Max.
0A
0.75A
Ripple (1)
P-P (max)
55mV
Regulation
Line Load
±5%
Efficiency
Level
Note: (1) Measured with by-pass capacitors 0.1uf/10uf at output connector terminal and oscilloscope set at 20Mhz.
*EISA Compliant Level IV
115VAC
Phihong is not responsible for any errors or changes. Content is subject to change without notice. Please consult the
factory and visit
www.phihong.com
for the most up-to-date specifications.
PSM04A Characteristics
INPUT:
AC Input Voltage Rating
100 to 240VAC
WWW.PHIHONG.COM
Short Circuit Protection
Protection against short circuit for output: the load
current delivered into a short circuit shall not exceed 2A.
AC Input Voltage Range
90 to 264VAC
ENVIRONMENTAL:
Temperature
Operation
Non-operation
0 to +45°C
-40 to +85°C
AC Input Current
0.2A(RMS) Max.
Leakage Current
250uA Max.
Humidity
Operation
10 to 90%
AC Input Frequency
47-63Hz
Emissions
FCC Part 15 Class B
CISPR 22 Class B
Input Power Saving
0.5W Max.
Dielectric Withstand (Hi-pot) Test
Primary to Secondary: 3000VAC
OUTPUT:
Efficiency
50% Min.
DC Output Connector
2.1x5.5mm Center Positive Standard
Hold-up Time
10mS Min. @ 120VAC and Max. load
Mating Connector
Kycon KLD-0202-A or equivalent
Over Voltage Protection
7.5V Max.

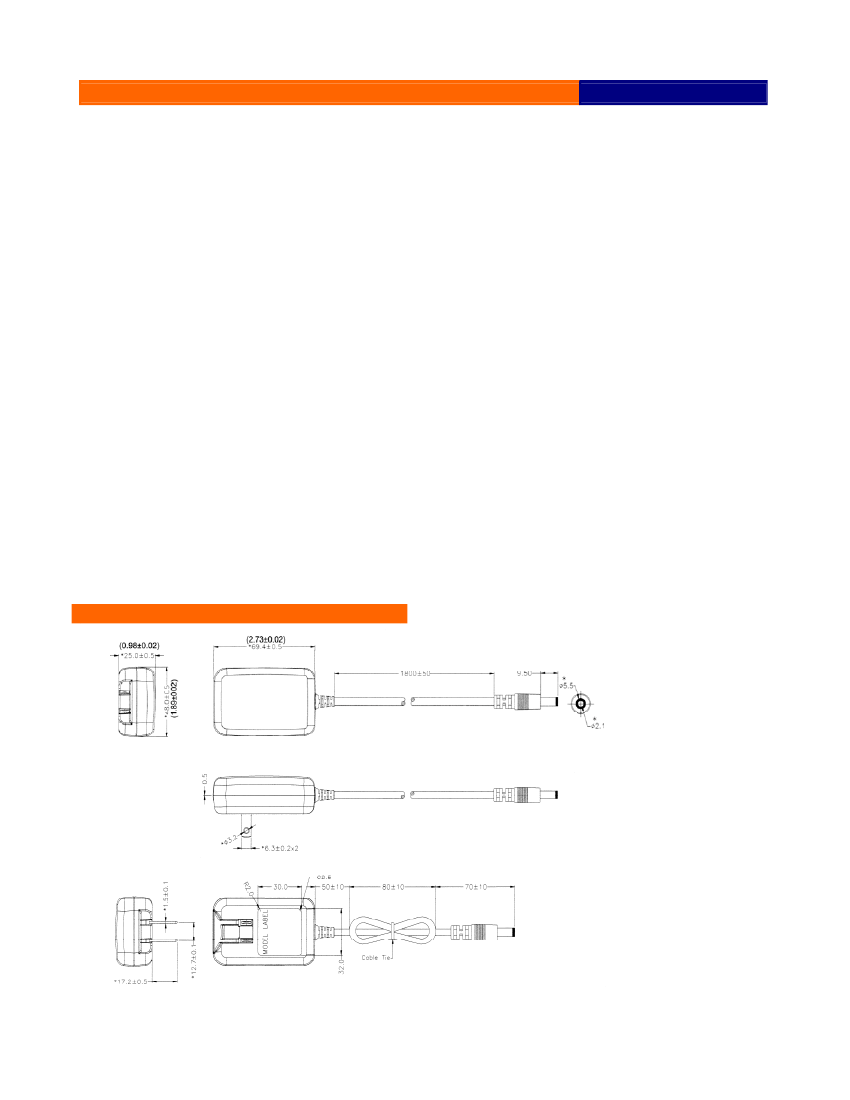

Dimension Diagram Unit: mm (inch)
