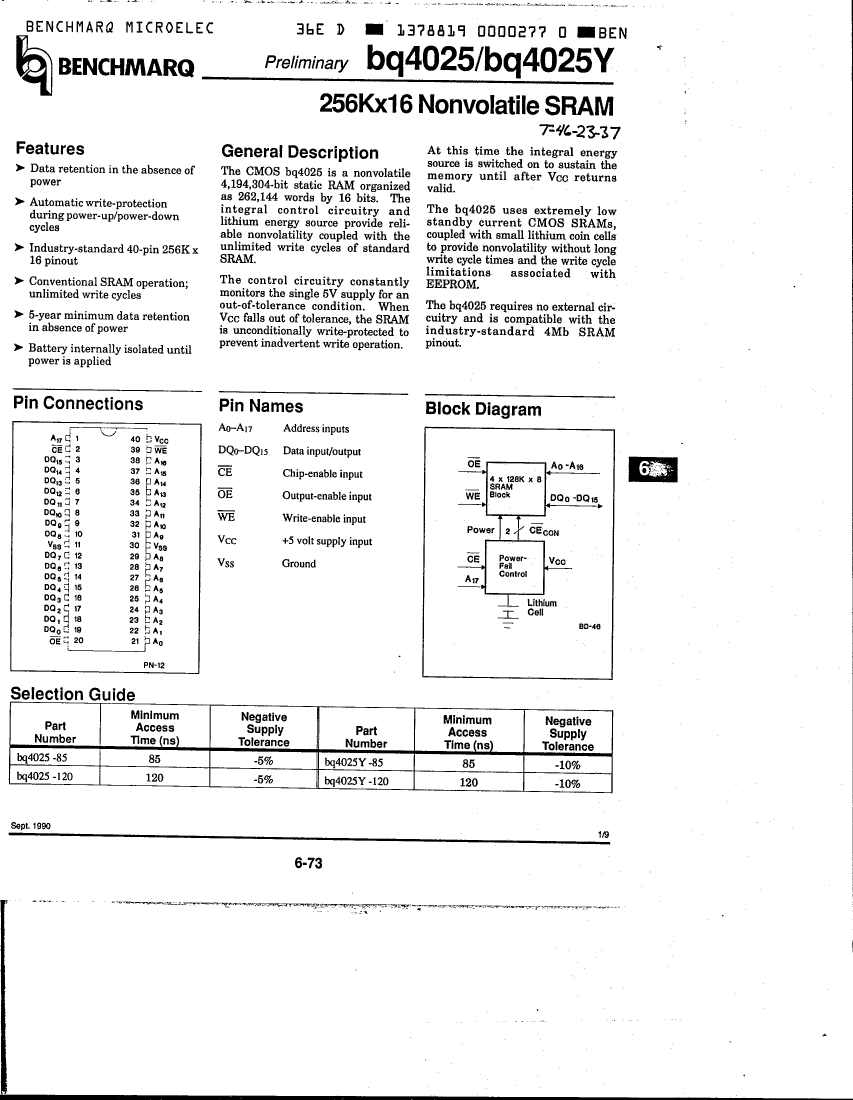

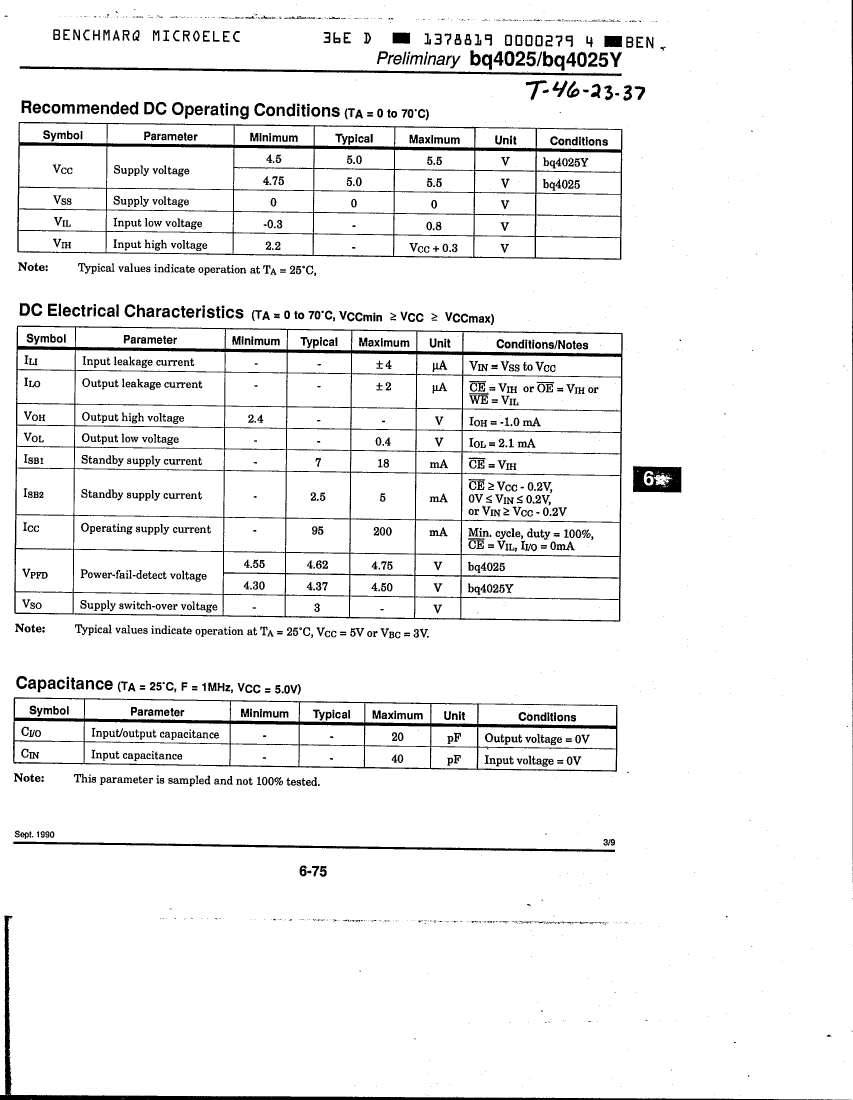

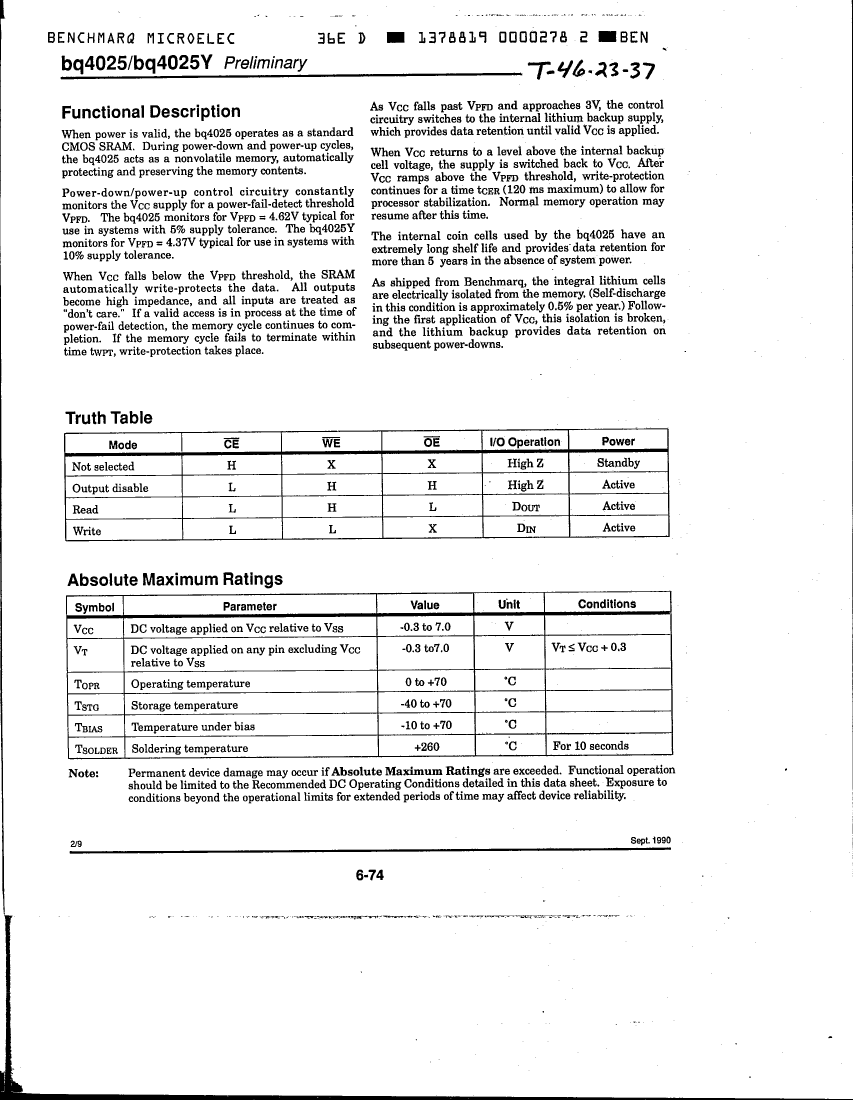

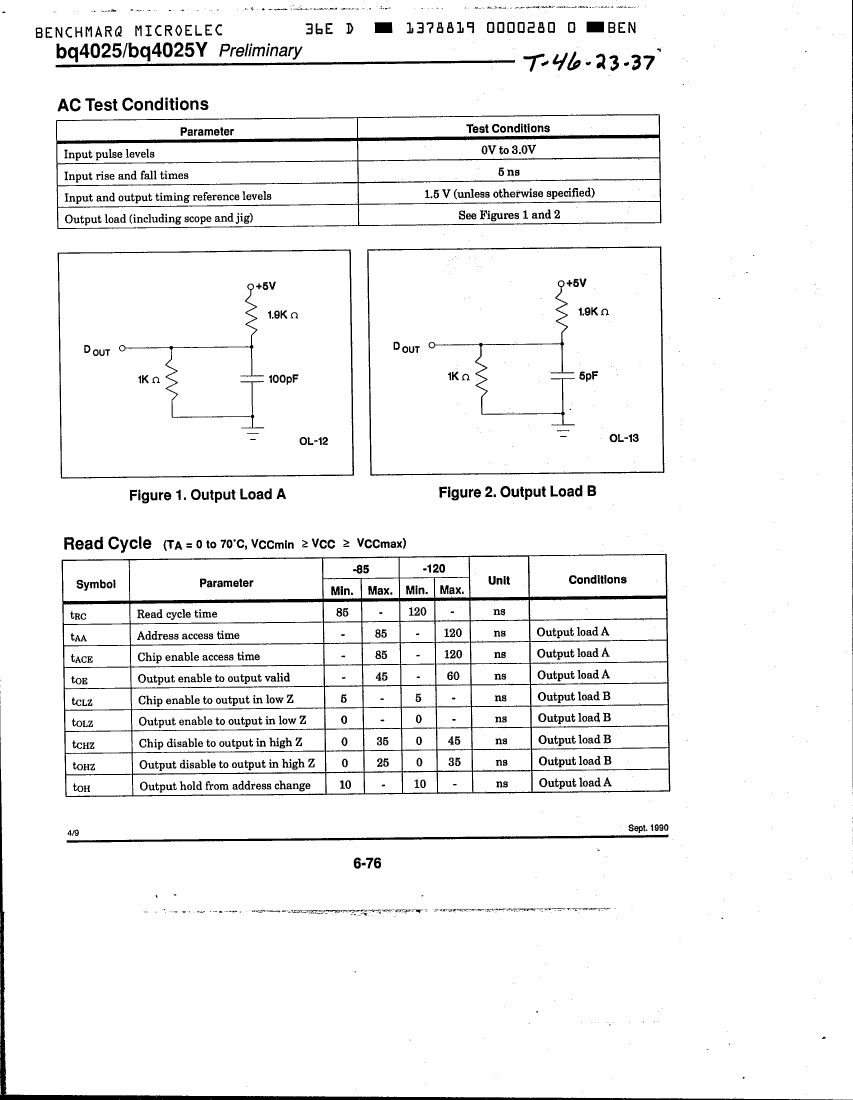

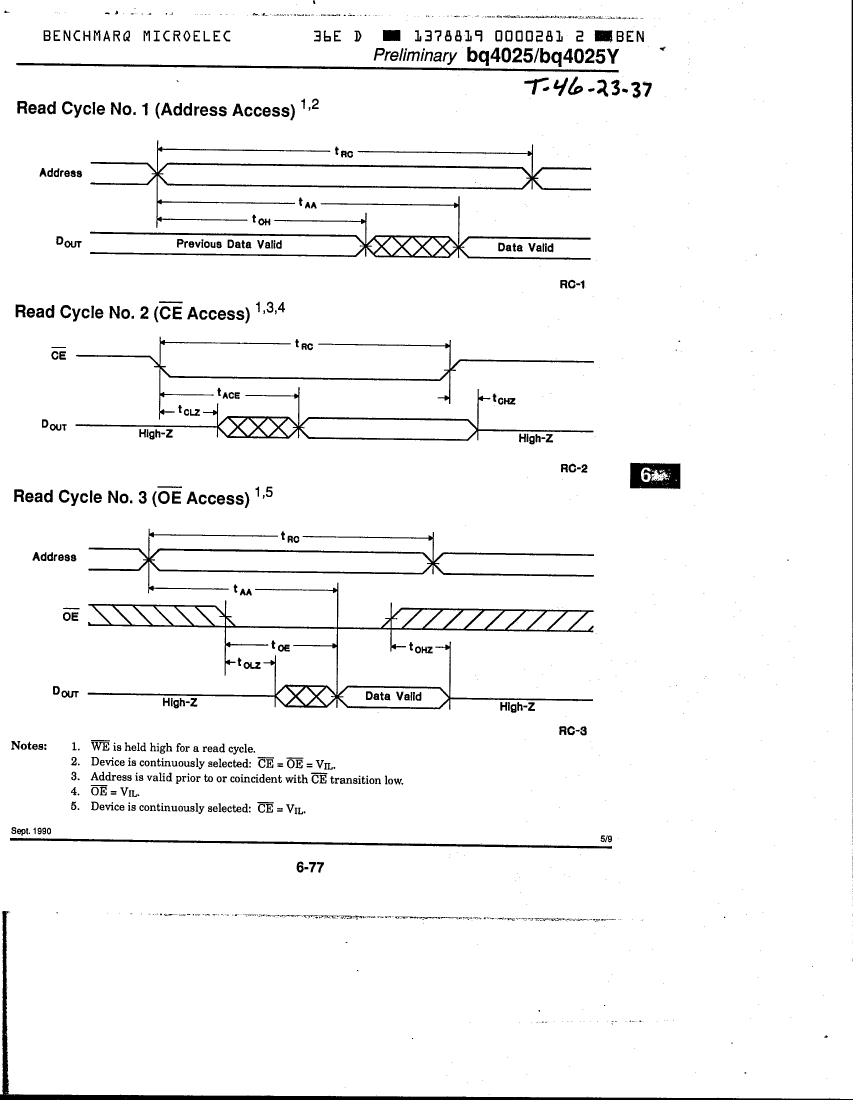

BQ4025MB-120: DescriptionNon-Volatile SRAM, 256KX16, 120ns, CMOS,; Categorystorage storage; File Size597KB，9 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

BQ4025MB-120 Overview

Non-Volatile SRAM, 256KX16, 120ns, CMOS,

BQ4025MB-120 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Maximum access time	120 ns
Other features	POWER SUPPLY WRITE PROTECTION
JESD-30 code	R-XDMA-T40
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	NON-VOLATILE SRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.005 A
Maximum slew rate	0.2 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

BQ4025MB-120 Related Products

	BQ4025MB-120	BQ4025YMB-85	BQ4025MB-85	BQ4025YMB-120
Description	Non-Volatile SRAM, 256KX16, 120ns, CMOS,	Non-Volatile SRAM, 256KX16, 85ns, CMOS,	Non-Volatile SRAM, 256KX16, 85ns, CMOS,	Non-Volatile SRAM, 256KX16, 120ns, CMOS,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	120 ns	85 ns	85 ns	120 ns
Other features	POWER SUPPLY WRITE PROTECTION	POWER SUPPLY WRITE PROTECTION	POWER SUPPLY WRITE PROTECTION	POWER SUPPLY WRITE PROTECTION
JESD-30 code	R-XDMA-T40	R-XDMA-T40	R-XDMA-T40	R-XDMA-T40
JESD-609 code	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM
memory width	16	16	16	16
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16	256KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.005 A	0.005 A	0.005 A	0.005 A
Maximum slew rate	0.2 mA	0.2 mA	0.2 mA	0.2 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.75 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	-	Benchmarq Microelectronics Inc	Benchmarq Microelectronics Inc	Benchmarq Microelectronics Inc
