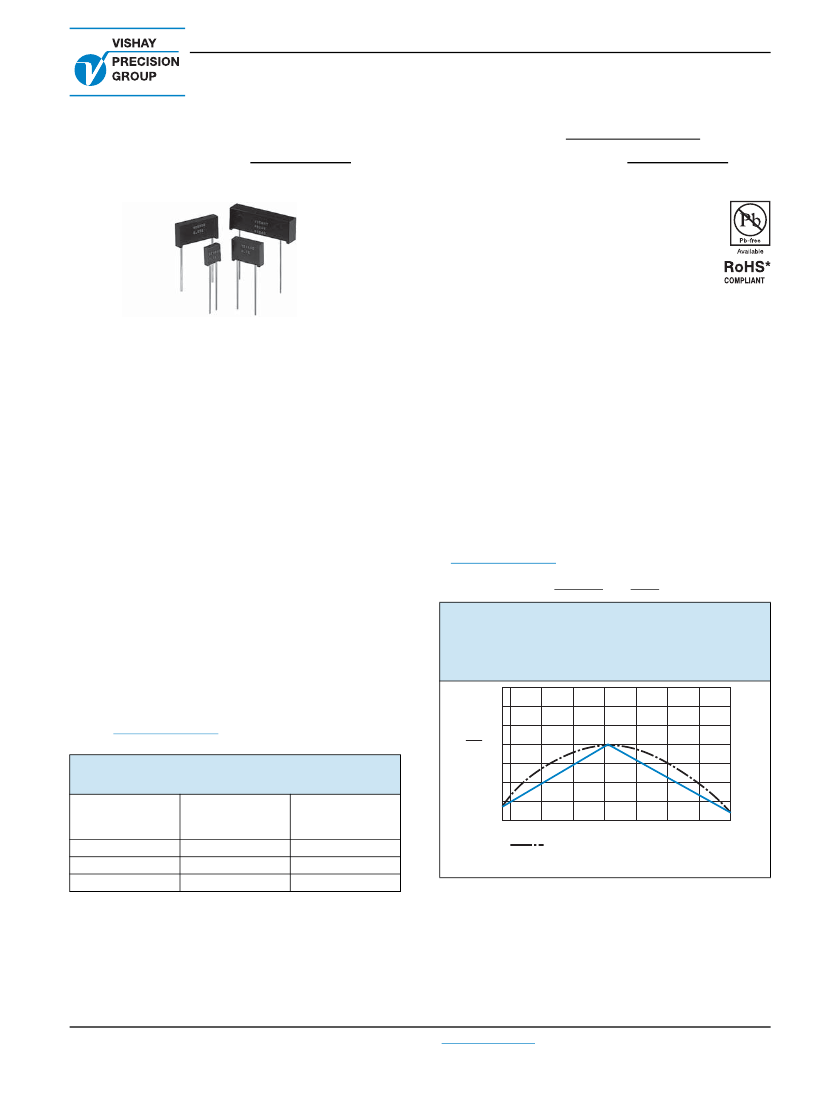

RCK Series
Vishay Foil Resistors
High Precision Foil Resistor with TCR of ± 2.0 ppm/°C,
Tolerance of ± 0.005 % and Load Life Stability of ± 0.005 %
FEATURES
•
Temperature coefficient of resistance (TCR):
- 55 °C to + 125 °C, 25 °C ref.
- RCK0X series: ± 2 ppm/°C typical (see table 1)
•
Power rating: to 1 W at + 125 °C
•
Resistance tolerance: to ± 0.005 % (50 ppm)
•
Load life stability: ± 0.005 % at 70 °C, 2000 h at
rated power
•
Resistance range: 0.5
Ω
to 1 MΩ (for higher or lower
values, please contact Application Engineering)
•
Vishay Foil resistors are not restricted to standard values;
specific “as required” values can be supplied at no extra
cost or delivery (e.g. 1K2345 vs. 1K)
•
Electrostatic discharge (ESD) at least to 25 kV
•
Non inductive, non capacitive design
•
Rise time: 1 ns effectively no ringing
•
Current noise: 0.010 µV
RMS
/V of applied voltage (< - 40 dB)
•
Thermal EMF: 0.05 µV/°C
•
Voltage coefficient: < 0.1 ppm/V
•
Low inductance: < 0.08 µH
•
Non hot-spot design
•
Terminal finishes available: lead (Pb)-free, tin/lead alloy
•
Matched sets are available on request
(TCR tracking: to 0.5 ppm/°C)
•
Prototype quantities available in just 5 working days
or sooner. For more information, please contact
foil@vishaypg.com
•
For better TCR performances please review the
datasheets for the
Z Series
and
Z203
INTRODUCTION
Bulk Metal
®
Foil (BMF) technology outperforms all other
resistor technologies available today for applications that
require high precision and high stability.
This technology has been pioneered and developed by
Vishay Foil Resistors (VFR), and products based on this
technology are the most suitable for a wide range of
applications. BMF technology allows the production of
customer-oriented products, designed to satisfy specific
challenging technical requirements.
The RCK series of BMF resistors offers low TCR, excellent
load life stability, tight tolerance, fast response time, low
current noise, low thermal EMF and low voltage coefficient,
all in one resistor.
The RCK series is virtually insensitive to destabillizing
factors. The resistor element is a solid alloy that displays the
desirable bulk properties of its parent material, thus it is
inherently stable and noise free. The standard design of
these resistors provides a unique combination of
characteristics found in no other single resistor.
VFR's application engineering department is available to
advise and to make recommendations. For non-standard
technical requirements and special applications, please
contact
foil@vishaypg.com.
FIGURE 1 - TYPICAL RESISTANCE CHANGE
VERSUS TEMPERATURE CURVES AND
CHORD SLOPES (TCR) OF TWO ALLOYS
IN MILITARY RANGE
+ 150
+ 100
Δ
R
+ 50
TABLE 1 - RESISTANCE VERSUS TCR
(- 55 °C to + 125 °C, + 25 °C ref.)
RESISTOR
(1)
RCK0X
RCK0X
RCK0X
(1)
0
R
(ppm)
- 50
- 100
- 150
- 200
- 50
- 55
RESISTANCE
VALUE (Ω)
80 to < 1M
50 to < 80
0.5 to < 50
TYPICAL TCR AND
MAX SPREAD
(ppm/°C)
± 2 ± 2.5
± 2 ± 3.5
± 2 ± 4.5
+2 ppm/
°
C
–2 ppm/
°
C
- 25
0
+ 25
+ 50
+ 75
+ 100
+ 125
C Alloy
2 ppm/
°
C
Temperature (°C)
X
refers to RCK Series model number - see Table 2
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 63214
Revision: 13-Jun-11
For any questions, contact:
foil@vishaypg.com
www.vishayfoilresistors.com
1
RCK Series
Vishay Foil Resistors
FIGURE 2 - STANDARD IMPRINTING AND DIMENSIONS
Front View
L
VFR
XXXX
RCK02
Date Code
01
10
Year Week
ST
1)
W
Rear View
Optional Customer Part Number
Print specification, etc. if required
XXXXXX
100R01
0.01 %
Resistance
Value Code
Tolerance
H
Model Number
LS
SW
Lead Material #22 AWG
Round Solder Coated Copper
(Pb - free coating available)
LL
Note
1. Standoffs provided to allow proper flushing of flux, debris, and contaminates from under resistor after all solder operations.
2. The standoffs shall be so located as to give a lead clearance of 0.010" minimum between the resistor body and the printed circuit board
when the standoffs are seated on the printed circuit board.
TABLE 2 - MODEL SELECTION
MODEL
NUMBER
RESISTANCE
RANGE
(Ω)
MAXIMUM
WORKING
VOLTAGE
AMBIENT
POWER RATING
at
+ 70 °C
at
+ 125 °C
AVERAGE
WEIGHT IN
GRAMS
DIMENSIONS
INCHES
W: 0.0984 max.
L: 0.300 ± 0.010
H: 0.326 ± 0.010
ST: 0.010 min.
SW: 0.040 ± 0.010
LL: 1.000 ± 0.125
LS: 0.150 ± 0.0054
(1)
W: 0.138 max.
L: 0.575 max.
H: 0.413 max.
ST: 0.035 ± 0.005
SW: 0.050 ± 0.005
LL: 1.000 ± 0.125
LS: 0.400 ± 0.020
W: 0.160 max.
L: 0.820 max.
H: 0.413 max.
ST: 0.035 ± 0.005
SW: 0.050 ± 0.005
LL: 1.000 ± 0.125
LS: 0.650 ± 0.020
W: 0.138 max.
L: 0.890 max.
H: 0.413 max.
ST: 0.035 ± 0.005
SW: 0.050 ± 0.005
LL: 1.000 ± 0.125
LS: 0.7 ± 0.05
W: 0.260 max.
L: 1.200 max.
H: 0.413 max.
ST: 0.035 ± 0.005
SW: 0.050 ± 0.005
LL: 1.000 ± 0.125
LS: 0.900 ± 0.020
mm
2.5 max.
7.62 ± 0.25
8.28 ± 0.25
0.254 min.
1.02 ± 0.13
25.4 ± 3.18
3.81 ± 0.13
3.50 max.
14.61 max.
10.49 max.
0.889 ± 0.13
1.27 ± 0.13
25.4 ± 3.18
10.16 ± 0.51
4.06 max.
20.83 max.
10.49 max.
0.889 ± 0.13
1.27 ± 0.13
25.4 ± 3.18
16.51 ± 0.51
3.505 max.
22.606 max.
10.49 max.
0.889 ± 0.13
1.27 ± 0.13
25.4 ± 3.18
17.78 ± 1.27
6.60 max.
30.48 max.
10.49 max.
0.889 ± 0.13
1.27 ± 0.13
25.4 ± 3.18
22.86 ± 0.51
TIGHTEST
TOLERANCE
VS. LOWEST
RESISTANCE
VALUE
RCK02A
(RCK02)
(1)
1 to 150K
300
0.6 W
0.3 W
up to 100K
0.4 W
0.2 W
over 100K
1.0 W
0.5 W
up to 200K
0.6 W
0.3 W
over 200K
1.5 W
0.75 W
up to 300K
0.8 W
0.4 W
over 300K
1.5 W
0.75 W
up to 300K
0.8 W
0.4 W
over 300K
2.0 W
1.0 W
up to 400K
1.0 W
0.5 W
over 400K
0.6
RCK04
1 to 500K
350
1.4
RCK05A
1 to 750K
350
1.9
0.005 %/50
Ω
0.01 %/25
Ω
0.02 %/12
Ω
0.05 %/5
Ω
0.1 %/2
Ω
0.50 %/1
Ω
1 %/0.5
Ω
RCK05
1 to 750K
350
1.9
RCK06
0.5 to 1M
500
4.0
Notes
(1)
For RCK02, L.S. = 5.08 mm (0.200 " inches).
www.vishayfoilresistors.com
2
For any questions, contact:
foil@vishaypg.com
Document Number: 63214
Revision: 13-Jun-11
RCK Series
Vishay Foil Resistors
FIGURE 3 - POWER DERATING CURVE
Percent of Rated Power at + 125 °C
200 %
175 %
150 %
125 %
100 %
75 %
50 %
25 %
0%
- 75 - 50 - 25
0
25
50
75
100 125 150 175 200
- 55 °C
+ 70 °C
FIGURE 4 - TRIMMING TO VALUES
(conceptual illustration)
Double Rated Power
Interloop Capacitance
Reduction in Series
Current Path
Before Trimming
Current Path
After Trimming
Trimming Process
Removes this Material
from Shorting Strip Area
Changing Current Path
and Increasing
Resistance
Rated Power
Mutual Inductance
Reduction due
to Change in
Current Direction
Ambient Temperature (°C)
Note:
Foil shown in black, etched spaces in white
TABLE 3 - ENVIRONMENTAL PERFORMANCE COMPARISON
MIL-PRF-55182
CHAR J
Test Group I
Thermal shock, 5 x (- 65 °C to + 150 °C)
Short time overload, 6.25 x rated power
Test Group II
Resistance temperature characteristics
(1)
Low temperature storage (24 h at - 65 °C)
Low temperature operation
(45 min, rated power at - 65 °C)
Terminal strength
Test Group III
Dielectric Withstanding Voltage (DWV)
Resistance to solder heat
Moisture resistance
Test Group IV
Shock
Vibration
Test Group V
Life test at 0.3 W/+ 125 °C
2000 h
10 000 h
Test Group Va
Life test at 0.6 W (2 x rated power)/+ 70 °C, 2000 h
Test Group VI
High temperature exposure (2000 h at + 175 °C)
Test Group VII
Voltage coefficient
(1)
RCK-SERIES
MAXIMUM
ΔR
RCK-SERIES
TYPICAL
ΔR
± 0.2 %
± 0.2 %
± 0.01 % (100 ppm)
± 0.01 % (100 ppm)
± 0.002 % (20 ppm)
± 0.003 % (30 ppm)
± 25 ppm/°C
± 0.15 %
± 0.15 %
± 0.2 %
± 6.5 ppm/°C
± 0.01 % (100 ppm)
± 0.01 % (100 ppm)
± 0.01 % (100 ppm)
± 2.0 ppm/°C
± 0.002 % (20 ppm)
± 0.002 % (20 ppm)
± 0.002 % (20 ppm)
± 0.15 %
± 0.1 %
± 0.4 %
± 0.01 % (100 ppm)
± 0.01 % (100 ppm)
± 0.05 % (500 ppm)
± 0.002 % (20 ppm)
± 0.005 % (50 ppm)
± 0.01 % (100 ppm)
± 0.2 %
± 0.2 %
± 0.01 % (100 ppm)
± 0.01 % (100 ppm)
± 0.002 % (20 ppm)
± 0.002 % (20 ppm)
± 0.5 %
± 2.0 %
± 0.015 % (150 ppm)
± 0.05 % (500 ppm)
± 0.01 % (100 ppm)
± 0.03 % (300 ppm)
± 0.5 %
± 0.015 % (150 ppm)
± 0.01 % (100 ppm)
± 2.0 %
± 0.1 % (1000 ppm)
± 0.05 % (500 ppm)
5 ppm/V
< 0.1 ppm/V
< 0.1 ppm/V
See Table 1.
Document Number: 63214
Revision: 13-Jun-11
For any questions, contact:
foil@vishaypg.com
www.vishayfoilresistors.com
3
RCK Series
Vishay Foil Resistors

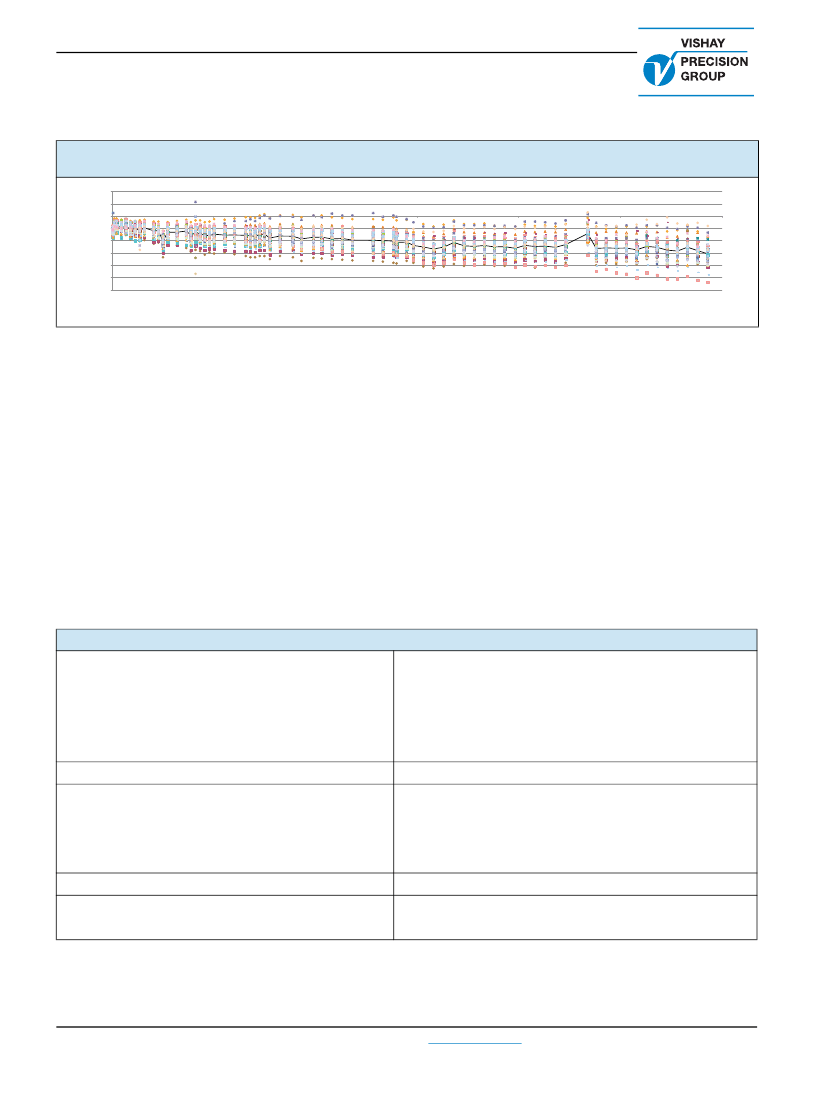

FIGURE 5 - LONG-TERM STABILITY OVER 29 YEARS
(0.1W AT 70°C, 50 SAMPLES RCK02, 10KΩ)
40
20
0
-20
-40
-60
-80
ΔR/R (ppm)
-100
-120
0
5
10
15
20
25
30
Time (Years)
STANDARD OPERATIONS AND TEST
CONDITIONS
A. Standard Test Operations:
By 100 % Inspection
•
•
Short-time overload (6.25 x rated power for 5 s)
Resistance - tolerance check
IMPROVED PERFORMANCE TESTING (IPT)
The preceding information is based on product directly off
the production line. Improved performance (meaning
increased time stability with load and other stresses) is
available through factory conducted “Improved Performance
Testing”. The test routine is usually tailored to the user’s
stability objectives and IPT-processed resistors can exhibit
improved load-life stability levels of less than 50 ppm.
Various screen test routines are available and all anticipated
stresses must be taken into account before settling on one
specific test routine. VFR's application engineering
department is prepared to discuss and recommend
appropriate routines given the full spectrum of anticipated
stresses and stability requirements.
•
Visual and mechanical
By Sample Inspection
•
•
TCR
Environmental tests per table 3 on a quarterly basis to
establish performance by similarity
B. Standard Test Conditions:
•
•
•
Lead test point: 0.5" (12.7 mm) from resistor body
Temperature: + 23 °C ± 2 °C
Relative humidity: per MIL-STD-202
TABLE 4 - “RCK” SERIES SPECIFICATIONS
Stability
(1)
Load life at 2000 h
± 0.015 % (150 ppm)
± 0.005 % (50 ppm)
Load life at 10 000 h
± 0.05 % (500 ppm)
± 0.01 % (100 ppm)
Current Noise
High Frequency Operation
Rise time
Inductance (L)
(2)
Capacitance (C)
Voltage Coefficient
Thermal Electromotive Force (EMF)
(4)
1.0 ns at 1 kΩ
0.1 µH maximum; 0.08 µH typical
1.0 pF maximum; 0.5 pF typical
< 0.1 ppm/V
(3)
0.1 µV/°C Maximum; 0.05 µV/°C typical
1 µV/W
(Model RCK02)
Maximum
ΔR
at 0.3 W/+ 125 °C
Maximum
ΔR
at 0.1 W/+ 70 °C
Maximum
ΔR
at 0.3 W/+ 125 °C
Maximum
ΔR
at 0.05 W/+ 125 °C
0.010 µV (RMS)/V of applied voltage (- 40 dB)
(1)
(2)
(3)
(4)
Notes
Load life
ΔR
maximum can be reduced by 80 %, please contact applications engineering department.
Inductance (L) due mainly to the leads.
The resolution limit of existing test equipment (within the measurement capability of the equipment, or “essentially zero”.)
µV/°C relates to EMF due to lead temperature difference and µV/watt due to power applied to the resistor.
For any questions, contact:
foil@vishaypg.com
Document Number: 63214
Revision: 13-Jun-11
www.vishayfoilresistors.com
4
RCK Series
Vishay Foil Resistors
TABLE 5 - GLOBAL PART NUMBER INFORMATION
(1)
NEW GLOBAL PART NUMBER: Y079380K5000V9L (preferred part number format)
DENOTES PRECISION
Y
VALUE
R
=
Ω
K
= kΩ
M
= MΩ
CHARACTERISTICS
0
= standard
9
= lead (Pb)-free
1 to 999
= custom
Y
0
7
9
3
8
0
K
5
0
0
0
V
9
L
PRODUCT CODE
0793
= RCK02
4793
= RCK02A
0771
= RCK04
0772
= RCK05
4772
= RCK05A
0773
= RCK06
TYPE: RCK02
VALUE: 80.5 kΩ
ABSOLUTE TOLERANCE: ± 0.005 %
TERMINATION: lead (Pb)-free
PACKAGING: bulk pack
RESISTANCE TOLERANCE
V
= ± 0.005 %
T
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
PACKAGING
L
= bulk pack
FOR EXAMPLE: ABOVE GLOBAL ORDER Y0793 80K5000 V 9 L:
HISTORICAL PART NUMBER: RCK02 T 80K500 V B (will continue to be used)
RCK02
MODEL
RCK02
RCK02A
RCK04
RCK05
RCK05A
RCK06
Note
(1)
T
TERMINATION
T
= lead (Pb)-free
None = tin/lead alloy
80K500
RESISTANCE VALUE
250R00
= 250.00
Ω
5K2310
= 5.231 kΩ
1M000
= 1 MΩ
V
TOLERANCE
V
= ± 0.005 %
T
= ± 0.01 %
Q
= ± 0.02 %
A
= ± 0.05 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
B
PACKAGING
B
= bulk pack
For non-standard requests, please contact application engineering.
Document Number: 63214
Revision: 13-Jun-11
For any questions, contact:
foil@vishaypg.com
www.vishayfoilresistors.com
5
京公网安备 11010802033920号
EEWORLD
